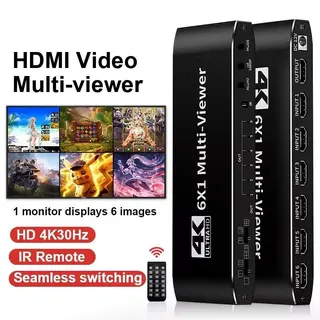

LUOM OZJQF2 6x1 HDMI Quad Multiviewer 4K 30Hz IR Remote
Combines six HDMI sources on one display with eight split-screen modes and seamless switching at 4K 30Hz
- Type6X1 HDMI Video Wall Controller
- ColorBlack
- Ports6
- SpecificationsSupport HDMl resolution:24/ 50/ 60fs/ 4K30Hz/ 1080P/ 1080i/
- Input Connector1 x HDMI
- Output Connector6 x HDMI
- View six HDMI sources simultaneously on one display
- Switch between inputs instantly with seamless full-screen transitions
- Choose from eight layout modes including quad and six-screen splits
- Connect streaming players, consoles and cameras with broad HDMI compatibility
- Control the unit from a distance using the included IR remote
Six-Input HDMI Multiviewer
The LUOM OZJQF2 accepts six HDMI sources and combines them on a single display. It is built for security operators, presenters and multi-console gamers who need simultaneous visibility without a video wall. The unit handles 4K at 30 Hz and lower resolutions down to 480i. It is not for installations that require 4K 60 Hz output or HDCP 2.2 compliance.
Passive Cooling and Low Power
The aluminium enclosure runs without fans, so operation is silent in meeting rooms or home offices. A 5 V 2.1 A adapter supplies all power, drawing minimal current from a standard outlet. No thermal throttling or audible noise occurs during continuous multi-source switching. The compact 5.91 x 2.36 x 0.79 inch footprint fits tight rack or desk spaces.
IR Remote and Display Modes
The included infrared remote lets users cycle through eight split-screen layouts — full, dual, triple, quad, five and six window arrangements — without leaving their seat. Front-panel buttons provide the same control if line-of-sight is blocked. A printed manual explains each mode; no software or drivers are required. The remote ships without batteries.
Highlights
- View six HDMI sources simultaneously on one display
- Switch between inputs instantly with seamless full-screen transitions
- Choose from eight layout modes including quad and six-screen splits
- Connect streaming players, consoles and cameras with broad HDMI compatibility
- Control the unit from a distance using the included IR remote
Specifications
| Brand | LUOM |
|---|---|
| Series | OZJQF2 |
| Model | OZJQF2 |
| Part Number | OZJQF2 |
| Type | 6X1 HDMI Video Wall Controller |
| Color | Black |
| Ports | 6 |
| Specifications | Support HDMl resolution:24/ 50/ 60fs/ 4K30Hz/ 1080P/ 1080i/ 720p/ 576p/ 576i/ 480p/ 480i. Support video color format:24bit/ 30bit/ 36bit. Support audio input format:DTS-HD/ Dolby-realHD/ Dolby-AC3/ DSD. Support audio output format: LPCM,PCM2. Max bandwidth:330Mhz. Max bandrate: 10.2Gbps. Input/Output TMDS signal:0.5~1.5V p-p(TTL). Input/Output DDc signal: 5Volts p-p(TTL). Input cable distance: =15mAWG24 HDM standard cable. Output cable distance: =24mAWG24 HDMl standard cable. Max working current: 12V/0.6A. |
| Input Connector | 1 x HDMI |
| Output Connector | 6 x HDMI |
| Features | Multiple screen split modes: This HDMI multi-function viewer can display the screens of 6 HDMI input devices on a single output screen, including full screen, dual screen, triple screen, quad screen, penta screen and hexa screen modes. It supports 8 different screen split modes, which can be selected according to your different needs Seamless switching: The device supports seamless switching of 6 devices in front of the display, allowing smooth and instant switching between 6 HDMI input sources without waiting time during the switching process. This is especially useful when using de |
| Dimensions | 5.91 x 2.36 x 0.79 inches |
| Weight | 11.9 ounces |
| Package Quantity | 1 |
| Package Contents | 6x1 HDMI video wall controller * 1; Remote Control (without battery) * 1; 5V/2.1A Power Adapter * 1; User Manual * 1 |
Questions about this item
How do I connect the LUOM OZJQF2 6x1 HDMI Quad Multiviewer to my display and sources?
Connect each source to one of the six HDMI inputs, connect the single HDMI output to your display, plug in the included 5V/2.1A power adapter, then use the front button or IR remote to select a layout.
What ongoing maintenance does the LUOM OZJQF2 6x1 HDMI Quad Multiviewer require?
The IR remote ships without a battery; you must supply a suitable coin cell and replace it when range drops. The unit itself has no user-serviceable parts and needs no scheduled maintenance.
What is the first limitation I will hit when running the LUOM OZJQF2 6x1 HDMI Quad Multiviewer continuously?
The output is capped at 4K 30 Hz, so any source above 30 Hz at 4K will be down-sampled, and the HDCP 1.4 implementation may block protected 4K streams that require HDCP 2.2.
