Black rectangular HDMI multiviewer switch with six input ports and one output port

LUOM

LUOM OZJQF2 6x1 HDMI Multiviewer Switch 4K30Hz 8 Modes Black

SKU CH-KH1C-Z5DAX

Displays six HDMI sources on one screen with eight split modes up to 4K30Hz

  • Type6X1 HDMI Video Wall Controller
  • ColorBlack
  • Ports6
  • SpecificationsSupport HDMl resolution:24/ 50/ 60fs/ 4K30Hz/ 1080P/ 1080i/
  • Input Connector1 x HDMI
  • Output Connector6 x HDMI

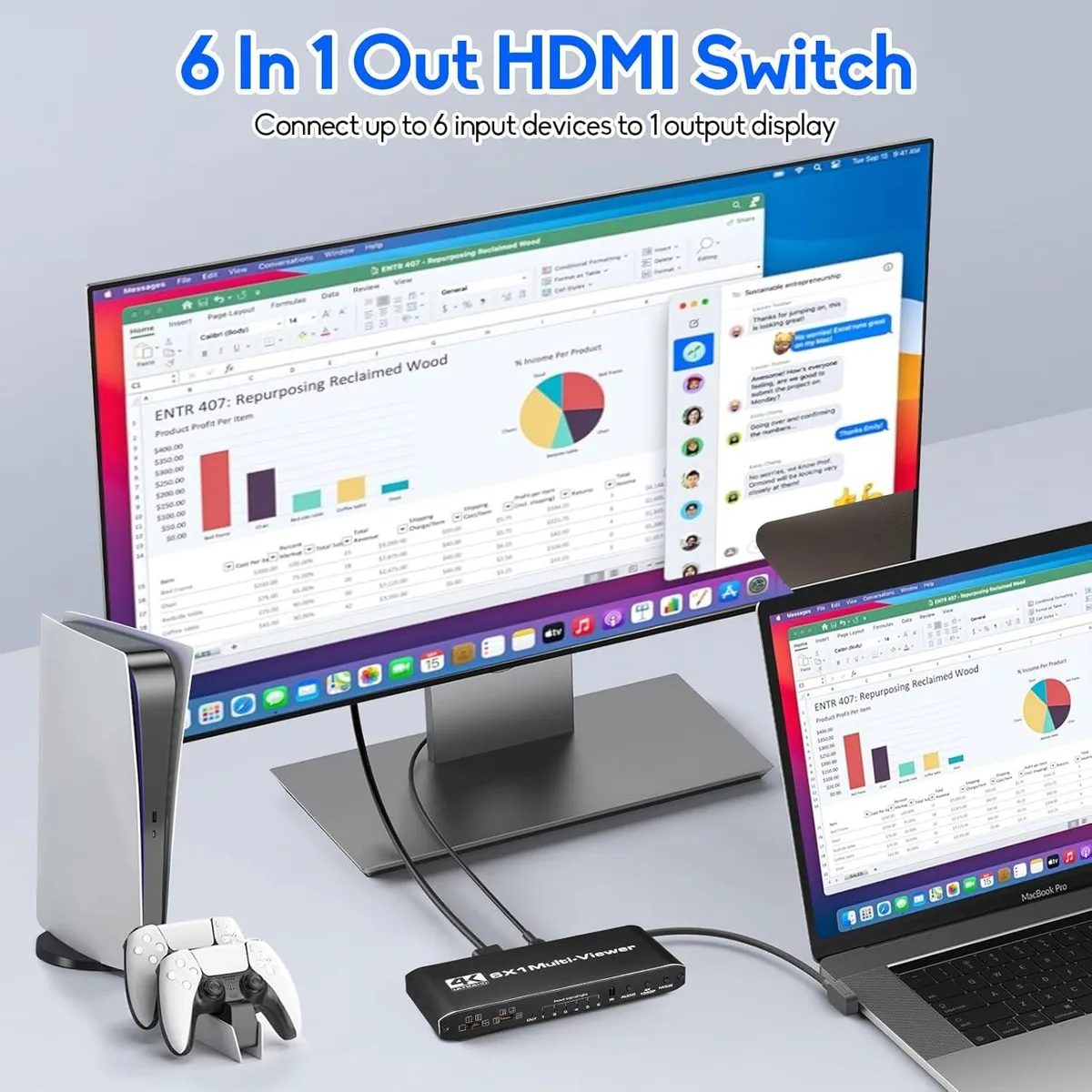

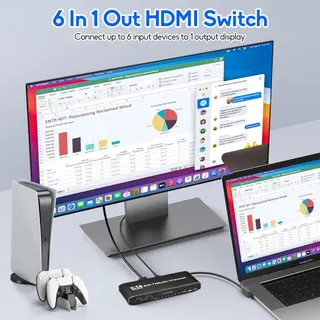

  • Six inputs shown on one screen simultaneously
  • 4K 30 Hz output with 1080p 60 Hz support

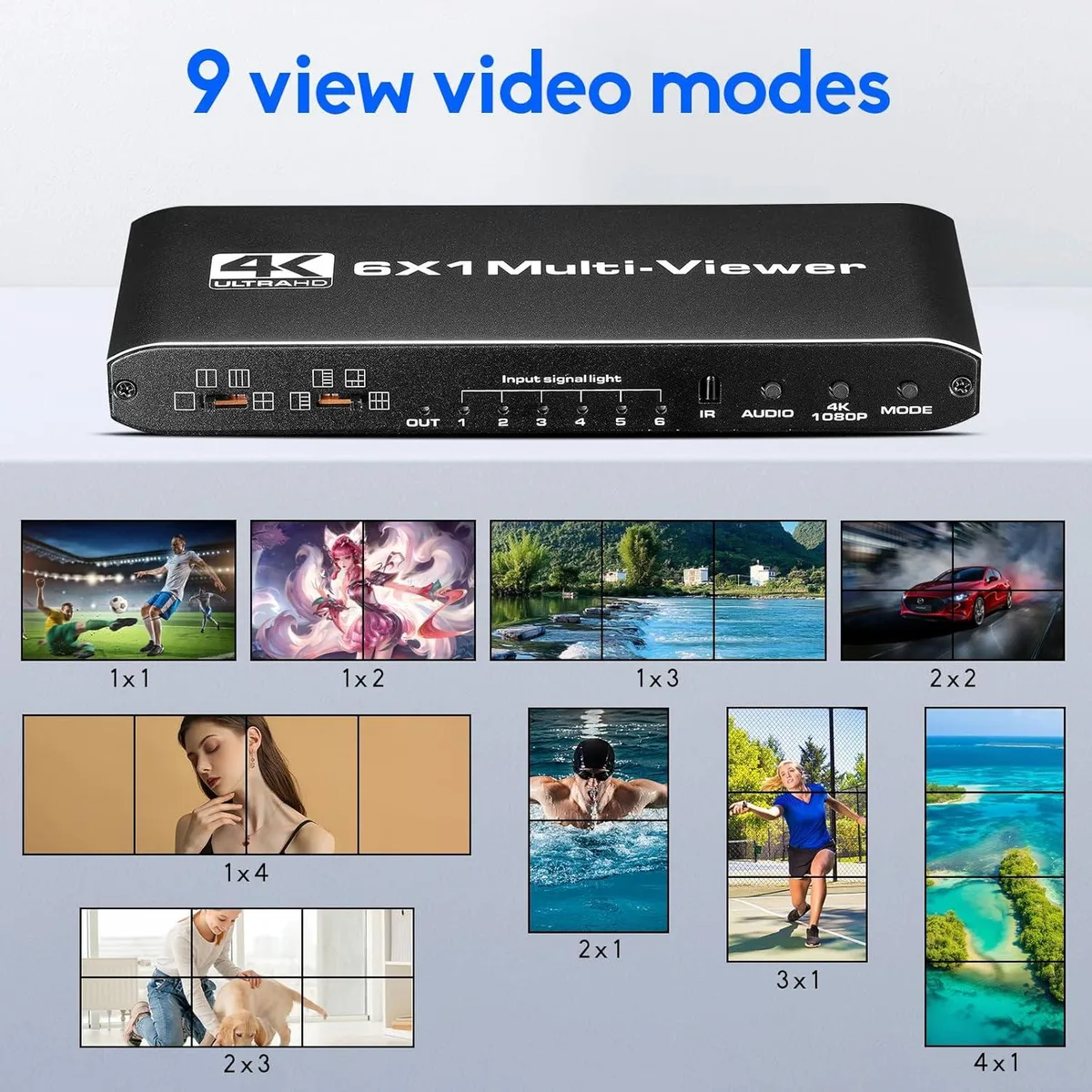

  • Eight split-screen layouts from full to six-view
  • Seamless full-screen switching between any source
  • IR remote and front button control included

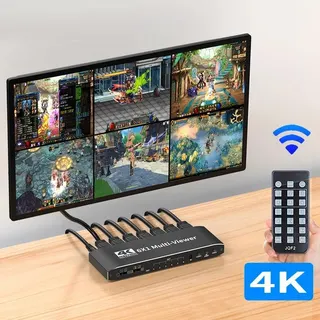

Multiviewer for six HDMI sources

The LUOM OZJQF2 is a 6×1 HDMI multiviewer that combines six input signals onto a single display. It is built for control rooms, meeting halls and multi-camera streaming setups where simultaneous monitoring matters more than single-source switching. Operators can view full-screen, dual, triple, quad, penta or six-screen layouts without external processing hardware. The unit suits installers who need a compact, rack-friendly device that reduces cable count and desk clutter.

Metal chassis with front buttons and IR remote

A black metal enclosure measures 5.91 × 2.36 × 0.79 inches and weighs 11.9 ounces, so it sits securely on a shelf or in a shallow rack tray. Six HDMI inputs and one HDMI output are arranged along the rear edge for clean cable routing. Front-panel tactile buttons give immediate local control, while the supplied IR remote lets an operator switch layouts from across the room. A 5 V 2.1 A power adapter is included, eliminating the need for a separate power brick hunt during deployment.

Passive cooling keeps operation silent

The aluminium body acts as a heatsink, so the switch runs without fans and adds no audible noise to quiet studio or boardroom environments. Power draw stays low enough that the bundled 5 V 2.1 A supply covers all six active 4K30 Hz inputs plus the output without external voltage drops. HDCP 1.3 and 1.4 compliance ensures protected content from Blu-ray players, consoles or streaming boxes passes through without handshake failures during layout changes.

Highlights

  • Six inputs shown on one screen simultaneously
  • 4K 30 Hz output with 1080p 60 Hz support
  • Eight split-screen layouts from full to six-view
  • Seamless full-screen switching between any source
  • IR remote and front button control included

Specifications

BrandLUOM
SeriesOZJQF2
ModelOZJQF2
Part NumberOZJQF2
Type6X1 HDMI Video Wall Controller
ColorBlack
Ports6
SpecificationsSupport HDMl resolution:24/ 50/ 60fs/ 4K30Hz/ 1080P/ 1080i/ 720p/ 576p/ 576i/ 480p/ 480i.
Support video color format:24bit/ 30bit/ 36bit.
Support audio input format:DTS-HD/ Dolby-realHD/ Dolby-AC3/ DSD.
Support audio output format: LPCM,PCM2.
Max bandwidth:330Mhz.
Max bandrate: 10.2Gbps.
Input/Output TMDS signal:0.5~1.5V p-p(TTL).
Input/Output DDc signal: 5Volts p-p(TTL).
Input cable distance: =15mAWG24 HDM standard cable.
Output cable distance: =24mAWG24 HDMl standard cable.
Max working current: 12V/0.6A.
Input Connector1 x HDMI
Output Connector6 x HDMI
FeaturesMultiple screen split modes: This HDMI multi-function viewer can display the screens of 6 HDMI input devices on a single output screen, including full screen, dual screen, triple screen, quad screen, penta screen and hexa screen modes. It supports 8 different screen split modes, which can be selected according to your different needs
Seamless switching: The device supports seamless switching of 6 devices in front of the display, allowing smooth and instant switching between 6 HDMI input sources without waiting time during the switching process. This is especially useful when using de
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents6x1 HDMI video wall controller * 1; Remote Control (without battery) * 1; 5V/2.1A Power Adapter * 1; User Manual * 1

Questions about this item

What HDMI standard and refresh rate does the LUOM OZJQF2 support for 4K output?

The LUOM OZJQF2 supports 4Kx2K resolution at 30Hz via HDMI, and 1080p at 60Hz. It is compatible with HDCP 1.4 and HDCP 1.3 for protected content playback.

What are the physical dimensions and weight of the LUOM OZJQF2 unit?

The unit measures 5.91 x 2.36 x 0.79 inches and weighs 11.9 ounces. It requires a 5V/2.1A power adapter, included in the package, for operation.

How do I set up the LUOM OZJQF2 and which step is commonly missed?

Connect up to six HDMI sources to the input ports, one display to the output, and attach the 5V/2.1A power adapter. The step often missed is powering the unit before switching sources; the remote requires a separate battery (not included).
