Black rectangular HDMI multiviewer switch with six input ports and one output port

LUOM

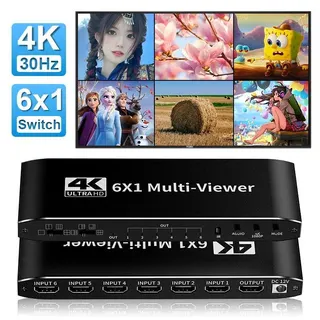

LUOM OZJQF2 6x1 HDMI Multiviewer Switch 4K 30Hz

SKU CH-4B07-H8DYD

Shows six HDMI sources on one screen with eight split layouts and seamless full-screen switching at 4K 30 Hz

  • Type6X1 HDMI Video Wall Controller
  • ColorBlack
  • Ports6
  • SpecificationsSupport HDMl resolution:24/ 50/ 60fs/ 4K30Hz/ 1080P/ 1080i/
  • Input Connector1 x HDMI
  • Output Connector6 x HDMI
  • View six sources on one screen with eight split modes
  • Switch instantly between inputs in full-screen mode with seamless switching
  • Output up to 4K at 30 Hz and 1080p at 60 Hz
  • Connect consoles, cameras or players via six HDMI inputs
  • Control the unit from a distance with the included IR remote

6×1 HDMI Multiviewer

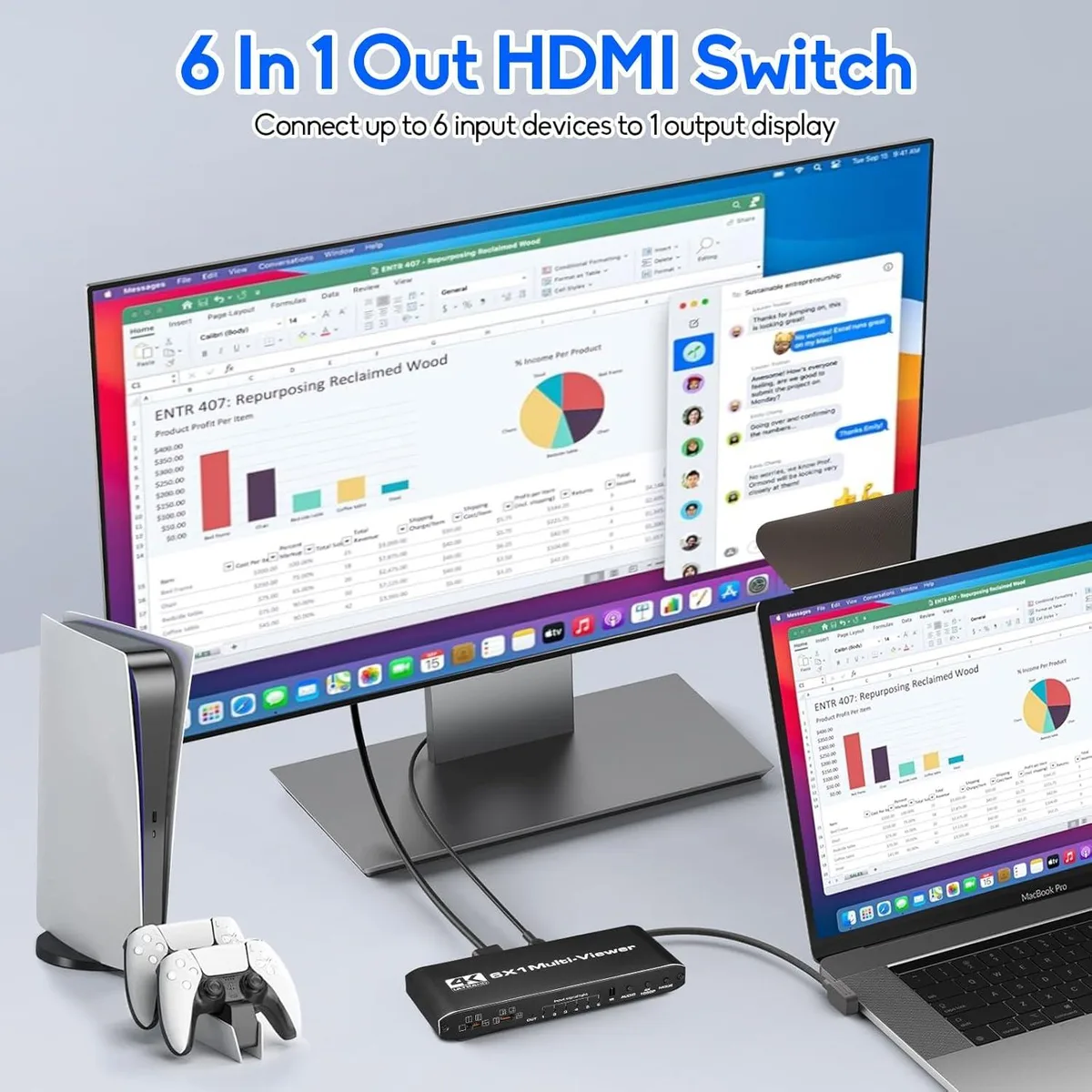

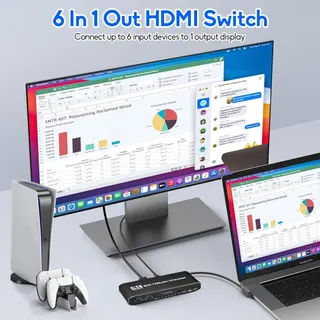

The LUOM OZJQF2 accepts six HDMI sources and presents them on a single display. It suits security monitoring, multi-console gaming or any scenario needing simultaneous views. The unit is new and ships with a 5 V 2.1 A power adapter and IR remote.

Capacity and headroom

Handles 4K at 30 Hz and 1080p at 60 Hz across eight split-screen layouts from full screen to six-way. Colour depth reaches 36-bit and audio formats include DTS-HD, Dolby TrueHD, Dolby AC-3 and DSD. It does not support 4K at 60 Hz or higher refresh rates.

Thermals noise and power

The compact 5.91 × 2.36 × 0.79 inch enclosure weighs 11.9 ounces and runs from the supplied 5 V 2.1 A adapter. No fan is fitted so operation is silent. Power draw stays within the adapter rating during normal multi-view use.

Highlights

  • View six sources on one screen with eight split modes
  • Switch instantly between inputs in full-screen mode with seamless switching
  • Output up to 4K at 30 Hz and 1080p at 60 Hz
  • Connect consoles, cameras or players via six HDMI inputs
  • Control the unit from a distance with the included IR remote

Specifications

BrandLUOM
SeriesOZJQF2
ModelOZJQF2
Part NumberOZJQF2
Type6X1 HDMI Video Wall Controller
ColorBlack
Ports6
SpecificationsSupport HDMl resolution:24/ 50/ 60fs/ 4K30Hz/ 1080P/ 1080i/ 720p/ 576p/ 576i/ 480p/ 480i.
Support video color format:24bit/ 30bit/ 36bit.
Support audio input format:DTS-HD/ Dolby-realHD/ Dolby-AC3/ DSD.
Support audio output format: LPCM,PCM2.
Max bandwidth:330Mhz.
Max bandrate: 10.2Gbps.
Input/Output TMDS signal:0.5~1.5V p-p(TTL).
Input/Output DDc signal: 5Volts p-p(TTL).
Input cable distance: =15mAWG24 HDM standard cable.
Output cable distance: =24mAWG24 HDMl standard cable.
Max working current: 12V/0.6A.
Input Connector1 x HDMI
Output Connector6 x HDMI

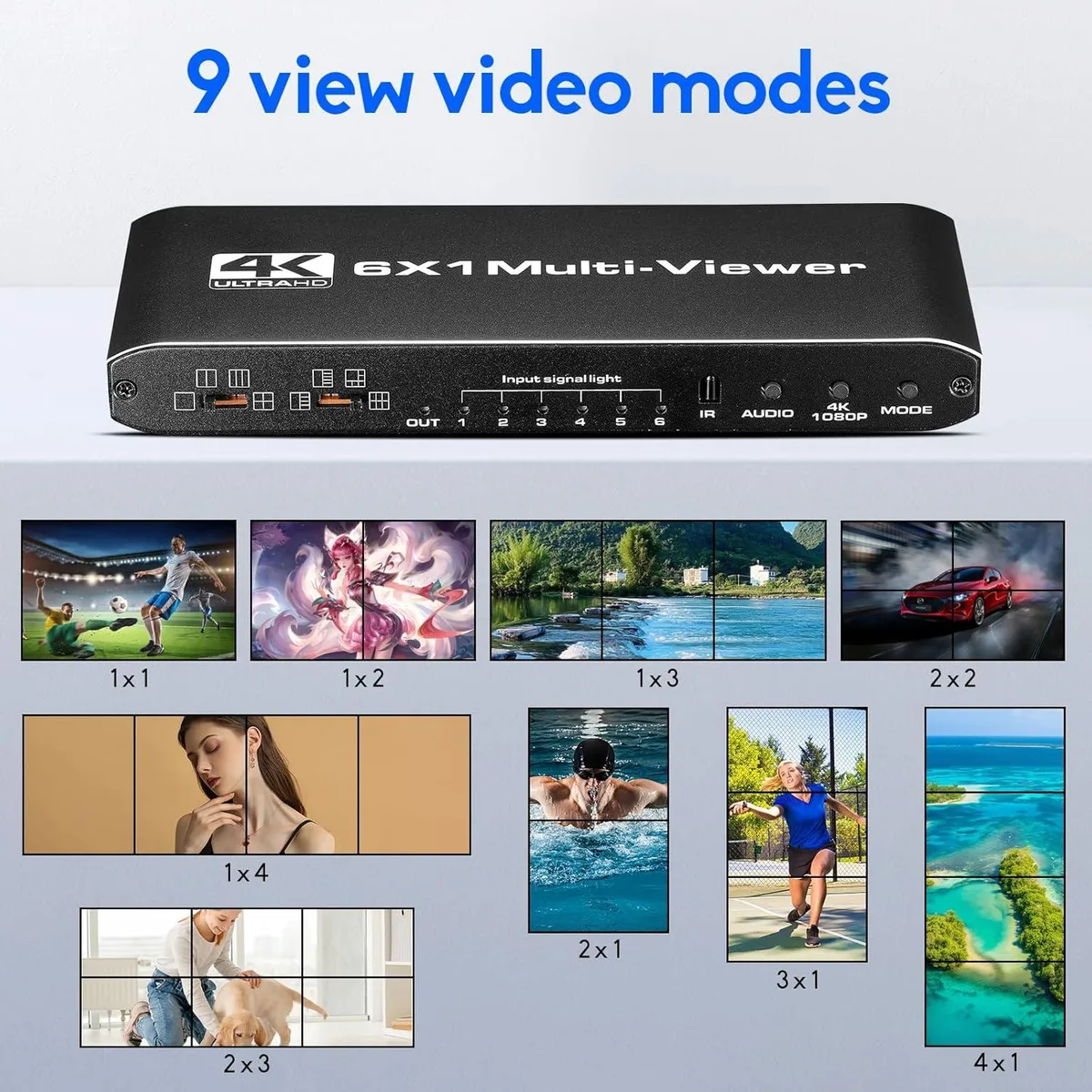

FeaturesMultiple screen split modes: This HDMI multi-function viewer can display the screens of 6 HDMI input devices on a single output screen, including full screen, dual screen, triple screen, quad screen, penta screen and hexa screen modes. It supports 8 different screen split modes, which can be selected according to your different needs
Seamless switching: The device supports seamless switching of 6 devices in front of the display, allowing smooth and instant switching between 6 HDMI input sources without waiting time during the switching process. This is especially useful when using de
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents6x1 HDMI video wall controller * 1; Remote Control (without battery) * 1; 5V/2.1A Power Adapter * 1; User Manual * 1

Questions about this item

Will the LUOM OZJQF2 pass 1080p 60 Hz from my older Blu-ray player while other inputs run at 4K 30 Hz?

Yes. The switcher supports 1080p at 60 Hz and 4K at 30 Hz simultaneously across its six HDMI inputs, so legacy 1080p sources work alongside newer 4K devices without forcing a single common resolution.

How can I confirm the multiviewer is processing all six inputs correctly after I connect them?

Power on the unit; the output defaults to a six-way split showing colour bars on any port without a live signal. As each source becomes active its quadrant fills with video, and the IR remote cycles through the 8 display modes to verify every input path.

Does the box include HDMI cables for the six inputs and the single output?

No. The package contains the 6x1 controller, an IR remote without battery, a 5 V 2.1 A power adapter, and a user manual. All seven HDMI cables must be purchased separately.
