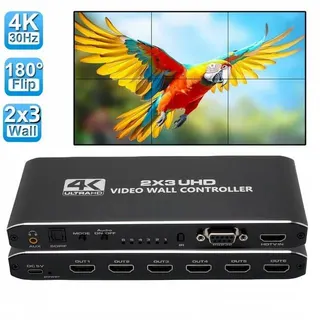

Black rectangular video wall controller with HDMI ports and audio outputs

LUOM

LUOM OZJP3 2x3 HDMI Video Wall Controller 14 Modes 1 In 6 Out 4K@30Hz 1080P@60Hz SPDIF 3.5mm Audio

SKU CH-W6BK-BMBZR

Splits one HDMI source across six displays in 14 layouts with 4K@30Hz input, 1080p@60Hz output and SPDIF plus 3.5 mm audio

  • Type2x3 HDMI Video Wall Controller
  • ColorBlack
  • Specifications4K HDMI Video Wall Controller with SPDIF & 3.5mm Audio Port
  • Input Connector1 x HDMI
  • Output Connector6 x HDMI
  • Features4K HDMI Video Wall Controller with SPDIF & 3.5mm Audio Port
  • One input drives six screens for expansive video walls

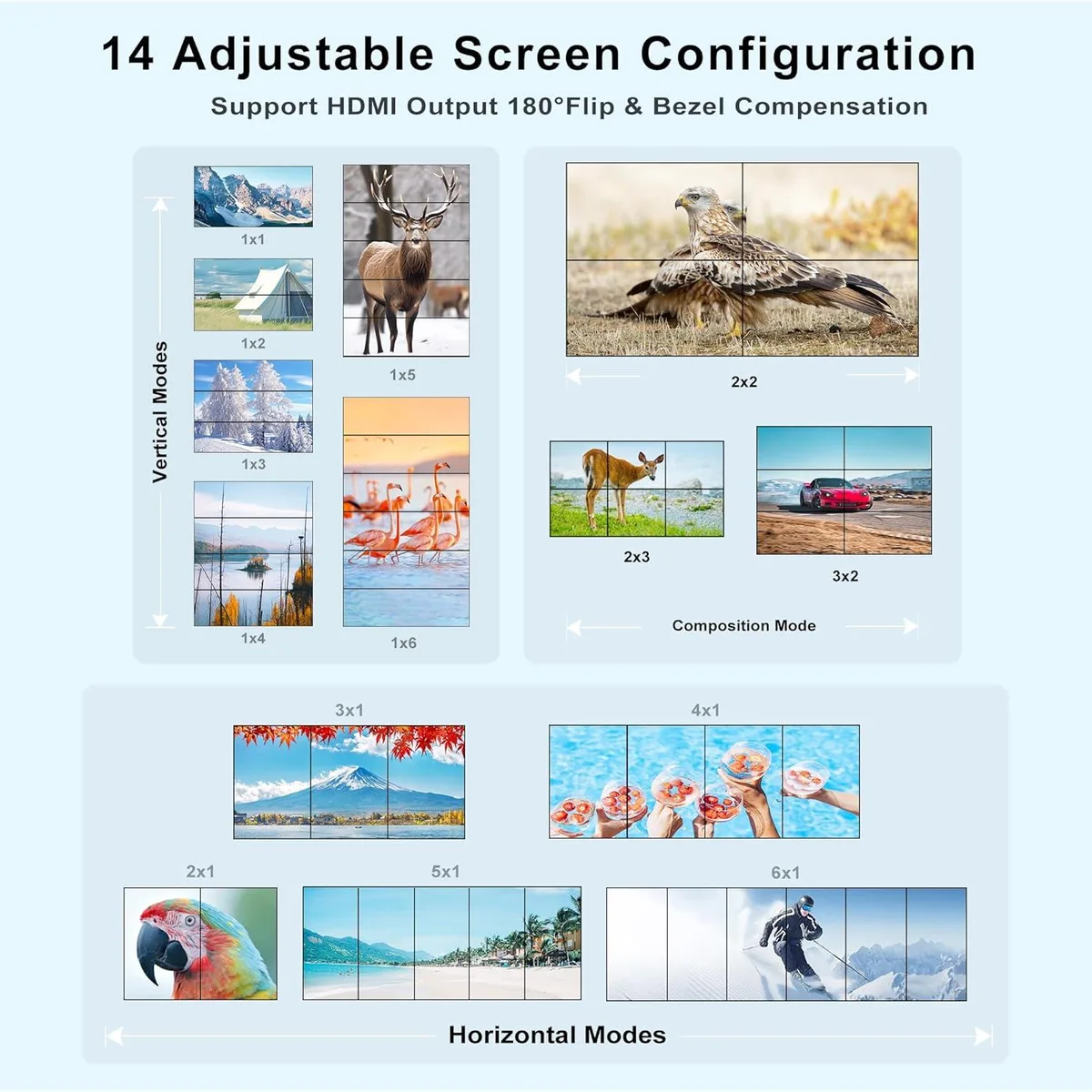

  • Fourteen preset layouts cover 1×1 through 6×1 configurations
  • 4K@30Hz input scales to 1080p@60Hz on every output
  • SPDIF and 3.5 mm ports extract audio separately
  • IR remote, front button and RS-232 give three control paths

2x3 HDMI Video Wall Controller

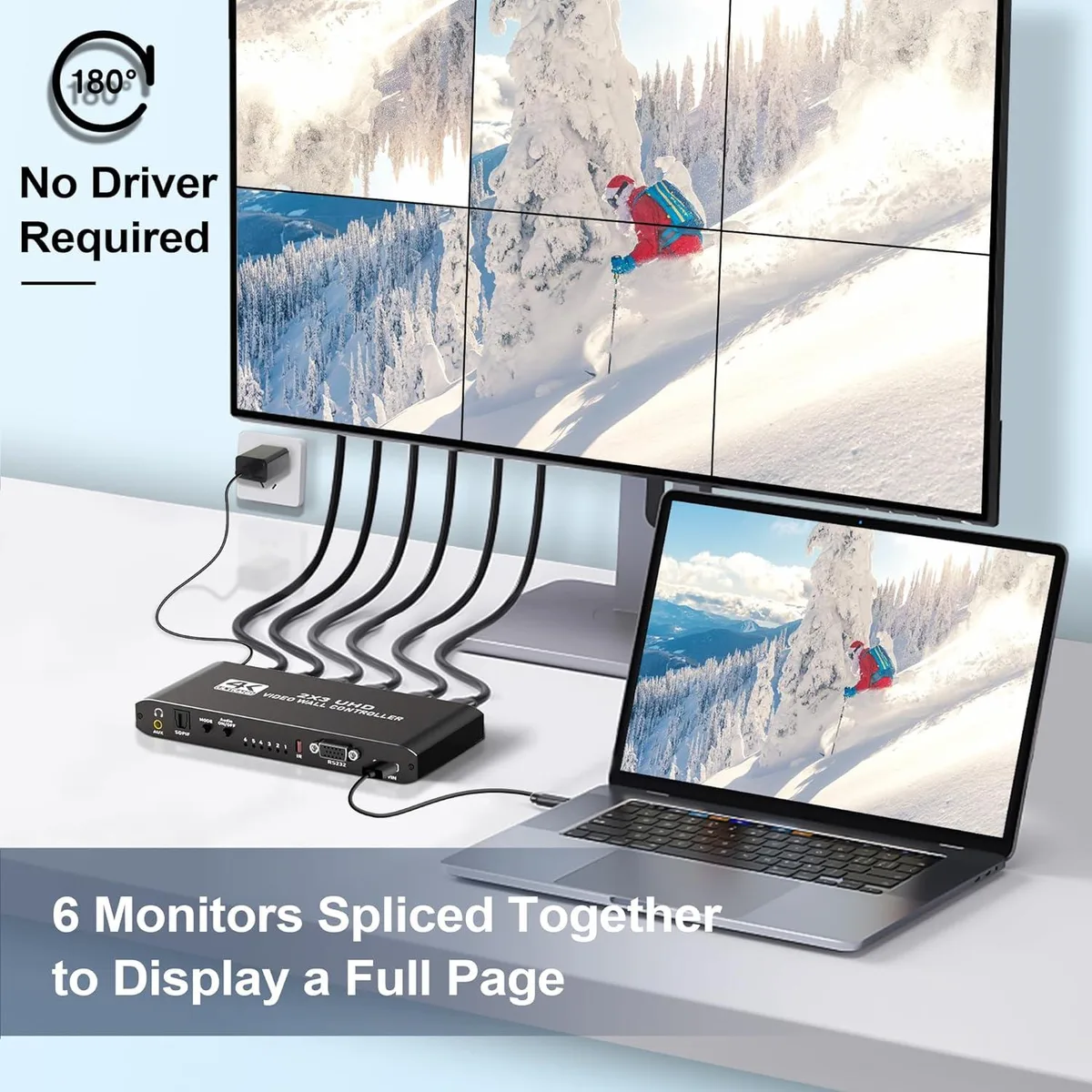

The LUOM OZJP3 distributes a single HDMI source across six displays to build a unified video wall. It accepts 4K at 30 Hz input and delivers 1080p at 60 Hz on every output. Digital signage installers, control-room operators and retail display teams can drive up to six screens from one player.

Replaces standalone splitters and matrix switches

A basic 1-to-6 splitter only clones the same image; this unit adds 14 configurable layouts including 2x3, 3x2 and 1x6 grids. The upgrade is worth it when content must span multiple bezels as a single canvas rather than mirrored copies. RS-232 and IR control let operators change layouts without physical access.

Fits standard AV racks and desk setups

The compact chassis measures 5.91 by 2.36 by .79 inches and weighs 11.9 ounces, so it sits on a shelf or mounts behind a display array. A 5 V 2.1 A supply is included, and audio breaks out via SPDIF and 3.5 mm jacks for external amplification. Buyers who need more than six outputs or 4K output resolution should look elsewhere.

Highlights

  • One input drives six screens for expansive video walls
  • Fourteen preset layouts cover 1×1 through 6×1 configurations
  • 4K@30Hz input scales to 1080p@60Hz on every output
  • SPDIF and 3.5 mm ports extract audio separately
  • IR remote, front button and RS-232 give three control paths

Specifications

BrandLUOM
SeriesOZJP3
ModelOZJP3
Part NumberOZJP3
Type2x3 HDMI Video Wall Controller
ColorBlack
Specifications4K HDMI Video Wall Controller with SPDIF & 3.5mm Audio Port
This HDMI video wall controller can distribute one HDMI input signal device to 6 HDMI outputs display simultaneously, via LCD splicing screens can form a complete dynamic large video wall screen and digital signage displays, bring you an amazing visual experience. It is the ideal choice for shopping mall video exhibition, security monitor and other large screen splicing display.
Input Connector1 x HDMI
Output Connector6 x HDMI
Features4K HDMI Video Wall Controller with SPDIF & 3.5mm Audio Port
This HDMI video wall controller can distribute one HDMI input signal device to 6 HDMI outputs display simultaneously, via LCD splicing screens can form a complete dynamic large video wall screen and digital signage displays, bring you an amazing visual experience. It is the ideal choice for shopping mall video exhibition, security monitor and other large screen splicing display.
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents3x2 HDMI video wall controller * 1; Remote Control (without battery) * 1; 5V/2.1A Power Adapter * 1; User Manual * 1.

Questions about this item

How much rack or shelf depth does the 5.91 x 2.36 x 0.79 inch controller require?

The unit measures 5.91 inches wide, 2.36 inches deep and 0.79 inches high, so it fits on any shelf or rack tray with at least 2.36 inches of front-to-back clearance and 5.91 inches of width.

What is the correct power-up sequence to avoid a blank video wall?

Connect all six HDMI displays first, then attach the source to the single HDMI input, and finally plug in the 5V 2.1A power adapter; powering the controller before the displays are connected often prevents the EDID handshake from completing.

Which audio connectors may need replacement cables for a 2x3 installation?

The controller provides one SPDIF optical port and one 3.5mm stereo jack; if your audio zone uses RCA or XLR inputs you will need suitable adapter cables for each output run.
