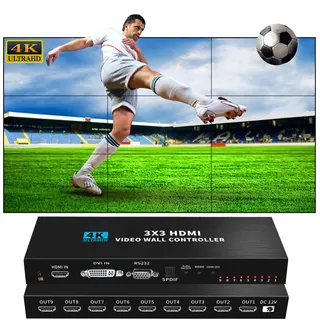

Black rectangular box with one HDMI input and nine HDMI outputs, front panel controls, remote included

LUOM

LUOM OZJP2 3x3 Video Wall Controller 1 HDMI In 9 HDMI Out 4K@30Hz

SKU CH-SVKV-NNCWS

Splits one 4K HDMI input into nine 1080p outputs for 3×3 video walls with 13 layout modes and RS232 control

  • Type3X3 HDMI Video Wall Controller
  • ColorBlack
  • Specifications3X3 Video Wall Controller 4K HDMI DVI TV Wall Controller Pro
  • Input Connector1 x HDMI
  • Output Connector9 x HDMI
  • FeaturesEye-catching video walls: HDMI video processor allows you to
  • Create 3×3 video walls from one source
  • 13 display modes including 1×1 to 4×2 layouts
  • 4K 30 Hz input splits to nine 1080p 60 Hz outputs
  • 1-channel optical audio for external sound systems

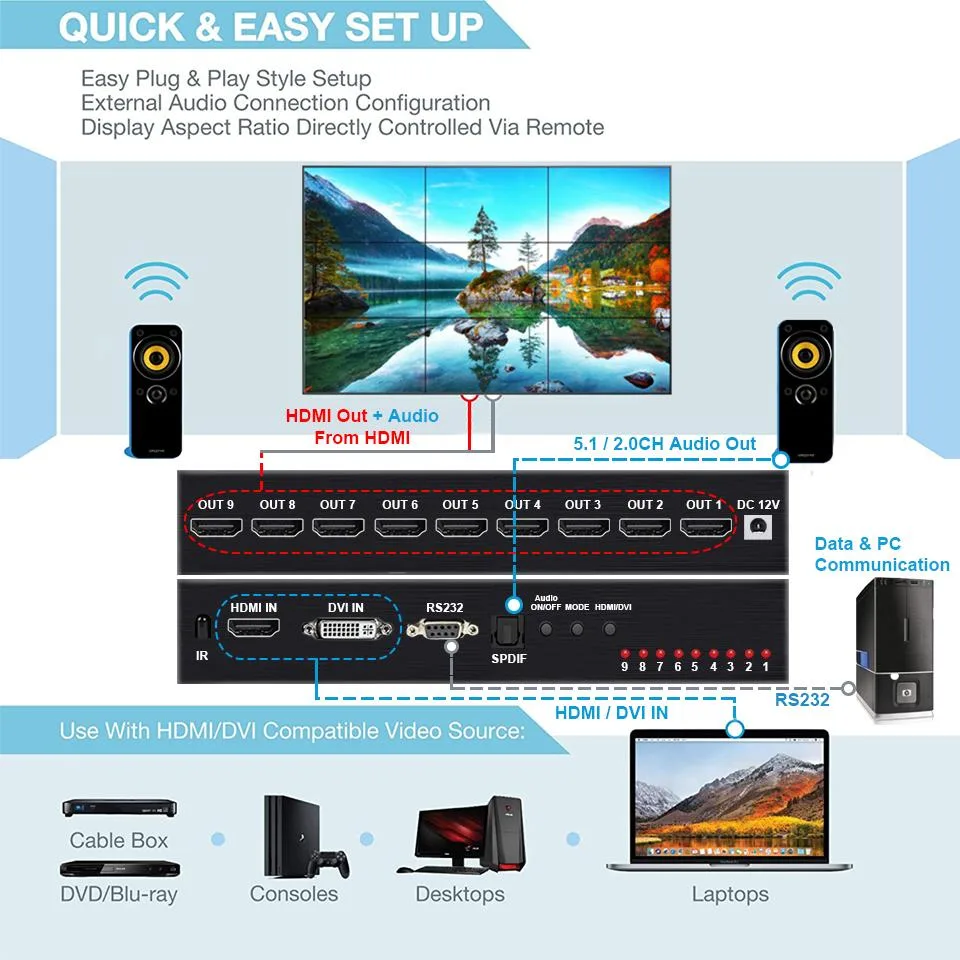

  • Control via front panel, IR remote or RS232

3×3 Video Wall Controller for Digital Signage

The LUOM OZJP2 splits one HDMI or DVI source across nine HDMI displays in a 3×3 grid. It accepts 4K input at 30 Hz and delivers 1080p at 60 Hz to each screen. Thirteen preset layouts include 1×1, 2×2, 3×3 and 4×2 configurations. RS-232, infrared remote and front-panel buttons provide control options.

Verify Source Resolution and Display Count

Confirm the source can output 3840×2160 at 24 or 30 Hz over HDMI 1.4 with HDCP 1.4. Each of the nine displays must accept 1920×1080 at 60 Hz. The unit requires the included 12 V DC adapter and provides an optical SPDIF port for 5.1-channel audio extraction.

Replaces Standalone Splitters or Matrix Switches

A single OZJP2 replaces a basic 1×9 splitter when a tiled video wall with bezel correction is needed. The jump is worth it for installations that need multiple layout modes, 180° rotation per output and centralised RS-232 management without a separate processor.

Highlights

  • Create 3×3 video walls from one source
  • 13 display modes including 1×1 to 4×2 layouts
  • 4K 30 Hz input splits to nine 1080p 60 Hz outputs
  • 1-channel optical audio for external sound systems
  • Control via front panel, IR remote or RS232

Specifications

BrandLUOM
SeriesOZJP2
ModelOZJP2
Part NumberOZJP2
Type3X3 HDMI Video Wall Controller
ColorBlack
Specifications3X3 Video Wall Controller 4K HDMI DVI TV Wall Controller Processor 3x3 2x3 2x4 4x2 LCD 9 Screen Splicing Splicer Box with RS232
HDMI 1.4 and HDCP 1.4,4K HDMI DVI Video wall controller with 9 HDMI out, 3x3,2x2,1x1,1x2,1x3,1x4,2x1,2x3,2x4,3x1,3x2,4x1,4x2 display mode,180° Screen rotation & Edge mask, support optical toslink audio extractor,support panel switch,IR remote control and RS232 control .
Support 1 HDMI-Compatible input
Support input HDMI-Compatible / DVI
Support 9 HDMI-Compatible outputs
Support 1 x Optical SPDIF audio with 5.1CH audio
Support input 4K 30Hz,1920x1080P,24/30/5
Input Connector1 x HDMI
Output Connector9 x HDMI
FeaturesEye-catching video walls: HDMI video processor allows you to create a gorgeous large-scale video walls and digital signage displays via LCD splicing screens.HDMI signal interface with audio decoding, audio and video perfect synchronization, so stunning!
1 Input and 9 outputs: Display HDMI/DVI input 4K@30Hz ,output 1920x1080P@60Hz. Be ompatibled with laptop,computer, set-top box, DVD player etc. Supports one 4K@30Hz signal input and nine 1080P@60Hz signal outputs, with a total output resolution of 4K.
Plug and play,180° Rotation: No need any app,quick and easy set up.Support 180°scree
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1xTV Video wall controller 3x3
1x 12V DC Power adapter
1xRemote control(without battery)
1xUser manual

Questions about this item

What comes in the box with the LUOM OZJP2 and what extra item is needed for the remote?

The package includes the 3x3 video wall controller, a 12 V DC power adapter, a remote control and a user manual. The remote requires two AAA batteries which are not supplied.

Which display mode should I choose for a standard nine-screen 3x3 video wall?

Select the 3x3 splicing mode from the 13 available layouts; it splits the single 4K@30 Hz input across all nine 1080p@60 Hz outputs to form one large image.

What does the 4K@30 Hz input rating mean for the actual picture on each screen?

The controller accepts a 3840x2160@30 Hz source and downscales it so every one of the nine HDMI outputs delivers 1920x1080@60 Hz, giving a combined 4K canvas across the wall.
