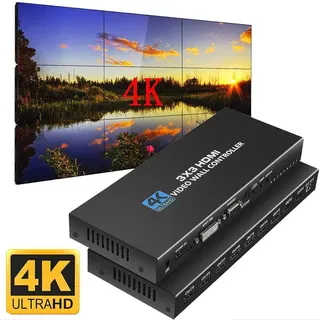

Black rectangular box with nine HDMI ports on one side and a single HDMI input on the other

LUOM

LUOM OZJP2 3x3 HDMI Video Wall Controller 9 Outputs 1080P@60Hz RS232 180° Rotation 13 Modes

SKU CH-GPEV-RFRMV

A 3×3 video-wall controller splits one 4K@30 Hz HDMI or DVI source into nine 1080p@60 Hz outputs with 13 layout modes, RS‑232 control and 180° rotation

  • Type3X3 HDMI Video Wall Controller
  • ColorBlack
  • Specifications3X3 Video Wall Controller 4K HDMI DVI TV Wall Controller Pro
  • Input Connector1 x HDMI
  • Output Connector9 x HDMI
  • FeaturesEye-catching video walls: HDMI video processor allows you to
  • Create large video walls with one 4K input split across nine 1080P@60Hz outputs
  • Choose from 13 layout modes including 3x3 and 4x2 via remote or buttons
  • Rotate each screen 180 degrees for flexible mounting without extra hardware
  • Control the wall over RS232 for integration into professional AV systems
  • Extract 5.1-channel audio through the optical SPDIF port for external sound

3×3 HDMI video wall controller

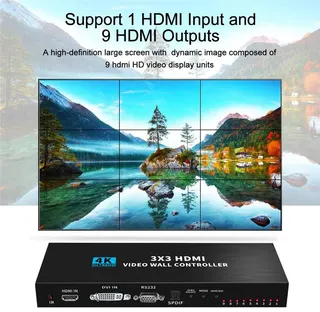

The LUOM OZJP2 splits one HDMI or DVI source into nine 1080P@60Hz outputs for LCD splicing walls. It accepts a single 4K@30Hz input and drives a 3×3 grid with a total output resolution of 4K. RS-232, IR remote and front-panel buttons provide control.

Installers building digital signage

Suits projects that need nine synchronised 1080P displays from one 4K source. Not for buyers who require more than nine outputs, higher than 1080P per screen, or multiple independent input sources.

Plug-and-play with RS-232 option

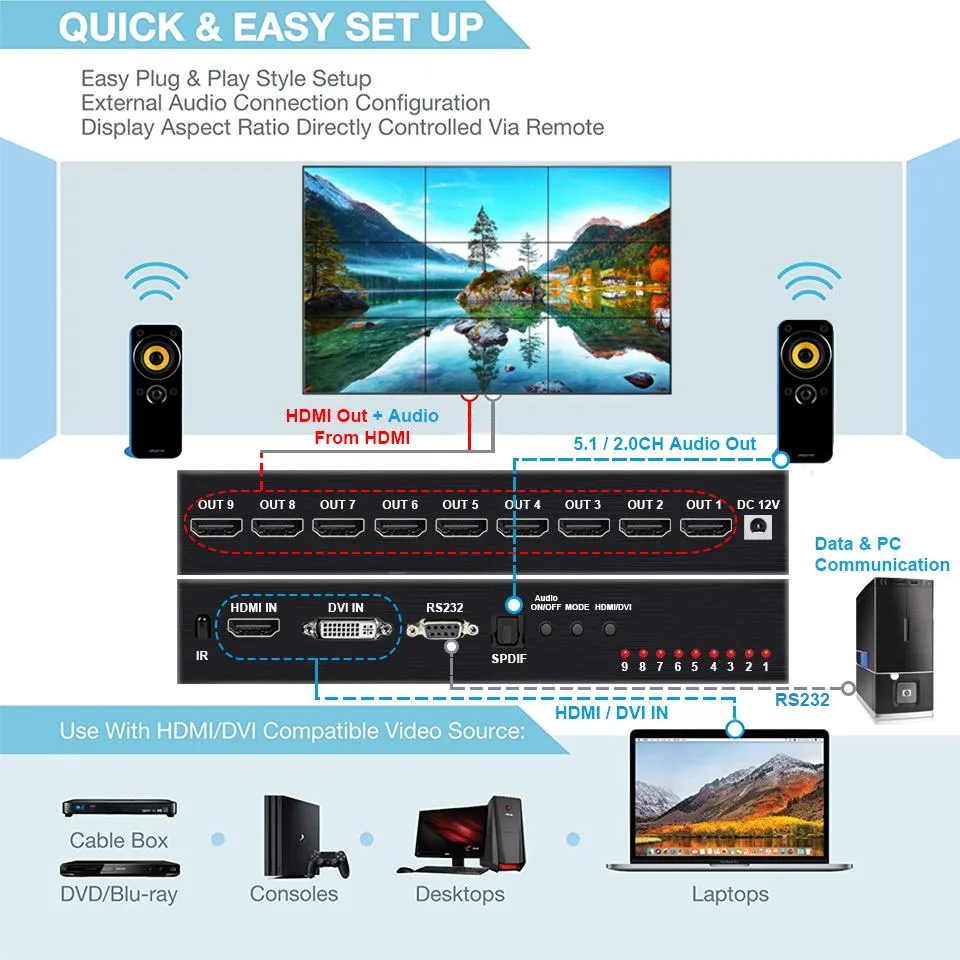

Connect the 12 V DC adapter, link the source to the HDMI input and the nine displays to the HDMI outputs. Select a mode via remote or front button; RS-232 adds automated control. Common issues are mismatched output resolution settings or loose HDMI cables on the nine ports.

Highlights

  • Create large video walls with one 4K input split across nine 1080P@60Hz outputs
  • Choose from 13 layout modes including 3x3 and 4x2 via remote or buttons
  • Rotate each screen 180 degrees for flexible mounting without extra hardware
  • Control the wall over RS232 for integration into professional AV systems
  • Extract 5.1-channel audio through the optical SPDIF port for external sound

Specifications

BrandLUOM
SeriesOZJP2
ModelOZJP2
Part NumberOZJP2
Type3X3 HDMI Video Wall Controller
ColorBlack
Specifications3X3 Video Wall Controller 4K HDMI DVI TV Wall Controller Processor 3x3 2x3 2x4 4x2 LCD 9 Screen Splicing Splicer Box with RS232
HDMI 1.4 and HDCP 1.4,4K HDMI DVI Video wall controller with 9 HDMI out, 3x3,2x2,1x1,1x2,1x3,1x4,2x1,2x3,2x4,3x1,3x2,4x1,4x2 display mode,180° Screen rotation & Edge mask, support optical toslink audio extractor,support panel switch,IR remote control and RS232 control .
Support 1 HDMI-Compatible input
Support input HDMI-Compatible / DVI
Support 9 HDMI-Compatible outputs
Support 1 x Optical SPDIF audio with 5.1CH audio
Support input 4K 30Hz,1920x1080P,24/30/5
Input Connector1 x HDMI
Output Connector9 x HDMI
FeaturesEye-catching video walls: HDMI video processor allows you to create a gorgeous large-scale video walls and digital signage displays via LCD splicing screens.HDMI signal interface with audio decoding, audio and video perfect synchronization, so stunning!
1 Input and 9 outputs: Display HDMI/DVI input 4K@30Hz ,output 1920x1080P@60Hz. Be ompatibled with laptop,computer, set-top box, DVD player etc. Supports one 4K@30Hz signal input and nine 1080P@60Hz signal outputs, with a total output resolution of 4K.
Plug and play,180° Rotation: No need any app,quick and easy set up.Support 180°scree
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1xTV Video wall controller 3x3
1x 12V DC Power adapter
1xRemote control(without battery)
1xUser manual

Questions about this item

Which displays must I already own to use the 9 HDMI outputs?

You need nine displays that accept a 1920x1080P@60Hz HDMI signal.

Can I keep my older 1080P@60Hz screens alongside this unit?

Yes, each of the nine outputs delivers 1920x1080P@60Hz, matching those screens exactly.

How do I confirm the 3x3 splice is active after connecting everything?

The front panel shows the selected mode and the remote cycles through the 13 layouts; all nine screens display a continuous image when the 3x3 mode is engaged.
