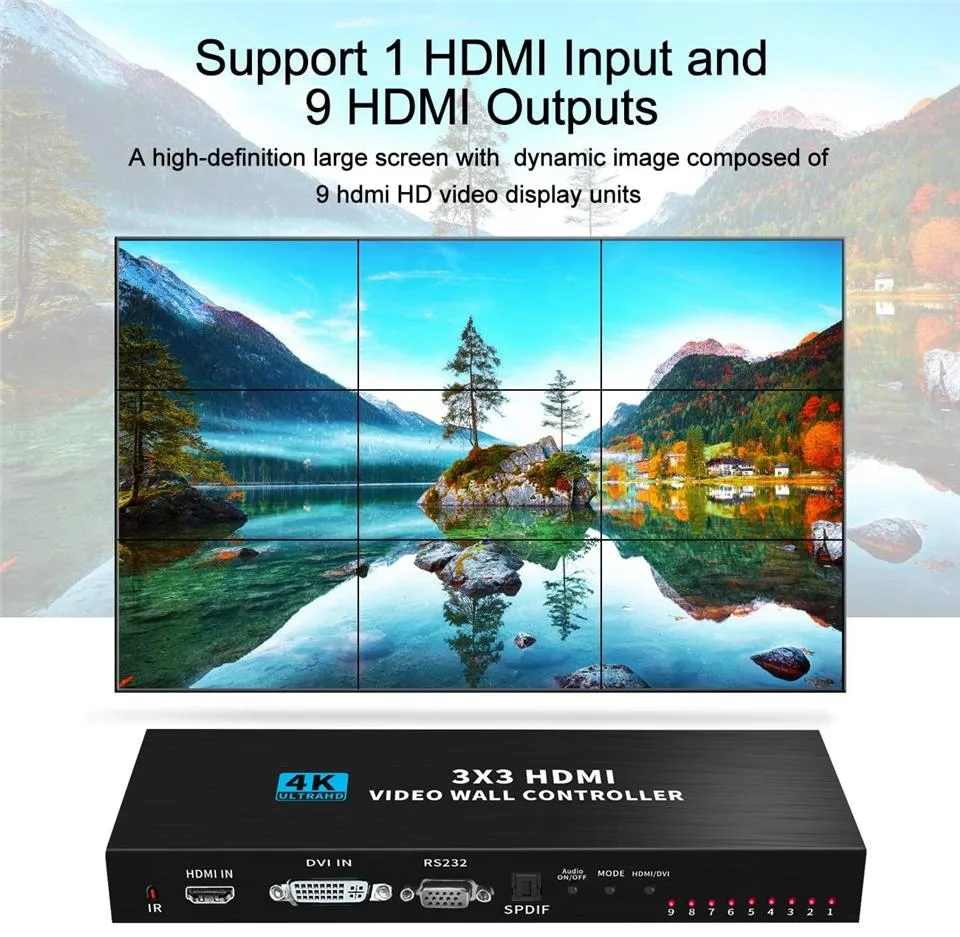

Black rectangular box with nine HDMI ports on one side, one HDMI port on the other, vented top and front panel buttons

LUOM

LUOM OZJP2 3x3 HDMI Video Wall Controller 1 in 9 out 13 Modes 180° Rotation video switch

SKU CH-V0JH-C3A3Y

Splits one HDMI or DVI source across nine displays in 13 layouts up to 3×3 with 180° rotation, 4K input at 30 Hz and 1080p output at 60 Hz

  • Type3X3 HDMI Video Wall Controller
  • ColorBlack
  • Specifications3X3 Video Wall Controller 4K HDMI DVI TV Wall Controller Pro
  • Input Connector1 x HDMI
  • Output Connector9 x HDMI
  • FeaturesEye-catching video walls: HDMI video processor allows you to
  • Creates large video walls from one source
  • 13 splicing layouts from 1x1 up to 4x2
  • 4K 30 Hz input scales to 1080p 60 Hz output
  • HDMI signal reaches 100 feet with no quality loss
  • Built-in vents and fans keep the unit running cool

3×3 HDMI video wall controller

The LUOM OZJP2 splits a single HDMI or DVI source across nine HDMI outputs to drive a 3×3 array of displays. It accepts 4K at 30 Hz or 1080p at 60 Hz and outputs 1080p at 60 Hz to each screen. Installers and digital-signage operators can build large tiled canvases without a media player per display. No driver installation is required.

Build integration and cabling

One HDMI input and nine HDMI outputs connect directly to the source and the displays. The unit includes an optical S/PDIF port for 5.1-channel audio because audio does not pass to the display outputs. A 12 V DC adapter powers the controller, and built-in vents with a fan keep temperatures stable. RS-232, IR remote and front-panel buttons provide control options for rack or wall mounting.

Upgrade path and limitations

The controller replaces a matrix switcher when the goal is fixed tiling rather than arbitrary routing. It supports thirteen preset layouts from 1×1 up to 4×2 and adds 180° image rotation for portrait screens. Buyers who need higher output resolutions, HDMI 2.0 bandwidth, or per-display audio will need a different processor.

Highlights

  • Creates large video walls from one source
  • 13 splicing layouts from 1x1 up to 4x2
  • 4K 30 Hz input scales to 1080p 60 Hz output
  • HDMI signal reaches 100 feet with no quality loss
  • Built-in vents and fans keep the unit running cool

Specifications

BrandLUOM
SeriesOZJP2
ModelOZJP2
Part NumberOZJP2
Type3X3 HDMI Video Wall Controller
ColorBlack
Specifications3X3 Video Wall Controller 4K HDMI DVI TV Wall Controller Processor 3x3 2x3 2x4 4x2 LCD 9 Screen Splicing Splicer Box with RS232
HDMI 1.4 and HDCP 1.4,4K HDMI DVI Video wall controller with 9 HDMI out, 3x3,2x2,1x1,1x2,1x3,1x4,2x1,2x3,2x4,3x1,3x2,4x1,4x2 display mode,180° Screen rotation & Edge mask, support optical toslink audio extractor,support panel switch,IR remote control and RS232 control .
Support 1 HDMI-Compatible input
Support input HDMI-Compatible / DVI
Support 9 HDMI-Compatible outputs
Support 1 x Optical SPDIF audio with 5.1CH audio
Support input 4K 30Hz,1920x1080P,24/30/5
Input Connector1 x HDMI
Output Connector9 x HDMI
FeaturesEye-catching video walls: HDMI video processor allows you to create a gorgeous large-scale video walls and digital signage displays via LCD splicing screens.HDMI signal interface with audio decoding, audio and video perfect synchronization, so stunning!
1 Input and 9 outputs: Display HDMI/DVI input 4K@30Hz ,output 1920x1080P@60Hz. Be ompatibled with laptop,computer, set-top box, DVD player etc. Supports one 4K@30Hz signal input and nine 1080P@60Hz signal outputs, with a total output resolution of 4K.
Plug and play,180° Rotation: No need any app,quick and easy set up.Support 180°scree
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1xTV Video wall controller 3x3
1x 12V DC Power adapter
1xRemote control(without battery)
1xUser manual

Questions about this item

What resolution limit appears first when the controller runs continuously?

Output is capped at 1920x1080P 60Hz even though the input accepts 3840x2160P 30Hz, so the 1080P ceiling is the first limit you hit.

How loud or hot does the unit get during all-day operation?

Vents and an internal fan provide convection cooling; the chassis measures 5.91 x 2.36 x .79 inches and weighs 11.9 ounces, so heat and noise stay modest in a ventilated rack.

What extra hardware must I already own to get sound from the displays?

Audio does not pass through the HDMI outputs, so you need an external speaker or sound bar connected to the optical SPDIF 5.1CH output.
