Black rectangular box with HDMI ports on both sides, remote control, power adapter, and manual

LUOM

LUOM OZJP2 3x3 HDMI Video Wall Controller 1×9 4K@30Hz 13 Modes Black

SKU CH-KC4N-K2RT0

Splits one 4K HDMI source across nine displays in thirteen splicing layouts with remote and RS-232 control

  • Type3X3 HDMI Video Wall Controller
  • ColorBlack
  • Specifications3X3 Video Wall Controller 4K HDMI DVI TV Wall Controller Pro
  • Input Connector1 x HDMI
  • Output Connector9 x HDMI
  • FeaturesEye-catching video walls: HDMI video processor allows you to
  • Display one source across nine screens with 3×3 splicing
  • Switch among 13 layout modes via panel buttons or IR remote
  • Accept 4K 30 Hz input and output 720p 60 Hz per display
  • Extract 5.1-channel audio through optical SPDIF output
  • Control the wall locally or remotely with RS-232 commands

3x3 HDMI Video Wall Controller

The LUOM OZJP2 is a 3x3 HDMI video wall controller that accepts one HDMI source and distributes it across nine HDMI outputs. It is built for installers and operators who need to create large-scale digital signage or monitoring walls from a single 4K input. The unit supports HDMI 1.4 and HDCP 1.4 with a maximum input resolution of 3840x2160 at 30 Hz.

Suited for fixed splicing layouts.

This controller suits venues such as control rooms, retail displays and conference centres where a single source must be tiled across nine screens in predefined patterns. It is not for users who require independent source selection per output, seamless bezel-free switching or output resolutions higher than 1280x720 at 60 Hz.

13 splicing modes with IR and RS232 control

The processor offers 13 preset splicing modes including 1x1, 1x2, 1x3, 1x4, 2x1, 2x2, 2x3, 2x4, 3x1, 3x2, 3x3, 4x1 and 4x2 arrangements. Switching between modes is performed via front-panel buttons, the included infrared remote or RS232 commands for integration with automation systems.

Highlights

  • Display one source across nine screens with 3×3 splicing
  • Switch among 13 layout modes via panel buttons or IR remote
  • Accept 4K 30 Hz input and output 720p 60 Hz per display
  • Extract 5.1-channel audio through optical SPDIF output
  • Control the wall locally or remotely with RS-232 commands

Specifications

BrandLUOM
SeriesOZJP2
ModelOZJP2
Part NumberOZJP2
Type3X3 HDMI Video Wall Controller
ColorBlack
Specifications3X3 Video Wall Controller 4K HDMI DVI TV Wall Controller Processor 3x3 2x3 2x4 4x2 LCD 9 Screen Splicing Splicer Box with RS232

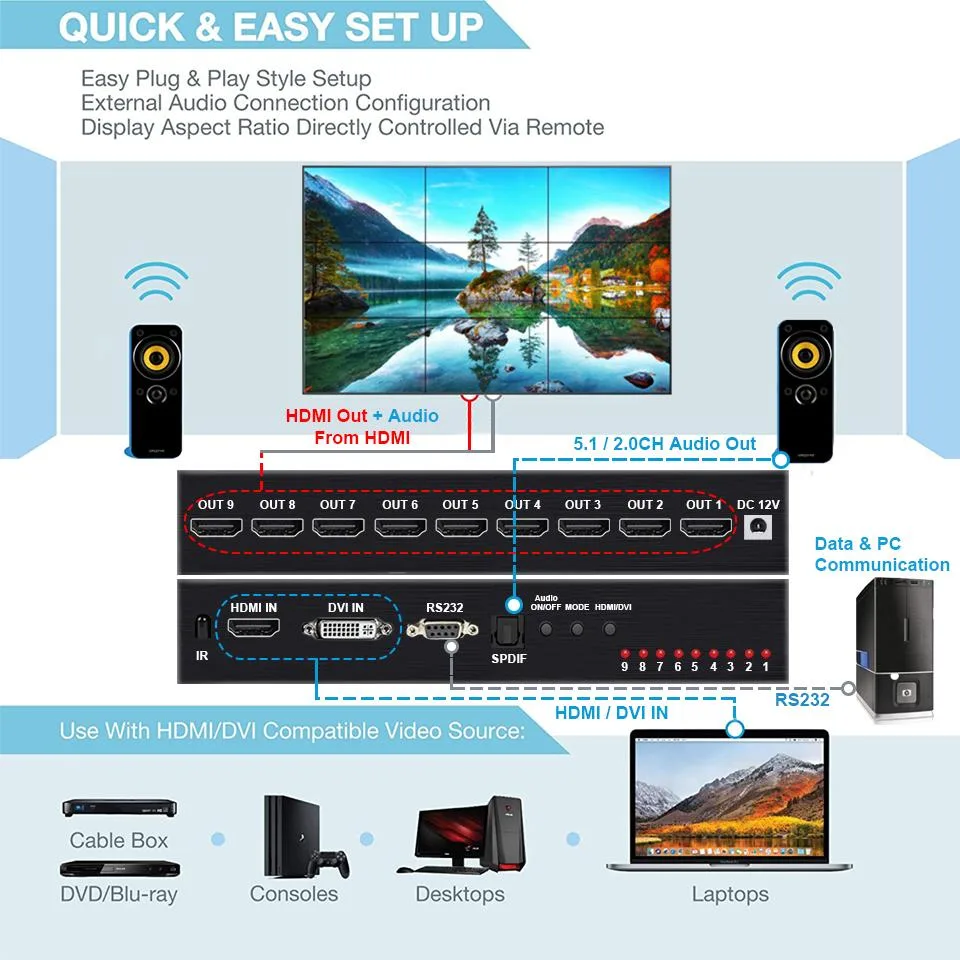

HDMI 1.4 and HDCP 1.4,4K HDMI DVI Video wall controller with 9 HDMI out, 3x3,2x2,1x1,1x2,1x3,1x4,2x1,2x3,2x4,3x1,3x2,4x1,4x2 display mode,180° Screen rotation & Edge mask, support optical toslink audio extractor,support panel switch,IR remote control and RS232 control .

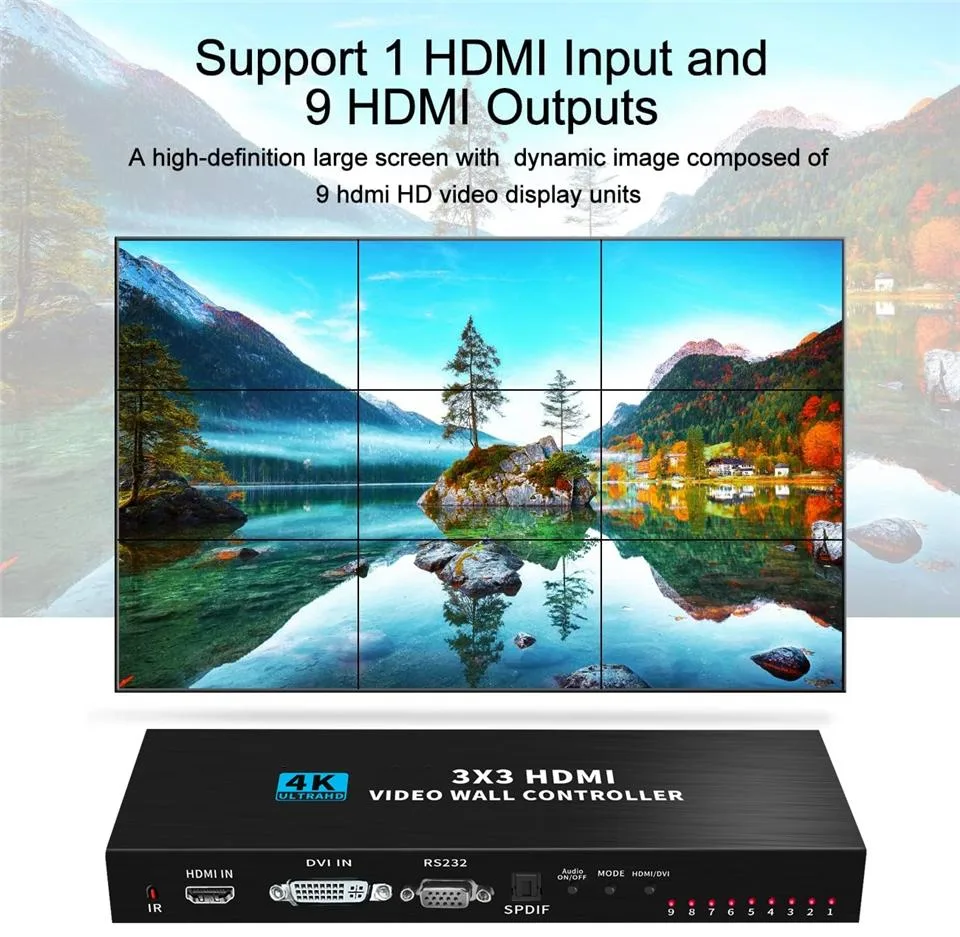

Support 1 HDMI-Compatible input
Support input HDMI-Compatible / DVI
Support 9 HDMI-Compatible outputs
Support 1 x Optical SPDIF audio with 5.1CH audio
Support input 4K 30Hz,1920x1080P,24/30/5
Input Connector1 x HDMI
Output Connector9 x HDMI
FeaturesEye-catching video walls: HDMI video processor allows you to create a gorgeous large-scale video walls and digital signage displays via LCD splicing screens.HDMI signal interface with audio decoding, audio and video perfect synchronization, so stunning!
1 Input and 9 outputs: Display HDMI/DVI input 4K@30Hz ,output 1920x1080P@60Hz. Be ompatibled with laptop,computer, set-top box, DVD player etc. Supports one 4K@30Hz signal input and nine 1080P@60Hz signal outputs, with a total output resolution of 4K.
Plug and play,180° Rotation: No need any app,quick and easy set up.Support 180°scree
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1xTV Video wall controller 3x3
1x 12V DC Power adapter
1xRemote control(without battery)
1xUser manual

Questions about this item

What does the 3840×2160@30Hz input actually deliver across the nine screens?

The controller accepts a single 4K 30 Hz source and splits it into nine 1280×720@60 Hz HDMI outputs for a 3×3 video wall.

How does the HDMI 1.4 and HDCP 1.4 interface limit what I can display?

HDMI 1.4 caps the input to 4K at 30 Hz and the output to 720p at 60 Hz, while HDCP 1.4 protects compatible content only.

What space and power does the unit need to sit in a rack or on a shelf?

It measures 5.91 × 2.36 × 0.79 inches, weighs 11.9 ounces, and runs from the included 12 V DC adapter.
