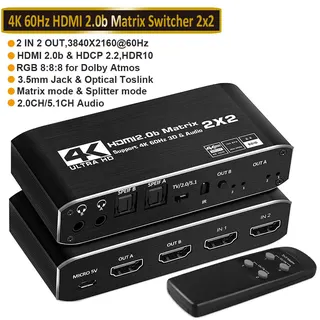

Black rectangular HDMI matrix switch with multiple ports and remote control

LUOM

LUOM OZJ6 HDMI Matrix 2x2 4K@60Hz Audio Switch

SKU CH-2NKS-FZ6ZS

A 2×2 HDMI matrix routes two 4K@60 Hz sources to two displays while extracting audio via optical and 3.5 mm outputs

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • MatrixYes
  • AudioYes
  • Connect two 4K HDR sources to two displays simultaneously via 2×2 matrix switching
  • Extract audio from any HDMI input through dual optical SPDIF and 3.5 mm stereo outputs
  • Control source-to-display routing from the sofa with the included IR remote control
  • Pass 4K 60 Hz HDR10 and 3D video with 18.5 Gbps bandwidth and deep-colour support
  • Downscale 4K signals to 1080p on either output for mixed-resolution display setups

2x2 HDMI Matrix Switch

The LUOM OZJ6 is a compact HDMI 2.0b matrix that routes two 4K HDR sources to two displays simultaneously. It suits home-theatre enthusiasts and installers who need independent switching without moving cables.

4K@60Hz bandwidth and audio extraction

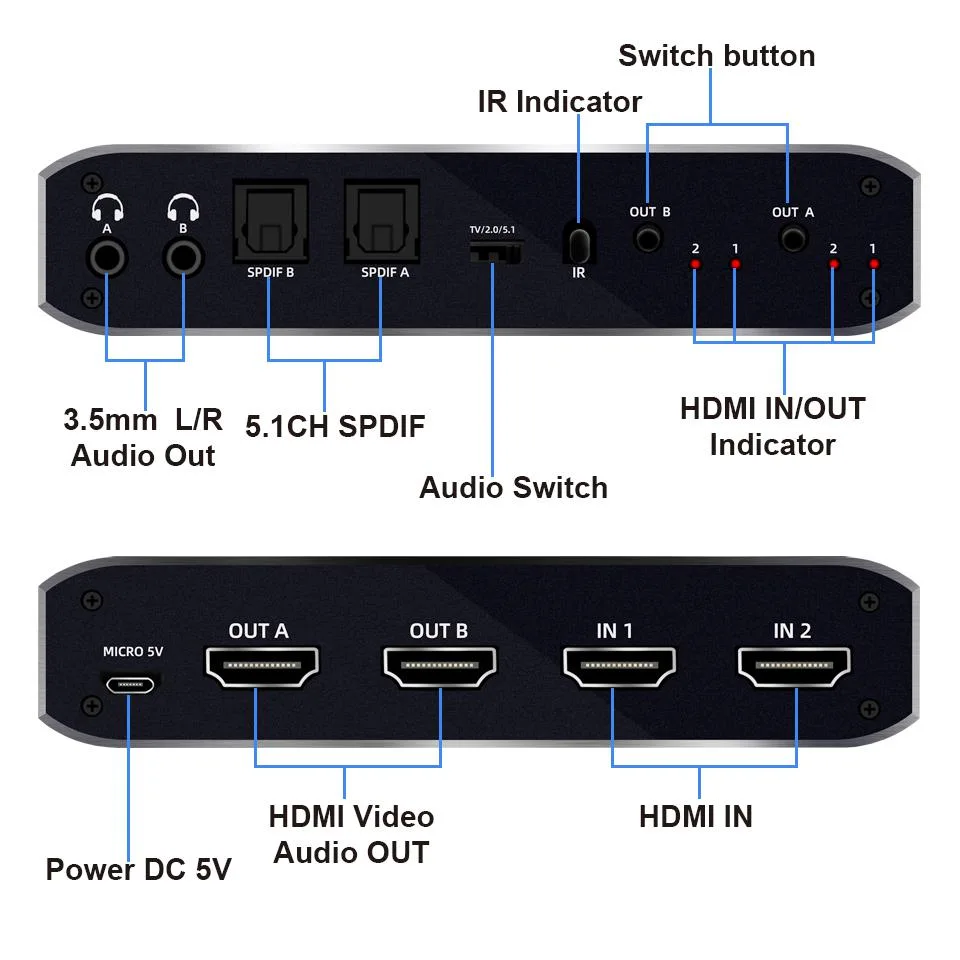

Each path handles 18.5 Gbps at 600 MHz TMDS clock, passing 4K@60Hz 4:4:4, HDR10, 3D and deep colour up to 48 bit. Built-in downscaling converts 4K to 1080p per output. Audio is de-embedded to two Toslink SPDIF and two 3.5 mm L/R ports supporting LPCM, DTS 5.1 and Dolby AC3.

IR remote control and wide device support

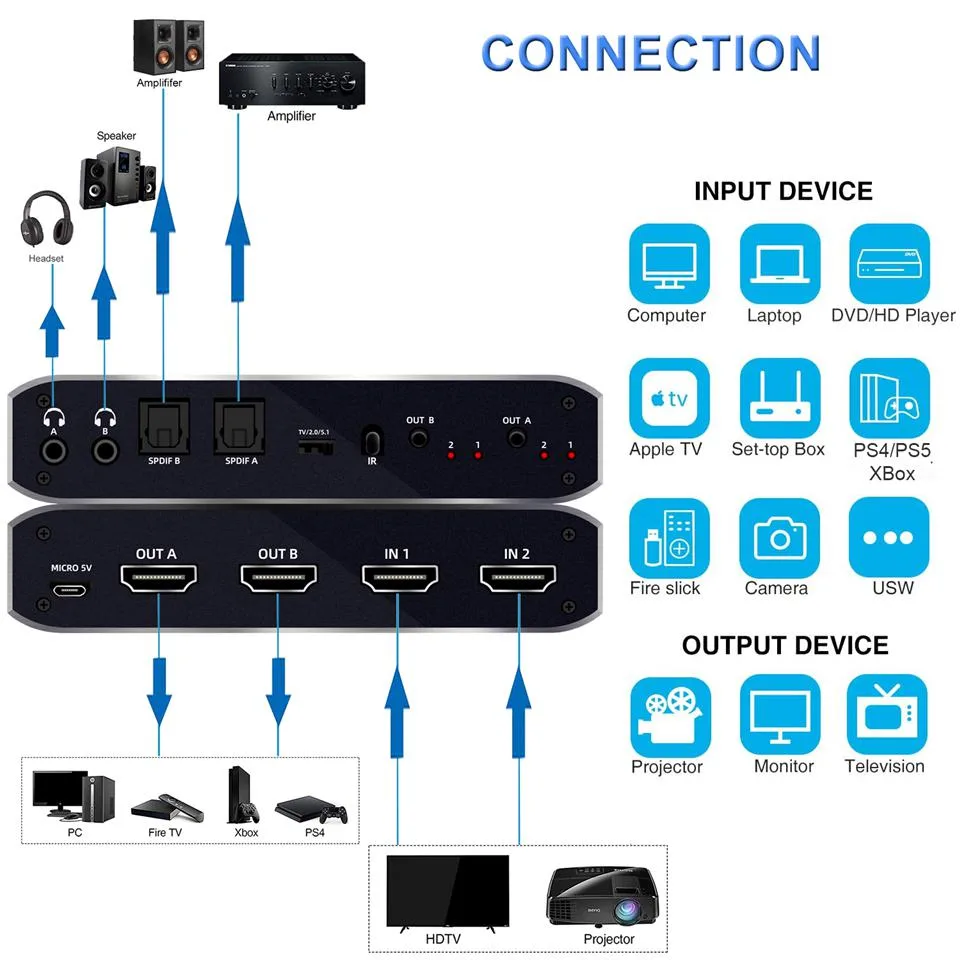

The unit ships with an IR remote for front-of-room switching and fits in a 5.91 x 2.36 x 0.79 inch footprint. It accepts sources such as consoles, streamers and PCs, and drives projectors, TVs or monitors over HDMI cables up to 10 metres AWG26.

Highlights

  • Connect two 4K HDR sources to two displays simultaneously via 2×2 matrix switching
  • Extract audio from any HDMI input through dual optical SPDIF and 3.5 mm stereo outputs
  • Control source-to-display routing from the sofa with the included IR remote control
  • Pass 4K 60 Hz HDR10 and 3D video with 18.5 Gbps bandwidth and deep-colour support
  • Downscale 4K signals to 1080p on either output for mixed-resolution display setups

Specifications

BrandLUOM
SeriesOZJ6
ModelOZJ6
Part NumberOZJ6
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
MatrixYes
AudioYes
SpecificationsModel: HDMI Matrix 2x2
HDMI version: HDMI 2.0b
HDMI resolution: up to 4K@60Hz, 3D.RGB 8:8:8
Support video format: 8/10/12/24/32 bit
Support audio format: LPCM/DTS 5.1/Dobly-AC3
Maximum bandwidth: 18.5Gbps
Max bandwidth: 600MHz
Input Connector2 x HDMI
Output Connector2 x HDMI
Maximum Cable Length10m AWG26 HDMI2.0b standard cable
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0b HDCP 2.2
Support 3D video format
Support highest resolution up to 3840*2160/60Hz
Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24/32/48bit
Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
Support LPCM/Dolby/DTS 5.1 audio
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 2 in 2 out
1x 5V power adapter
1x IR Remote Control
1x User Manual

Questions about this item

Will the OZJ6 matrix pass 4K@60Hz HDR from my PS4 Pro to an older 1080p projector on the second output?

Yes, the built-in downscaler can convert a 4K@60Hz HDR source to 1080p on one output while the other output keeps the native 4K@60Hz signal.

How do I confirm the matrix is switching both HDMI inputs to both outputs correctly after I connect everything?

Use the IR remote to select each input for each output; the front-panel LEDs will show the active routing and both displays should show the chosen source at up to 4K@60Hz.

Does the box include the HDMI cables I need to connect two sources and two displays, or must I buy them separately?

The package contains the matrix, a charger, a USB cable, an IR remote and a user manual; HDMI cables are not included and must be purchased separately.
