Black rectangular HDMI matrix switch with multiple ports and IR remote

LUOM

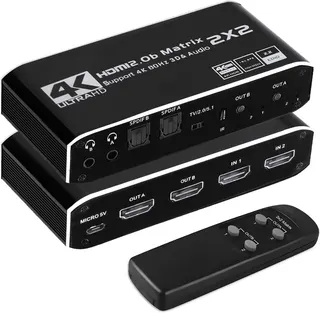

LUOM OZJ6 HDMI Matrix 2x2 4K@60Hz Audio Extractor

SKU CH-BGTB-JWBMF

Two 4K@60Hz sources switch between two displays with 18.5Gbps bandwidth, HDR10, 3D and auto 4K-to-1080P downscaling, plus dual optical and 3.5mm audio extraction controlled by IR remote

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • MatrixYes
  • AudioYes
  • Routes two 4K sources to two displays independently
  • Extracts audio via dual optical and 3.5 mm outputs
  • IR remote gives full switching control from the sofa
  • Auto downscales 4K to 1080p for mixed-resolution screens
  • 5 Gbps bandwidth carries 4K 60 Hz HDR 10 and 3D

2x2 HDMI Matrix for 4K Sources

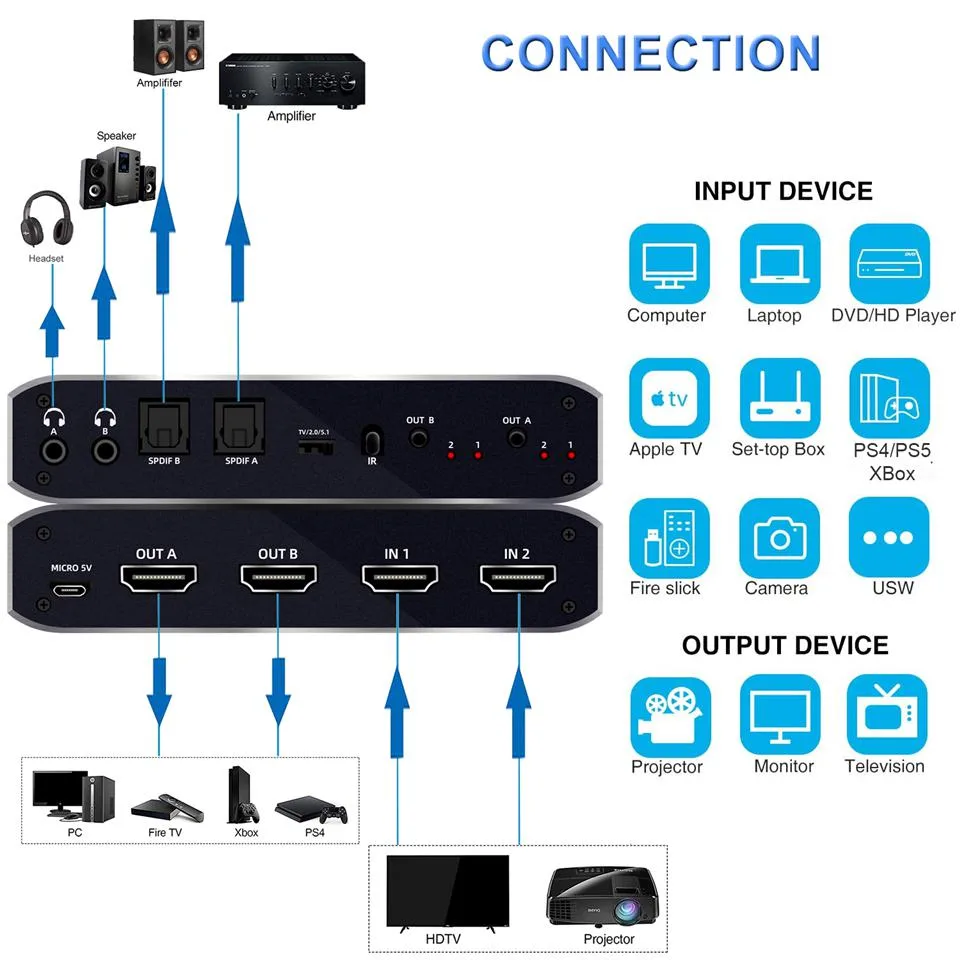

This LUOM OZJ6 matrix routes two HDMI 2.0b sources to two displays at up to 4K@60Hz with HDR10 and 3D support. It suits installers who need independent switching between a pair of sources such as a games console, media player or PC and two screens or a screen plus a projector.

Audio extraction and IR control

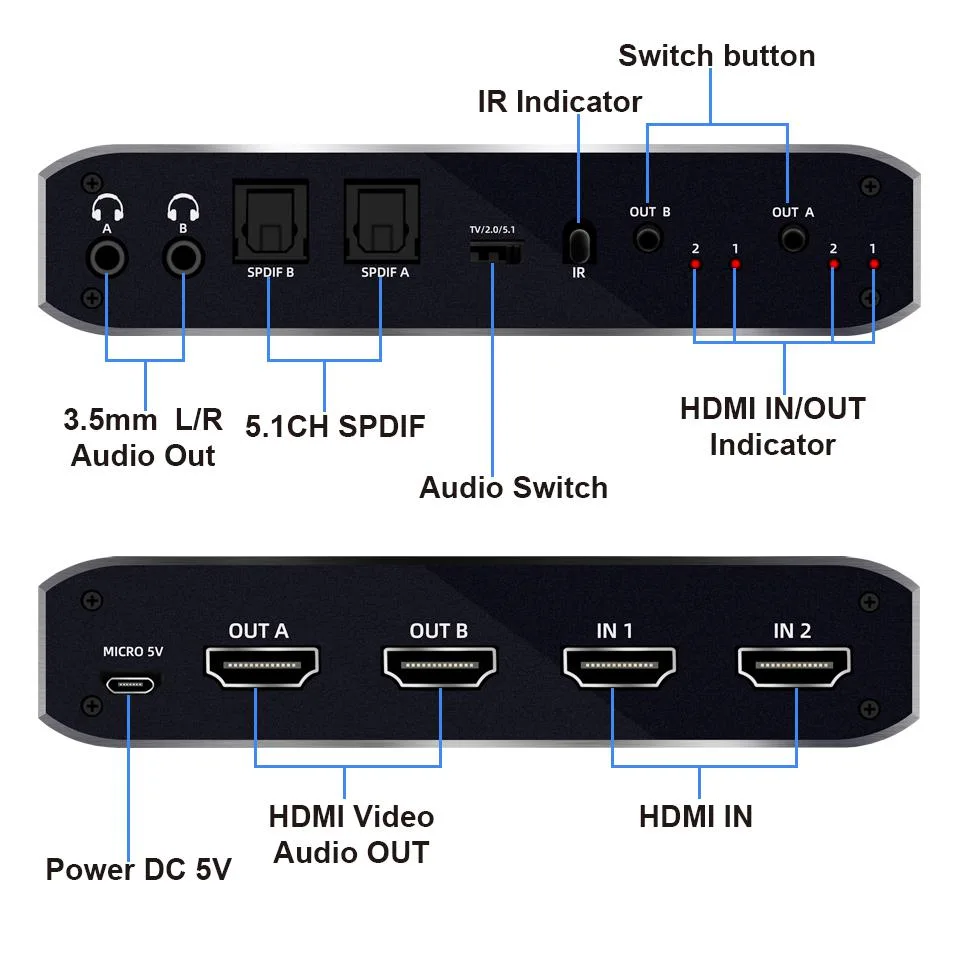

Each output provides a 3.5mm stereo jack and a Toslink optical port for LPCM, Dolby and DTS 5.1 audio, letting you feed a soundbar or AV receiver separately from the display. The included IR remote switches inputs without reaching behind the rack, and the metal chassis measures 5.91 x 2.36 x 0.79 inches.

Check cables and source capabilities

Verify that your source devices and displays support HDMI 2.0b and HDCP 2.2 to pass 4K@60Hz; the auto downscaler will convert 4K to 1080p on a port that cannot handle the higher rate. HDMI cables up to 10 metres AWG26 are specified for the 18.5Gbps bandwidth, and the unit ships with a USB power cable and charger.

Highlights

  • Routes two 4K sources to two displays independently
  • Extracts audio via dual optical and 3.5 mm outputs
  • IR remote gives full switching control from the sofa
  • Auto downscales 4K to 1080p for mixed-resolution screens
  • 5 Gbps bandwidth carries 4K 60 Hz HDR 10 and 3D

Specifications

BrandLUOM
SeriesOZJ6
ModelOZJ6
Part NumberOZJ6
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
MatrixYes
AudioYes
SpecificationsModel: HDMI Matrix 2x2
HDMI version: HDMI 2.0b
HDMI resolution: up to 4K@60Hz, 3D.RGB 8:8:8
Support video format: 8/10/12/24/32 bit
Support audio format: LPCM/DTS 5.1/Dobly-AC3
Maximum bandwidth: 18.5Gbps
Max bandwidth: 600MHz
Input Connector2 x HDMI
Output Connector2 x HDMI
Maximum Cable Length10m AWG26 HDMI2.0b standard cable
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0b HDCP 2.2
Support 3D video format
Support highest resolution up to 3840*2160/60Hz
Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24/32/48bit
Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
Support LPCM/Dolby/DTS 5.1 audio
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 2 in 2 out
1x 5V power adapter
1x IR Remote Control
1x User Manual

Questions about this item

What HDMI version does the OZJ6 matrix use, and what bandwidth does that limit me to?

The unit runs HDMI 2.0b with a maximum bandwidth of 18.5 Gbps, capping video at 4K@60Hz with RGB 8:8:8 colour.

How much rack or shelf depth does the 5.91 x 2.36 x 0.79 inch chassis need?

Allow at least 5.91 inches of depth, 2.36 inches of width and 0.79 inches of height for the matrix itself, plus cable bend radius behind the HDMI ports.

Do I need to power the matrix before connecting sources, and which cable ships with the charger?

Connect the supplied USB cable to the included charger first, then attach sources and displays; the matrix will not switch reliably without external power.
