LUOM
LUOM OZJ6 HDMI Matrix 2x2 4K@60Hz audio
A 2×2 HDMI matrix routes two 4K sources to two displays while extracting audio via optical and 3.5 mm outputs, controlled by an IR remote
- TypeHDMI Switchers
- Changer TypeHDMI Switch/Extender
- ColorBlack
- Ports2
- MatrixYes
- AudioYes
- Connect two 4K HDR sources to two displays via 2x2 HDMI matrix
- Extract audio to two SPDIF optical and two 3.5 mm stereo outputs
- IR remote controls switching without leaving the sofa
- HDMI 2.0b with HDCP 2.2 passes 4K at 60 Hz 18.5 Gbps
- Compact 5.91 x 2.36 x .79 in unit weighs 11.9 oz
LUOM OZJ6 2x2 HDMI Matrix

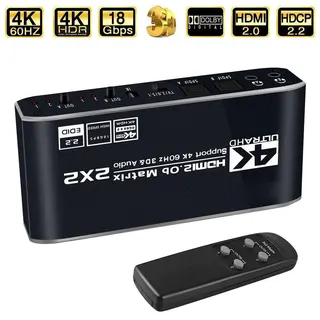

The LUOM OZJ6 is a 2x2 HDMI matrix switch that routes two 4K HDR sources to two displays independently. It supports HDMI 2.0b and HDCP 2.2 for protected content playback. Audio can be extracted from either input through dual SPDIF optical and dual 3.5 mm stereo outputs. An IR remote is included for source selection and switching control.
Passive operation with external power
The unit draws power from a supplied USB charger rather than from the HDMI lines themselves. No internal fans or active cooling are present, so operation is completely silent. Typical power consumption is low enough for the included adapter, and the aluminium enclosure dissipates the small heat load without temperature concerns.
Fits standard AV racks and desktops

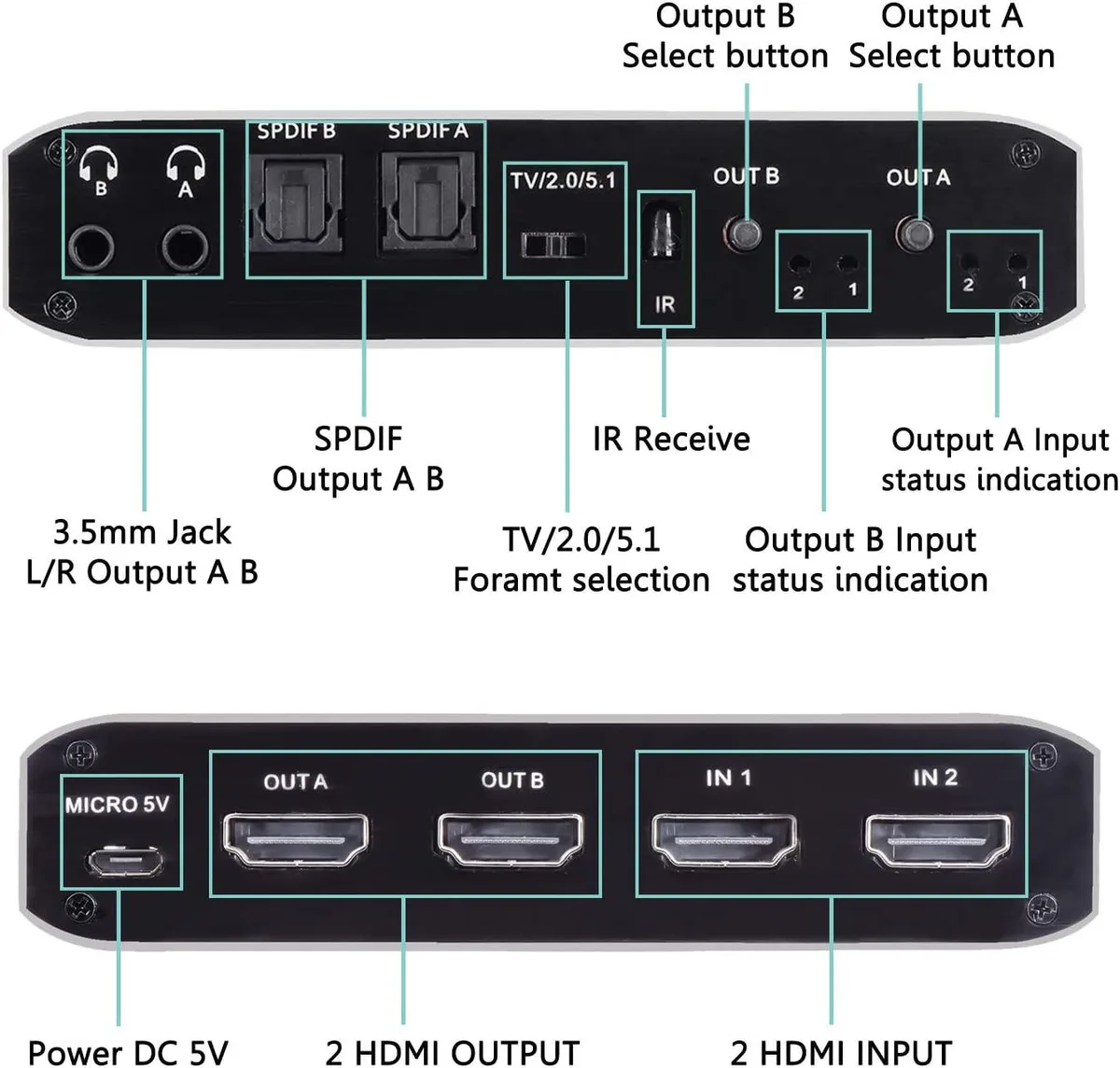

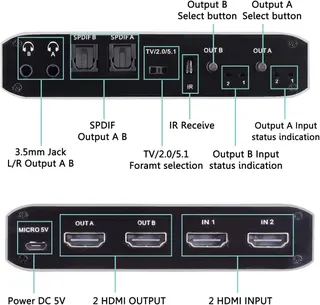

At 5.91 x 2.36 x 0.79 inches and 11.9 ounces, the matrix sits on a shelf or mounts with adhesive pads in a rack. It accepts HDMI cables up to 10 metres at AWG26 for 4K@60Hz signals. Two SPDIF and two 3.5 mm outputs free the displays from handling audio, sending multichannel LPCM, Dolby or DTS 5.1 to a separate amplifier or soundbar.
Highlights
- Connect two 4K HDR sources to two displays via 2x2 HDMI matrix
- Extract audio to two SPDIF optical and two 3.5 mm stereo outputs
- IR remote controls switching without leaving the sofa
- HDMI 2.0b with HDCP 2.2 passes 4K at 60 Hz 18.5 Gbps
- Compact 5.91 x 2.36 x .79 in unit weighs 11.9 oz
Specifications
| Brand | LUOM |
|---|---|
| Series | OZJ6 |
| Model | OZJ6 |
| Part Number | OZJ6 |
| Type | HDMI Switchers |
| Changer Type | HDMI Switch/Extender |
| Color | Black |
| Ports | 2 |
| Matrix | Yes |
| Audio | Yes |
| Specifications | Model: HDMI Matrix 2x2 HDMI version: HDMI 2.0b HDMI resolution: up to 4K@60Hz, 3D.RGB 8:8:8 Support video format: 8/10/12/24/32 bit Support audio format: LPCM/DTS 5.1/Dobly-AC3 Maximum bandwidth: 18.5Gbps Max bandwidth: 600MHz |
| Input Connector | 2 x HDMI |
| Output Connector | 2 x HDMI |
| Maximum Cable Length | 10m AWG26 HDMI2.0b standard cable |
| Maximum Resolutions | 4K@60Hz |
| Bandwidth | 18.5Gbps/600MHZ |
| Features | Support HDMI 2.0b HDCP 2.2 Support 3D video format Support highest resolution up to 3840*2160/60Hz Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz Support deep color 8/10/12/24/32/48bit Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time Support LPCM/Dolby/DTS 5.1 audio |
| Dimensions | 5.91 x 2.36 x 0.79 inches |
| Weight | 11.9 ounces |
| Package Quantity | 1 |
| Package Contents | 1x HDMI Matrix 2 in 2 out 1x 5V power adapter 1x IR Remote Control 1x User Manual |
Questions about this item
How do I install the OZJ6 matrix and what is the step people often miss?

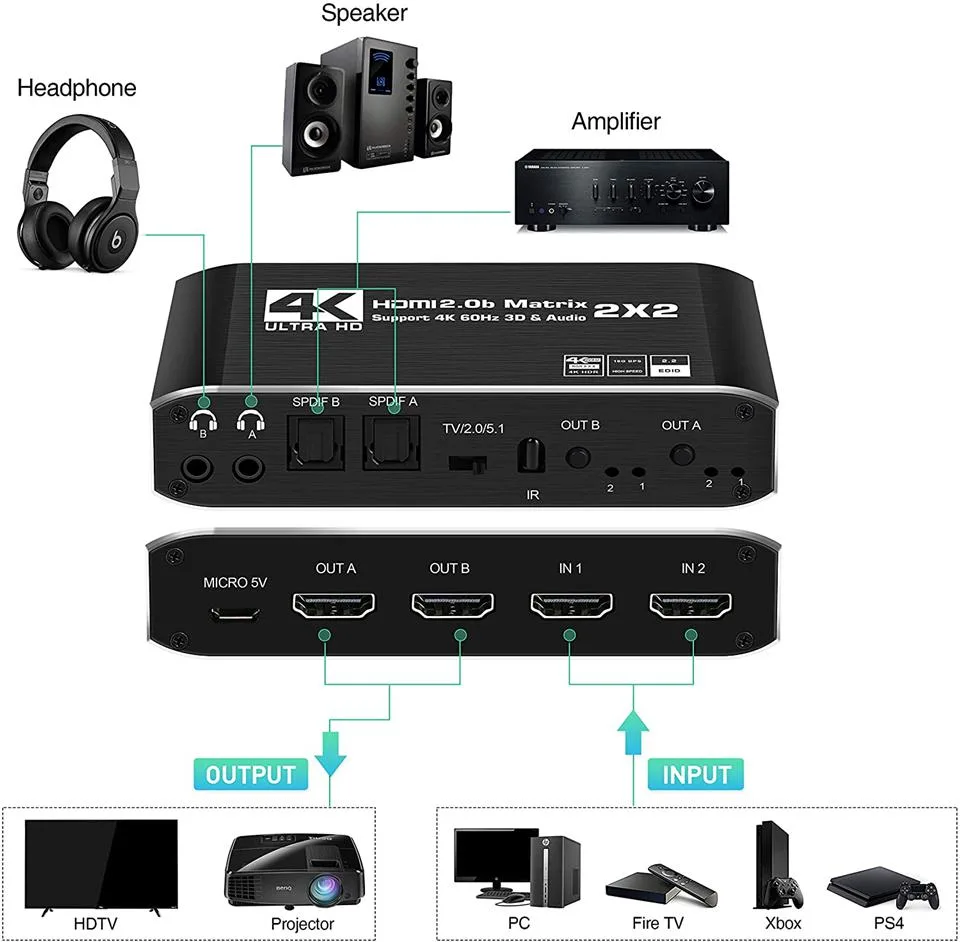

Connect up to two sources to the two HDMI inputs and two displays to the two HDMI outputs using cables no longer than 10 metres, plug in the supplied charger via the USB cable, then use the IR remote to select which source goes to which output; the step often missed is powering the unit before switching.
What maintenance or replacement will the OZJ6 need later?
No scheduled maintenance is required; if the IR remote stops working replace its battery, and if a display loses signal check that the HDMI cables are still firmly seated and within the 10-metre limit.
What limit appears first when the OZJ6 runs continuously at 4K 60 Hz?
The 18.5 Gbps bandwidth ceiling is reached first; it caps the signal at 4K 60 Hz RGB 8:8:8 and prevents higher refresh rates or deeper colour depths from passing through.
