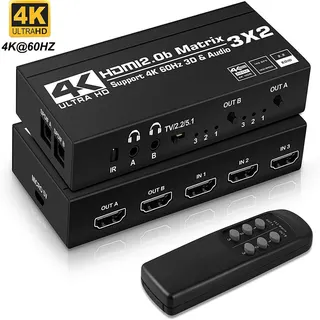

Black rectangular HDMI matrix switch with front panel ports and buttons

LUOM

LUOM OZJ5 3x2 HDMI Matrix Switch 4K@60Hz Audio

SKU CH-AEMX-1K1C5

Routes three HDMI sources to two displays at 4K@60Hz with SPDIF and 3.5mm audio extraction

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports3-Port
  • MatrixYes
  • AudioYes
  • Connect three sources to two displays independently
  • 3 HDMI inputs and 2 HDMI outputs matrix routing
  • Hear audio on separate systems via SPDIF and 3.5 mm
  • Optical and analogue audio extraction per output
  • Control switching from the sofa with IR remote

Three-source matrix for two displays

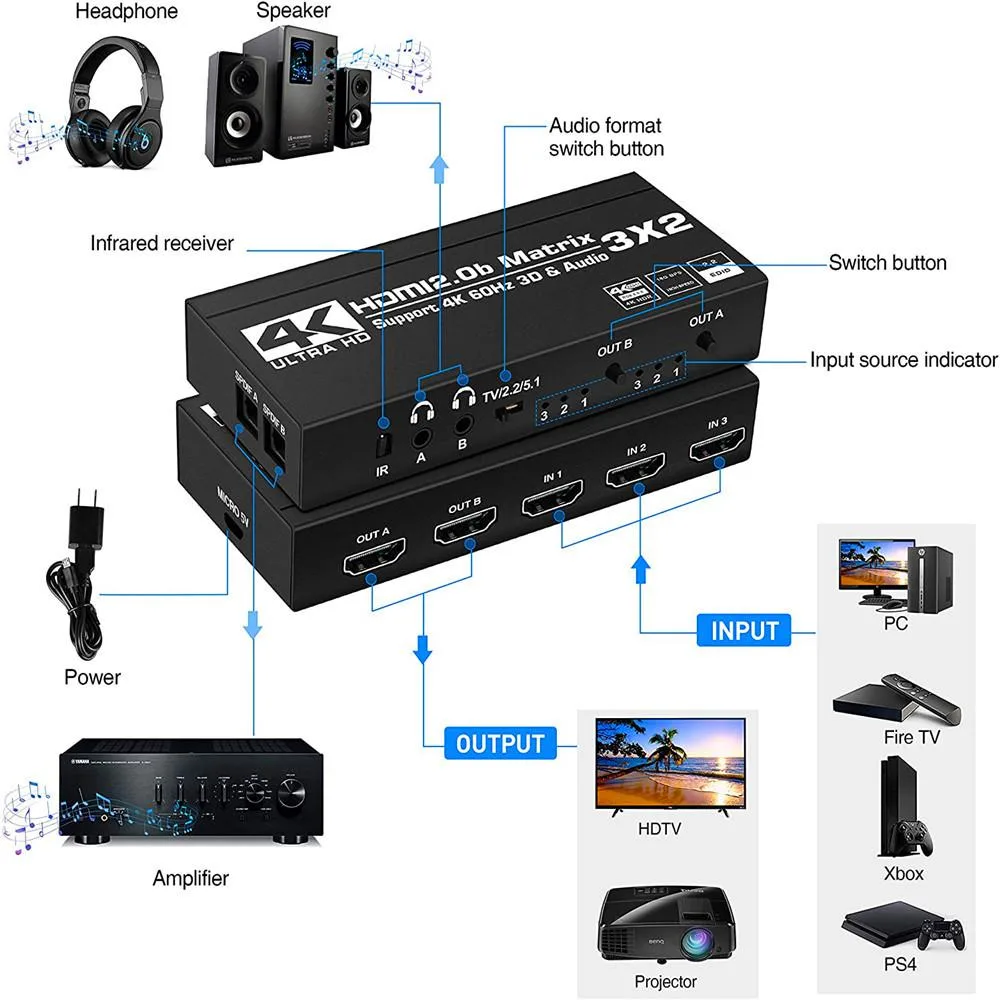

The LUOM OZJ5 is a 3x2 HDMI matrix switch that lets you route three HDMI sources to two displays independently. Each output can show the same source or a different one, making it suited for home-theatre, office or presentation setups where multiple sources share two screens.

Compact metal chassis with extracted audio

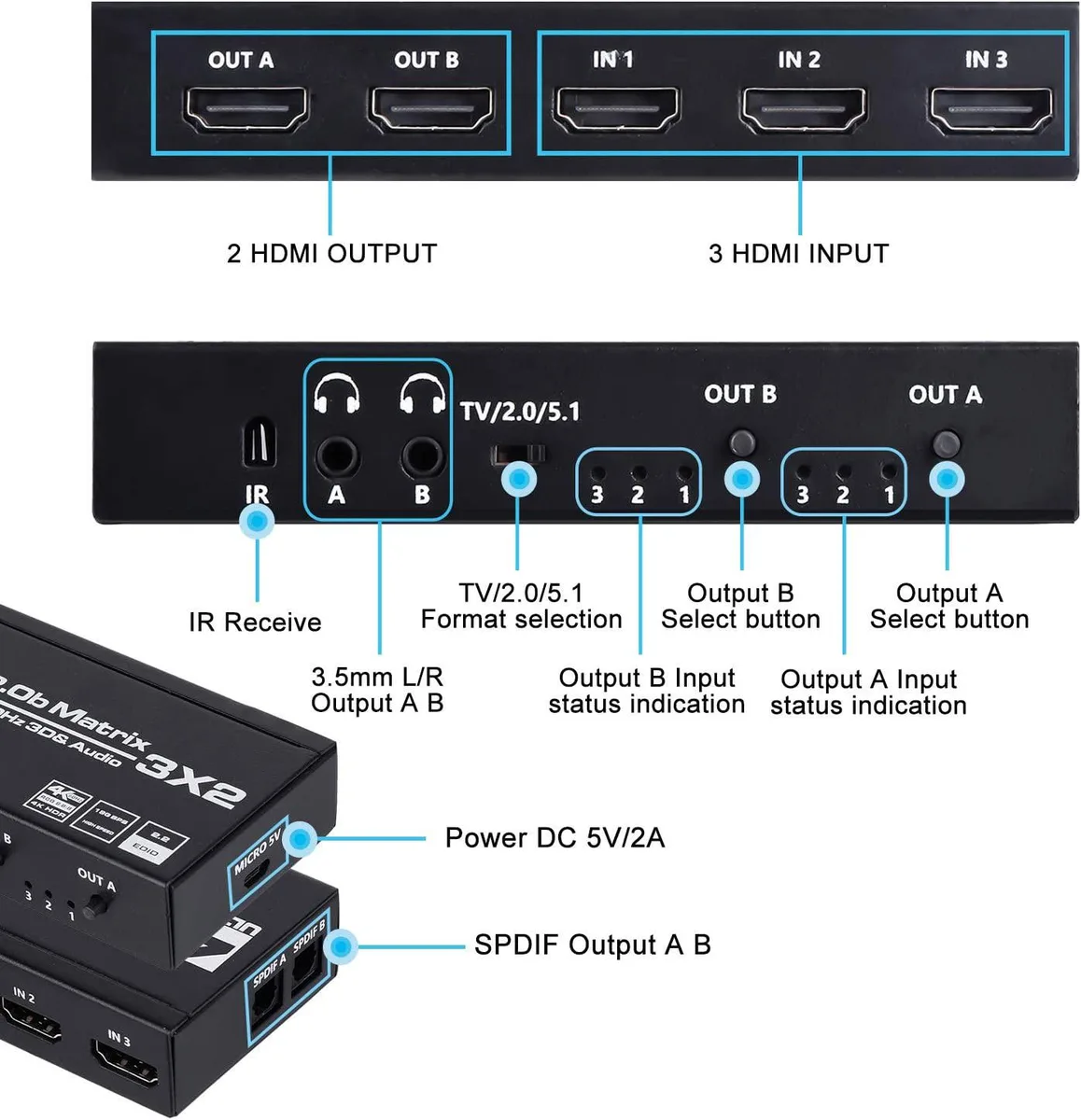

The black enclosure measures 5.91 x 2.36 x 0.79 inches and weighs 11.9 ounces, so it fits on a shelf or behind a display. Two HDMI outputs sit alongside two Toslink SPDIF ports and two 3.5 mm stereo jacks, giving each zone its own digital or analogue audio path without an extra extractor.

Check source count and cable reach

You need exactly three HDMI sources and two HDMI displays to use the full matrix; fewer sources work but leave inputs unused. The switch requires the included DC 5 V supply and supports cables up to 10 m using AWG26 HDMI 2.0b cable, so verify your runs stay within that distance.

Highlights

  • Connect three sources to two displays independently
  • 3 HDMI inputs and 2 HDMI outputs matrix routing
  • Hear audio on separate systems via SPDIF and 3.5 mm
  • Optical and analogue audio extraction per output
  • Control switching from the sofa with IR remote

Specifications

BrandLUOM
SeriesOZJ5
ModelOZJ5
Part NumberOZJ5
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports3-Port
MatrixYes
AudioYes
Specifications- Product Type:HDMI Matrix 3x2.
- Interface Type: 3 HDMI Input port, 2 HDMI Output Port
- Color: Black
- Power Supply: DC 5V.
- Max working current: 600mA
- Operating Temperature range -15°C to+45°C
- Dimension (LxWxH): 170*56*24mm
- Weight: 0.25kg
Input Connector3 x HDMI
Output Connector2 x HDMI
Maximum Cable Length10m AWG26 HDMI2.0b standard cable
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
Features- Support HDMI 2.0b HDCP 2.2
- Support 3D video format - Support highest resolution up to 3840*2160/60Hz
- Support 18.5Gbps data rate and tmds clock up to 600Mhz
- Support deep color 8/10/12/24/32/48bit
- Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
- HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4
- 3 HDMI inputs switch and split to 2 HDMI displays
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 3x2
1x 5V power adapter
1x IR Remote Control
1x User Manual

Questions about this item

What HDMI standard does the 18.5Gbps bandwidth support, and what resolution does it cap at?

The 18.5Gbps bandwidth supports HDMI 2.0b and HDCP 2.2, capping the maximum resolution at 4K@60Hz (3840x2160).

What are the unit dimensions and weight for rack or shelf mounting?

The unit measures 5.91 x 2.36 x 0.79 inches and weighs 11.9 ounces.

How do I connect the IR remote sensor, and what is the common mistake during setup?

Connect the IR sensor to the designated port on the unit; a common mistake is placing the sensor where the remote signal is blocked by the TV or cabinet door.
