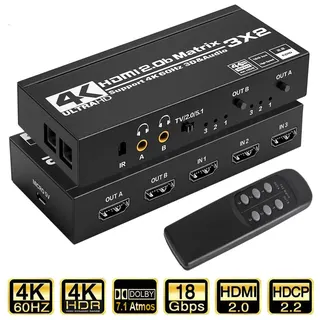

Black rectangular HDMI matrix switch with multiple ports and IR remote

LUOM

LUOM OZJ5 3x2 HDMI Matrix Audio Switch 4K@60Hz

SKU CH-0ECA-7NHGA

Routes three HDMI sources to two displays at 4K@60Hz with independent SPDIF and 3.5mm audio extraction per output

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports3-Port
  • MatrixYes
  • AudioYes
  • Routes three 4K@60Hz sources to two displays independently
  • Extracts audio via dual SPDIF optical and 3.5 mm stereo outputs
  • Switches instantly with IR remote or front-panel buttons
  • Handles 18.5 Gbps bandwidth with HDCP 2.2 and 3D support
  • Runs on DC 5 V at 600 mA max current

3x2 HDMI Matrix Switch

The LUOM OZJ5 connects three HDMI sources to two displays simultaneously. Each output can show the same or a different source. It supports 4K@60Hz, HDR 10 and 3D formats with 18.5Gbps bandwidth. Audio is extracted via two SPDIF optical and two 3.5mm stereo ports.

Check your sources and cables

Verify that each source device outputs HDMI 2.0b with HDCP 2.2. Use AWG26 HDMI 2.0b cables no longer than 10m for reliable 4K@60Hz transmission. The unit requires a DC 5V supply capable of 600mA and operates from -15°C to +45°C.

Build integration

The matrix measures 5.91 x 2.36 x 0.79 inches and weighs 11.9 ounces. It frees up display inputs by consolidating three sources into two switchable outputs. Independent audio extraction on each output lets you feed separate sound systems without extra splitters.

Highlights

  • Routes three 4K@60Hz sources to two displays independently
  • Extracts audio via dual SPDIF optical and 3.5 mm stereo outputs
  • Switches instantly with IR remote or front-panel buttons
  • Handles 18.5 Gbps bandwidth with HDCP 2.2 and 3D support
  • Runs on DC 5 V at 600 mA max current

Specifications

BrandLUOM
SeriesOZJ5
ModelOZJ5
Part NumberOZJ5
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports3-Port
MatrixYes
AudioYes
Specifications- Product Type:HDMI Matrix 3x2.
- Interface Type: 3 HDMI Input port, 2 HDMI Output Port
- Color: Black
- Power Supply: DC 5V.
- Max working current: 600mA
- Operating Temperature range -15°C to+45°C
- Dimension (LxWxH): 170*56*24mm
- Weight: 0.25kg
Input Connector3 x HDMI
Output Connector2 x HDMI
Maximum Cable Length10m AWG26 HDMI2.0b standard cable
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
Features- Support HDMI 2.0b HDCP 2.2
- Support 3D video format - Support highest resolution up to 3840*2160/60Hz
- Support 18.5Gbps data rate and tmds clock up to 600Mhz
- Support deep color 8/10/12/24/32/48bit
- Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
- HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4
- 3 HDMI inputs switch and split to 2 HDMI displays
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 3x2
1x 5V power adapter
1x IR Remote Control
1x User Manual

Questions about this item

Does the LUOM OZJ5 include the DC 5V power supply and IR remote, or must I buy them separately?

The unit ships with a DC 5V power adapter and an IR remote control; no extra power or control accessories are required.

Should I choose the 3x2 matrix over a simpler switch if I only need to send one source to two screens?

The 3x2 matrix lets any of the three inputs route independently to either output, so you can show different 4K@60Hz content on each display simultaneously.

Will the 18.5Gbps bandwidth handle 4K@60Hz HDR from a games console through a 10m cable?

Yes, the 18.5Gbps bandwidth supports 4K@60Hz HDR and the spec allows up to 10m using AWG26 HDMI 2.0b cable.
