Black rectangular HDMI matrix switch with three inputs and two outputs

LUOM

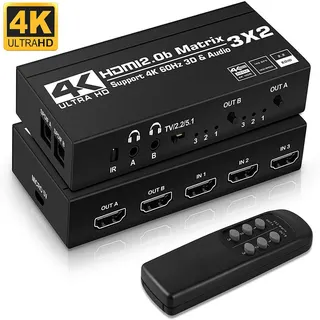

LUOM OZJ5 3x2 HDMI Matrix 4K@60Hz Audio Extractor

SKU CH-MTSP-JZ0TC

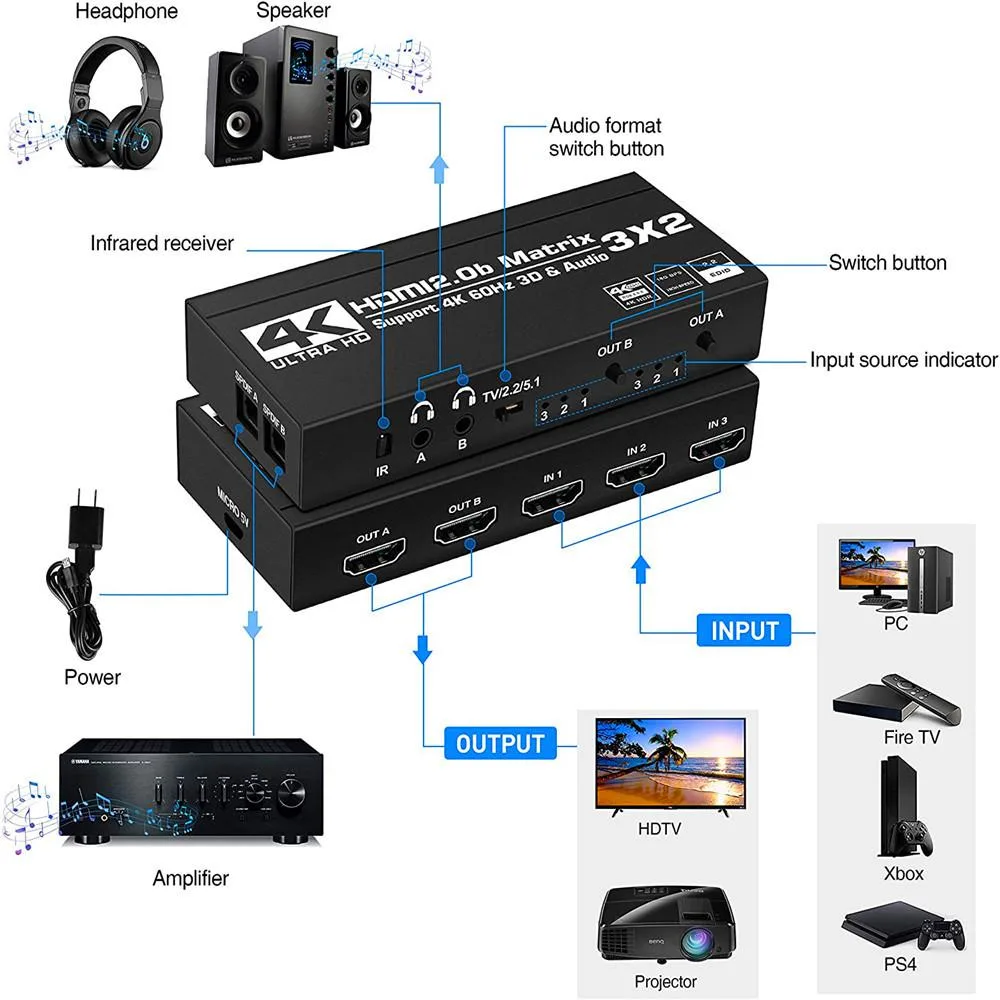

Routes three 4K@60Hz HDMI sources to two displays with independent optical and 3.5 mm audio extraction and IR remote control

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports3-Port
  • MatrixYes
  • AudioYes
  • Routes three 4K sources to two displays independently
  • Extracts audio to dual optical and 3.5 mm outputs
  • Handles 18.5 Gbps bandwidth for 4K@60Hz HDR
  • Includes IR remote for convenient source switching
  • Compact 5.91 x 2.36 x 0.79 inch black chassis

LUOM OZJ5 3x2 HDMI Matrix

The LUOM OZJ5 is a 3x2 HDMI matrix switch that routes three 4K sources to two displays simultaneously. It suits home-theatre owners, meeting-room installers and educators who need independent audio extraction on each output. The unit handles HDMI 2.0b and HDCP 2.2 signals with an IR remote for source selection. It is not for users who require more than three inputs or more than two zones.

4K@60Hz 18.5Gbps bandwidth with auto downscaler

The matrix passes 3840x2160 at 60Hz with 18.5Gbps bandwidth and deep-colour support up to 48-bit. An auto downscaler lets a 4K source feed a 1080p display without manual setup. Each output provides both Toslink optical and 3.5mm stereo audio extraction, switchable between TV pass-through, 2.0 and 5.1 modes. Maximum certified cable length is 10m using AWG26 HDMI 2.0b cable; longer runs may lose signal integrity.

DC 5V 600mA power with compact 5.91x2.36x.79in

The switch ships with a DC 5V supply drawing up to 600mA and operates from -15°C to +45°C. Its 5.91 x 2.36 x .79 inch footprint fits on a desk or behind a display without blocking adjacent ports. Front-panel buttons duplicate the IR remote for local control. Installers must provide their own HDMI cables and ensure source devices output HDCP 2.2-compliant streams for protected content.

Highlights

  • Routes three 4K sources to two displays independently
  • Extracts audio to dual optical and 3.5 mm outputs
  • Handles 18.5 Gbps bandwidth for 4K@60Hz HDR
  • Includes IR remote for convenient source switching
  • Compact 5.91 x 2.36 x 0.79 inch black chassis

Specifications

BrandLUOM
SeriesOZJ5
ModelOZJ5
Part NumberOZJ5
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports3-Port
MatrixYes
AudioYes
Specifications- Product Type:HDMI Matrix 3x2.

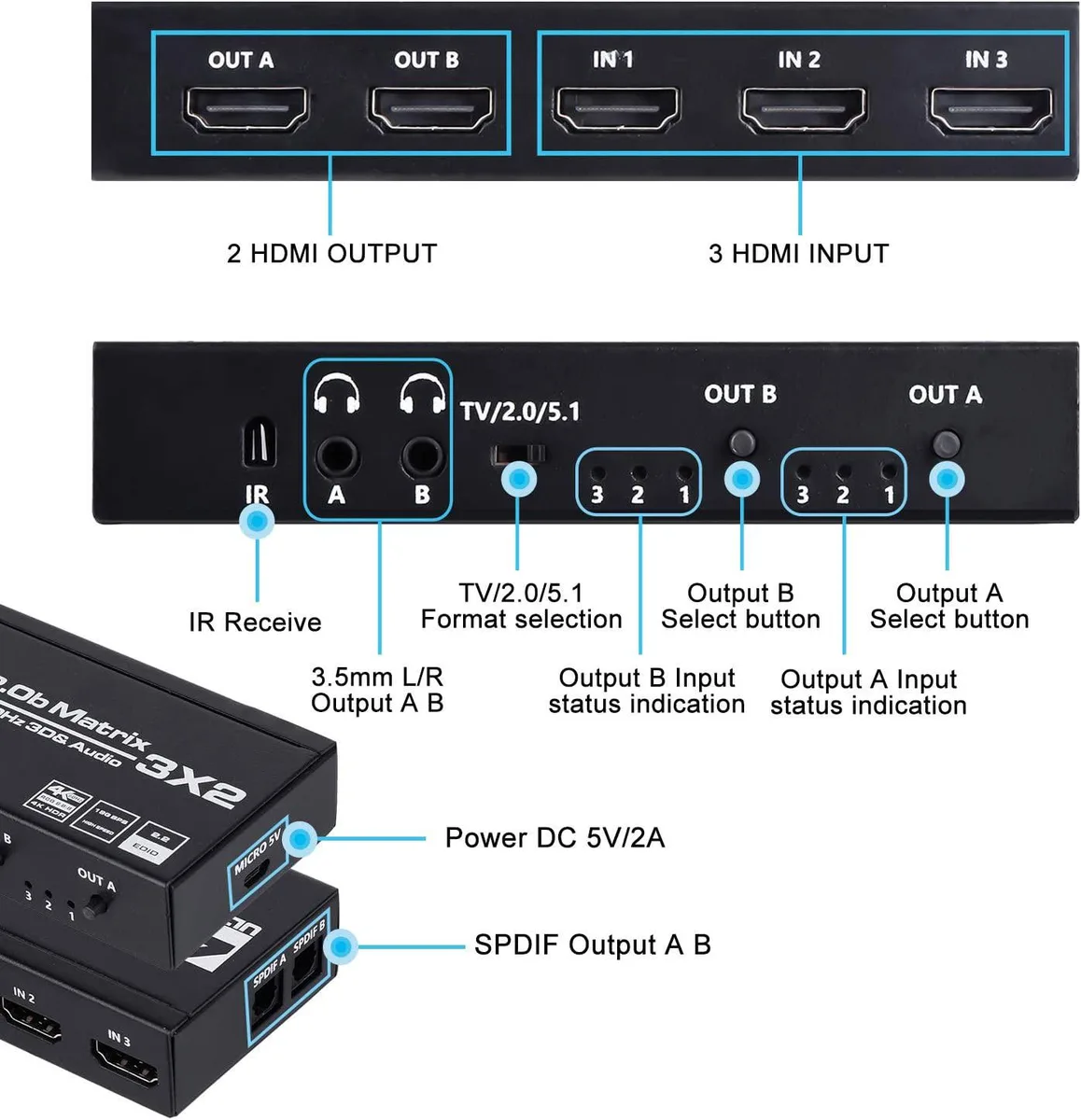

- Interface Type: 3 HDMI Input port, 2 HDMI Output Port
- Color: Black
- Power Supply: DC 5V.
- Max working current: 600mA
- Operating Temperature range -15°C to+45°C
- Dimension (LxWxH): 170*56*24mm
- Weight: 0.25kg
Input Connector3 x HDMI
Output Connector2 x HDMI
Maximum Cable Length10m AWG26 HDMI2.0b standard cable
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
Features- Support HDMI 2.0b HDCP 2.2
- Support 3D video format - Support highest resolution up to 3840*2160/60Hz
- Support 18.5Gbps data rate and tmds clock up to 600Mhz
- Support deep color 8/10/12/24/32/48bit
- Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
- HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4
- 3 HDMI inputs switch and split to 2 HDMI displays
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 3x2
1x 5V power adapter
1x IR Remote Control
1x User Manual

Questions about this item

Will the 3.5mm stereo outputs work with my older powered speakers that only accept analog audio?

Yes, each HDMI output provides a dedicated 3.5mm stereo jack that carries extracted analog audio, so you can connect legacy speakers or headphones directly without a separate DAC.

How can I confirm the matrix is passing 4K@60Hz and HDR to both displays after I connect everything?

Check each display's on-screen info menu: it should report 3840x2160 at 60 Hz with HDR active, and the front-panel LEDs will show which of the three inputs is routed to each output.

Does the package include the IR remote and the 5 V power adapter, or do I need to buy them separately?

The box contains the matrix unit, an IR remote control, and a DC 5 V power supply, so no extra purchases are required for basic operation.
