Black rectangular HDMI matrix switch with four inputs and four outputs, IR remote included

LUOM

LUOM OZJ4 4x4 HDMI Matrix Switch 4K@60Hz 18.5Gbps IR Remote

SKU CH-GT92-X4GH0

Routes four HDMI sources to four displays independently at 4K@60Hz with 18.5Gbps bandwidth and IR remote control

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4x4 Matrix
  • MatrixYes
  • AudioYes

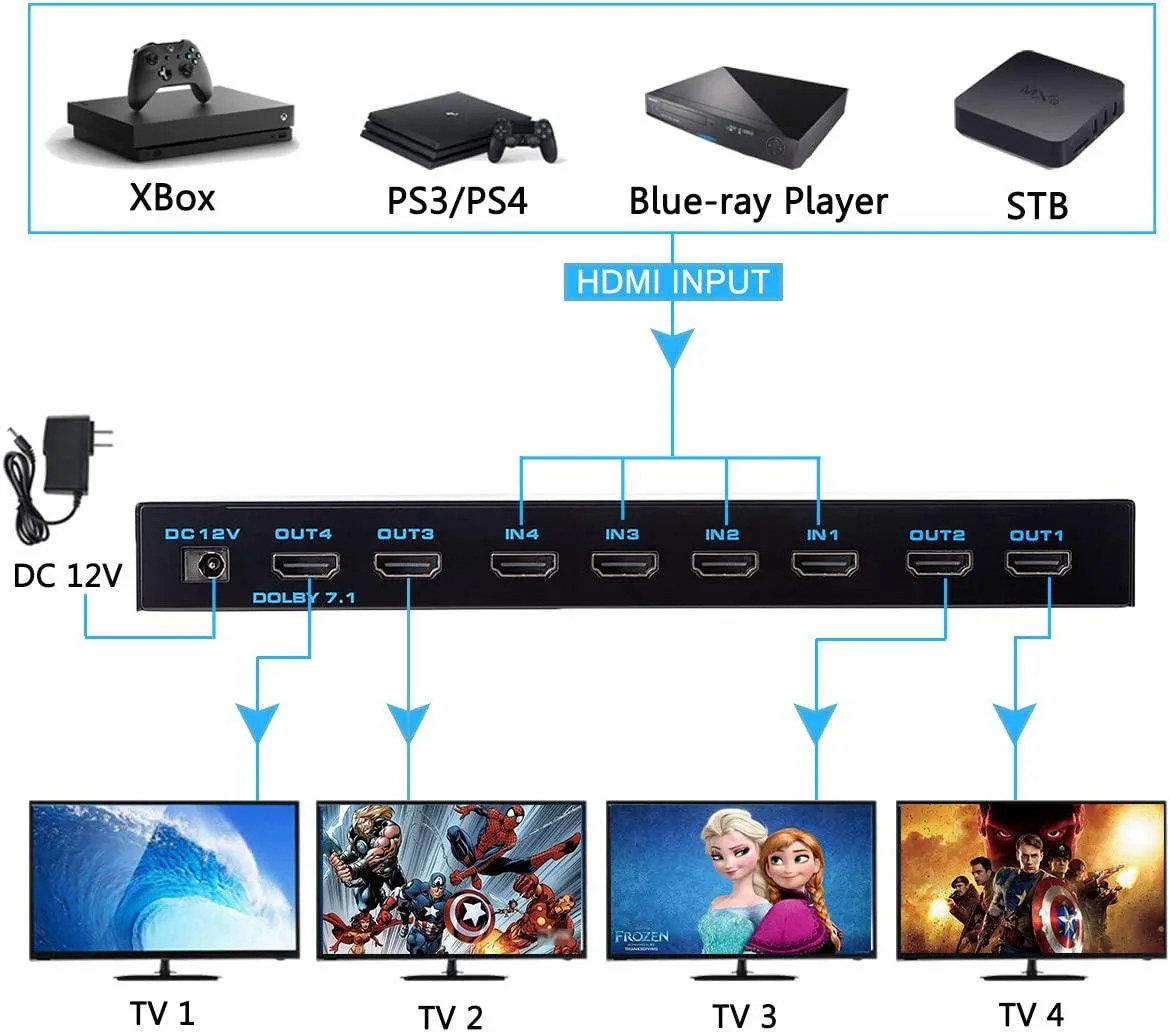

  • Connect four sources to four displays independently
  • 5 Gbps bandwidth carries 4K at 60 Hz YUV 4:4:4
  • HDCP 2.2 and HDMI 2.0b support protect premium content
  • IR remote gives instant switching from the sofa

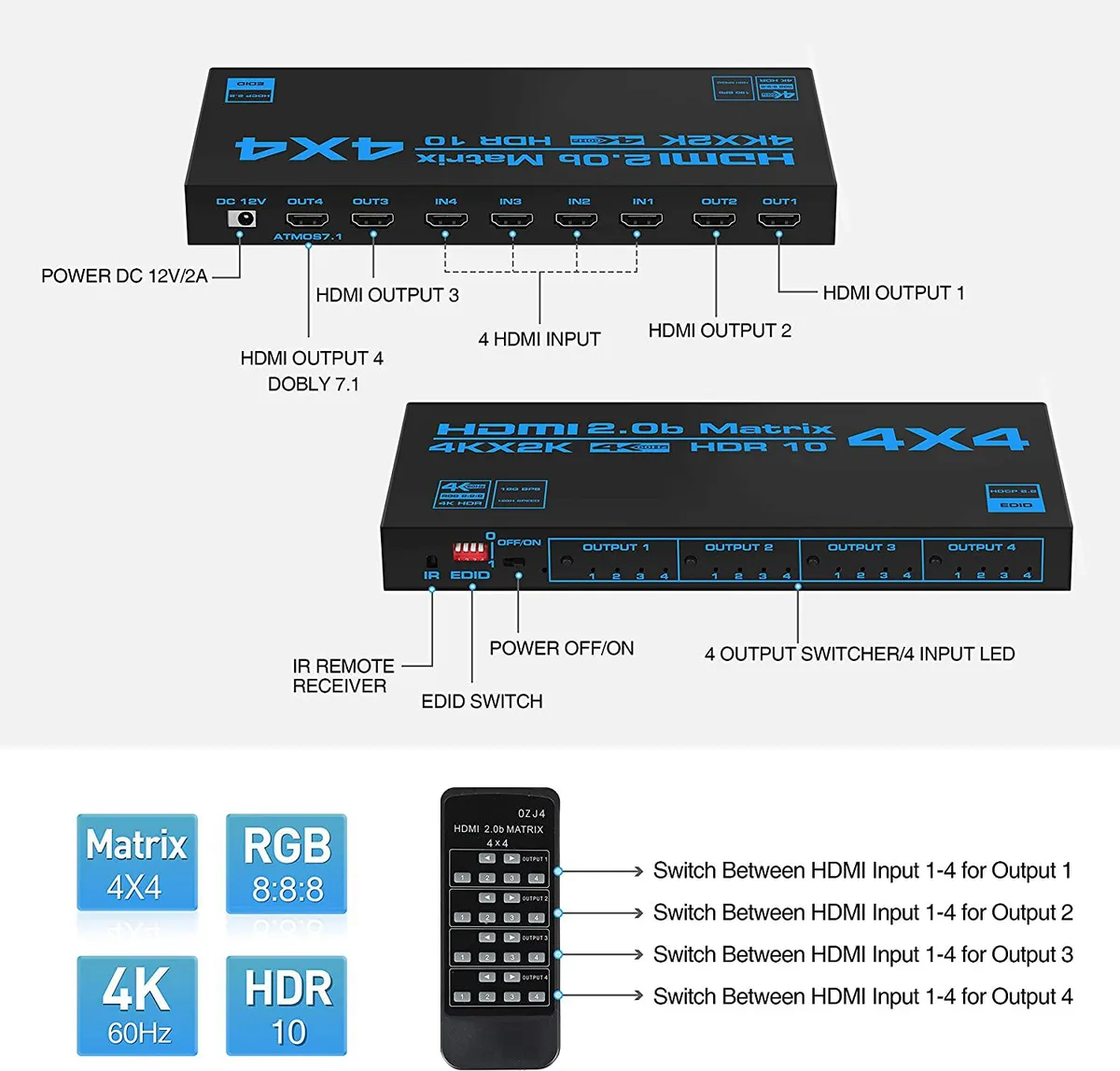

  • EDID management matches each source to its display

4x4 HDMI Matrix Switch 4K@60Hz

The LUOM OZJ4 is a 4x4 HDMI matrix switch that routes four HDMI sources to four HDMI displays independently. It supports HDMI 2.0b and HDCP 2.2 with a maximum bandwidth of 18.5 Gbps. The unit handles video up to 3840x2160 at 60 Hz with YUV 4:4:4 colour sampling and deep colour up to 24 bit. An IR remote control is included for switching operation.

Installers needing any-to-any 4K distribution

This matrix suits installers who need to switch or split four sources across four screens with independent routing per output. It also provides independent audio extraction via optical or stereo outputs on each port. Buyers who require more than four inputs or outputs should look at larger matrices. Users needing HDMI 2.1 features such as 4K at higher refresh rates or variable refresh rate will not find those capabilities here.

18.5 Gbps bandwidth at 4K 60 Hz 4:4:4

The single specification that decides fit is the 18.5 Gbps bandwidth limit, which enables full 4K 60 Hz 4:4:4 signals but excludes higher-resolution or higher-refresh-rate formats. Cable runs must stay under 8 metres using AWG26 HDMI 2.0b cables to maintain signal integrity. EDID management with learning and presets helps maintain compatibility across mixed source and display combinations.

Highlights

  • Connect four sources to four displays independently
  • 5 Gbps bandwidth carries 4K at 60 Hz YUV 4:4:4
  • HDCP 2.2 and HDMI 2.0b support protect premium content
  • IR remote gives instant switching from the sofa
  • EDID management matches each source to its display

Specifications

BrandLUOM
SeriesOZJ4
ModelOZJ4
Part NumberOZJ4
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4x4 Matrix
MatrixYes
AudioYes
SpecificationsHDMI-compatible Matrix Switch 4x4
Dimension (LxWxH): approx. 230*90*25mm
Support HDMI 2.0b HDCP 2.2
Support 3D video format
Support highest resolution up to 3840*2160/60Hz YUV4:4:4
Support 18Gbps data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/bit
4 HDMI input switch and split to 4 HDMI output
Input cable distance: =8m AWG26HDMI-compatible2.0b standard cable
Output cable distance: =8m AWG26HDMI-compatible2.0b standard cable
Input Connector4 x HDMI
Output Connector4 x HDMI
Maximum Cable LengthLess than 8m AWG26 HDMI2.0b standard cable
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0b HDCP 2.2
Support 3D video format
Support highest resolution up to 3840*2160/60Hz YUV4:4:4
Support 18Gbps data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24bit
Input and output cable distance: <8m AWG26 HDMI2.0b standard cable
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 4X4
1x 12V power adapter
1x IR Remote Control
1x User Manual

Questions about this item

How can I confirm the matrix is passing 4K@60Hz YUV4:4:4 after setup?

Check the source and display info menus — both should report 3840x2160 at 60 Hz with 4:4:4 chroma and deep-color 8/10/12-bit; the front-panel LEDs will show active links on all four inputs and outputs.

What comes in the box and what must I provide?

The package includes the 4x4 matrix unit, IR remote and power supply; you supply four HDMI source cables and four HDMI display cables, each under 8 m AWG26 rated for HDMI 2.0b.

Which EDID mode should I select for a mixed 1080p and 4K display setup?

Use the EDID learning function to copy the timing from the 4K display, then restart the matrix; this forces all sources to output 3840x2160@60Hz while the 1080p screens down-scale automatically.
