Black rectangular HDMI matrix switch with four inputs and four outputs

LUOM

LUOM OZJ4 4x4 HDMI Matrix Switch 4K@60Hz 18.5Gbps Black

SKU CH-3BJ7-4MS0Y

Routes four HDMI sources to four displays at 4K 60 Hz with 18.5 Gbps bandwidth and HDCP 2.2 support

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4x4 Matrix
  • MatrixYes
  • AudioYes
  • Routes four sources to four displays independently
  • Handles 4K at 60 Hz with 18.5 Gbps bandwidth
  • Supports HDCP 2.2 and HDMI 2.0b for protected content

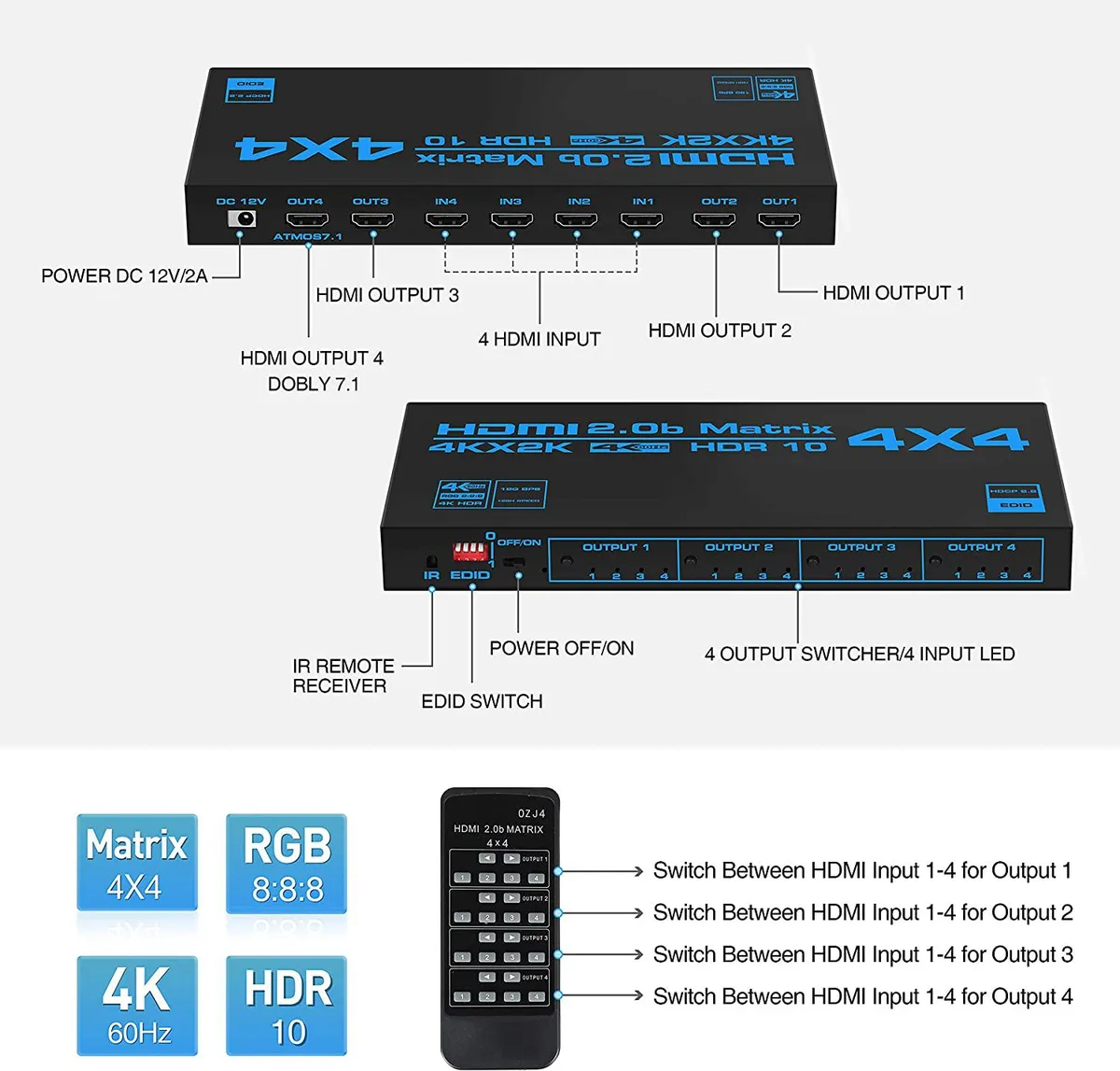

  • Includes IR remote for front-of-room switching
  • Compact 230×90×25 mm chassis fits tight racks

4x4 HDMI Matrix Switch

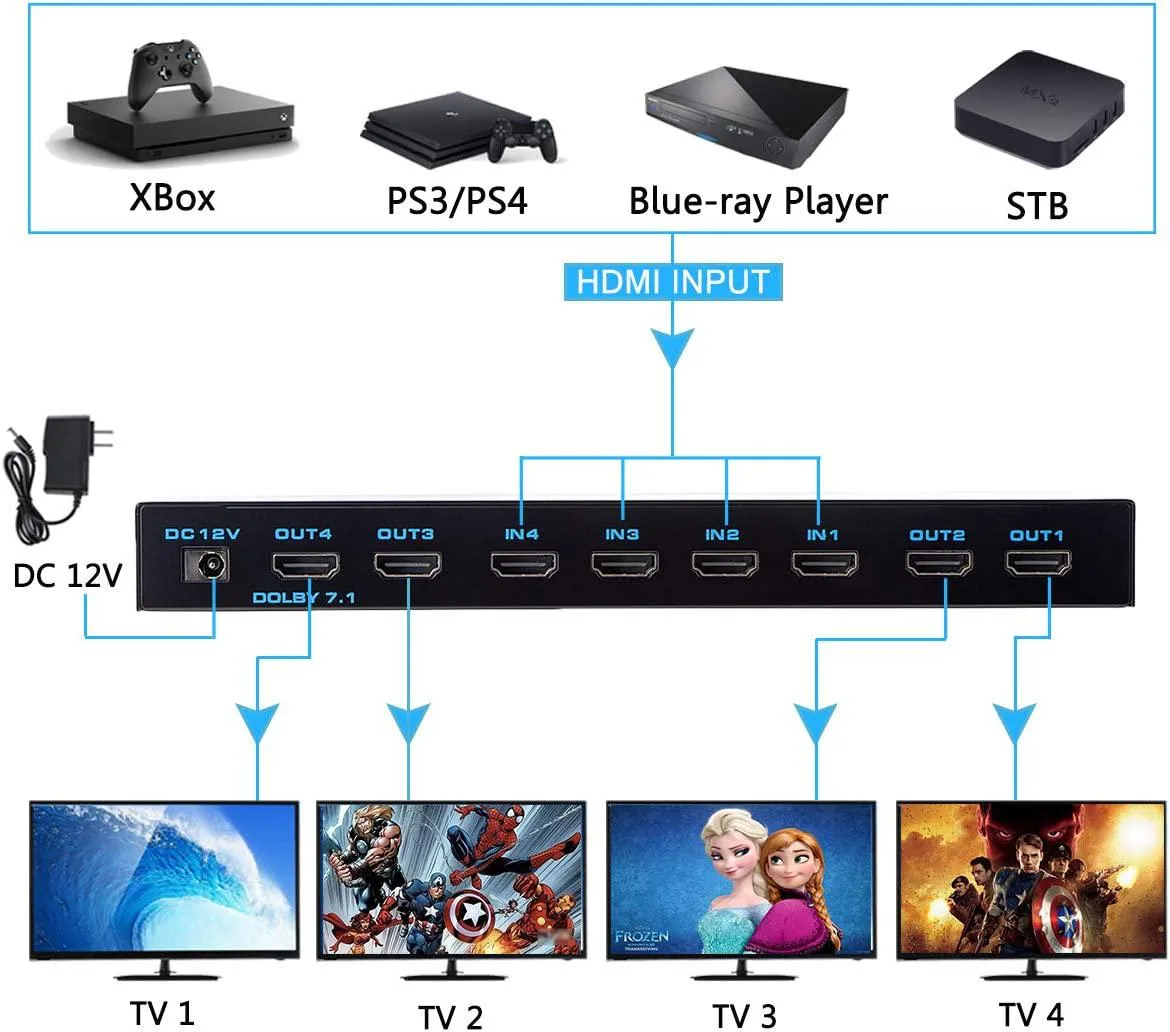

The LUOM OZJ4 routes four HDMI sources to four independent displays, letting each output show a different source at the same time. It suits installations that need flexible distribution across multiple screens.

HDMI 2.0b bandwidth limits

The switch handles 18.5 Gbps and TMDS clock up to 600 MHz, supporting 3840×2160 at 60 Hz with YUV 4:4:4 and deep colour up to 24-bit. Cables must stay under 8 metres using AWG26 HDMI 2.0b spec to maintain signal integrity.

Check sources and displays first

Verify every source can output HDMI 2.0b with HDCP 2.2 and that each display accepts 4K at 60 Hz. EDID learning is available but may require a power cycle after configuration. No audio extraction ports are described in the data.

Highlights

  • Routes four sources to four displays independently
  • Handles 4K at 60 Hz with 18.5 Gbps bandwidth
  • Supports HDCP 2.2 and HDMI 2.0b for protected content
  • Includes IR remote for front-of-room switching
  • Compact 230×90×25 mm chassis fits tight racks

Specifications

BrandLUOM
SeriesOZJ4
ModelOZJ4
Part NumberOZJ4
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4x4 Matrix
MatrixYes
AudioYes
SpecificationsHDMI-compatible Matrix Switch 4x4
Dimension (LxWxH): approx. 230*90*25mm
Support HDMI 2.0b HDCP 2.2
Support 3D video format
Support highest resolution up to 3840*2160/60Hz YUV4:4:4
Support 18Gbps data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/bit
4 HDMI input switch and split to 4 HDMI output
Input cable distance: =8m AWG26HDMI-compatible2.0b standard cable
Output cable distance: =8m AWG26HDMI-compatible2.0b standard cable
Input Connector4 x HDMI
Output Connector4 x HDMI
Maximum Cable LengthLess than 8m AWG26 HDMI2.0b standard cable
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0b HDCP 2.2
Support 3D video format
Support highest resolution up to 3840*2160/60Hz YUV4:4:4
Support 18Gbps data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24bit
Input and output cable distance: <8m AWG26 HDMI2.0b standard cable
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 4X4
1x 12V power adapter
1x IR Remote Control
1x User Manual

Questions about this item

Should I choose a 4x4 matrix or a simpler switch for four sources and four displays?

The 4x4 matrix lets any of the four inputs route independently to any of the four outputs, so each display can show a different source at the same time.

What does the 18.5Gbps bandwidth mean when I connect 4K@60Hz sources?

It carries full 4K@60Hz YUV4:4:4 and deep colour up to 12‑bit without compression, so HDR and 3D content pass through at native quality.

Does the HDMI 2.0b interface limit cable length at 4K@60Hz?

With AWG26 HDMI 2.0b cables the reliable run is under 8 metres; longer runs need active or fibre cables to keep the 18.5Gbps signal intact.
