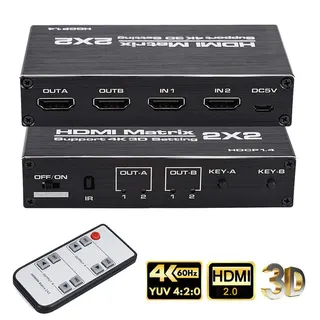

Black rectangular HDMI matrix switch with front panel buttons and LED indicators

LUOM

LUOM OZJ3 2x2 HDMI Matrix Switch 4K 60Hz 18Gbps video switch

SKU CH-3ZXR-HTE5P

Routes two HDMI sources to two displays at 4K 60 Hz with 18.5 Gbps bandwidth, HDCP 1.4, HDR, YUV 4:2:0 and IR remote control

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • MatrixYes
  • AudioYes
  • Routes two sources to two displays independently
  • Supports 4K at 60 Hz with 18.5 Gbps bandwidth
  • Handles 1080p, 3D, HDR and deep colour up to 48-bit

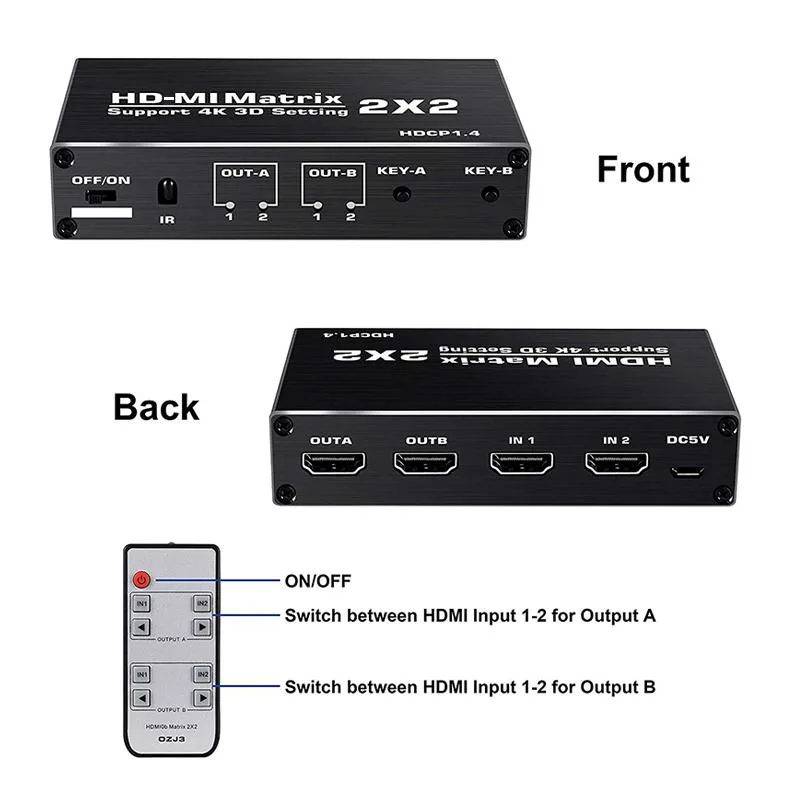

  • IR remote and front button switch active port in 3 seconds
  • DC 5 V power, operates from -15 °C to +45 °C

What this HDMI matrix does

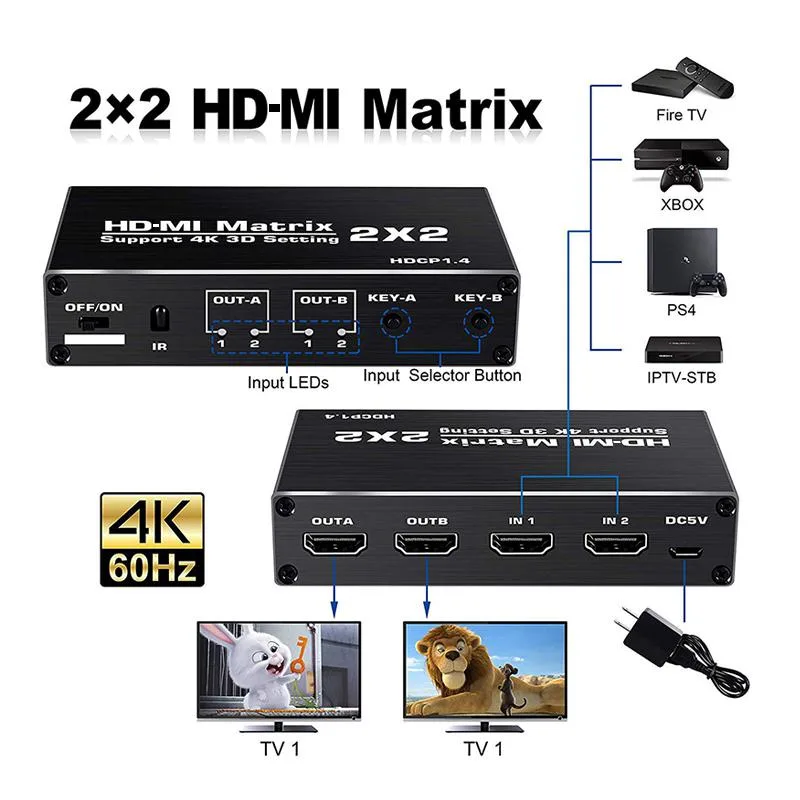

The LUOM OZJ3 is a 2×2 HDMI matrix switch that routes two HDMI sources to two displays independently. It handles 4K at 60 Hz with 18 Gbps bandwidth and supports HDR, 3D and deep colour up to 48 bit. The unit is aimed at installers and home-theatre owners who need simultaneous, zero-latency distribution to two screens.

Check your cables and sources first

Both inputs and outputs use standard HDMI connectors and the supplier rates the link for 10 m with AWG26 HDMI 2.0b cable. Sources must output HDCP 1.4; the box does not support HDCP 2.2 so newer 4K streaming devices may not pass protected content. Power comes from an external DC 5 V adapter drawing up to 600 mA.

Thermals and power in daily use

The aluminium chassis runs passively within an operating range of -15 °C to +45 °C and draws a maximum of 600 mA at 5 V. No fan is fitted, so operation is silent. The compact 5.91 × 2.36 × 0.79 inch enclosure weighs 11.9 oz and fits on a shelf or behind a display without airflow concerns.

Highlights

  • Routes two sources to two displays independently
  • Supports 4K at 60 Hz with 18.5 Gbps bandwidth
  • Handles 1080p, 3D, HDR and deep colour up to 48-bit
  • IR remote and front button switch active port in 3 seconds
  • DC 5 V power, operates from -15 °C to +45 °C

Specifications

BrandLUOM
SeriesOZJ3
ModelOZJ3
Part NumberOZJ3
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
MatrixYes
AudioYes
SpecificationsProduct Type:HDMI Matrix 2x2.
Interface Type: 2 HDMI in, 2 HDMI out
Color: Black
Power Supply: DC 5V.
Max working current: 600mA
Operating Temperature range -15°C to+45°C
Input Connector2 x HDMI
Output Connector2 x HDMI
Maximum Cable Length10m AWG26 HDMI2.0b standard cable
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0, HDCP 1.4
Support 3D video format
Support highest resolution up to 3840*2160/60Hz
Support 18Gbps 3 data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24/32/48bit
HDMI resolution: up to 3840*2160/60 Hz, YUV 4:2:0
2 HDMI inputs switch and split to 2 HDMI displays
Support LPCM/Dolby/DTS LPCM 7.1 audio format
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 2X2
1x 5V power adapter
1x IR Remote Control
1x User Manual

Questions about this item

Does the box include the power supply and remote control, or must they be purchased separately?

The package includes the matrix switch, a DC 5V power adapter and an IR remote control; no extra items are required for basic operation.

The listing mentions both HDCP 1.4 and HDCP 2.2 — which version does the OZJ3 actually support?

The switch is compliant with HDCP 1.4; the manufacturer notes explicitly state it does not support HDCP 2.2.

What cable length can I run at 4K 60 Hz without signal loss?

The specification rates the maximum cable length at 10 m using AWG26 HDMI 2.0b standard cable for 4K@60Hz operation.
