Black rectangular HDMI matrix switch with two input and two output ports

LUOM

LUOM OZJ3 2x2 HDMI Matrix Switch 4K@60Hz 18.5Gbps Black

SKU CH-KGJB-X5V13

A LUOM 2×2 HDMI matrix routes two sources to two displays at 4K 60 Hz with 18.5 Gbps bandwidth and IR remote control

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • MatrixYes
  • AudioYes
  • Routes two sources to two displays independently
  • 4K@60Hz video through 18.5Gbps bandwidth
  • IR remote switches active port in three seconds
  • DC 5V power with 600mA maximum draw
  • Works from -15°C to +45°C operating range

2×2 HDMI Matrix Switch

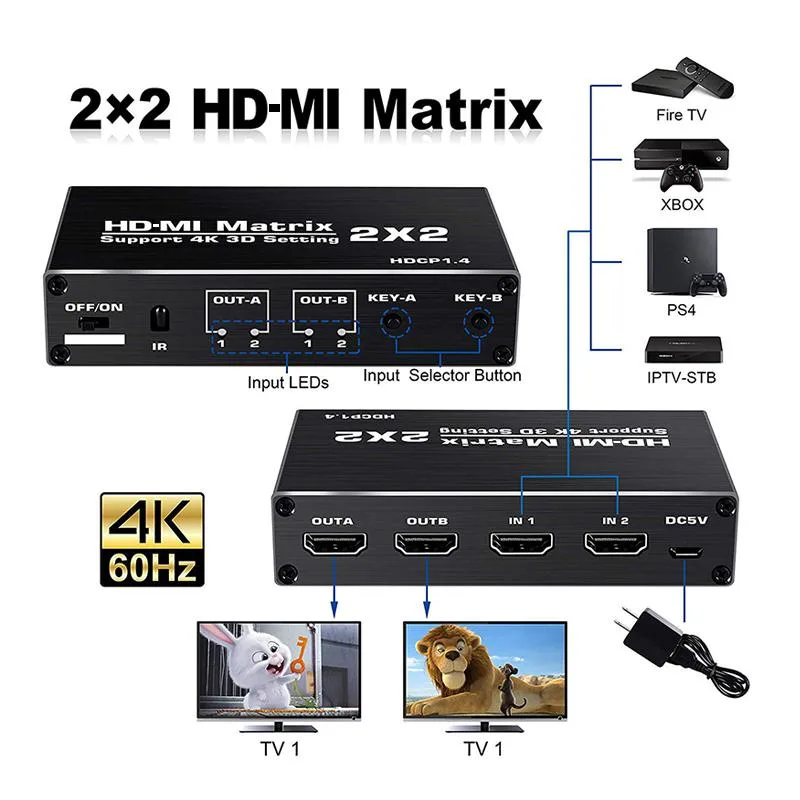

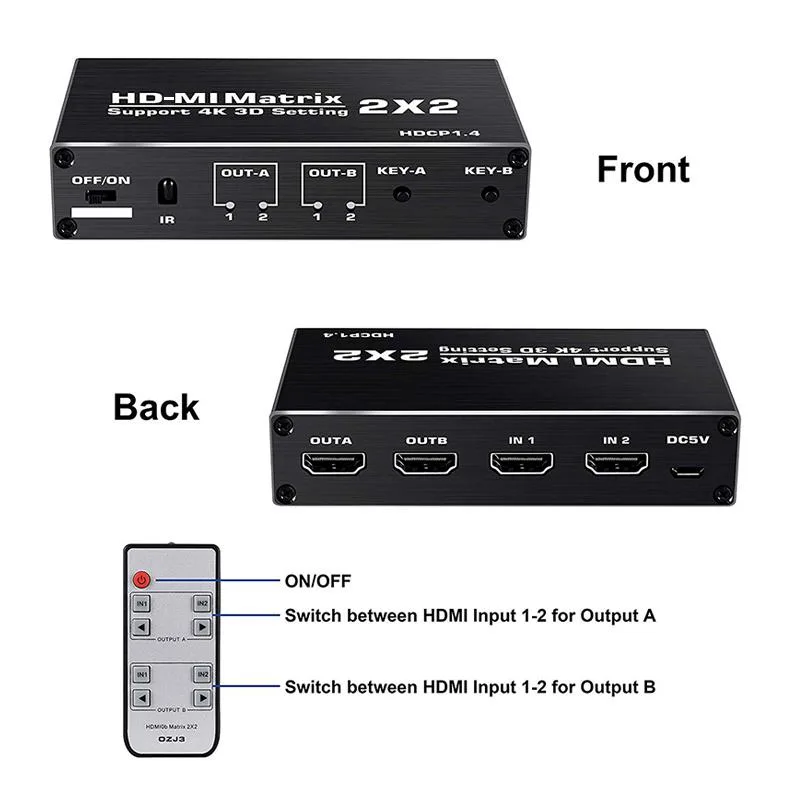

The LUOM OZJ3 is a 2×2 HDMI matrix switch that routes two HDMI sources to two displays independently. It supports video up to 4K@60Hz with 18.5Gbps bandwidth and HDCP 1.4 compliance. The unit includes an IR remote for input selection and LED indicators for active ports. It is suited for home theatre, conference rooms, classrooms and digital signage installations.

Upgrade from basic splitters

Unlike a simple splitter that mirrors one source to two screens, this matrix lets each display show a different source at the same time. The jump is worth it when you need simultaneous independent routing — for example, a media player on one screen and a game console on the other. It also replaces manual cable swapping with push-button or remote switching that completes within three seconds.

Check your cables and power

Verify that your HDMI cables are rated for 18Gbps and do not exceed 10 metres if using AWG26 HDMI 2.0b standard cable. The switch requires a DC 5V supply drawing up to 600mA; ensure the included adapter or a compatible replacement is available. Confirm your sources and displays operate within the -15°C to +45°C range and that HDCP 1.4 is sufficient for your protected content.

Highlights

  • Routes two sources to two displays independently
  • 4K@60Hz video through 18.5Gbps bandwidth
  • IR remote switches active port in three seconds
  • DC 5V power with 600mA maximum draw
  • Works from -15°C to +45°C operating range

Specifications

BrandLUOM
SeriesOZJ3
ModelOZJ3
Part NumberOZJ3
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
MatrixYes
AudioYes
SpecificationsProduct Type:HDMI Matrix 2x2.
Interface Type: 2 HDMI in, 2 HDMI out
Color: Black
Power Supply: DC 5V.
Max working current: 600mA
Operating Temperature range -15°C to+45°C
Input Connector2 x HDMI
Output Connector2 x HDMI
Maximum Cable Length10m AWG26 HDMI2.0b standard cable
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0, HDCP 1.4
Support 3D video format
Support highest resolution up to 3840*2160/60Hz
Support 18Gbps 3 data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24/32/48bit
HDMI resolution: up to 3840*2160/60 Hz, YUV 4:2:0
2 HDMI inputs switch and split to 2 HDMI displays
Support LPCM/Dolby/DTS LPCM 7.1 audio format
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 2X2
1x 5V power adapter
1x IR Remote Control
1x User Manual

Questions about this item

What are the exact dimensions of the LUOM OZJ3 2x2 HDMI Matrix Switch in inches?

The unit measures 5.91 inches wide, 2.36 inches deep and .79 inches high, so allow that footprint plus clearance for HDMI cables on a shelf or rack.

What is the correct power-up sequence to avoid a no-signal condition?

Connect all HDMI sources and displays first, then plug in the supplied DC 5 V adapter; the switch draws up to 600 mA and will initialise within three seconds.

How long can the HDMI cables be before 4K@60Hz becomes unreliable?

The specification guarantees 4K@60Hz over a 10 m AWG26 HDMI 2.0b cable; longer runs may drop the 18.5 Gbps bandwidth needed for full 4:2:0 colour.
