Black rectangular HDMI matrix box, two inputs two outputs, IR remote included

LUOM

LUOM OZJ3 2x2 HDMI Matrix 4K@60Hz video switch

SKU CH-MGE6-2QW3E

A 2×2 HDMI matrix routes two sources to two displays at 4K@60Hz with IR remote control

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • MatrixYes
  • AudioYes

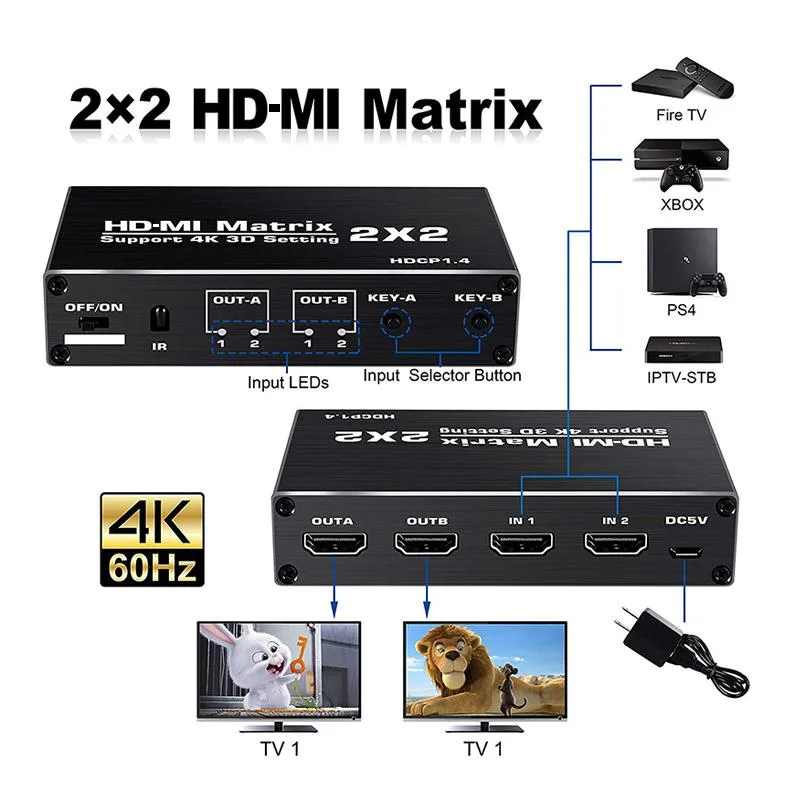

  • Routes two sources to two displays independently
  • Supports 4K at 60 Hz with 18.5 Gbps bandwidth
  • Handles 3D, HDR and deep colour up to 48-bit

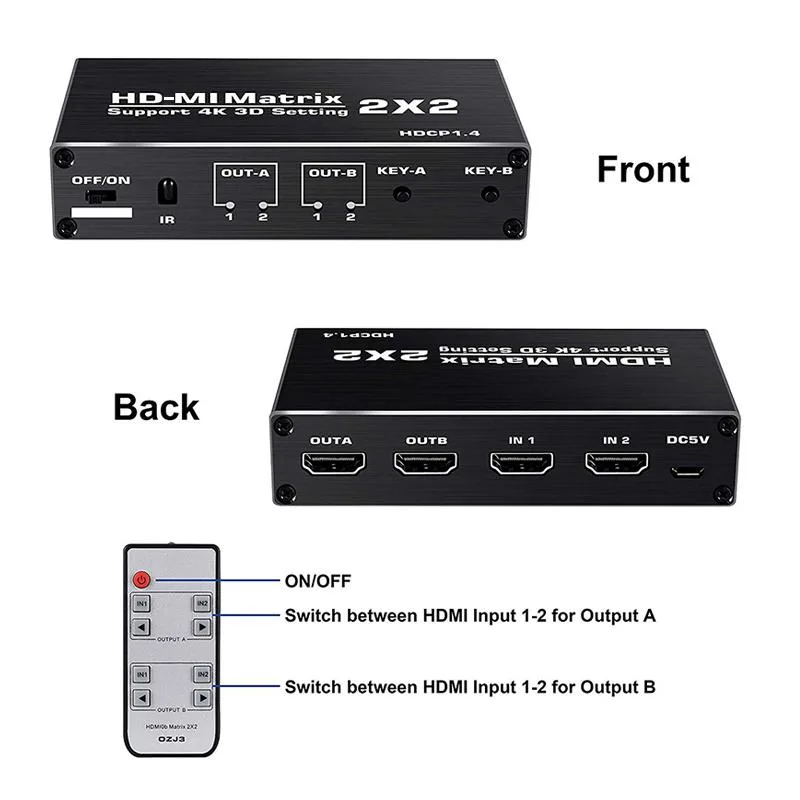

  • IR remote and front button switch active port in seconds
  • DC 5 V power, operates from -15 °C to +45 °C

2×2 HDMI Matrix Switch

The LUOM OZJ3 is a 2×2 HDMI matrix that routes two HDMI sources to two displays independently. It supports video up to 4K@60Hz with 18.5Gbps bandwidth and HDCP 1.4 compliance. The unit handles 3D formats, HDR and deep colour up to 48-bit depth. It is suited for installers who need simultaneous switching and splitting in home-theatre, conference-room or digital-signage setups.

Build Integration

The matrix accepts two HDMI inputs and provides two HDMI outputs, each capable of 10m runs over AWG26 cable. It draws up to 600mA from the included DC 5V supply and operates from -15°C to 45°C. Audio passes through in LPCM 7.1, Dolby Digital, DTS, DTS-HD, DSD and Dolby TrueHD formats. The compact 5.91×2.36×0.79 inch enclosure weighs 11.9 ounces and fits on a shelf or behind a display without rack hardware.

Thermals and Power

With a maximum working current of 600mA at 5V the device stays cool during continuous 4K@60Hz operation. No internal fan is present so acoustic output is negligible in quiet rooms. The operating range of -15°C to 45°C covers typical indoor environments without additional ventilation. Power consumption remains modest, leaving headroom on a standard USB or wall adaptor for stable switching.

Highlights

  • Routes two sources to two displays independently
  • Supports 4K at 60 Hz with 18.5 Gbps bandwidth
  • Handles 3D, HDR and deep colour up to 48-bit
  • IR remote and front button switch active port in seconds
  • DC 5 V power, operates from -15 °C to +45 °C

Specifications

BrandLUOM
SeriesOZJ3
ModelOZJ3
Part NumberOZJ3
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
MatrixYes
AudioYes
SpecificationsProduct Type:HDMI Matrix 2x2.
Interface Type: 2 HDMI in, 2 HDMI out
Color: Black
Power Supply: DC 5V.
Max working current: 600mA
Operating Temperature range -15°C to+45°C
Input Connector2 x HDMI
Output Connector2 x HDMI
Maximum Cable Length10m AWG26 HDMI2.0b standard cable
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0, HDCP 1.4
Support 3D video format
Support highest resolution up to 3840*2160/60Hz
Support 18Gbps 3 data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24/32/48bit
HDMI resolution: up to 3840*2160/60 Hz, YUV 4:2:0
2 HDMI inputs switch and split to 2 HDMI displays
Support LPCM/Dolby/DTS LPCM 7.1 audio format
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 2X2
1x 5V power adapter
1x IR Remote Control
1x User Manual

Questions about this item

How far can I run cables at 4K 60 Hz without signal loss?

The matrix supports up to 10 metres using AWG26 HDMI 2.0b standard cable for 4K 60 Hz signals.

What is the maximum power draw when the unit runs continuously?

It draws a maximum of 600 mA at 5 V DC, which equals 3 W under sustained operation.

Which power adapter must I already have to use this matrix?

You need a DC 5 V supply capable of at least 600 mA; the barrel jack is standard on the unit.
