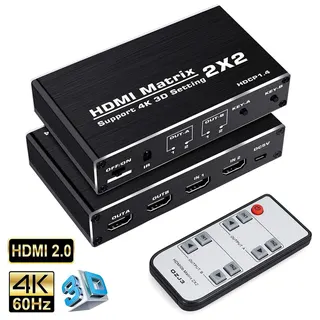

Black rectangular HDMI matrix switch with four HDMI ports and IR remote control

LUOM

LUOM OZJ3 2×2 HDMI Matrix Switch 4K 60Hz 18.5Gbps IR Remote

SKU CH-RRZR-GNV0Q

Routes two HDMI sources to two displays with 4K 60 Hz support, 18.5 Gbps bandwidth, HDR, 3D and IR remote control

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • MatrixYes
  • AudioYes
  • Routes two sources to two displays independently
  • 4K 60 Hz video with 18.5 Gbps bandwidth
  • HDMI 2.0b and HDCP 1.4 compliance

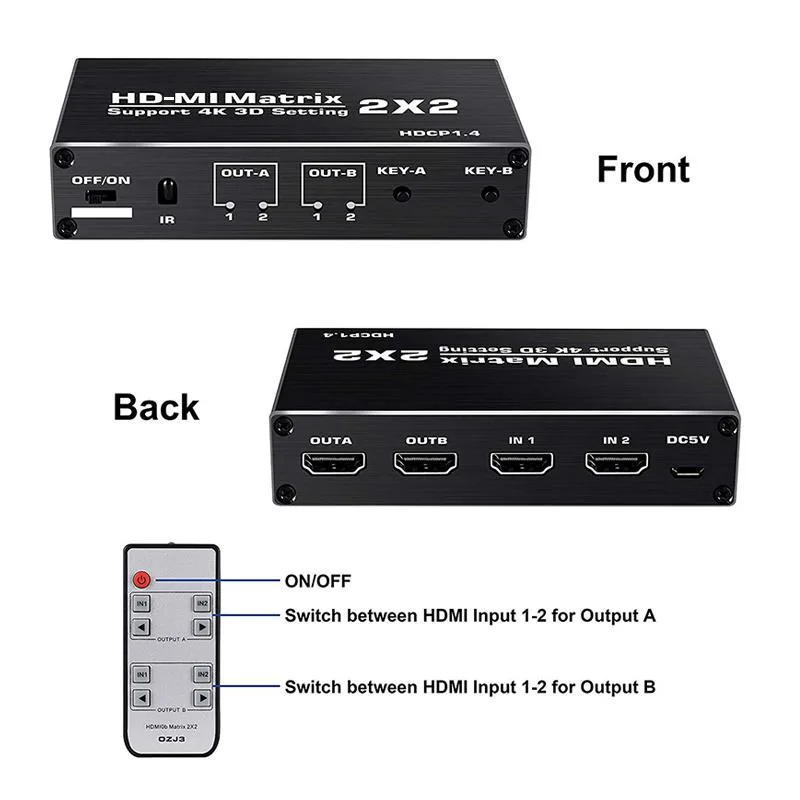

  • IR remote and front-panel switching in seconds
  • DC 5 V power, operates from −15 °C to +45 °C

What this switch does

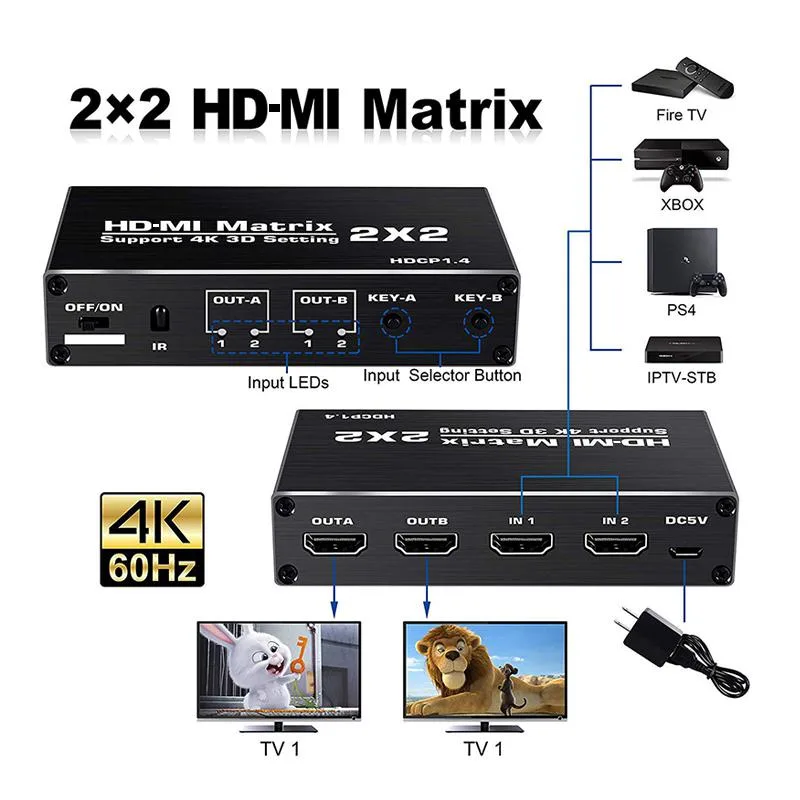

The LUOM OZJ3 is a 2×2 HDMI matrix that routes two sources to two displays independently, letting each screen show a different input at the same time. It is built for installers and home-theatre owners who need simultaneous distribution rather than simple switching.

The spec that decides fit

Bandwidth is rated at 18.5 Gbps with HDMI 2.0b and HDCP 1.4 support, so 4K at 60 Hz passes through but HDCP 2.2 content will not play. Check your source devices for HDCP version before buying.

Heat, noise and power

The unit draws a maximum of 600 mA from its included 5 V DC supply and operates silently with no fan. Rated ambient range is –15 °C to 45 °C, so normal indoor use stays well within thermal limits.

Highlights

  • Routes two sources to two displays independently
  • 4K 60 Hz video with 18.5 Gbps bandwidth
  • HDMI 2.0b and HDCP 1.4 compliance
  • IR remote and front-panel switching in seconds
  • DC 5 V power, operates from −15 °C to +45 °C

Specifications

BrandLUOM
SeriesOZJ3
ModelOZJ3
Part NumberOZJ3
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
MatrixYes
AudioYes
SpecificationsProduct Type:HDMI Matrix 2x2.
Interface Type: 2 HDMI in, 2 HDMI out
Color: Black
Power Supply: DC 5V.
Max working current: 600mA
Operating Temperature range -15°C to+45°C
Input Connector2 x HDMI
Output Connector2 x HDMI
Maximum Cable Length10m AWG26 HDMI2.0b standard cable
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0, HDCP 1.4
Support 3D video format
Support highest resolution up to 3840*2160/60Hz
Support 18Gbps 3 data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24/32/48bit
HDMI resolution: up to 3840*2160/60 Hz, YUV 4:2:0
2 HDMI inputs switch and split to 2 HDMI displays
Support LPCM/Dolby/DTS LPCM 7.1 audio format
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 2X2
1x 5V power adapter
1x IR Remote Control
1x User Manual

Questions about this item

What does 18.5Gbps bandwidth mean when the switch is connected to real displays?

It carries 4K at 60Hz with deep colour up to 48bit and HDR without compression, so both outputs show the full 3840×2160 image at the same time.

Which HDMI standard does the matrix use and what does it limit in practice?

The unit follows HDMI 2.0b and HDCP 1.4, so 4K 60Hz works but HDCP 2.2 protected content will not pass through.

What physical space and power does the box need to fit in a rack or shelf?

It measures 5.91×2.36×0.79 inches, weighs 11.9 ounces and runs from a DC 5V supply drawing up to 600mA.
