Black rectangular HDMI matrix switch with four inputs and two outputs

LUOM

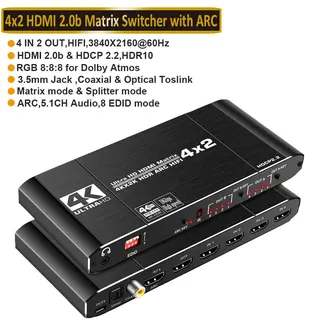

LUOM OZJ2 HDMI Matrix 4x2 4K@60Hz 18.5Gbps Black

SKU CH-XW9N-RKR8V

A 4×2 HDMI matrix routes four sources to two displays at 4K 60 Hz with 18.5 Gbps bandwidth, HDCP 2.2, 3D and HDR, plus SPDIF and 3.5 mm audio extraction controlled by IR remote or front button

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • MatrixYes
  • AudioYes
  • Routes four 4K sources to two displays at 60 Hz
  • 5 Gbps bandwidth carries full 4:4:4 colour and HDR
  • Extracts audio via optical SPDIF or 3.5 mm stereo

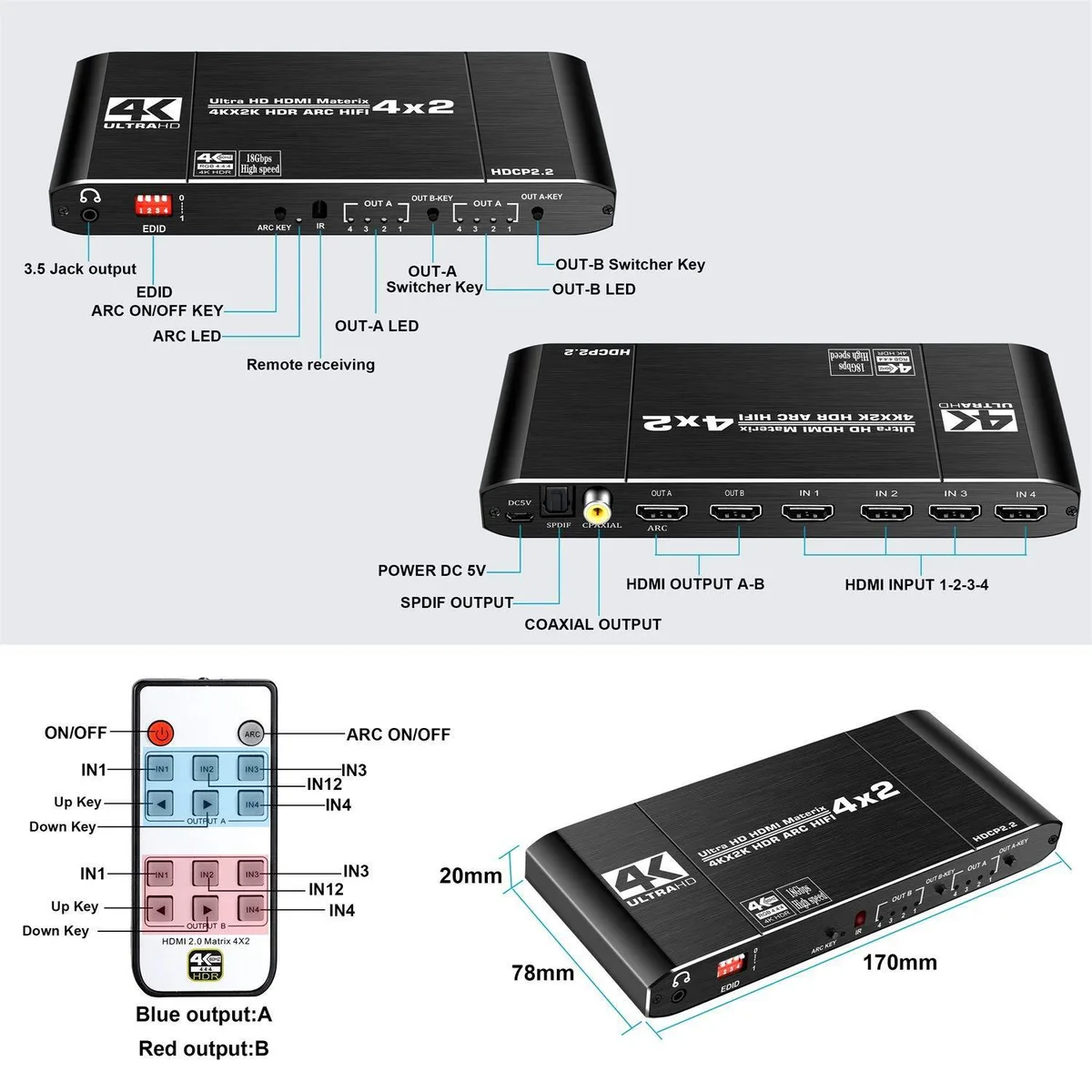

  • IR remote and front button give instant input control
  • Compact 170 × 56 × 24 mm metal chassis runs on 5 V DC

4K@60Hz HDMI Matrix 4x2

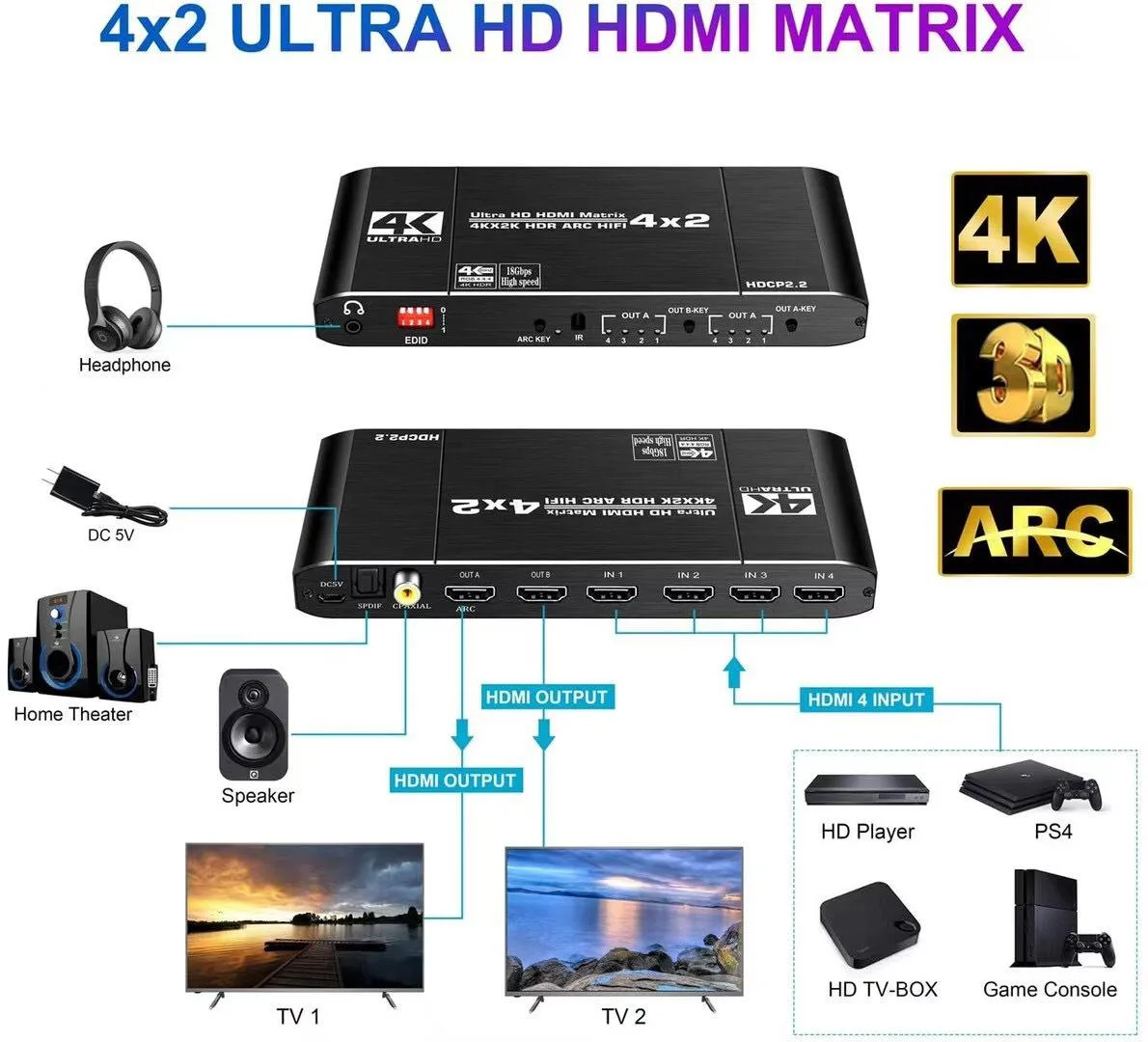

This LUOM OZJ2 matrix switch routes four HDMI sources to two independent displays at resolutions up to 4K@60Hz with 18.5Gbps bandwidth. It supports HDR, 3D video and deep colour up to 48-bit, plus HDCP 2.2 and HDMI 2.0b compliance for protected content. Audio can be extracted from any input through Toslink optical or 3.5mm stereo outputs in formats including PCM 7.1, Dolby TrueHD and DTS-HD Master Audio. Control is via front-panel buttons or the included IR remote.

Suitable for multi-source, dual-display setups

Installers who need to send four 4K sources such as media players, consoles or PCs to two separate screens will find the 4x2 matrix format a direct fit. The independent audio extraction ports also suit systems that route sound to a separate receiver or headphone amplifier. Buyers who require more than two simultaneous outputs or need switching beyond the 600MHz TMDS clock should consider a larger matrix or a higher-bandwidth model.

18.5Gbps bandwidth ceiling

The 18.5Gbps limit defines the maximum video data rate this matrix can pass, which restricts operation to 4K@60Hz RGB 4:4:4 or equivalent colour-depth modes. Signals that exceed this rate — such as uncompressed 4K at higher refresh rates or deeper colour pipelines — will not transmit correctly through this unit. Verify that every source and display in the chain operates within the 600MHz TMDS clock envelope before purchase.

Highlights

  • Routes four 4K sources to two displays at 60 Hz
  • 5 Gbps bandwidth carries full 4:4:4 colour and HDR
  • Extracts audio via optical SPDIF or 3.5 mm stereo
  • IR remote and front button give instant input control
  • Compact 170 × 56 × 24 mm metal chassis runs on 5 V DC

Specifications

BrandLUOM
SeriesOZJ2
ModelOZJ2
Part NumberOZJ2
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
MatrixYes
AudioYes
SpecificationsProduct Type:HDMI Splitter 4x2
Interface Type: 4 HDMI in, 2 HDMI out
Color: Black
Power Supply: DC 5V.
Max working current: 600mA
Operating Temperature range -15°C to+45°C
Dimension (LxWxH): 170*56*24mm
Weight: 0.175kg
Input Connector4 x HDMI
Output Connector2 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0b HDCP 2.2
Support 3D video format
Support highest resolution up to 3840*2160/60Hz
Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24/32/48bit
Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4
4 HDMI inputs switch and split to 2 HDMI displays
Support LPCM/Dolby/DTS 5 1 audio
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 4X2
1x 5V power adapter
1x IR Remote Control(Battery is not included)
1x User Manual

Questions about this item

Can I run the 4K@60Hz 18.5Gbps matrix with my older 1080P 3D sources?

Yes, the matrix supports 1080P 3D and will downscale 4K@60Hz signals for legacy displays while passing HDCP 2.2 and 1.4.

How do I confirm the 4K@60Hz 18.5Gbps link is active after connecting sources and displays?

The front panel LEDs show which of the four inputs is routed to each of the two outputs, and the on-screen display reports the detected resolution and colour space.

What cables and accessories come in the box with the OZJ2 4x2 matrix?

The package contains the matrix unit, a DC 5V power adapter, an IR remote control (battery not included), and a user manual.
