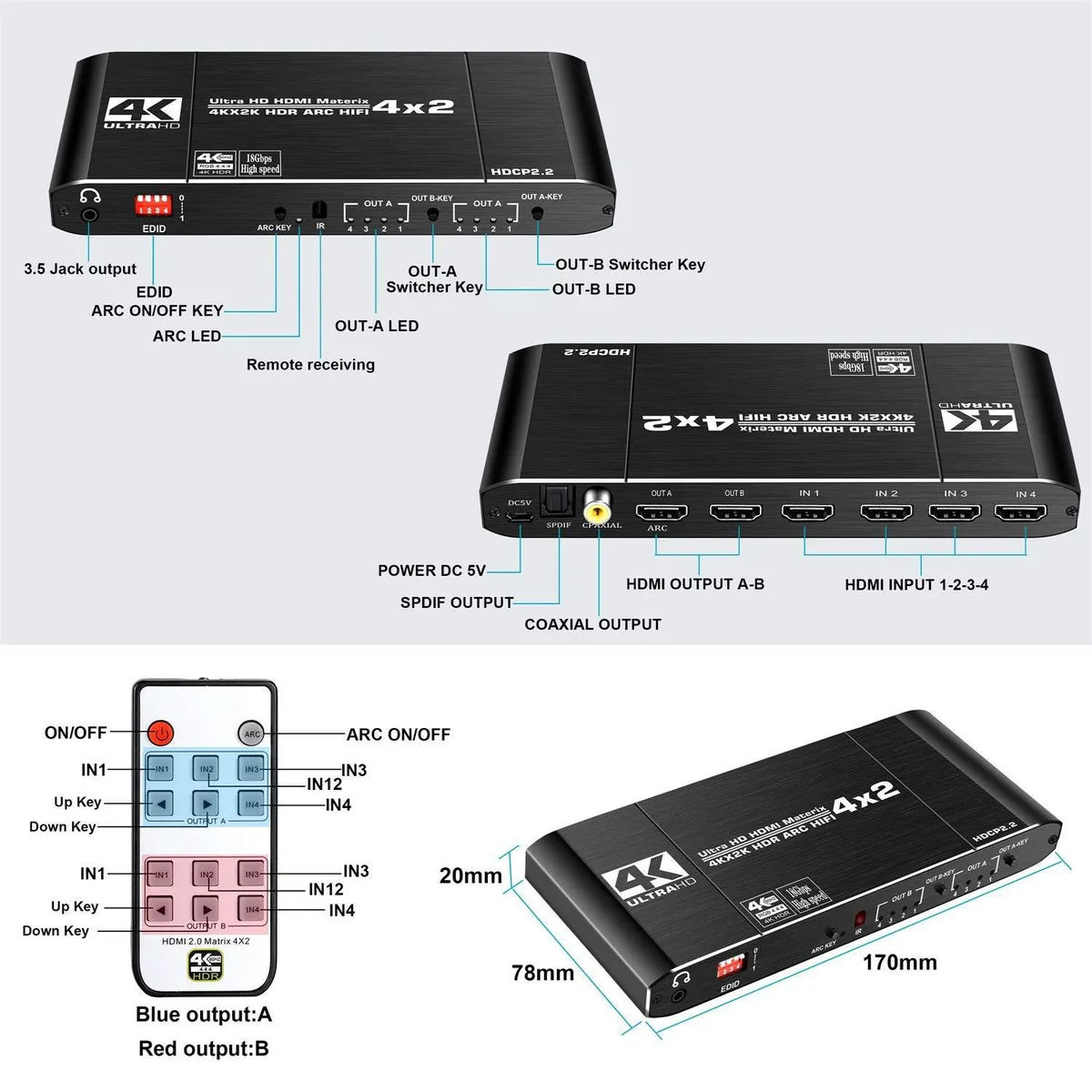

Black rectangular HDMI matrix switch, four inputs two outputs, front panel buttons, IR sensor, compact 170 by 56 by 24 mm

LUOM

LUOM OZJ2 4x2 HDMI Matrix Switch 4K@60Hz 18.5Gbps Audio

SKU CH-3MNY-S5WBF

Routes four 4K@60 Hz HDMI sources to two displays with 18.5 Gbps bandwidth, HDCP 2.2, HDR, 3D and extracted audio via optical or 3.5 mm outputs

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • MatrixYes
  • AudioYes
  • Routes four 4K@60Hz sources to two displays simultaneously
  • 5 Gbps bandwidth carries 4:4:4 HDR without compression
  • Optical and 3.5 mm outputs extract 5.1-channel audio independently
  • IR remote and front button give instant input switching
  • Compact 170 × 56 × 24 mm metal chassis fits any rack

4×2 HDMI Matrix Switch

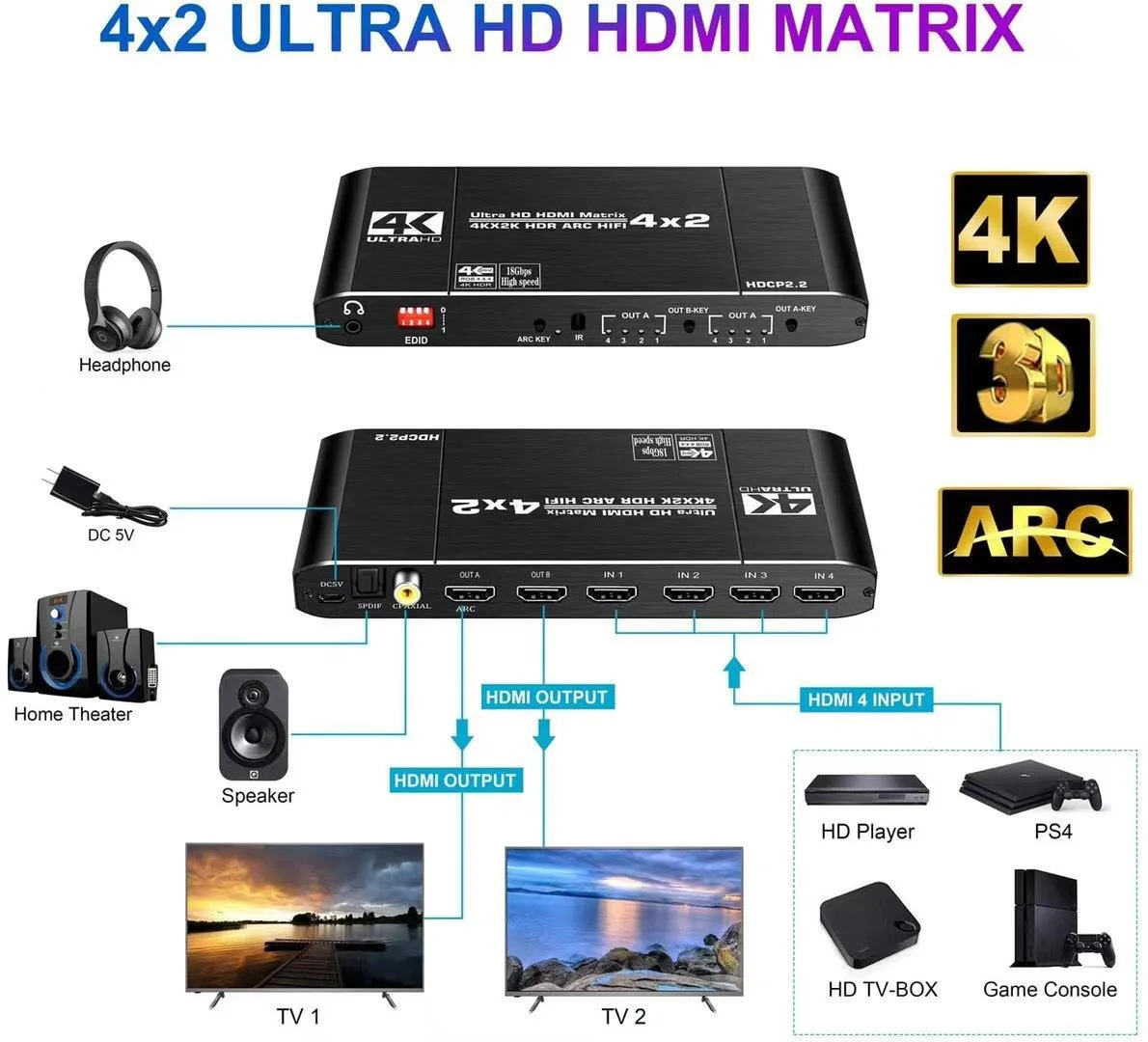

The LUOM OZJ2 routes four HDMI sources to two displays at up to 4K 60 Hz with 18.5 Gbps bandwidth. It supports HDCP 2.2, HDR, 3D and deep colour up to 48-bit for home theatre, office or commercial installs.

Thermals noise power

Passive cooling keeps the unit silent while drawing a maximum of 600 mA from the included 5 V supply. Operating temperature range spans minus 15 °C to plus 45 °C for reliable use in enclosed racks or behind screens.

Bundled accessories software

A 5 V power adapter, IR remote and printed manual are supplied; the remote battery is not included. The switch extracts audio to optical SPDIF and 3.5 mm stereo simultaneously and offers EDID management via front-panel buttons.

Highlights

  • Routes four 4K@60Hz sources to two displays simultaneously
  • 5 Gbps bandwidth carries 4:4:4 HDR without compression
  • Optical and 3.5 mm outputs extract 5.1-channel audio independently
  • IR remote and front button give instant input switching
  • Compact 170 × 56 × 24 mm metal chassis fits any rack

Specifications

BrandLUOM
SeriesOZJ2
ModelOZJ2
Part NumberOZJ2
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
MatrixYes
AudioYes
SpecificationsProduct Type:HDMI Splitter 4x2
Interface Type: 4 HDMI in, 2 HDMI out
Color: Black
Power Supply: DC 5V.
Max working current: 600mA
Operating Temperature range -15°C to+45°C
Dimension (LxWxH): 170*56*24mm
Weight: 0.175kg
Input Connector4 x HDMI
Output Connector2 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0b HDCP 2.2
Support 3D video format
Support highest resolution up to 3840*2160/60Hz
Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24/32/48bit
Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4
4 HDMI inputs switch and split to 2 HDMI displays
Support LPCM/Dolby/DTS 5 1 audio
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 4X2
1x 5V power adapter
1x IR Remote Control(Battery is not included)
1x User Manual

Questions about this item

How do I connect the four HDMI sources and two displays to the LUOM OZJ2 matrix, and which step is often missed?

Connect each source to one of the four HDMI inputs and each display to one of the two HDMI outputs, then plug in the included 5 V DC power adapter; the step often missed is powering the unit before switching signals.

What maintenance will the LUOM OZJ2 matrix need over time?

The only user-replaceable item is the IR remote battery, which is not included; replace it when the remote range noticeably shortens.

What is the first limit I will hit when running 4K HDR content continuously through the LUOM OZJ2?

The 18.5 Gbps bandwidth ceiling is reached first; sustained 4K 60 Hz 4:4:4 HDR signals use the full 600 MHz TMDS clock, leaving no headroom for higher resolutions or refresh rates.
