Black rectangular HDMI matrix switch with four inputs and two outputs

LUOM

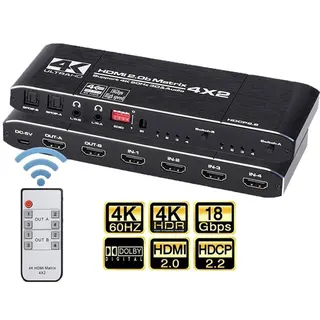

LUOM OZJ2 4x2 HDMI Matrix 4K@60Hz Audio Extractor

SKU CH-9Q10-2ZYJD

Routes four 4K@60Hz sources to two displays with optical and 3.5mm audio extraction via IR remote

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • MatrixYes
  • AudioYes
  • Route four sources to two displays at 4K@60Hz 18.5Gbps
  • Extract audio via optical SPDIF or 3.5mm jack
  • Switch instantly with IR remote or front button
  • Supports HDR 3D and deep colour up to 48-bit
  • Compact 170×56×24 mm design runs on DC 5V

4x2 HDMI Matrix for Multi-Source Setups

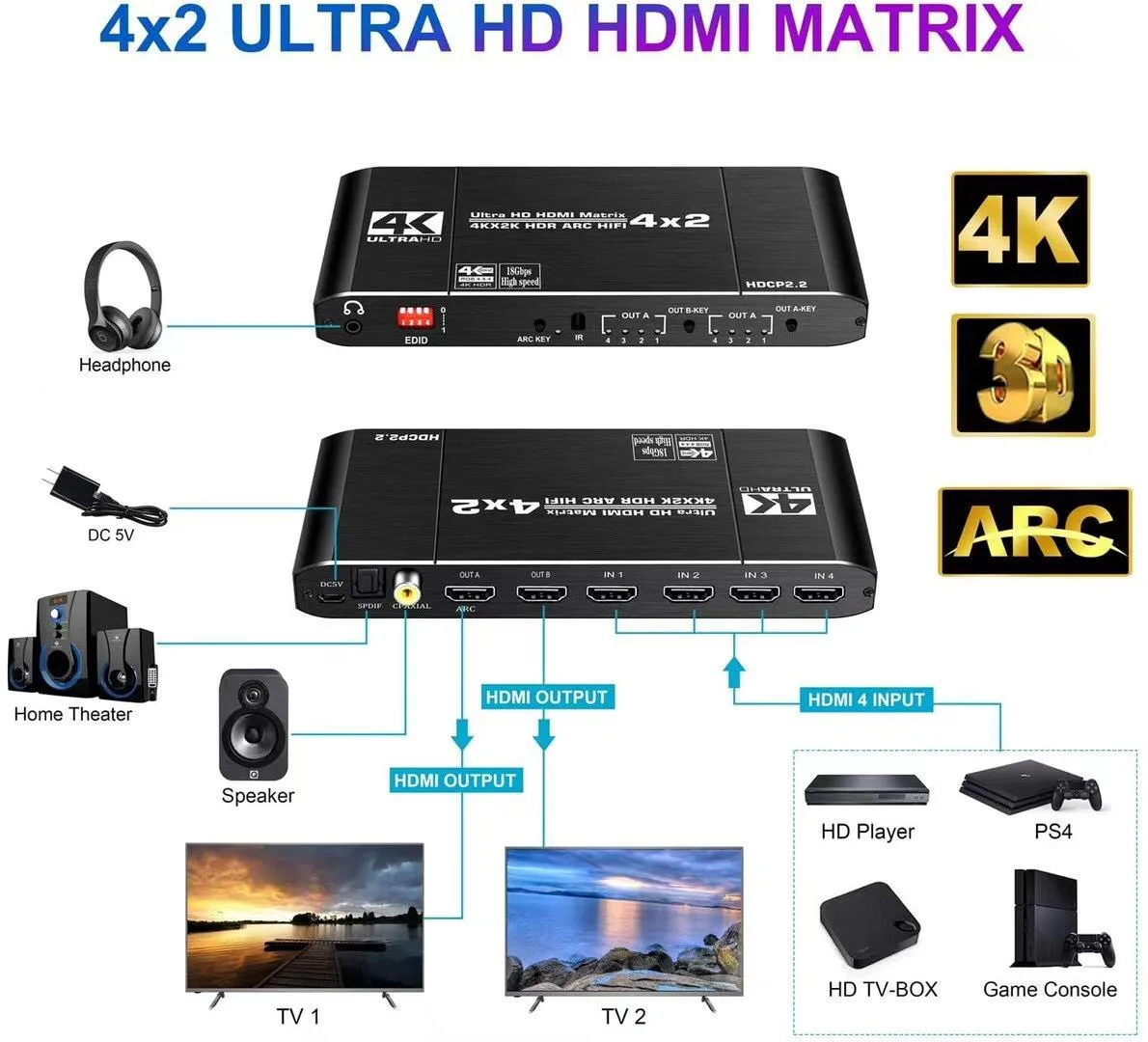

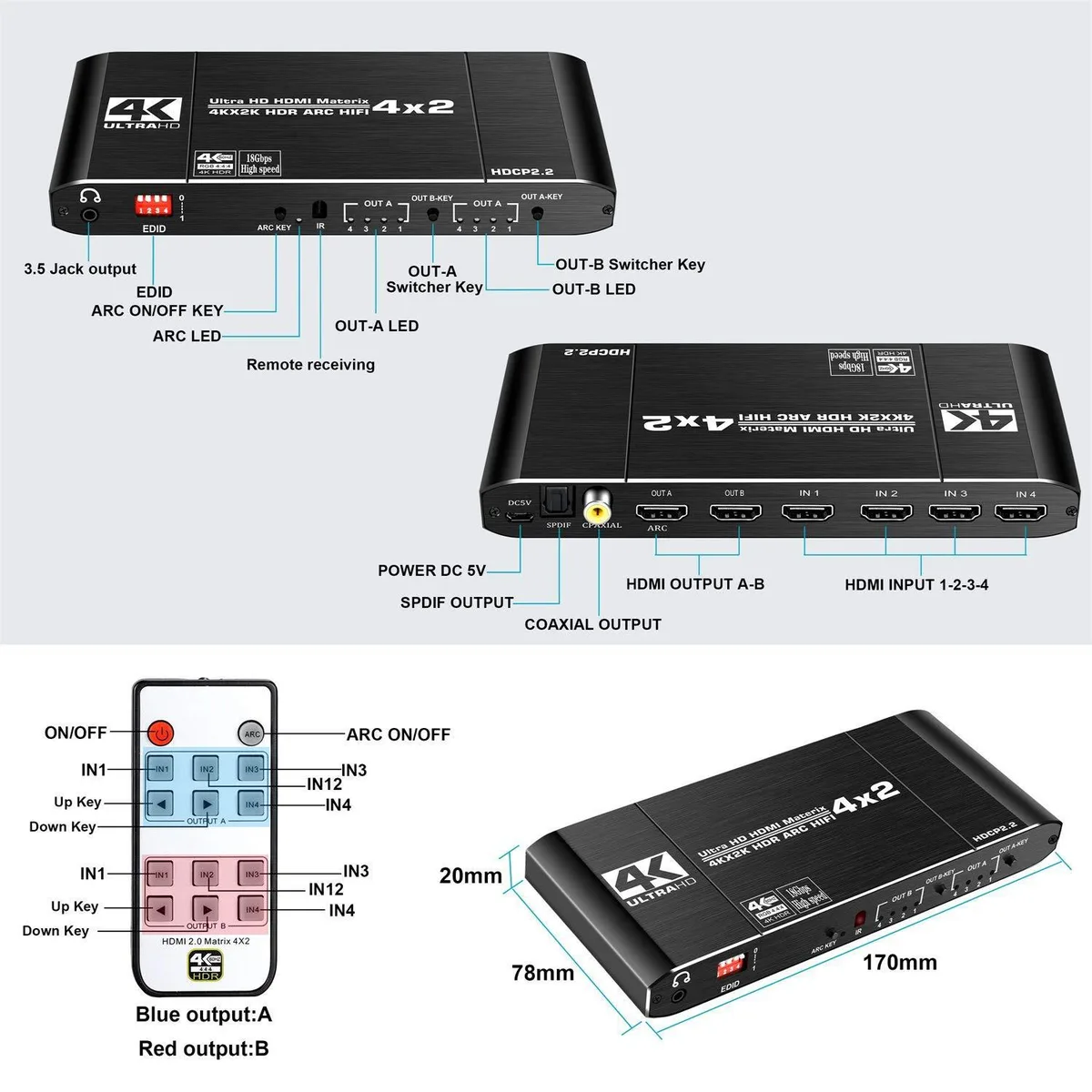

The LUOM OZJ2 routes four HDMI sources to two independent displays at up to 4K@60Hz with 18.5Gbps bandwidth. It supports HDMI 2.0b, HDCP 2.2, deep color up to 48-bit and 3D formats. Built-in audio extraction provides optical, coaxial and 3.5mm outputs for external sound systems. Control is via front-panel buttons or the included IR remote.

Sustained Signal Integrity Over Extended Runs

The matrix maintains 18.5Gbps throughput and TMDS clock rates up to 600MHz continuously, preserving 4K@60Hz RGB 4:4:4 without dropouts during long sessions. HDCP 2.2 handshake remains stable across both outputs simultaneously. Smart EDID management ensures consistent source recognition when switching inputs repeatedly. The DC 5V 600mA supply delivers steady power for uninterrupted operation.

Thermal and Acoustic Profile in Daily Use

Passive cooling keeps the unit silent with zero fan noise in typical indoor environments. Operating temperature range spans -15°C to +45°C, so normal room conditions stay well within limits. The compact 170x56x24mm metal enclosure dissipates heat effectively during continuous 4K switching. Power draw stays at the rated 600mA maximum, adding negligible load to the circuit.

Highlights

  • Route four sources to two displays at 4K@60Hz 18.5Gbps
  • Extract audio via optical SPDIF or 3.5mm jack
  • Switch instantly with IR remote or front button
  • Supports HDR 3D and deep colour up to 48-bit
  • Compact 170×56×24 mm design runs on DC 5V

Specifications

BrandLUOM
SeriesOZJ2
ModelOZJ2
Part NumberOZJ2
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
MatrixYes
AudioYes
SpecificationsProduct Type:HDMI Splitter 4x2
Interface Type: 4 HDMI in, 2 HDMI out
Color: Black
Power Supply: DC 5V.
Max working current: 600mA
Operating Temperature range -15°C to+45°C
Dimension (LxWxH): 170*56*24mm
Weight: 0.175kg
Input Connector4 x HDMI
Output Connector2 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0b HDCP 2.2
Support 3D video format
Support highest resolution up to 3840*2160/60Hz
Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24/32/48bit
Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4
4 HDMI inputs switch and split to 2 HDMI displays
Support LPCM/Dolby/DTS 5 1 audio
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 4X2
1x 5V power adapter
1x IR Remote Control(Battery is not included)
1x User Manual

Questions about this item

How much power does the LUOM OZJ2 draw when running all day?

The unit is rated for a maximum working current of 600mA from the included 5V DC adapter, so continuous operation stays within that limit.

What cables and sources must I already have to use the 4x2 matrix?

You need up to four HDMI source devices and two HDMI displays, plus HDMI cables for each connection; the box includes the 5V power supply and IR remote.

Will the matrix pass 4K@60Hz from my older 1080p Blu-ray player and 4K streaming box to both outputs?

Yes, it supports HDMI 2.0b and HDCP 2.2/1.4 with EDID management, so mixed-resolution sources up to 3840x2160@60Hz are handled on both HDMI outputs.
