Black rectangular HDMI matrix switch with front ports and IR sensor

LUOM

LUOM OZJ2 4×2 HDMI Matrix Switch 4K@60Hz 18.5 Gbps Audio

SKU CH-5SF6-Y8RMA

Routes four HDMI sources to two displays at 4K 60 Hz with 18.5 Gbps bandwidth, HDCP 2.2, HDR and 3D, plus optical, coaxial and 3.5 mm audio extraction

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • MatrixYes
  • AudioYes
  • Routes four 4K sources to two displays at 60 Hz
  • 5 Gbps bandwidth keeps HDR and 4:4:4 colour intact
  • SPDIF optical and 3.5 mm analogue audio extracted independently
  • HDCP 2.2 and 1.4 support protects premium 4K content
  • IR remote and front button give instant input switching

What this LUOM OZJ2 matrix does

The LUOM OZJ2 is a 4×2 HDMI matrix switch that routes four 4K sources to two displays independently. Installers and home-theatre owners can show different 4K@60 Hz content on each screen or mirror the same source across both. It handles HDMI 2.0b signals with HDCP 2.2 and HDR, plus 3D video formats, making it suitable for conference rooms, classrooms or multi-room entertainment setups.

Connections and daily operation

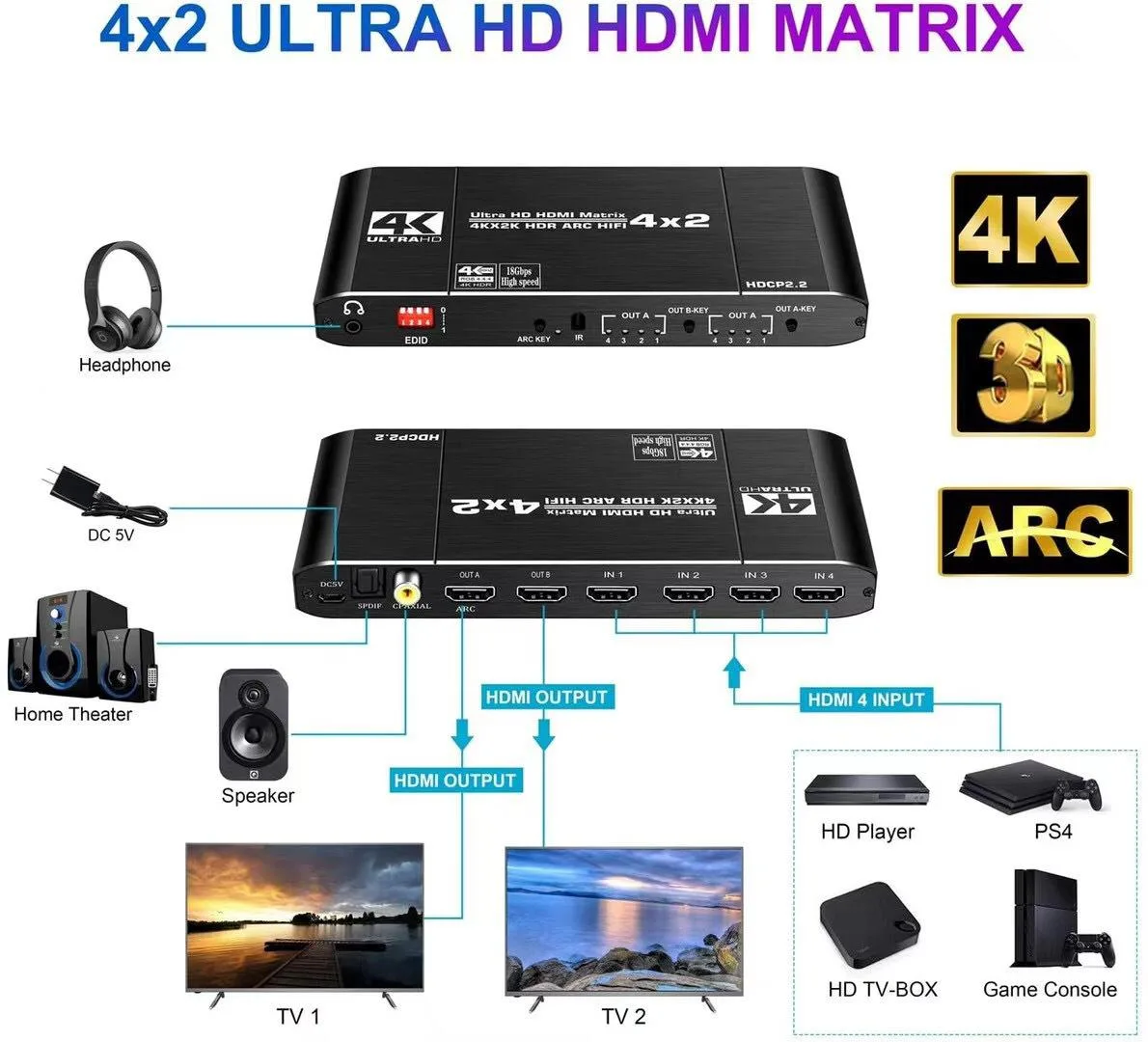

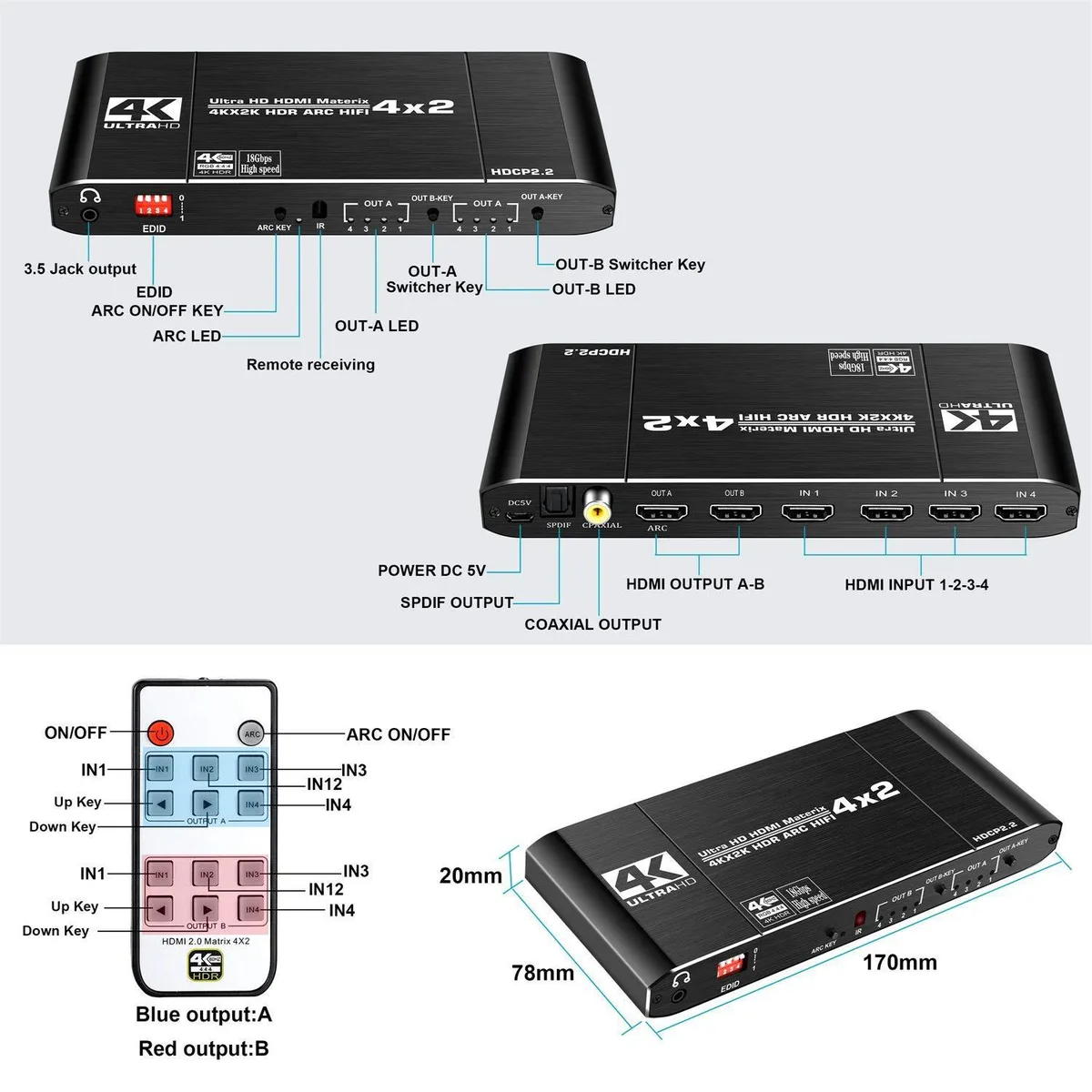

Four HDMI inputs and two HDMI outputs sit alongside a Toslink optical port and a 3.5 mm stereo jack for audio extraction from any active source. The front panel offers push-button switching and an IR sensor, while the bundled remote lets users change routing without leaving their seat. EDID management is configurable per input, so each source negotiates the correct resolution and audio format automatically. A 5 V DC adapter powers the unit.

Thermals, noise and power

The aluminium chassis dissipates heat passively; with a maximum draw of 600 mA at 5 V the switch runs silently in normal use. Operating temperature is rated from −15 °C to +45 °C, so it remains stable inside enclosed AV racks or behind wall-mounted displays. No fan means zero audible noise during extended viewing sessions.

Highlights

  • Routes four 4K sources to two displays at 60 Hz
  • 5 Gbps bandwidth keeps HDR and 4:4:4 colour intact
  • SPDIF optical and 3.5 mm analogue audio extracted independently
  • HDCP 2.2 and 1.4 support protects premium 4K content
  • IR remote and front button give instant input switching

Specifications

BrandLUOM
SeriesOZJ2
ModelOZJ2
Part NumberOZJ2
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
MatrixYes
AudioYes
SpecificationsProduct Type:HDMI Splitter 4x2
Interface Type: 4 HDMI in, 2 HDMI out
Color: Black
Power Supply: DC 5V.
Max working current: 600mA
Operating Temperature range -15°C to+45°C
Dimension (LxWxH): 170*56*24mm
Weight: 0.175kg
Input Connector4 x HDMI
Output Connector2 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0b HDCP 2.2
Support 3D video format
Support highest resolution up to 3840*2160/60Hz
Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24/32/48bit
Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4
4 HDMI inputs switch and split to 2 HDMI displays
Support LPCM/Dolby/DTS 5 1 audio
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 4X2
1x 5V power adapter
1x IR Remote Control(Battery is not included)
1x User Manual

Questions about this item

What bandwidth does the HDMI 2.0b interface support and what resolution does that cap in practice?

The HDMI 2.0b ports deliver 18.5 Gbps bandwidth, which caps at 4K@60Hz 4:4:4 8-bit or 10/12-bit with HDR.

What physical space and power connection does the 170×56×24 mm unit need to fit and mount?

It occupies 170×56×24 mm and weighs .175 kg; a DC 5 V supply drawing up to 600 mA is required.

How is the matrix installed and which step do users often get wrong?

Connect up to four sources to the HDMI inputs, two displays to the outputs, plug in the 5 V adapter, then set each output's EDID via the IR remote or front button so the source sends the correct audio format.
