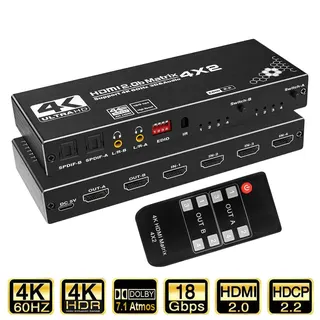

Black rectangular HDMI matrix switch with four inputs and two outputs

LUOM

LUOM OZJ1 4x2 HDMI Matrix Switch 4K 60Hz Audio Extractor

SKU CH-AVS3-HKGKX

Routes four HDMI sources to two displays at 4K 60 Hz with optical and analogue audio extraction

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • MatrixYes
  • AudioYes
  • Routes four sources to two displays independently
  • 5 Gbps bandwidth carries 4K at 60 Hz
  • HDCP 2.2 and HDR10 keep protected content intact
  • Optical and 3.5 mm outputs extract audio simultaneously
  • IR remote and front buttons give instant switching control

4x2 HDMI Matrix Switch

The LUOM OZJ1 routes four HDMI sources to two independent displays at up to 4K 60 Hz with 18.5 Gbps bandwidth. It supports HDCP 2.2 and HDR10 while extracting audio through optical SPDIF and 3.5 mm analogue outputs simultaneously.

Home theatre and meeting-room installs

This matrix suits installers who need to distribute four sources across two screens with independent audio breakout. It does not suit users who require more than two output zones or who rely on ultra-wide 4K resolutions such as 3440 x 1440, which the spec notes as unsupported.

4K 60 Hz headroom and limits

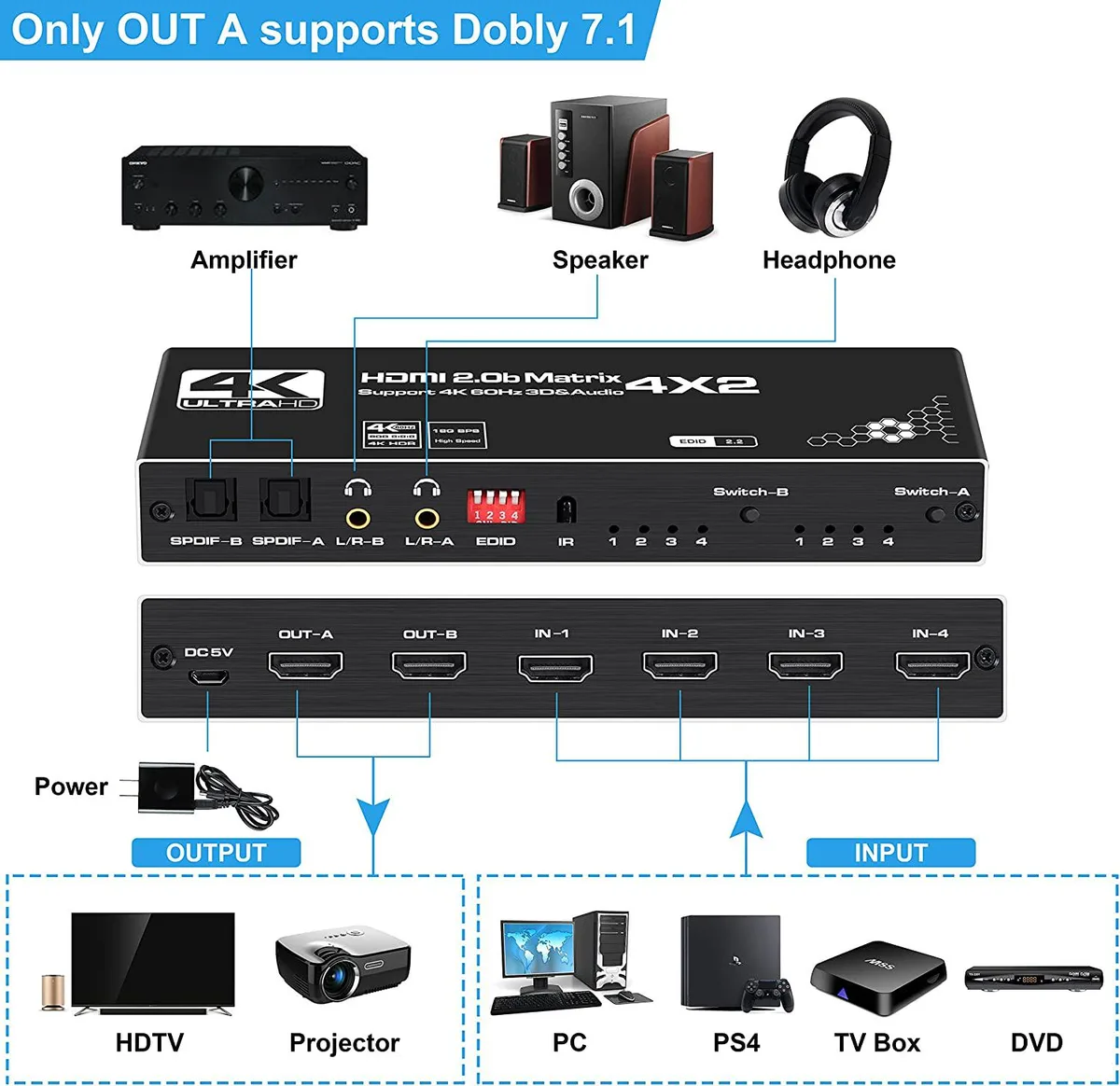

The switch comfortably handles 3840 x 2160 at 60 Hz and 2K at 144 Hz with deep colour up to 48-bit. Cable runs are limited to 10 metres using AWG26 HDMI 2.0b cable, and Dolby Atmos 7.1 pass-through is available only on output A.

Highlights

  • Routes four sources to two displays independently
  • 5 Gbps bandwidth carries 4K at 60 Hz
  • HDCP 2.2 and HDR10 keep protected content intact
  • Optical and 3.5 mm outputs extract audio simultaneously
  • IR remote and front buttons give instant switching control

Specifications

BrandLUOM
SeriesOZJ1
ModelOZJ1
Part NumberOZJ1
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
MatrixYes
AudioYes
SpecificationsHDMI 2.0 Matrix 4K 60Hz/30Hz HDMI-compatible Matrix 4x2 Switch Splitter HDCP 2.2 4 in 2 out Swicther With Audio HDR For for TV HDTV PS4
Product Type:HDMI Splitter 1x4.
Interface Type: 4 HDMI in, 2 HDMI out
Color: Black
Power Supply: DC 5V.
Max working current: 600mA
Operating Temperature range -15°C to+45°C
Dimension (LxWxH): 170*56*24mm
Weight: 0.175kg
Input Connector4 x HDMI
Output Connector2 x HDMI
Maximum Cable Length10m AWG26 HDMI2.0b standard cable
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0b HDCP 2.2
Support 3D video format
Support highest resolution up to 3840*2160/60Hz
Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24/32/48bit
Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4
4 HDMI inputs switch and split to 2 HDMI displays
Support LPCM/Dolby/DTS 5 1 audio
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 4X2
1x 5V power adapter
1x IR Remote Control(Battery is not included)
1x User Manual

Questions about this item

What HDMI sources and cables do I need to connect four devices to the OZJ1 matrix?

Connect up to four HDMI sources using standard HDMI cables; the switch accepts 4K@60Hz signals over cables up to 10 m AWG26 HDMI 2.0b.

Will my older 1080p displays work with the OZJ1's 4K@60Hz outputs?

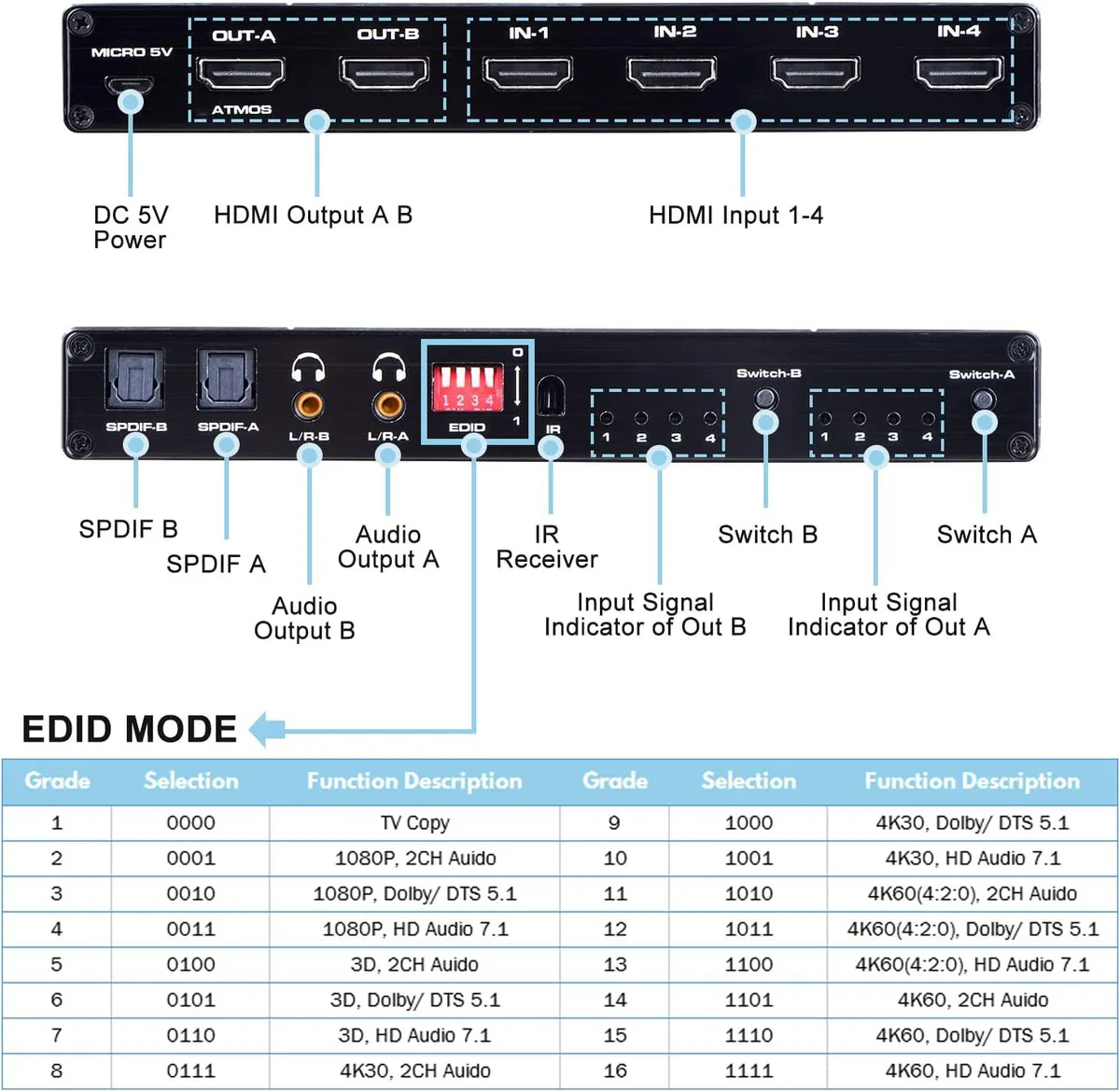

Yes, the matrix supports EDID management and HDCP 2.2, so it down-scales 4K sources to 1080p on legacy displays while keeping 4K on the other output.

How can I verify the OZJ1 is passing 4K@60Hz HDR10 correctly after setup?

Play 4K@60Hz HDR10 content and confirm both HDMI outputs show 3840x2160@60 Hz with deep colour (8/10/12/24/32/48-bit) and audio via HDMI, 3.5 mm L/R, or optical simultaneously.
