Black rectangular 4x2 HDMI matrix switch with front ports and remote

LUOM

LUOM OZJ1 4x2 HDMI Matrix Switch 4K 60Hz 18.5Gbps

SKU CH-6K7N-PF19B

Routes four HDMI sources to two displays at 4K 60 Hz with 18.5 Gbps bandwidth and HDCP 2.2

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • MatrixYes
  • AudioYes
  • Route four sources to two displays independently
  • 5 Gbps bandwidth carries 4K 60 Hz HDR10
  • HDCP 2.2 protects premium content playback
  • Optical and 3.5 mm audio outputs split sound
  • IR remote and front buttons give instant control

4x2 HDMI Matrix Switch

The LUOM OZJ1 is a 4-input 2-output HDMI matrix switch built for installations that need to route four source devices to two displays. It suits home-theatre, office, classroom and commercial settings where multiple sources must be shared across two screens.

HDMI 2.0b and audio outputs

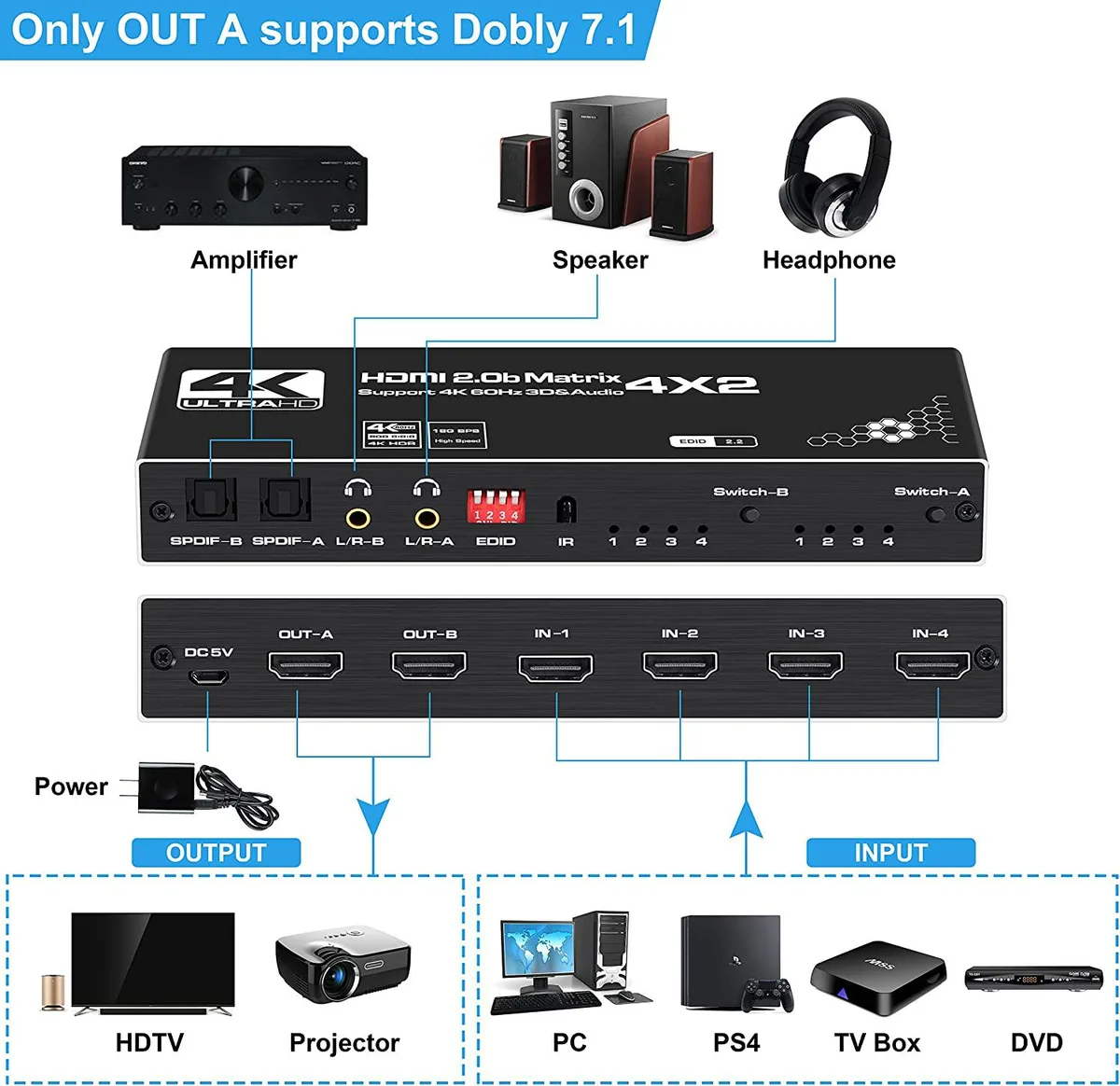

The switch handles HDMI 2.0b with HDCP 2.2 and HDR10, passing 18.5Gbps bandwidth and deep colour up to 48-bit. It provides simultaneous HDMI audio, 3.5 mm stereo and optical digital outputs, with Dolby Atmos 7.1 available on output A and DTS 5.1 on both outputs.

4K 60Hz capacity and limits

Maximum supported resolution is 3840x2160 at 60Hz, and 2K at 144Hz is also supported. Ultra-wide 3440x1440 is not recommended due to compatibility issues. HDMI cables up to 10 metres AWG26 meet the 2.0b standard for reliable transmission.

Highlights

  • Route four sources to two displays independently
  • 5 Gbps bandwidth carries 4K 60 Hz HDR10
  • HDCP 2.2 protects premium content playback
  • Optical and 3.5 mm audio outputs split sound
  • IR remote and front buttons give instant control

Specifications

BrandLUOM
SeriesOZJ1
ModelOZJ1
Part NumberOZJ1
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
MatrixYes
AudioYes
SpecificationsHDMI 2.0 Matrix 4K 60Hz/30Hz HDMI-compatible Matrix 4x2 Switch Splitter HDCP 2.2 4 in 2 out Swicther With Audio HDR For for TV HDTV PS4
Product Type:HDMI Splitter 1x4.
Interface Type: 4 HDMI in, 2 HDMI out
Color: Black
Power Supply: DC 5V.
Max working current: 600mA
Operating Temperature range -15°C to+45°C
Dimension (LxWxH): 170*56*24mm
Weight: 0.175kg
Input Connector4 x HDMI
Output Connector2 x HDMI
Maximum Cable Length10m AWG26 HDMI2.0b standard cable
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0b HDCP 2.2
Support 3D video format
Support highest resolution up to 3840*2160/60Hz
Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24/32/48bit
Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4
4 HDMI inputs switch and split to 2 HDMI displays
Support LPCM/Dolby/DTS 5 1 audio
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 4X2
1x 5V power adapter
1x IR Remote Control(Battery is not included)
1x User Manual

Questions about this item

Will the HDCP 2.2 handshake or EDID table ever need updating on this matrix?

The unit handles HDCP 2.2 and EDID automatically; no user firmware or table updates are required.

What is the longest HDMI cable run the switcher can drive at 4K 60 Hz?

It supports up to 10 metres using AWG 26 HDMI 2.0b cable at the full 18.5 Gbps bandwidth.

Does the box get hot or draw much power when left on 24/7?

The compact 5.91 x 2.36 x 0.79 inch enclosure runs passively with no fan; power draw is low enough for continuous operation.
