LUOM

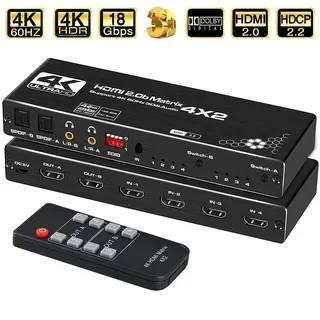

LUOM OZJ1 4x2 HDMI Matrix Switch 4K@60Hz
Routes four HDMI sources to two displays at 4K@60Hz with IR remote control and simultaneous optical plus 3.5 mm audio outputs
- TypeHDMI Switchers
- Changer TypeHDMI Switch/Extender
- ColorBlack
- Ports4
- MatrixYes
- AudioYes
- Connect 4 sources to 2 displays simultaneously via 4×2 HDMI matrix
- Enjoy 4K clarity at 60 Hz with 18.5 Gbps bandwidth
- Extract audio through optical, 3.5 mm jack and HDMI together
- Control switching from the sofa with included IR remote
- Fit tidily in rack or shelf at 5.91 × 2.36 × 0.79 in
LUOM OZJ1 4x2 HDMI Matrix Switch 4K@60Hz
The LUOM OZJ1 is a 4x2 HDMI matrix switch that routes up to four HDMI sources to two independent displays. It supports HDMI 2.0b, HDCP 2.2, HDR10 and 3D video at 4K@60Hz. An IR remote and front-panel buttons provide source selection for each output. Optical and 3.5 mm audio outputs extract sound simultaneously from the active HDMI stream.
4-in-2-out matrix replaces basic switch or splitter
A simple 1-in-2-out splitter only duplicates one source, while a 2-port switch only selects one source for one screen. This matrix lets each of the two displays show a different source from the same pool of four. The jump is worth it when you need independent viewing — for example, a console on one TV and a media player on the other — without swapping cables.
18.5 Gbps bandwidth handles 4K@60Hz and 2K@144Hz
The 18.5 Gbps link supports 3840x2160 at 60 Hz with deep colour up to 48-bit and 2K at 144 Hz for smoother motion. Ultra-wide 3440x1440 is not recommended due to compatibility limits. Dolby Atmos 7.1 passes through only on Output A; other formats including LPCM and DTS 5.1 are available on both outputs. Cable runs up to 10 m with AWG26 HDMI 2.0b cables are supported.
Highlights
- Connect 4 sources to 2 displays simultaneously via 4×2 HDMI matrix
- Enjoy 4K clarity at 60 Hz with 18.5 Gbps bandwidth
- Extract audio through optical, 3.5 mm jack and HDMI together
- Control switching from the sofa with included IR remote
- Fit tidily in rack or shelf at 5.91 × 2.36 × 0.79 in
Specifications
| Brand | LUOM |
|---|---|
| Series | OZJ1 |
| Model | OZJ1 |
| Part Number | OZJ1 |
| Type | HDMI Switchers |
| Changer Type | HDMI Switch/Extender |
| Color | Black |
| Ports | 4 |
| Matrix | Yes |
| Audio | Yes |
| Specifications | HDMI 2.0 Matrix 4K 60Hz/30Hz HDMI-compatible Matrix 4x2 Switch Splitter HDCP 2.2 4 in 2 out Swicther With Audio HDR For for TV HDTV PS4 Product Type:HDMI Splitter 1x4. Interface Type: 4 HDMI in, 2 HDMI out Color: Black Power Supply: DC 5V. Max working current: 600mA Operating Temperature range -15°C to+45°C Dimension (LxWxH): 170*56*24mm Weight: 0.175kg |
| Input Connector | 4 x HDMI |
| Output Connector | 2 x HDMI |
| Maximum Cable Length | 10m AWG26 HDMI2.0b standard cable |
| Maximum Resolutions | 4K@60Hz |
| Bandwidth | 18.5Gbps/600MHZ |
| Features | Support HDMI 2.0b HDCP 2.2 Support 3D video format Support highest resolution up to 3840*2160/60Hz Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz Support deep color 8/10/12/24/32/48bit Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4 4 HDMI inputs switch and split to 2 HDMI displays Support LPCM/Dolby/DTS 5 1 audio |
| Dimensions | 5.91 x 2.36 x 0.79 inches |
| Weight | 11.9 ounces |
| Package Quantity | 1 |
| Package Contents | 1x HDMI Matrix 4X2 1x 5V power adapter 1x IR Remote Control(Battery is not included) 1x User Manual |
Questions about this item
What are the dimensions of the LUOM OZJ1 matrix switch?
The unit measures 5.91 x 2.36 x 0.79 inches and weighs 11.9 ounces, so it fits on a shelf or rack with that footprint.

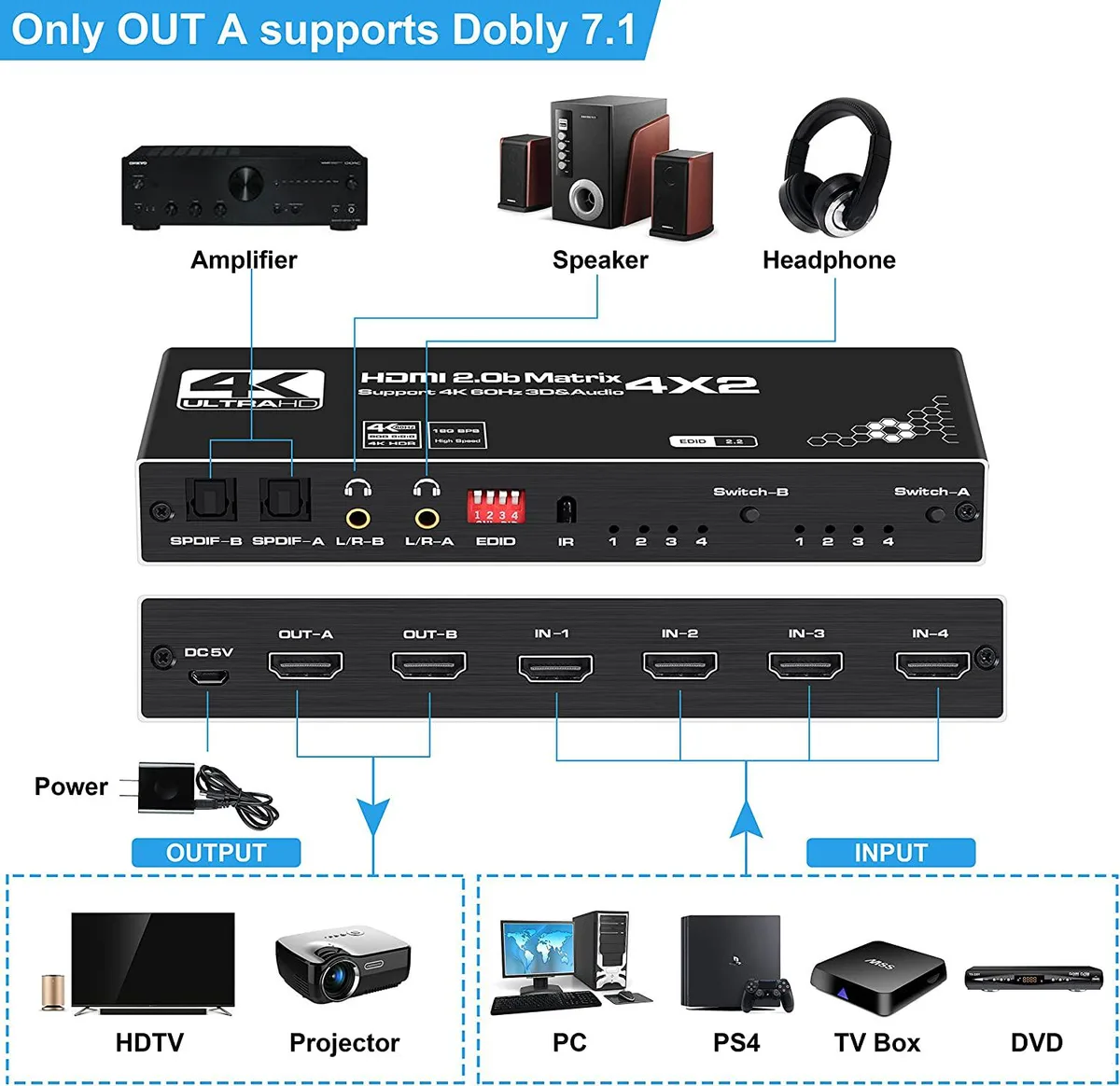

How do I connect the four sources and two displays, and what step is often missed?
Plug the four HDMI sources into the input ports and the two displays into the output ports on the same side, then connect the included power supply; the step often missed is powering the unit before switching signals.
What cable length does the switch support for 4K@60Hz signals?
It supports up to 10 metres using AWG26 HDMI 2.0b standard cables for 4K@60Hz transmission.
