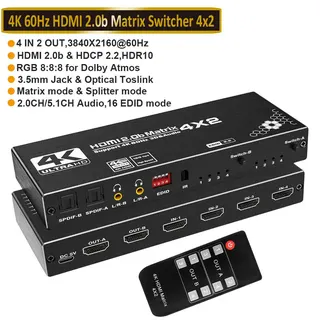

Black rectangular HDMI matrix box with ports on front and back

LUOM

LUOM OZJ1 4x2 HDMI Matrix 4K@60Hz HDR10 Downscaler Audio

SKU CH-60BW-7A6J7

A 4x2 HDMI matrix routes four sources to two displays at 4K 60 Hz with HDR10 and downscales to 1080p while extracting optical and analogue audio

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • MatrixYes
  • AudioYes
  • Switch four sources to two displays independently
  • 4K 60 Hz HDR10 video with 18.5 Gbps bandwidth
  • Downscale 4K to 1080p per output automatically
  • Optical and analogue audio de-embedded simultaneously
  • IR remote and front-panel EDID control included

4x2 HDMI Matrix for Multi-Source Setups

This LUOM OZJ1 matrix routes four HDMI sources to two independent displays with support for 4K at 60 Hz and HDR10. It suits home theatres, meeting rooms and retail installations where multiple devices must share screens without constant cable swapping.

Straightforward Rack or Desk Installation

All HDMI ports and the power input sit on the same face, simplifying cable runs in tight cabinets. The unit accepts standard HDMI cables up to 10 metres at AWG26 specification. EDID management is handled automatically, though ultra-wide 3440 x 1440 resolutions are not recommended due to compatibility limits.

4K60 Bandwidth with 1080p Downscaling Headroom

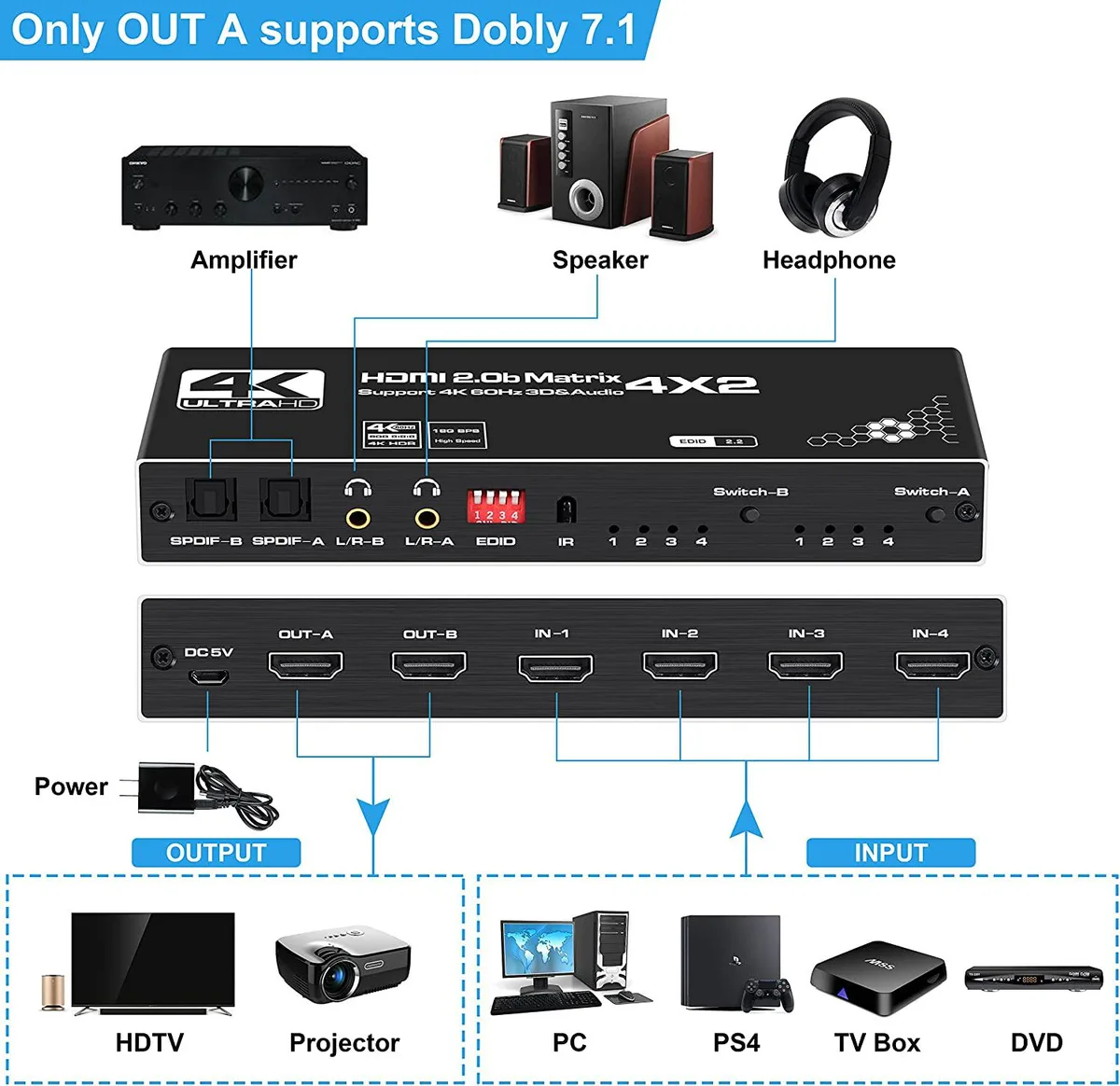

The 18.5 Gbps pipeline carries 3840 x 2160 at 60 Hz, 2K at 144 Hz and deep colour up to 48-bit. Each output can downscale 4K to 1080p independently, so mixed-resolution displays work together. Dolby Atmos 7.1 passes through only on output A, while LPCM and DTS 5.1 are available on both.

Highlights

  • Switch four sources to two displays independently
  • 4K 60 Hz HDR10 video with 18.5 Gbps bandwidth
  • Downscale 4K to 1080p per output automatically
  • Optical and analogue audio de-embedded simultaneously
  • IR remote and front-panel EDID control included

Specifications

BrandLUOM
SeriesOZJ1
ModelOZJ1
Part NumberOZJ1
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
MatrixYes
AudioYes
SpecificationsHDMI 2.0 Matrix 4K 60Hz/30Hz HDMI-compatible Matrix 4x2 Switch Splitter HDCP 2.2 4 in 2 out Swicther With Audio HDR For for TV HDTV PS4
Product Type:HDMI Splitter 1x4.
Interface Type: 4 HDMI in, 2 HDMI out
Color: Black
Power Supply: DC 5V.
Max working current: 600mA
Operating Temperature range -15°C to+45°C
Dimension (LxWxH): 170*56*24mm
Weight: 0.175kg
Input Connector4 x HDMI
Output Connector2 x HDMI
Maximum Cable Length10m AWG26 HDMI2.0b standard cable
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0b HDCP 2.2
Support 3D video format
Support highest resolution up to 3840*2160/60Hz
Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24/32/48bit
Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4
4 HDMI inputs switch and split to 2 HDMI displays
Support LPCM/Dolby/DTS 5 1 audio
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 4X2
1x 5V power adapter
1x IR Remote Control(Battery is not included)
1x User Manual

Questions about this item

How can I verify the LUOM OZJ1 matrix is switching correctly after connecting four sources and two displays?

Confirm each display shows the selected source at up to 3840x2160@60Hz with HDR10 active, check that both optical and 3.5mm audio output sound simultaneously, and ensure the front-panel LEDs match the chosen input for each output.

What cables and accessories are included with the LUOM OZJ1, and what must I provide separately?

The unit ships with the matrix, a power adapter, an IR remote and mounting brackets; you must supply four HDMI source cables and two HDMI display cables up to 10m AWG26 standard.

Should I choose the 4x2 matrix over a simple 4x1 switch for my two-display setup?

The 4x2 matrix lets you route any of the four sources independently to each of the two displays, supports downscaling 4K to 1080p on one output while the other keeps 4K@60Hz, and provides simultaneous optical plus 3.5mm audio on both zones.
