Black rectangular HDMI matrix switch 4x2 with remote and audio ports

LUOM

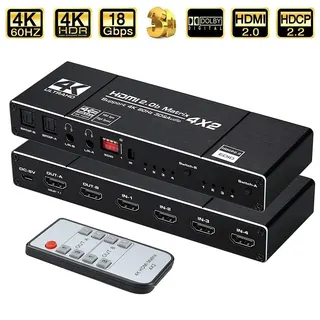

LUOM OZJ1-1 HDMI Matrix Switch 4x2 4K 60Hz with Audio

SKU CH-F0DV-SZPQJ

Routes four 4K sources to two displays with 18.5 Gbps bandwidth, HDCP 2.2, HDR and simultaneous optical plus 3.5 mm audio extraction

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • MatrixYes
  • AudioYes
  • Route four 4K sources to two displays independently
  • 5 Gbps bandwidth carries 4K 60 Hz HDR content
  • Extract audio via optical SPDIF and 3.5 mm simultaneously
  • IR remote switches inputs without leaving your seat
  • Compact 5.91 x 2.36 x 0.79 inch chassis fits tight racks

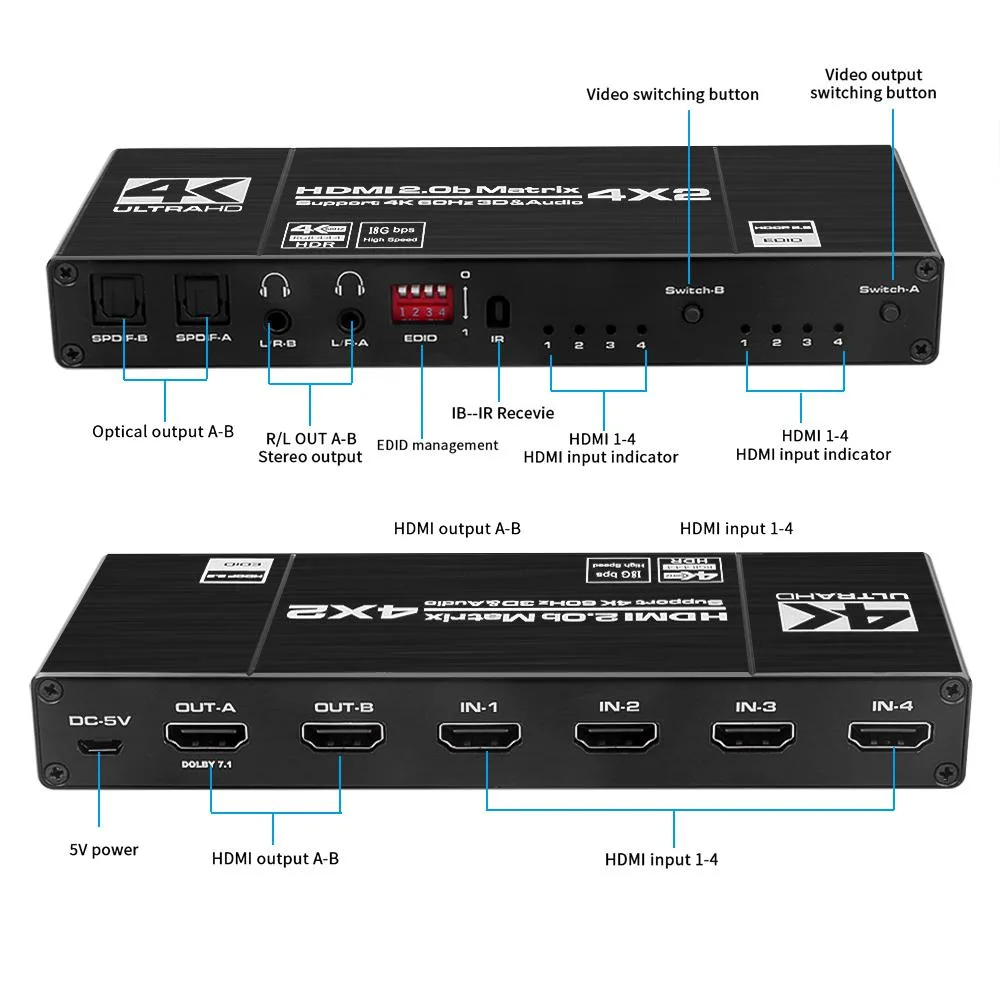

4x2 HDMI Matrix Switch

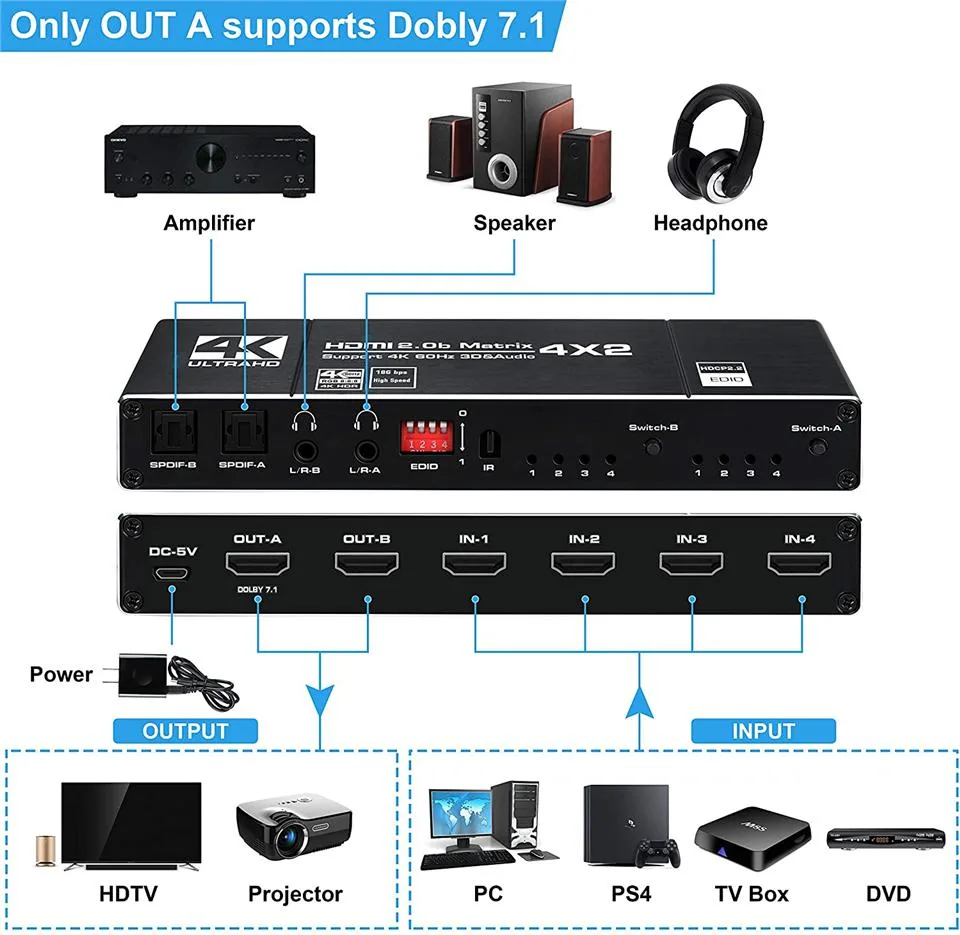

This LUOM OZJ1-1 matrix switch connects four HDMI sources to two displays simultaneously. It supports independent routing so each output can show a different 4K source or mirror the same content. Audio is extracted to both 3.5 mm stereo and optical SPDIF ports at the same time. The unit includes an IR remote for source selection from across the room.

Verify source and cable limits

Confirm each source device outputs HDMI 2.0b with HDCP 2.2 for full 4K 60 Hz operation. Use AWG26 HDMI cables no longer than 10 metres to maintain the 18.5 Gbps bandwidth. The switch accepts 5 V to 12 V DC input, so check the supplied adapter matches your mains voltage. ARC functionality requires compatible displays and source devices.

Passive cooling and low power draw

The compact metal enclosure measures 5.91 x 2.36 x 0.79 inches and weighs 11.9 ounces with no moving parts. It runs silently and stays cool during continuous 4K 60 Hz switching. Power consumption stays within the 5 V to 12 V wide-voltage range without external cooling. No fan noise or thermal throttling occurs in normal home-theatre or office use.

Highlights

  • Route four 4K sources to two displays independently
  • 5 Gbps bandwidth carries 4K 60 Hz HDR content
  • Extract audio via optical SPDIF and 3.5 mm simultaneously
  • IR remote switches inputs without leaving your seat
  • Compact 5.91 x 2.36 x 0.79 inch chassis fits tight racks

Specifications

BrandLUOM
SeriesOZJ1-1
ModelOZJ1-1
Part NumberOZJ1-1
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
MatrixYes
AudioYes
SpecificationsHDMI 2.0 Matrix 4K 60Hz/30Hz HDMI-compatible Matrix 4x2 Switch Splitter HDCP 2.2 4 in 2 out Swicther With Audio HDR For for TV HDTV PS4
Product Type:HDMI Splitter 1x4.
Interface Type: 4 HDMI in, 2 HDMI out
Color: Black
Power Supply: DC 5V.
Max working current: 600mA
Operating Temperature range -15°C to+45°C
Dimension (LxWxH): 170*56*24mm
Weight: 0.175kg
Input Connector4 x HDMI
Output Connector2 x HDMI
Maximum Cable Length10m AWG26 HDMI2.0b standard cable
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0b HDCP 2.2
Support 3D video format
Support highest resolution up to 3840*2160/60Hz
Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24/32/48bit
Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4
4 HDMI inputs switch and split to 2 HDMI displays
Support LPCM/Dolby/DTS 5 1 audio
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 4X2
1x 5V power adapter
1x IR Remote Control(Battery is not included)
1x User Manual

Questions about this item

What cables and accessories come with the LUOM OZJ1-1, and what must I buy separately?

The package contains one LUOM OZJ1-1 matrix switch. You must supply four HDMI source cables and two HDMI display cables yourself; optical and 3.5 mm audio cables are also not included.

Should I choose a different version or capacity of this matrix switch?

The OZJ1-1 is offered only as a single 4×2 model with HDMI 2.0b, 18.5 Gbps bandwidth and 4K 60 Hz support; no other port counts or bandwidth tiers exist for this series.

What does the 4K 60 Hz rating mean when the switch is connected to my sources and displays?

Each of the two outputs can independently show any of the four inputs at up to 3840×2160 at 60 Hz with HDR, HDCP 2.2 and 8/10/12-bit colour, provided your cables meet the 10 m AWG26 limit.
