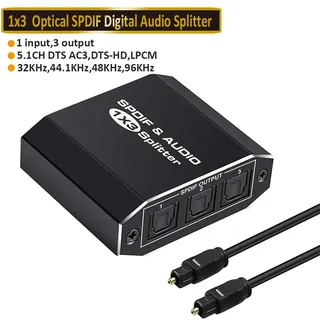

Black rectangular SPDIF Toslink splitter with one input and three output ports

LUOM

LUOM OZG1 Digital Optical Audio Splitter 1x3 Black

SKU CH-TBF0-Y9GG7

Splits one optical audio input into three outputs with support for LPCM 2.0, DTS and Dolby AC3 formats up to 40 metres

  • TypeSPDIF TOSLINK Digital Optical Splitters
  • Changer TypeDigital Optical Splitter 1 in 3 Out
  • Ports3
  • AudioYes
  • ColorBlack
  • Specifications1.One way of optical fiber signal input splitter to three se
  • Splits one optical source to three devices
  • Supports LPCM 2.0, DTS and Dolby AC3 formats
  • Transmits up to 40 metres with low loss
  • Peak wavelength 650 nm at 16 Mbps
  • Includes optical cable, USB power cable and manual

What this splitter does

The LUOM OZG1 takes a single SPDIF TOSLINK optical input and sends identical digital audio to three separate outputs. It supports LPCM2.0, Dolby-AC3 and DTS formats at up to 16 Mbps. The unit is powered through a USB cable and includes an ESD protection circuit for stable operation.

Installing and common issues

Connect the source to the single input port and up to three receivers to the output ports, then plug the USB power cable into any 5 V source. No drivers are required. The main limitation is the 40 m maximum cable run per output when using fibre with loss below .2 dB/m; longer runs or higher-loss cable will cause signal drop-out.

The spec that decides fit

This is a 1-to-3 optical splitter, so it only works when you have one source and need exactly three destinations. Buyers who need more than three outputs or who want to combine several sources into one input cannot use this device.

Highlights

  • Splits one optical source to three devices
  • Supports LPCM 2.0, DTS and Dolby AC3 formats
  • Transmits up to 40 metres with low loss
  • Peak wavelength 650 nm at 16 Mbps
  • Includes optical cable, USB power cable and manual

Specifications

BrandLUOM
SeriesOZG1
ModelOZG1
Part NumberOZG1
TypeSPDIF TOSLINK Digital Optical Splitters
Changer TypeDigital Optical Splitter 1 in 3 Out
Ports3
AudioYes
ColorBlack
Specifications1.One way of optical fiber signal input splitter to three sets of SPDIF/TosLink signal receiving device.
2.Audio format support:LPCM2.0/DTS/Dolby-AC3.
3.Support signal retiming.
4.Used optical fiber cable loss less than 0. 2Db/m, Output distance is up to 40m.
5.Over voltage protection can prevent the damage caused by connecting unmatched power adapter to the machine.
6.No loss of quality
7.Installs in minutes
8.Need USB 5V power supply

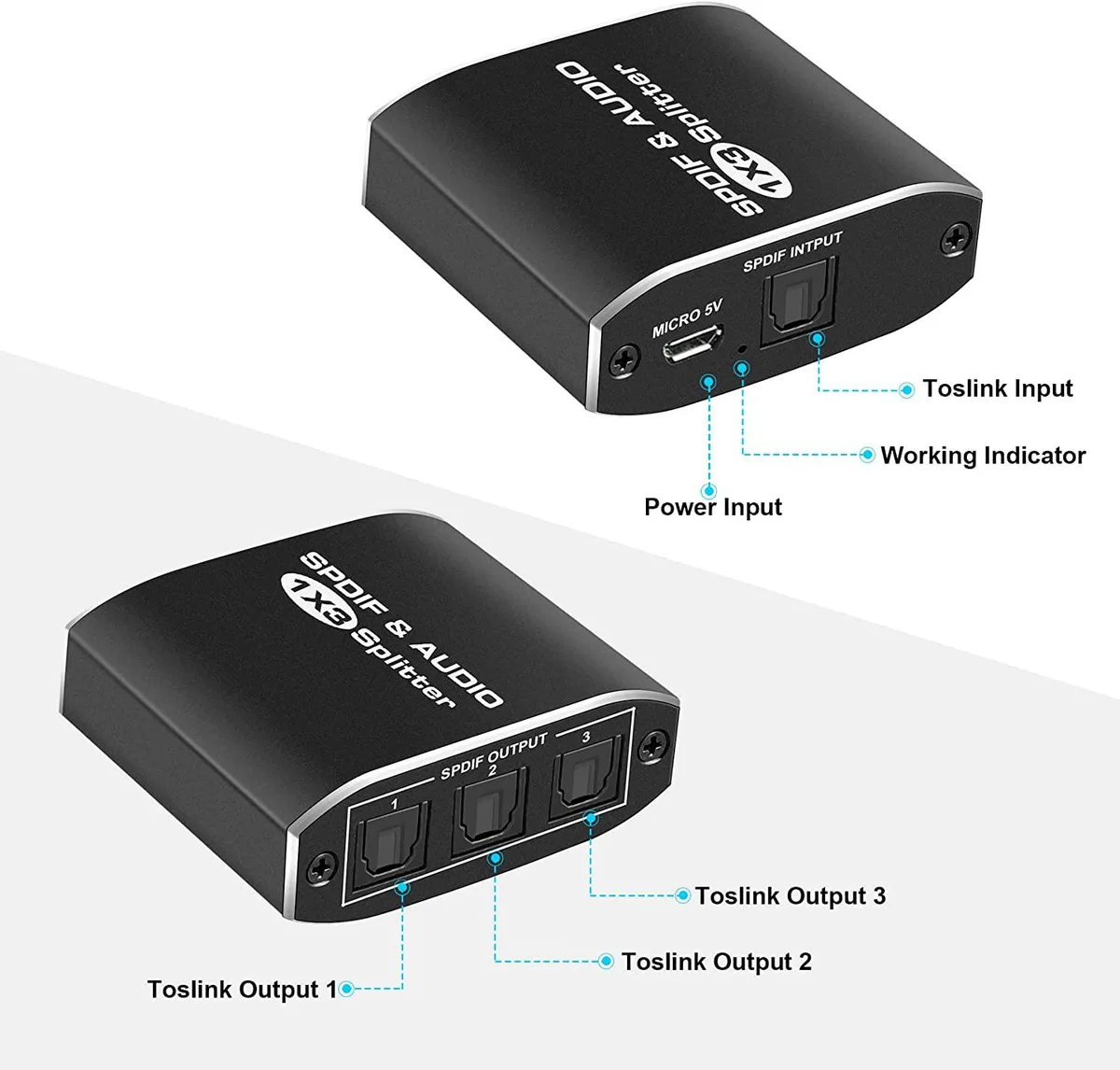

Input Connector3 x SPDIF TOSLINK OUT
Output Connector1 x SPDIF TOSLINK IN
Features1.Support audio format:LPCM2 0/DTS/Dolby-AC
2.Peak wavelength:650nm
3.Max baud rate:16Mbps
4.Output cable distance:<=40m(Use the optical fiber cable loss less the 0.2Db/m)
5.Max working current:100mA
6.Power adapter format:input: AC (50HZ, 60HZ)100V-240V; Output DC5V
7.Operating Temperature range:(0t+40?)
8.Operating Humidity range:5 to 90%RH (No Condensation)
9.Dimension (LX WX H):62x58x24(mm)
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1x Optical Audio Splitter
1x Optical cable
1x USB Power cable
1x User manual

Questions about this item

How can I confirm the LUOM OZG1 splitter is passing audio correctly after connecting it?

Play a Dolby-AC3 or DTS source through the single TOSLINK input and verify sound arrives at all three output devices with no audible delay or drop-outs; the built-in retiming circuit keeps the signal stable up to 40 m of fibre.

Which cables and accessories are included with the LUOM OZG1 and what must I supply myself?

The box contains the splitter, one optical cable, a USB power cable and a user manual; you must provide a 5 V USB power source and two additional TOSLINK cables for the second and third outputs.

The LUOM OZG1 is only sold as a 1-in-3-out model — how do I decide if this version suits my setup?

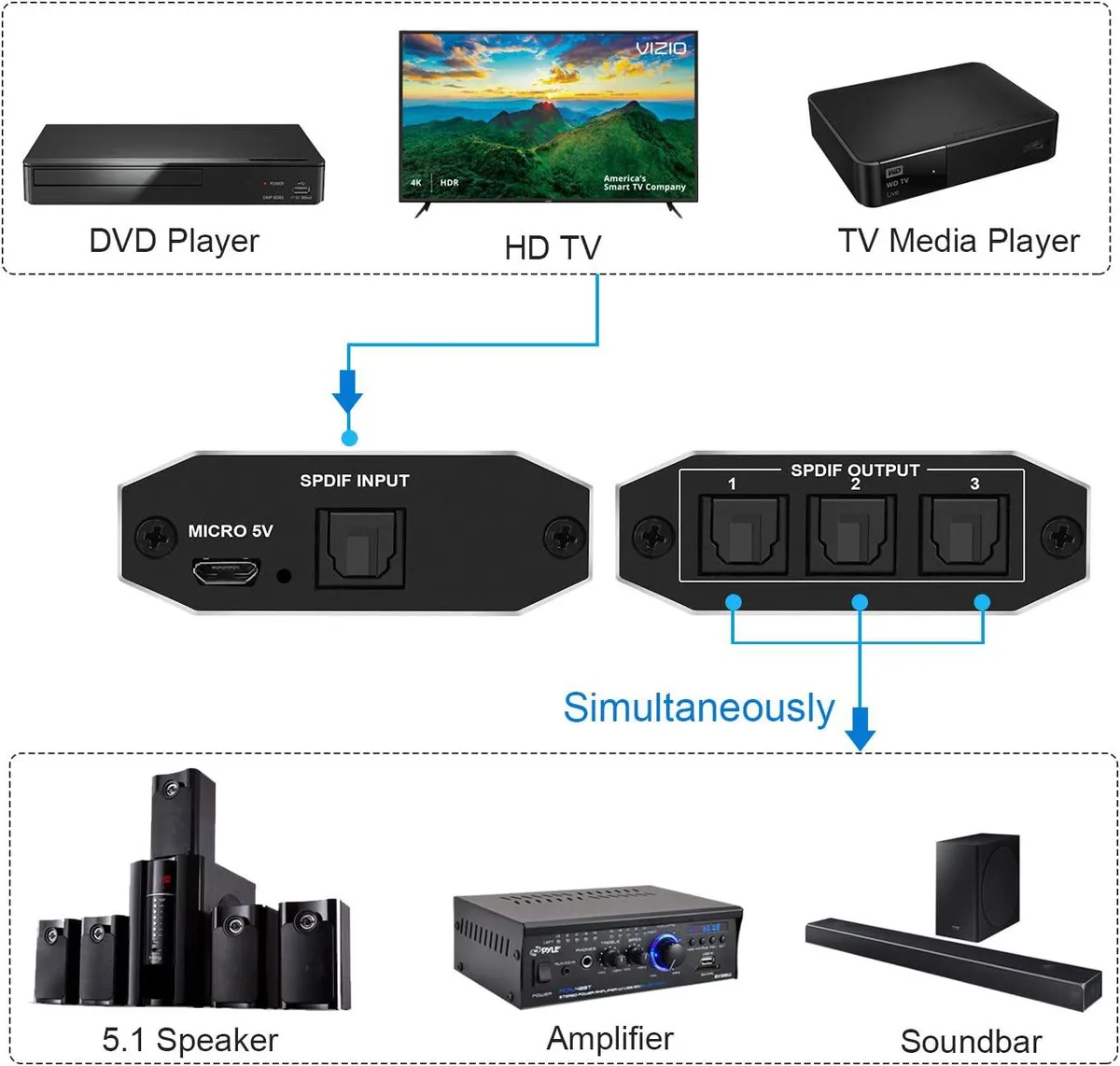

Choose this version when you need to feed one SPDIF/TOSLINK source such as a PS4, Xbox or Blu-ray player into three separate amplifiers, soundbars or AV receivers simultaneously; it supports LPCM 2.0, Dolby-AC3 and DTS at up to 16 Mbps.
