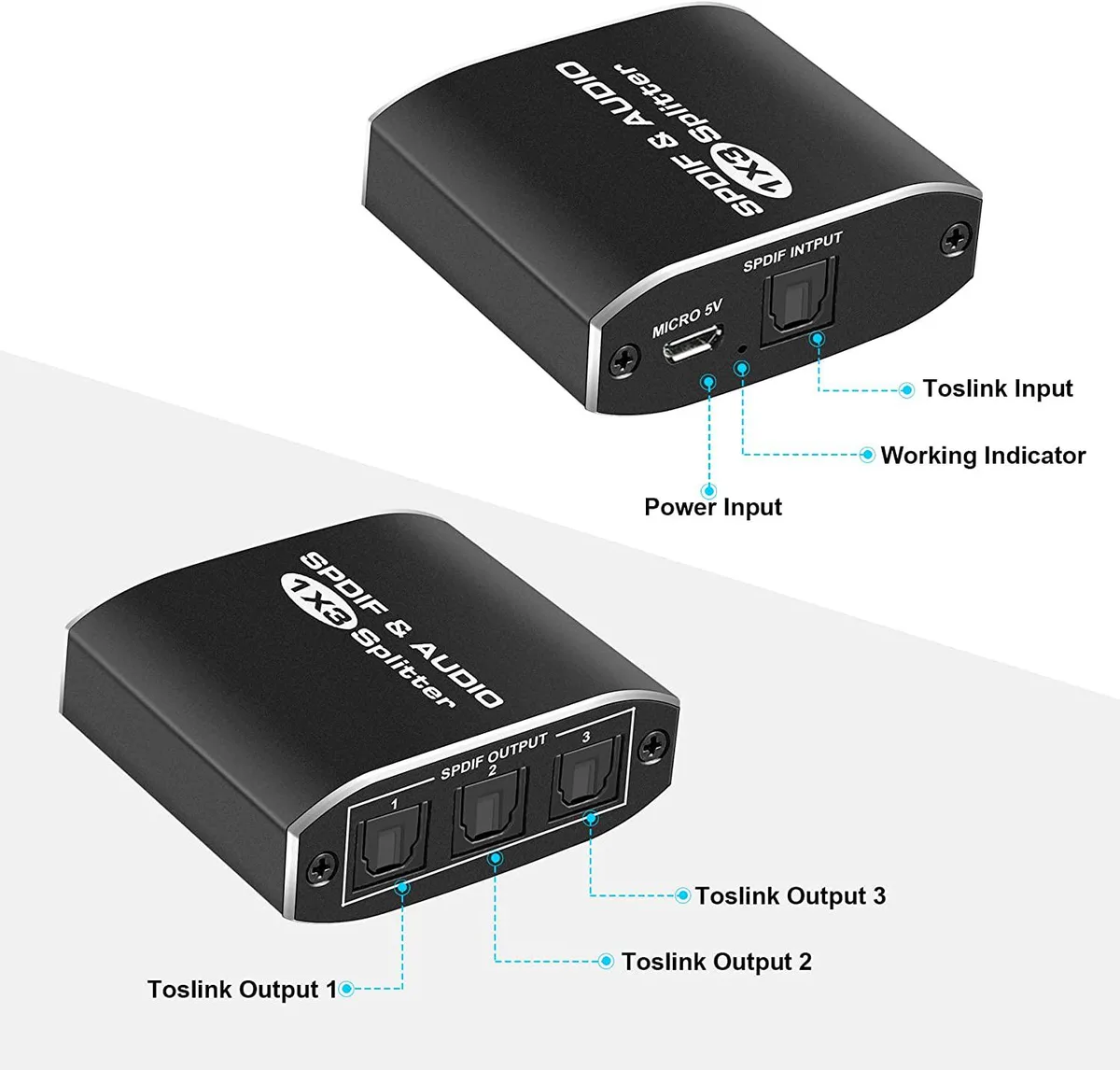

Small black rectangular audio splitter with four Toslink ports and a USB power socket

LUOM

LUOM OZG1 1x3 SPDIF Toslink Audio Splitter Black

SKU CH-90X3-QCE5D

Splits one optical audio source to three Toslink outputs with LPCM 2.0, DTS and Dolby AC3 support up to 40 m

  • TypeSPDIF TOSLINK Digital Optical Splitters
  • Changer TypeDigital Optical Splitter 1 in 3 Out
  • Ports3
  • AudioYes
  • ColorBlack
  • Specifications1.One way of optical fiber signal input splitter to three se
  • Splits one optical source to three devices
  • Supports LPCM2.0, DTS and Dolby-AC3 audio formats
  • Signal retiming with ESD protection prevents loss and delay
  • Transmits up to 40 metres over fibre at ≤.2 dB/m
  • Compact 5.59×3.15×1.26 in design with USB power included

Purpose & Audience

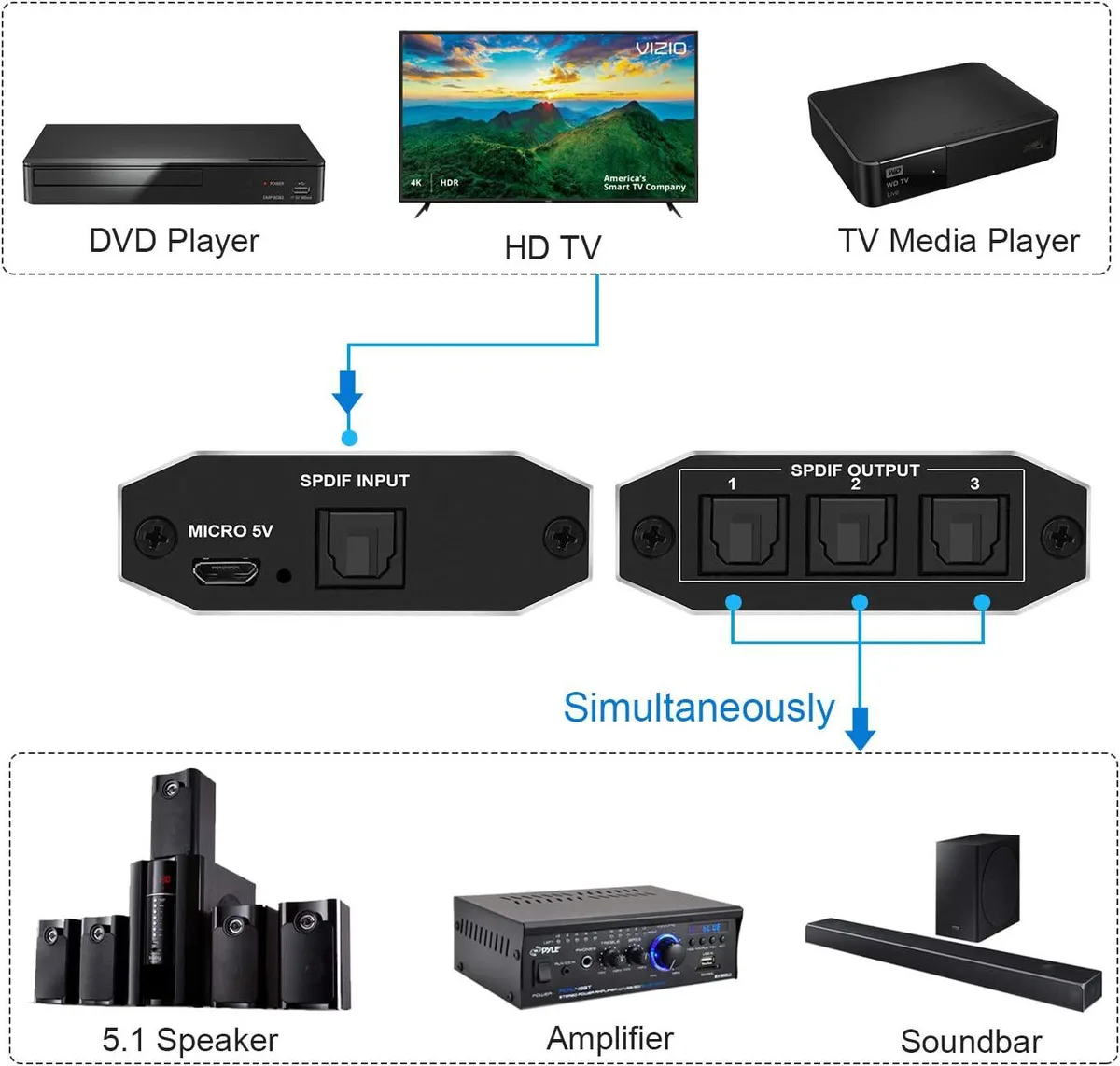

The LUOM OZG1 is a 1×3 SPDIF Toslink splitter that takes one optical audio source and feeds three Toslink outputs. It is built for home-theatre owners, karaoke users and anyone connecting a single console, Blu-ray player or streaming box to multiple amplifiers or soundbars.

Interface Limits

The splitter handles LPCM 2.0, DTS and Dolby-AC3 at up to 16 Mbps with a 650 nm peak wavelength. Signal loss stays below 0.2 dB per metre, so each output run can reach 40 m without degradation, and the unit draws no more than 100 mA from its USB power cable.

Deciding Specification

The single figure that determines fit is the 1-in-3-out port count: one Toslink input splits to exactly three Toslink outputs. Buyers who need more than three destinations or who require an input selector rather than a fixed split will need a different device.

Highlights

  • Splits one optical source to three devices
  • Supports LPCM2.0, DTS and Dolby-AC3 audio formats
  • Signal retiming with ESD protection prevents loss and delay
  • Transmits up to 40 metres over fibre at ≤.2 dB/m
  • Compact 5.59×3.15×1.26 in design with USB power included

Specifications

BrandLUOM
SeriesOZG1
ModelOZG1
Part NumberOZG1
TypeSPDIF TOSLINK Digital Optical Splitters
Changer TypeDigital Optical Splitter 1 in 3 Out
Ports3
AudioYes
ColorBlack
Specifications1.One way of optical fiber signal input splitter to three sets of SPDIF/TosLink signal receiving device.
2.Audio format support:LPCM2.0/DTS/Dolby-AC3.
3.Support signal retiming.
4.Used optical fiber cable loss less than 0. 2Db/m, Output distance is up to 40m.
5.Over voltage protection can prevent the damage caused by connecting unmatched power adapter to the machine.
6.No loss of quality
7.Installs in minutes
8.Need USB 5V power supply
Input Connector3 x SPDIF TOSLINK OUT
Output Connector1 x SPDIF TOSLINK IN
Features1.Support audio format:LPCM2 0/DTS/Dolby-AC
2.Peak wavelength:650nm
3.Max baud rate:16Mbps
4.Output cable distance:<=40m(Use the optical fiber cable loss less the 0.2Db/m)
5.Max working current:100mA
6.Power adapter format:input: AC (50HZ, 60HZ)100V-240V; Output DC5V
7.Operating Temperature range:(0t+40?)
8.Operating Humidity range:5 to 90%RH (No Condensation)
9.Dimension (LX WX H):62x58x24(mm)
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1x Optical Audio Splitter
1x Optical cable
1x USB Power cable
1x User manual

Questions about this item

How do I decide between a 1x2 and this 1x3 optical splitter?

Choose the 1x3 when you need to feed one Toslink source into three separate SPDIF receivers such as a soundbar, AV receiver and headphone amp simultaneously.

What does the 16 Mbps baud rate mean for my home-theatre setup?

It is the maximum signalling speed the splitter can pass, so standard Dolby Digital, DTS and two-channel LPCM streams travel without bit-rate bottlenecks.

Which optical standard does the TOSLINK interface follow and what distance does it cap?

The ports use 650 nm peak-wavelength TOSLINK and the maker rates reliable output up to 40 m when cable loss stays below 0.2 dB/m.
