Black aluminum Toslink splitter, one input three outputs, compact rectangular box

LUOM

LUOM OZG1 1×3 Toslink Optical Audio Splitter Black

SKU CH-QKYK-NK5QD

Splits one Toslink optical input into three outputs supporting LPCM2.0, DTS and Dolby AC3 up to 40 metres

  • TypeSPDIF TOSLINK Digital Optical Splitters
  • Changer TypeDigital Optical Splitter 1 in 3 Out
  • Ports3
  • AudioYes
  • ColorBlack
  • Specifications1.One way of optical fiber signal input splitter to three se
  • Splits one optical signal to three devices
  • Supports LPCM2.0, DTS and Dolby-AC3 formats
  • Signal retiming with ESD protection for stable output
  • Transmits up to 40 m over optical fibre
  • Includes optical and USB power cables in box

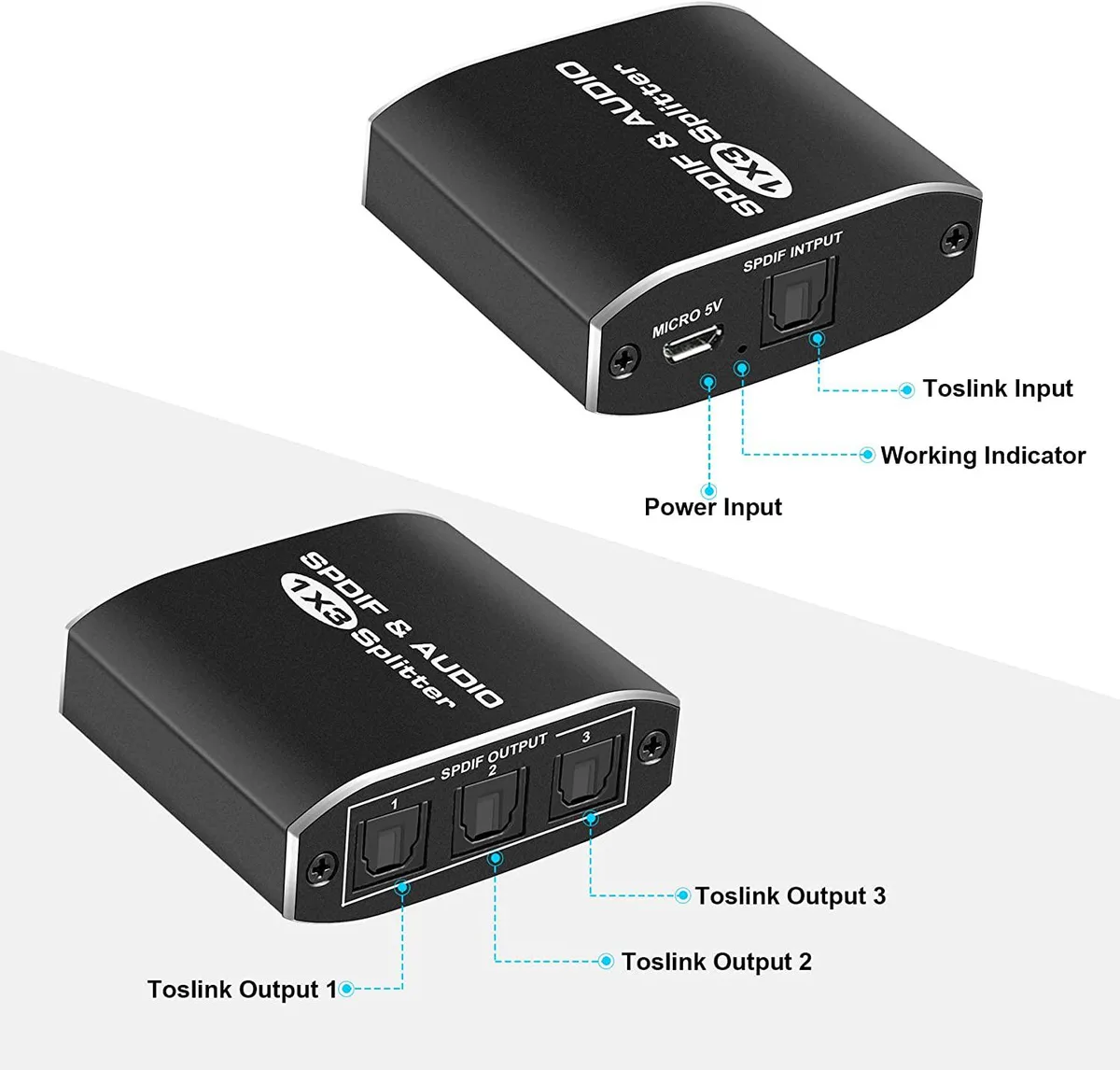

LUOM OZG1 1×3 Toslink Splitter

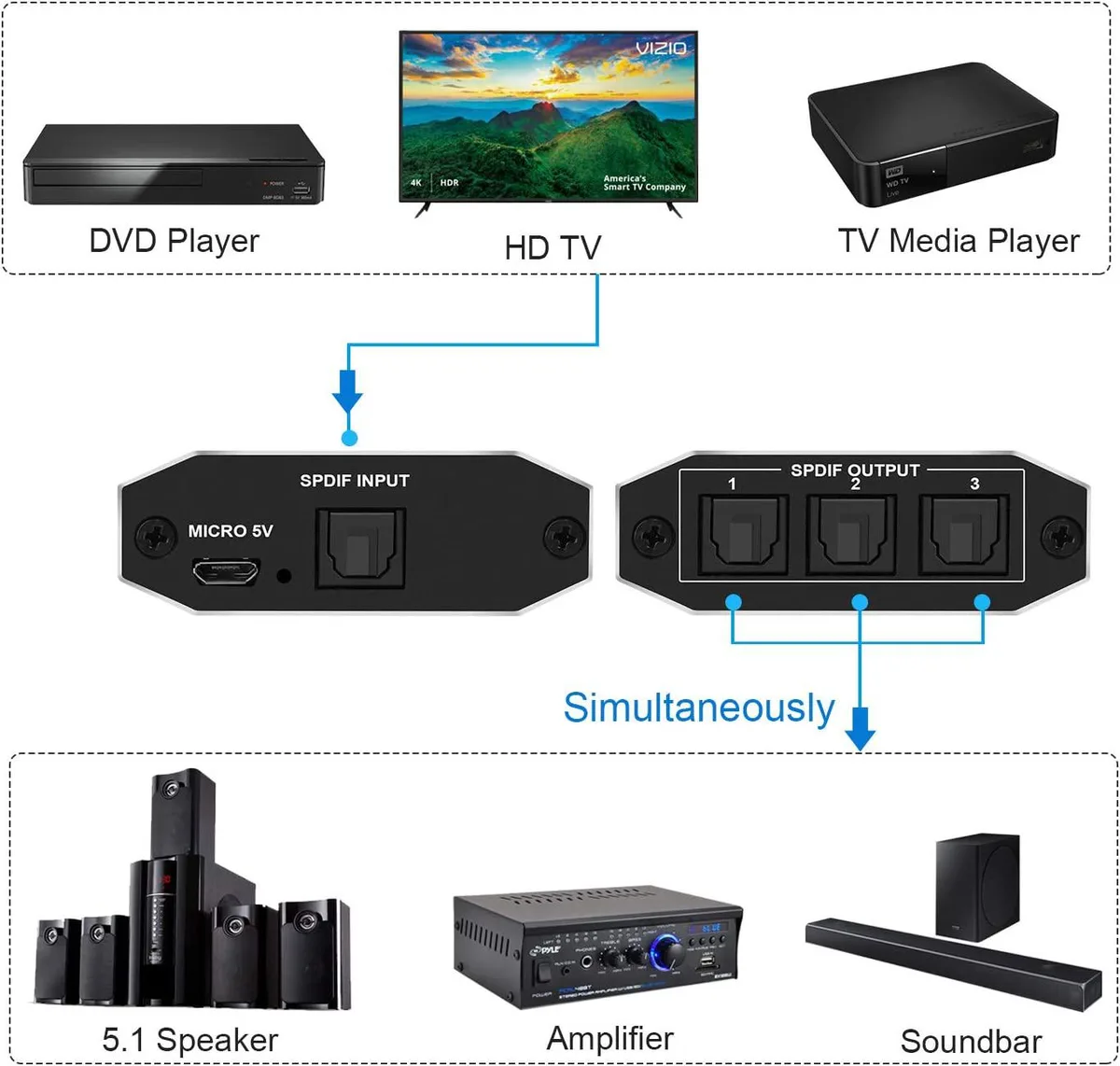

The LUOM OZG1 is a passive digital optical splitter that takes one SPDIF TOSLINK input and distributes it to three identical outputs. It is intended for installers or home-theatre owners who need to send the same audio stream to multiple receivers, soundbars or recording devices simultaneously.

Bundled cable and USB power lead

The package includes a short Toslink optical cable and a USB power cable so the splitter can be powered from any 5 V USB port without a separate wall adapter. The supplied cable covers the input connection, while the three outputs use the buyer’s own optical leads.

16 Mbps maximum baud rate

The splitter’s internal retiming circuit supports a peak data rate of 16 Mbps, which accommodates LPCM 2.0, DTS and Dolby-AC3 bitstreams. Multichannel formats exceeding that rate such as DTS-HD Master Audio or Dolby TrueHD will not pass through this device.

Highlights

  • Splits one optical signal to three devices
  • Supports LPCM2.0, DTS and Dolby-AC3 formats
  • Signal retiming with ESD protection for stable output
  • Transmits up to 40 m over optical fibre
  • Includes optical and USB power cables in box

Specifications

BrandLUOM
SeriesOZG1
ModelOZG1
Part NumberOZG1
TypeSPDIF TOSLINK Digital Optical Splitters
Changer TypeDigital Optical Splitter 1 in 3 Out
Ports3
AudioYes
ColorBlack
Specifications1.One way of optical fiber signal input splitter to three sets of SPDIF/TosLink signal receiving device.
2.Audio format support:LPCM2.0/DTS/Dolby-AC3.
3.Support signal retiming.
4.Used optical fiber cable loss less than 0. 2Db/m, Output distance is up to 40m.
5.Over voltage protection can prevent the damage caused by connecting unmatched power adapter to the machine.
6.No loss of quality
7.Installs in minutes
8.Need USB 5V power supply
Input Connector3 x SPDIF TOSLINK OUT
Output Connector1 x SPDIF TOSLINK IN
Features1.Support audio format:LPCM2 0/DTS/Dolby-AC
2.Peak wavelength:650nm
3.Max baud rate:16Mbps
4.Output cable distance:<=40m(Use the optical fiber cable loss less the 0.2Db/m)
5.Max working current:100mA
6.Power adapter format:input: AC (50HZ, 60HZ)100V-240V; Output DC5V
7.Operating Temperature range:(0t+40?)
8.Operating Humidity range:5 to 90%RH (No Condensation)
9.Dimension (LX WX H):62x58x24(mm)
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1x Optical Audio Splitter
1x Optical cable
1x USB Power cable
1x User manual

Questions about this item

Will the optical TOSLINK ports or the USB power cable need periodic replacement?

The splitter uses passive optical TOSLINK ports with no moving parts, so they do not wear out; the supplied USB power cable is a standard cable that only needs replacing if physically damaged.

What is the maximum baud rate before signal integrity drops during continuous streaming?

The device supports a maximum baud rate of 16 Mbps; sustained streams at or below this rate maintain integrity thanks to built-in signal retiming.

Does the aluminium-alloy enclosure stay cool and silent when powered all day?

With a maximum working current of 100 mA at 5 V the unit draws very little power, runs fanless and produces no audible noise, so it remains cool and silent during continuous operation.
