Small black box with one HDMI input, two HDMI outputs and 3.5mm, coaxial, optical audio ports

LUOM

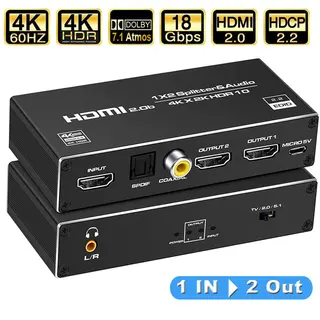

LUOM OZF6A HDMI Splitter 1x2 4K60 Audio Extractor 3.5mm Coaxial SPDIF

SKU CH-GFGV-VG2F4

Splits one HDMI source to two displays at 4K 60 Hz while extracting audio to 3.5 mm, coaxial and optical SPDIF outputs

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports2
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI resolutin: 4Kx2K/3D/1080@120Hz/1080@60Hz/720p/480p Supp
  • Splits one HDMI source to two displays
  • Extracts audio to 3.5 mm, coaxial and SPDIF outputs
  • Supports 4K at 60 Hz with 18 Gbps bandwidth
  • Offers TV, 2.0 CH and 5.1 CH audio modes
  • Handles 1080p at 120 Hz for high-frame-rate content

1x2 HDMI Splitter with Audio Extraction

The LUOM OZF6A splits one HDMI source to two identical displays while extracting audio to 3.5mm, coaxial and optical SPDIF outputs. It handles 4K at 60 Hz with 18 Gbps bandwidth and supports HDR10 and HDCP 2.2. The unit includes a USB power adapter for stable operation.

Replacing Basic Splitters and Separate Extractors

This device combines duplication and audio breakout in one box, removing the need for a standalone splitter plus a separate extractor. The upgrade is worthwhile when you need simultaneous HDMI mirroring and multi-format audio output for soundbars, AV receivers or powered speakers. It does not switch between sources; it only mirrors.

Build Integration

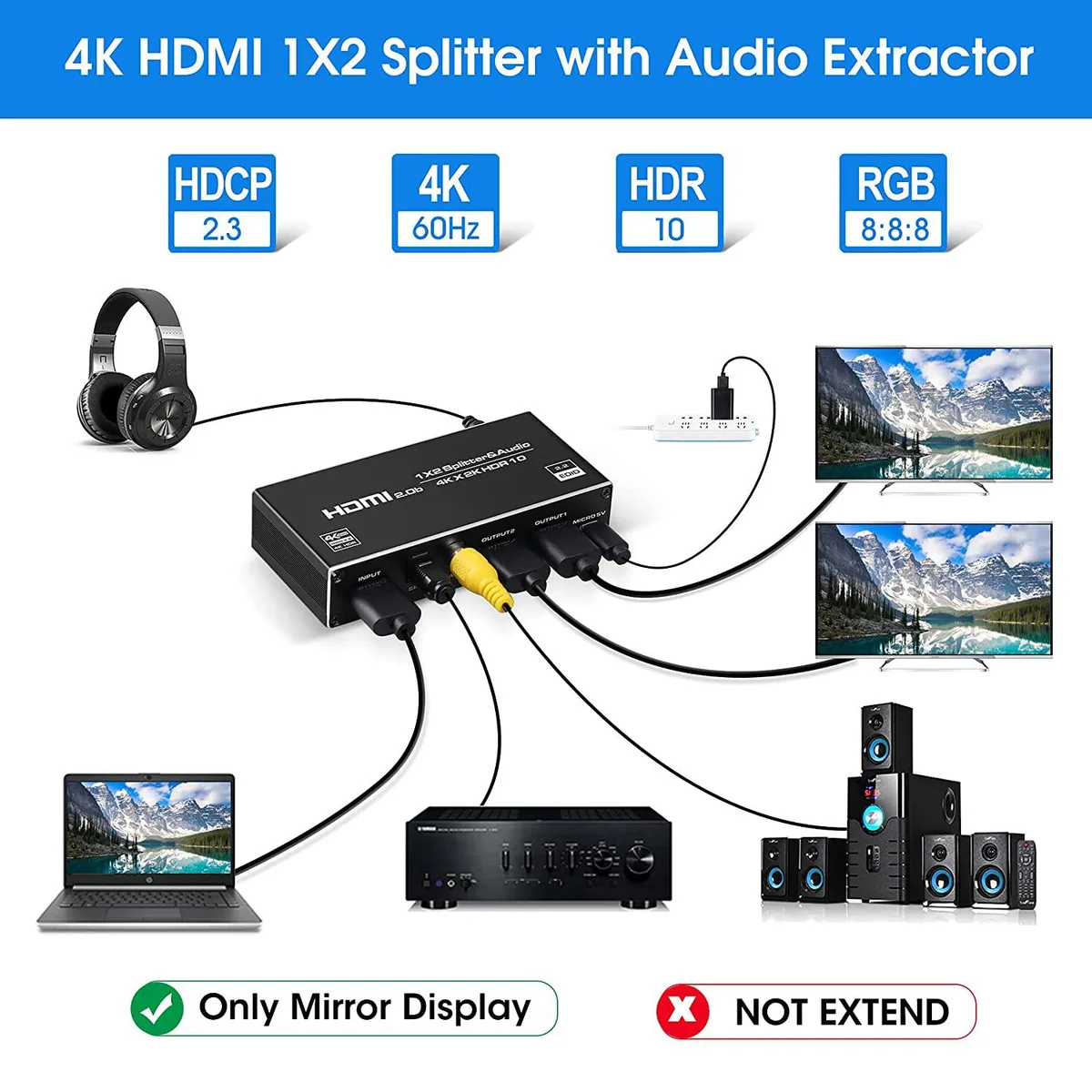

Connect the source to the single HDMI input and run two HDMI cables to the displays; the extractor then feeds analogue 3.5mm, coaxial or optical audio to your sound system. Three audio-mode buttons select TV, 2.0 CH or 5.1 CH output. The splitter supports cable runs up to 15 metres at 1080p and 8 metres at 4K with standard AWG26 cables.

Highlights

  • Splits one HDMI source to two displays
  • Extracts audio to 3.5 mm, coaxial and SPDIF outputs
  • Supports 4K at 60 Hz with 18 Gbps bandwidth
  • Offers TV, 2.0 CH and 5.1 CH audio modes
  • Handles 1080p at 120 Hz for high-frame-rate content

Specifications

BrandLUOM
SeriesOZF6A
ModelOZF6A
Part NumberOZF6A
TypeHDMI Splitters
Changer TypeHDMI
Ports2
AudioYes
ColorBlack
SpecificationsHDMI resolutin: 4Kx2K/3D/1080@120Hz/1080@60Hz/720p/480p
Support video color format: 24bit/deep color 30bit, 36bit
Support audio format: dts-hd/dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Input/Output TMDS signal: 5-1.5 olts p-p(TTL)
Input cable distane: 10m AWG26 HDMI standard cable
Output cable distance: 10m AWG26 HDMI standard cable
Dimension(LxWxH): 110x62x28MM
Weight: 110g

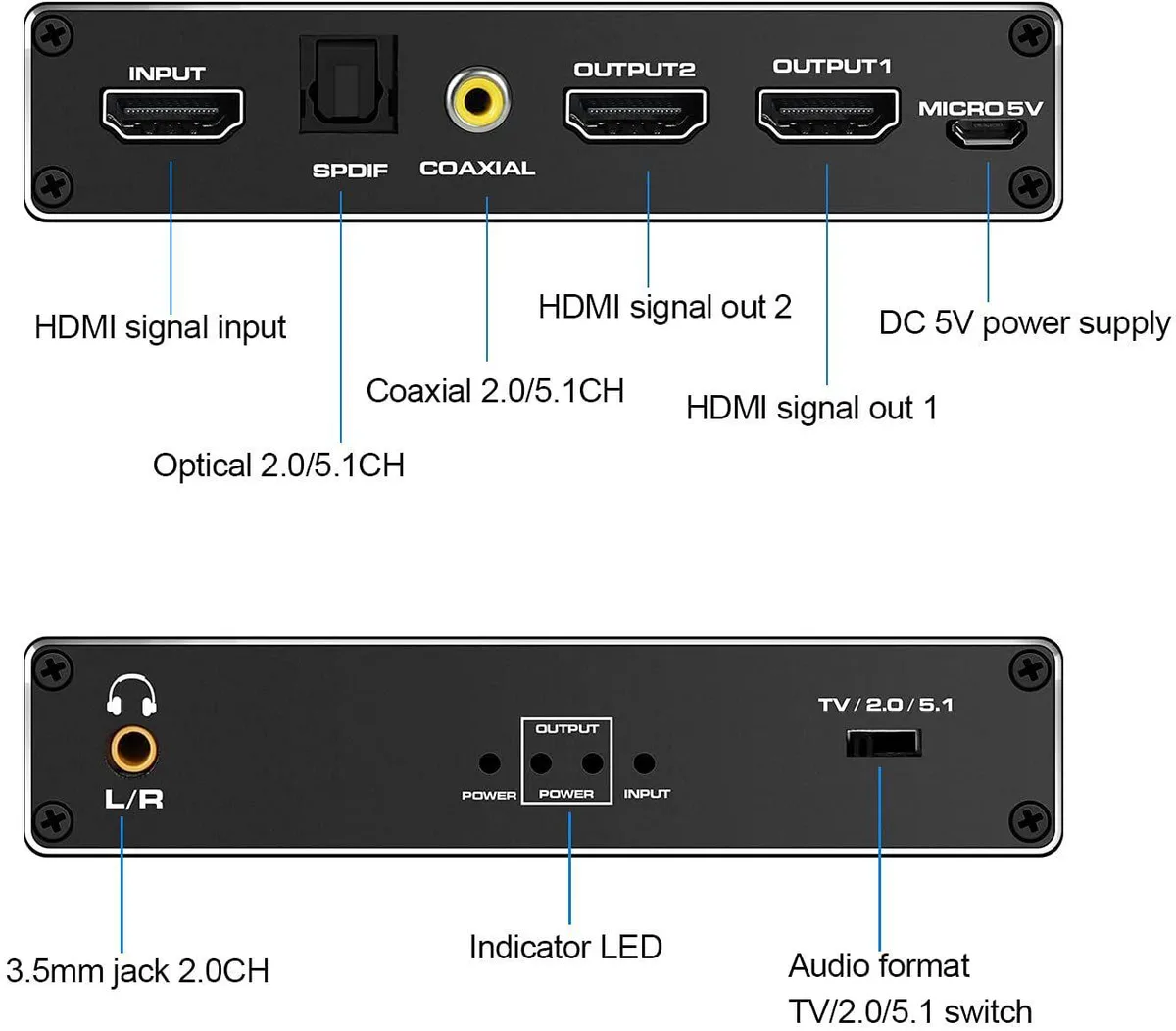

Input Connector1 HDMI input
Output Connector2 HDMI + Audio (SPDIF+3.5mm) Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesOne HDMI input converted to two HDMI+ Audio(SPDIF+R/L+Coaxial )Output to achieve the synchronization of audio signal separation.
There are TV /2.0CH/5.1CH three kinds of audio mode options
Support 4K x 2K@60Hz, RGB 8:8:8/RGB 4:4:4,Support 3D
Support blue-ray 24/50/60fs/hd-dvd/XVYCC
Digital audio format, as DTS-HD/dolby-truehd/LPCM7.1/DTS/dolby-ac-3 (Not Support Always Dolby Digital plus)
Support HDMI2.0b,HDCP2.2,Support HDR10,18.5Gbps
Support signal retiming
No loss of quality
Installs in minutes
Need DC5V power supply
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 x 1x2 HDMI Splitter Audio Extractor
1 x User manual
1 x USB power adapter

Questions about this item

What HDMI cable length does the 4K@60Hz output support?

With an AWG26 standard cable the 4K@60Hz signal reaches up to 26 ft (8 m) on each output.

How is the audio mode selected on the extractor?

A three-position button on the unit switches between TV, 2.0CH and 5.1CH modes; choose the setting that matches your sound system before powering on.

Which audio connectors may need replacement cables over time?

The 3.5 mm stereo jack, coaxial RCA and optical Toslink SPDIF ports use standard cables that can be swapped if they wear out.
