Black rectangular HDMI splitter with multiple ports visible

LUOM

LUOM OZF6A 1x2 HDMI Splitter Audio Extractor 4K60 18Gbps Switch HDR Coaxial SPDIF 3.5mm

SKU CH-4GGE-GVYFC

Splits one HDMI source to two displays while extracting audio to 3.5 mm, coaxial and SPDIF outputs, supporting 4K at 60 Hz, HDR and 18 Gbps bandwidth

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports2
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI resolutin: 4Kx2K/3D/1080@120Hz/1080@60Hz/720p/480p Supp
  • One HDMI source drives two displays simultaneously
  • 4K at 60 Hz with HDR and 18 Gbps bandwidth
  • Audio extracted to 3.5 mm, coaxial and SPDIF outputs
  • Three audio modes: TV, 2.0 CH and 5.1 CH
  • Powered splitter supports cable runs up to 15 m at 1080p

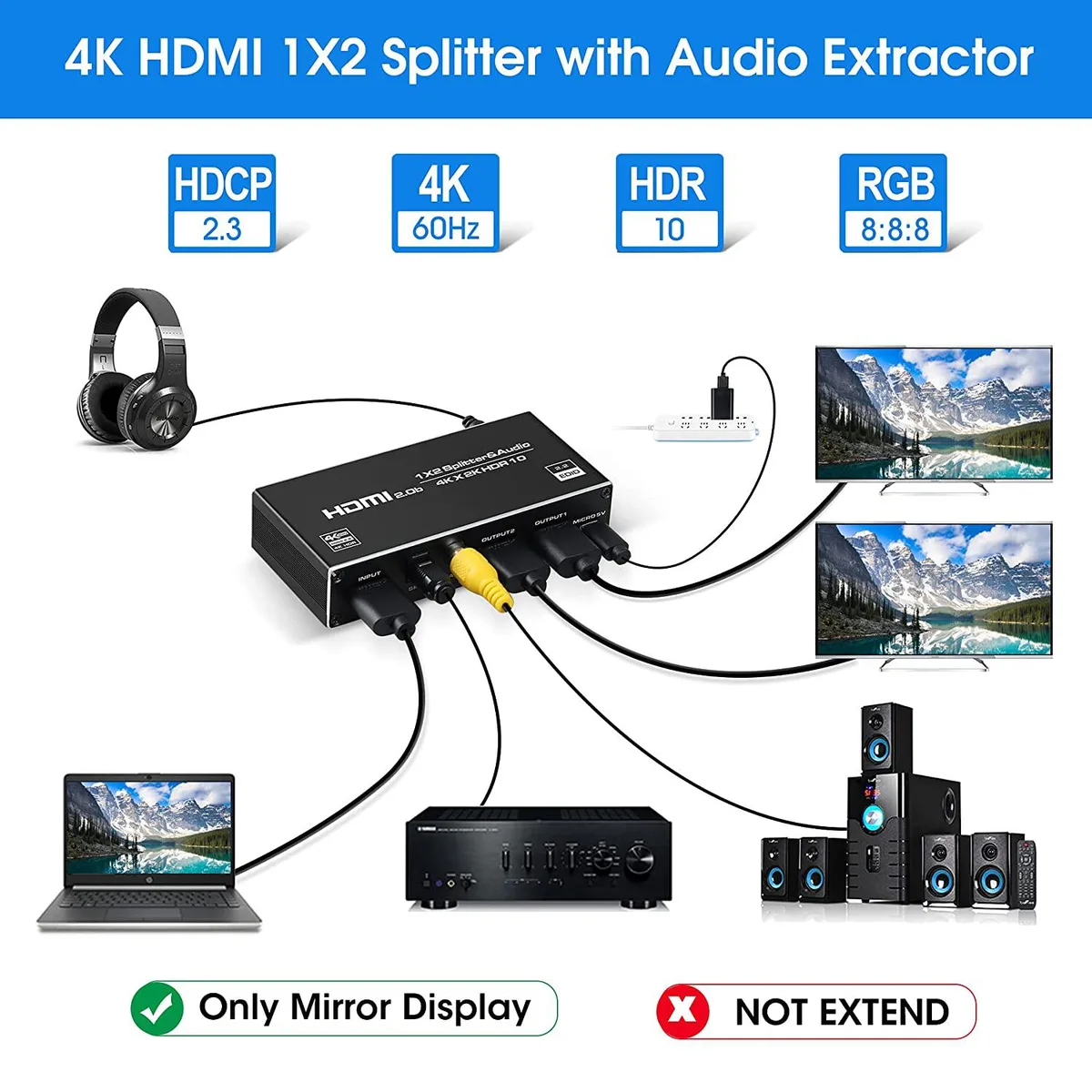

One input, two displays

The LUOM OZF6A takes a single HDMI source and mirrors it to two screens at the same time. It supports 3840 x 2160 resolution at 60 Hz with 18 Gbps bandwidth and HDR10. The unit handles 24-bit, 30-bit and 36-bit deep colour as well as 3D content. It is suited for users who need identical output on dual displays without switching.

Audio extraction built in

The splitter separates the audio stream and provides three analogue or digital outputs: 3.5 mm stereo jack, coaxial and optical Toslink SPDIF. A three-position button selects TV, 2.0 CH or 5.1 CH audio mode. Supported formats include DTS-HD, Dolby TrueHD, LPCM 7.1, DTS, Dolby AC3 and DSD. No separate audio converter is required.

Powered for stable runs

A USB power adapter is included to maintain signal integrity over longer cables. With AWG26 HDMI cable the 1080p signal reaches 15 metres and the 4K signal reaches 8 metres. The metal enclosure aids heat dissipation during continuous operation. The device duplicates only; it cannot switch between different sources or extend a desktop across screens.

Highlights

  • One HDMI source drives two displays simultaneously
  • 4K at 60 Hz with HDR and 18 Gbps bandwidth
  • Audio extracted to 3.5 mm, coaxial and SPDIF outputs
  • Three audio modes: TV, 2.0 CH and 5.1 CH
  • Powered splitter supports cable runs up to 15 m at 1080p

Specifications

BrandLUOM
SeriesOZF6A
ModelOZF6A
Part NumberOZF6A
TypeHDMI Splitters
Changer TypeHDMI
Ports2
AudioYes
ColorBlack
SpecificationsHDMI resolutin: 4Kx2K/3D/1080@120Hz/1080@60Hz/720p/480p
Support video color format: 24bit/deep color 30bit, 36bit
Support audio format: dts-hd/dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Input/Output TMDS signal: 5-1.5 olts p-p(TTL)
Input cable distane: 10m AWG26 HDMI standard cable
Output cable distance: 10m AWG26 HDMI standard cable
Dimension(LxWxH): 110x62x28MM
Weight: 110g

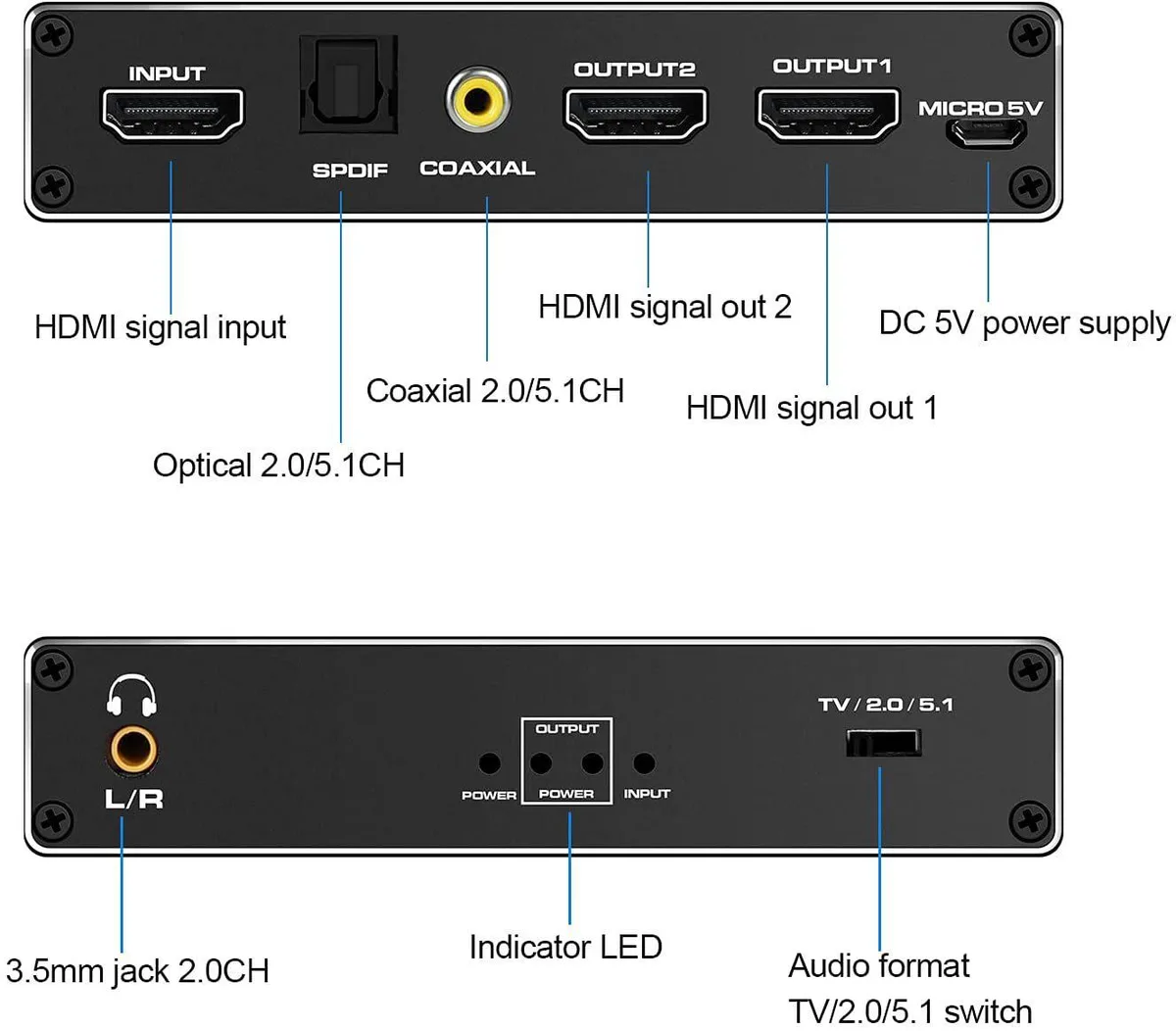

Input Connector1 HDMI input
Output Connector2 HDMI + Audio (SPDIF+3.5mm) Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesOne HDMI input converted to two HDMI+ Audio(SPDIF+R/L+Coaxial )Output to achieve the synchronization of audio signal separation.
There are TV /2.0CH/5.1CH three kinds of audio mode options
Support 4K x 2K@60Hz, RGB 8:8:8/RGB 4:4:4,Support 3D
Support blue-ray 24/50/60fs/hd-dvd/XVYCC
Digital audio format, as DTS-HD/dolby-truehd/LPCM7.1/DTS/dolby-ac-3 (Not Support Always Dolby Digital plus)
Support HDMI2.0b,HDCP2.2,Support HDR10,18.5Gbps
Support signal retiming
No loss of quality
Installs in minutes
Need DC5V power supply
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 x 1x2 HDMI Splitter Audio Extractor
1 x User manual
1 x USB power adapter

Questions about this item

How far can I run 4K video over standard HDMI cables before the signal degrades?

With AWG26 standard cable the 4K signal reaches 26 ft (8 m) on both input and output sides.

Does the extractor stay cool and quiet during continuous 24-hour operation?

The unit has no fan and draws only 5 V from the included USB power adapter, so it runs silently and stays cool under sustained use.

Which audio devices can I connect directly to the three output ports?

You can plug powered speakers or a soundbar into the 3.5 mm jack, a home-theatre receiver into the coaxial port, and a soundbar or AVR with optical input into the SPDIF/Toslink port.
