Black rectangular HDMI splitter with two HDMI outputs and audio ports

LUOM

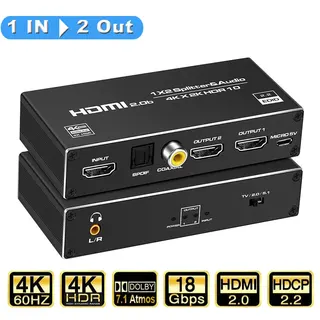

LUOM OZF6A 1x2 HDMI Splitter Audio Extractor 4K60 18Gbps

SKU CH-2C09-SHH1D

Splits one HDMI source to two displays at 4K 60 Hz with 18 Gbps bandwidth and extracts audio to SPDIF, coaxial and 3.5 mm outputs

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports2
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI resolutin: 4Kx2K/3D/1080@120Hz/1080@60Hz/720p/480p Supp
  • One source drives two displays simultaneously
  • 4K at 60 Hz with 18 Gbps bandwidth
  • Audio extracted to optical, coaxial and 3.5 mm ports
  • Three selectable audio modes: TV, 2.0 CH and 5.1 CH
  • HDR and HDCP 2.2 support for protected content

Purpose and Audience

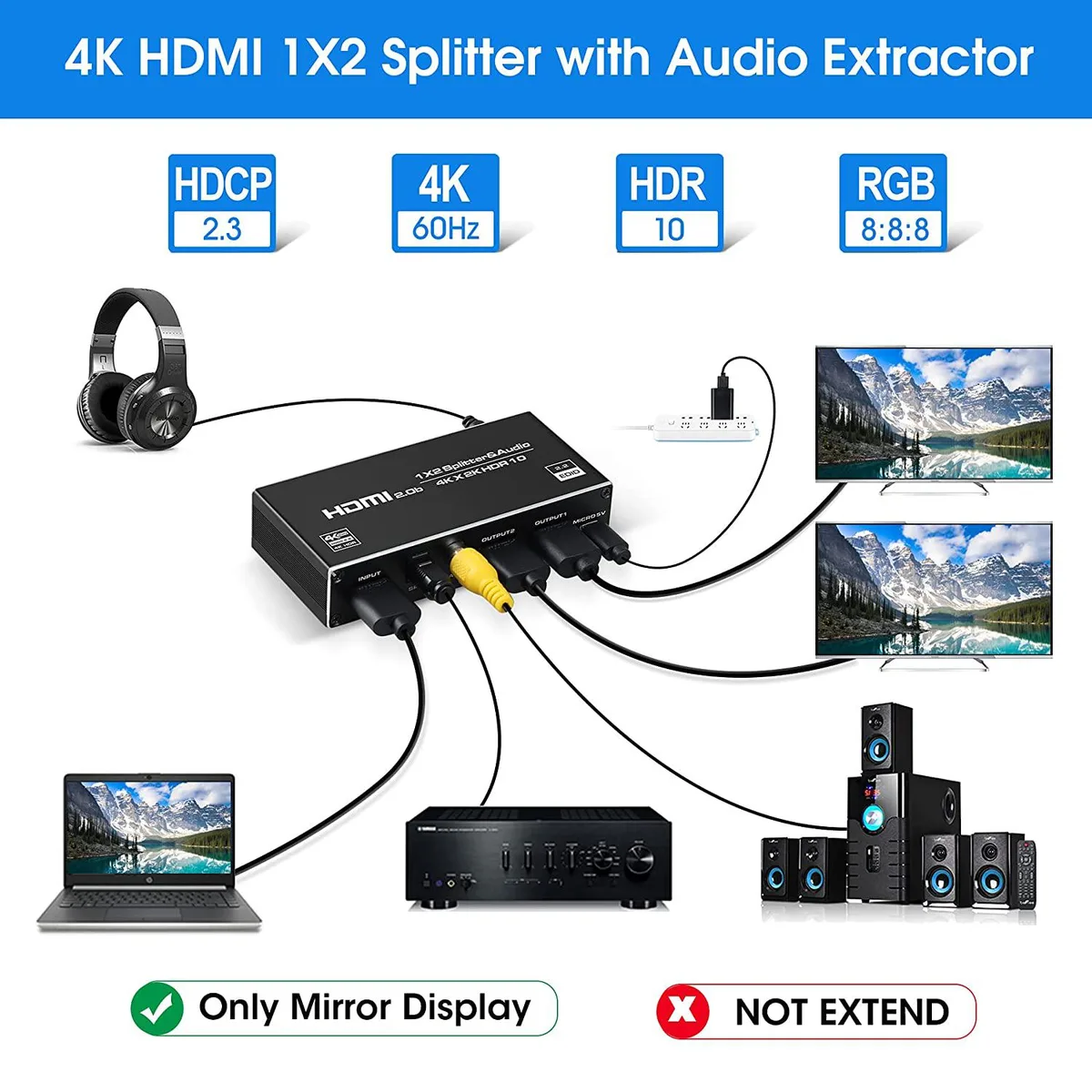

The LUOM OZF6A is a 1x2 HDMI splitter with integrated audio extraction. It takes a single HDMI source and duplicates the signal to two displays while providing separate SPDIF, coaxial and 3.5 mm analogue outputs. The unit supports 4K at 60 Hz, 1080p at 120 Hz, HDR and HDCP 2.2 for modern consoles, streaming boxes and Blu-ray players.

Suitability and Limits

This splitter suits installations that need identical content on two screens plus a dedicated audio feed to a soundbar, AV receiver or powered speakers. It does not function as a switch, so users who must select between multiple sources should look elsewhere. The device also lacks downscaling, so both connected displays must handle the source resolution natively.

Build Integration

The extractor requires USB power via the included adapter and fits inline between the source and the two HDMI cables. It frees the source device from needing its own audio breakout and supports cable runs up to 15 metres at 1080p or 8 metres at 4K with standard AWG26 cables. Three audio-mode buttons select TV, 2.0 CH or 5.1 CH output to match the downstream audio equipment.

Highlights

  • One source drives two displays simultaneously
  • 4K at 60 Hz with 18 Gbps bandwidth
  • Audio extracted to optical, coaxial and 3.5 mm ports
  • Three selectable audio modes: TV, 2.0 CH and 5.1 CH
  • HDR and HDCP 2.2 support for protected content

Specifications

BrandLUOM
SeriesOZF6A
ModelOZF6A
Part NumberOZF6A
TypeHDMI Splitters
Changer TypeHDMI
Ports2
AudioYes
ColorBlack
SpecificationsHDMI resolutin: 4Kx2K/3D/1080@120Hz/1080@60Hz/720p/480p
Support video color format: 24bit/deep color 30bit, 36bit
Support audio format: dts-hd/dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Input/Output TMDS signal: 5-1.5 olts p-p(TTL)
Input cable distane: 10m AWG26 HDMI standard cable
Output cable distance: 10m AWG26 HDMI standard cable
Dimension(LxWxH): 110x62x28MM
Weight: 110g

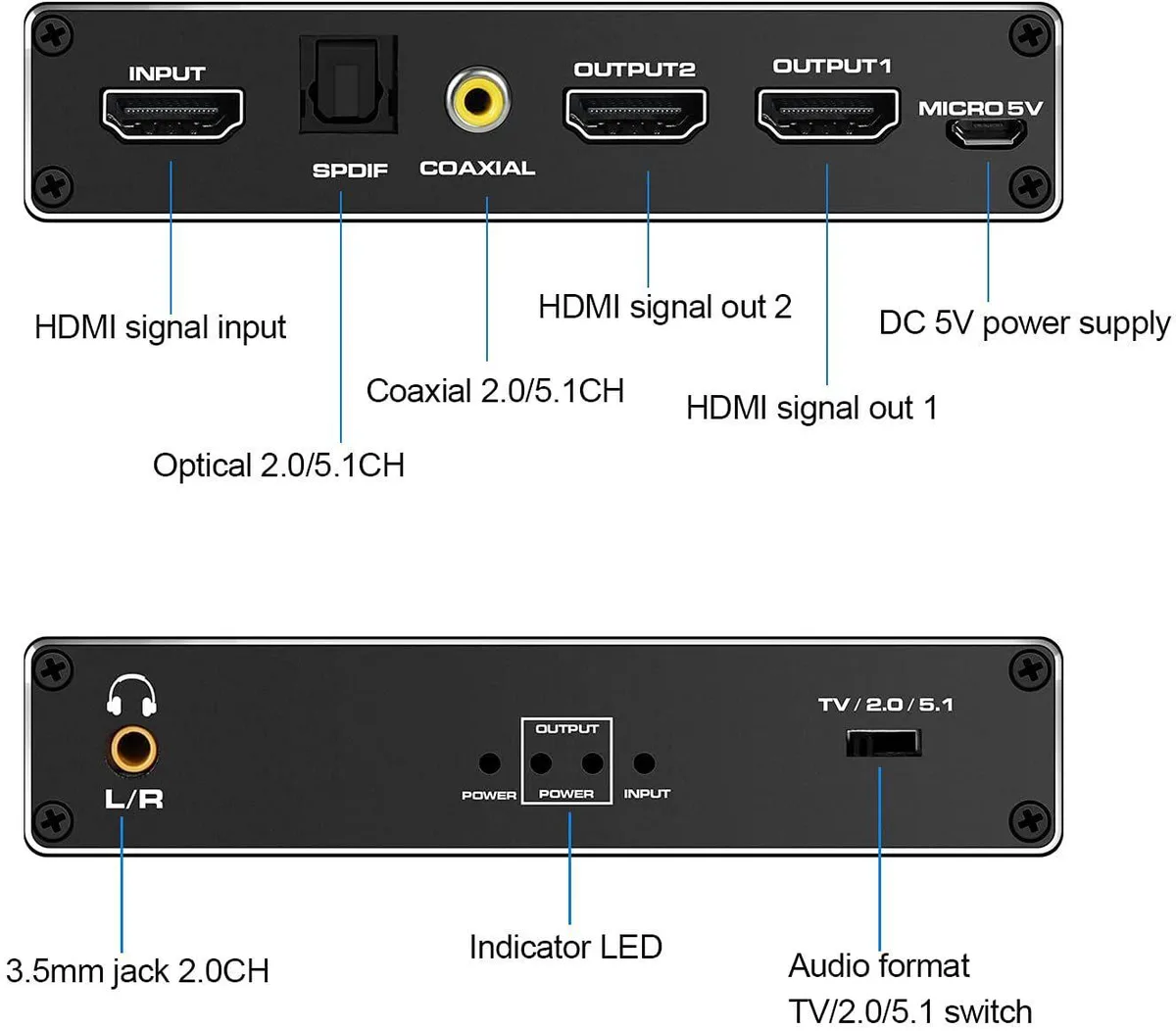

Input Connector1 HDMI input
Output Connector2 HDMI + Audio (SPDIF+3.5mm) Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesOne HDMI input converted to two HDMI+ Audio(SPDIF+R/L+Coaxial )Output to achieve the synchronization of audio signal separation.
There are TV /2.0CH/5.1CH three kinds of audio mode options
Support 4K x 2K@60Hz, RGB 8:8:8/RGB 4:4:4,Support 3D
Support blue-ray 24/50/60fs/hd-dvd/XVYCC
Digital audio format, as DTS-HD/dolby-truehd/LPCM7.1/DTS/dolby-ac-3 (Not Support Always Dolby Digital plus)
Support HDMI2.0b,HDCP2.2,Support HDR10,18.5Gbps
Support signal retiming
No loss of quality
Installs in minutes
Need DC5V power supply
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 x 1x2 HDMI Splitter Audio Extractor
1 x User manual
1 x USB power adapter

Questions about this item

Does the 18 Gbps bandwidth require HDMI 2.0b cables on both the source and the two displays?

Yes — the splitter supports HDMI 2.0b and 18 Gbps, so source and both displays need HDMI 2.0b-compatible cables for full 4K60 4:4:4 operation.

Can I keep my 1080p 120 Hz monitor on one output while the other runs 4K 60 Hz?

The splitter mirrors the same signal to both outputs; both displays will receive the identical resolution and refresh rate chosen by the source.

How do I confirm the SPDIF optical port is passing Dolby TrueHD after I select the 5.1 CH audio mode?

Check your AV receiver or soundbar display — it should show "Dolby TrueHD" or "TrueHD 5.1" when the source plays that format.
