Small black box with one HDMI input and two HDMI outputs plus audio ports

LUOM

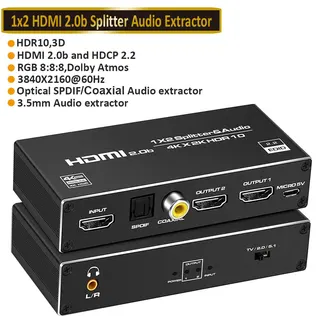

LUOM OZF6A 1×2 HDMI Splitter Audio Extractor 4K60 18Gbps

SKU CH-1CWY-JV9RX

Splits one HDMI source to two displays at 4K60 18Gbps while extracting audio to 3.5mm, coaxial and optical SPDIF outputs with TV, 2.0CH and 5.1CH mode selection

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports2
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI resolutin: 4Kx2K/3D/1080@120Hz/1080@60Hz/720p/480p Supp
  • Split one 4K60 source to two displays
  • Extract audio via 3.5 mm, coaxial and optical outputs
  • Supports 18 Gbps bandwidth for HDR10 and deep colour
  • Three audio modes: TV, 2.0 CH and 5.1 CH
  • Handles 1080p at 120 Hz and 3D video

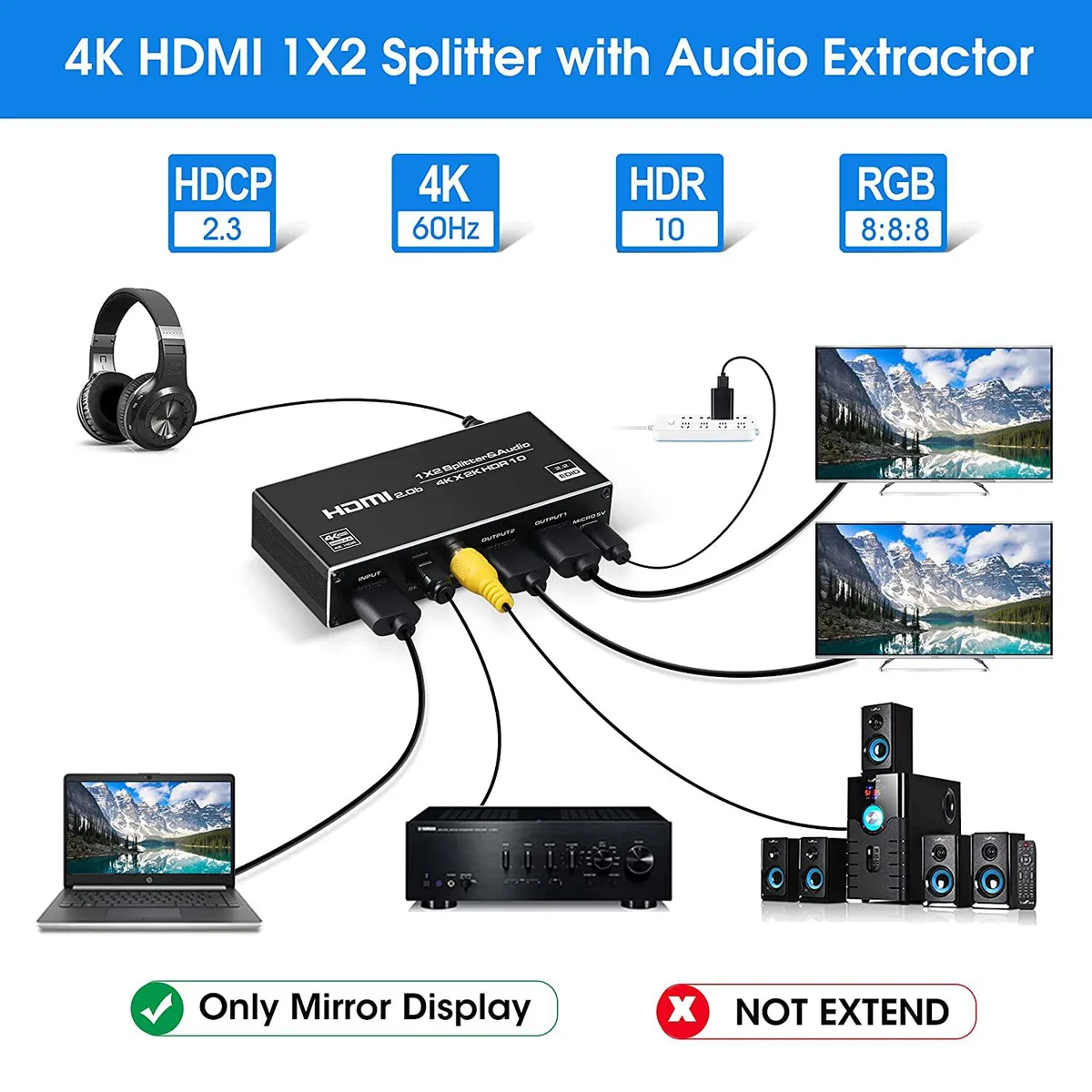

One-to-two HDMI splitter with audio extraction

The LUOM OZF6A takes a single HDMI source and mirrors it to two displays while simultaneously pulling the audio stream out to three analogue or digital outputs. It handles 4K at 60 Hz with 18 Gbps bandwidth and supports HDR10, HDCP 2.2 and deep colour up to 36 bit. The box includes the splitter, a USB power adapter and a user manual.

18 Gbps bandwidth and HDMI 2.0b compliance

This spec decides whether the unit will pass 4K 60 Hz RGB 4:4:4 without compression or colour sub-sampling. It also carries Dolby TrueHD, DTS-HD Master Audio and LPCM 7.1 through the HDMI paths while the extractor feeds SPDIF, coaxial and 3.5 mm jacks. Three audio-mode buttons select TV, 2.0 CH or 5.1 CH output.

Powered splitter for dual-display mirroring

The device needs the supplied USB power adapter to drive both HDMI outputs and the audio extraction circuitry over cable runs up to 8 metres at 4K or 15 metres at 1080p. It does not switch sources — only duplicates — so the source and both sinks must share a single resolution and refresh rate. No HDMI cables are included.

Highlights

  • Split one 4K60 source to two displays
  • Extract audio via 3.5 mm, coaxial and optical outputs
  • Supports 18 Gbps bandwidth for HDR10 and deep colour
  • Three audio modes: TV, 2.0 CH and 5.1 CH
  • Handles 1080p at 120 Hz and 3D video

Specifications

BrandLUOM
SeriesOZF6A
ModelOZF6A
Part NumberOZF6A
TypeHDMI Splitters
Changer TypeHDMI
Ports2
AudioYes
ColorBlack
SpecificationsHDMI resolutin: 4Kx2K/3D/1080@120Hz/1080@60Hz/720p/480p
Support video color format: 24bit/deep color 30bit, 36bit
Support audio format: dts-hd/dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Input/Output TMDS signal: 5-1.5 olts p-p(TTL)
Input cable distane: 10m AWG26 HDMI standard cable
Output cable distance: 10m AWG26 HDMI standard cable
Dimension(LxWxH): 110x62x28MM
Weight: 110g

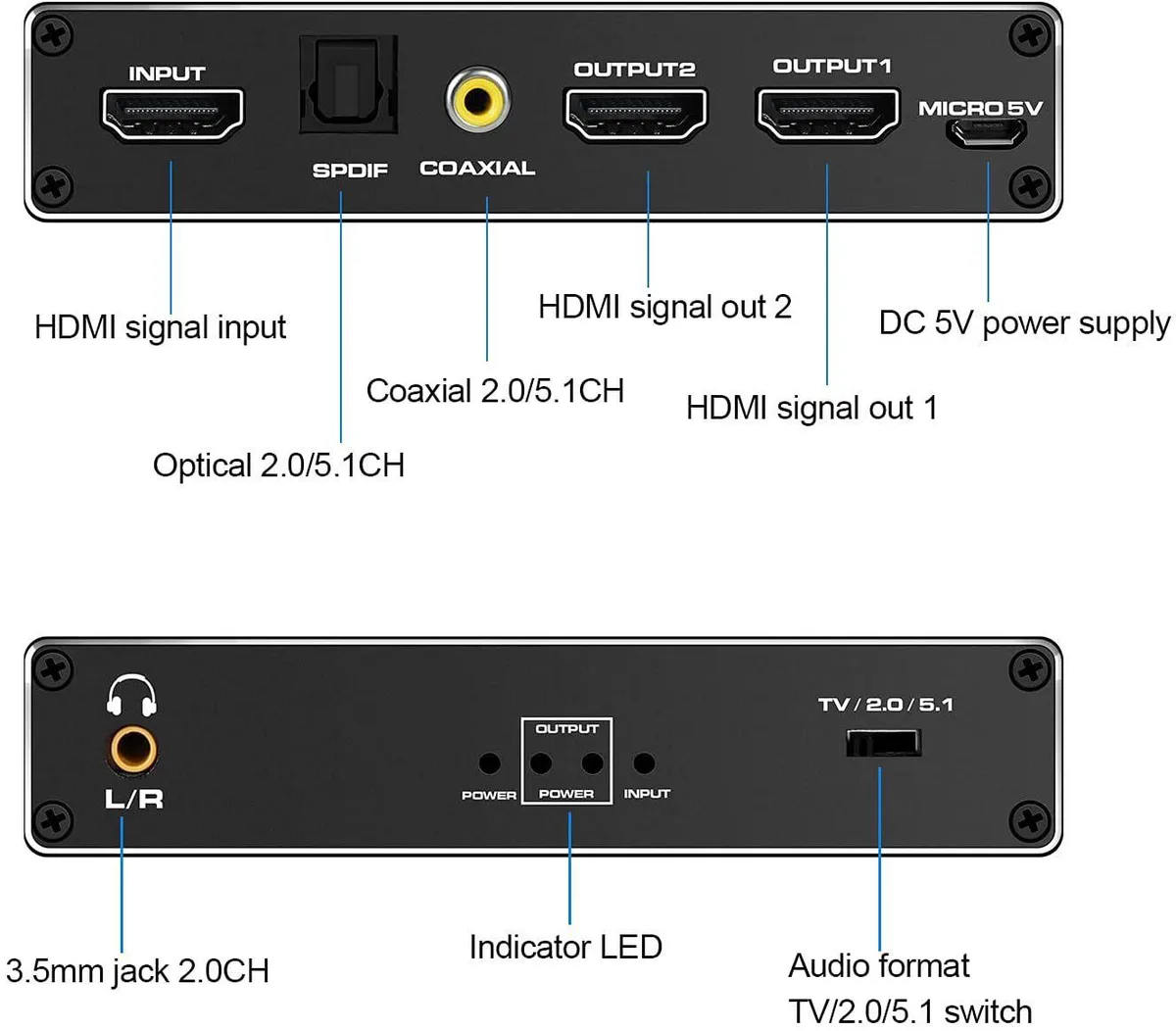

Input Connector1 HDMI input
Output Connector2 HDMI + Audio (SPDIF+3.5mm) Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesOne HDMI input converted to two HDMI+ Audio(SPDIF+R/L+Coaxial )Output to achieve the synchronization of audio signal separation.
There are TV /2.0CH/5.1CH three kinds of audio mode options
Support 4K x 2K@60Hz, RGB 8:8:8/RGB 4:4:4,Support 3D
Support blue-ray 24/50/60fs/hd-dvd/XVYCC
Digital audio format, as DTS-HD/dolby-truehd/LPCM7.1/DTS/dolby-ac-3 (Not Support Always Dolby Digital plus)
Support HDMI2.0b,HDCP2.2,Support HDR10,18.5Gbps
Support signal retiming
No loss of quality
Installs in minutes
Need DC5V power supply
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 x 1x2 HDMI Splitter Audio Extractor
1 x User manual
1 x USB power adapter

Questions about this item

Will the 4K60 signal stay intact when the splitter sends it to two displays?

The splitter duplicates one HDMI source to two HDMI outputs at up to 3840 x 2160 at 60 Hz with 18 Gbps bandwidth, so both screens receive the same 4K60 image.

Which HDMI version and HDCP level does the box support, and what does that limit?

It supports HDMI 2.0b and HDCP 2.2, allowing 4K60 HDR10 and 1080p120, but it cannot pass Dolby Digital Plus audio.

How much space does the unit need on a shelf or behind a TV?

The enclosure measures 5.59 x 3.15 x 1.26 inches and weighs 3.2 ounces, so it fits easily behind most displays or in a small cabinet.
