Black rectangular HDMI splitter with two output ports and audio jacks

LUOM

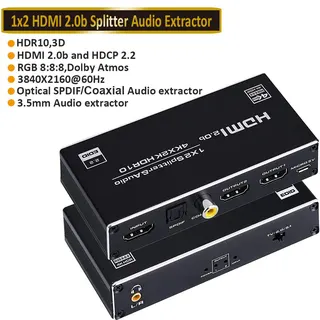

LUOM OZF6A 1×2 HDMI Splitter 4K 60Hz Audio Extractor SPDIF Coaxial 3.5mm

SKU CH-KATS-P0Z8G

A 1×2 HDMI splitter duplicates 4K 60 Hz video to two displays while extracting audio to SPDIF, coaxial and 3.5 mm outputs

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports2
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI resolutin: 4Kx2K/3D/1080@120Hz/1080@60Hz/720p/480p Supp
  • Splits one HDMI source to two identical displays
  • Extracts audio to optical, coaxial and 3.5 mm outputs
  • Supports 4K at 60 Hz with HDR and 18 Gbps bandwidth
  • Three audio modes selectable: TV stereo, 2.0 CH or 5.1 CH
  • Carries 1080p signals up to 15 m and 4K up to 8 m

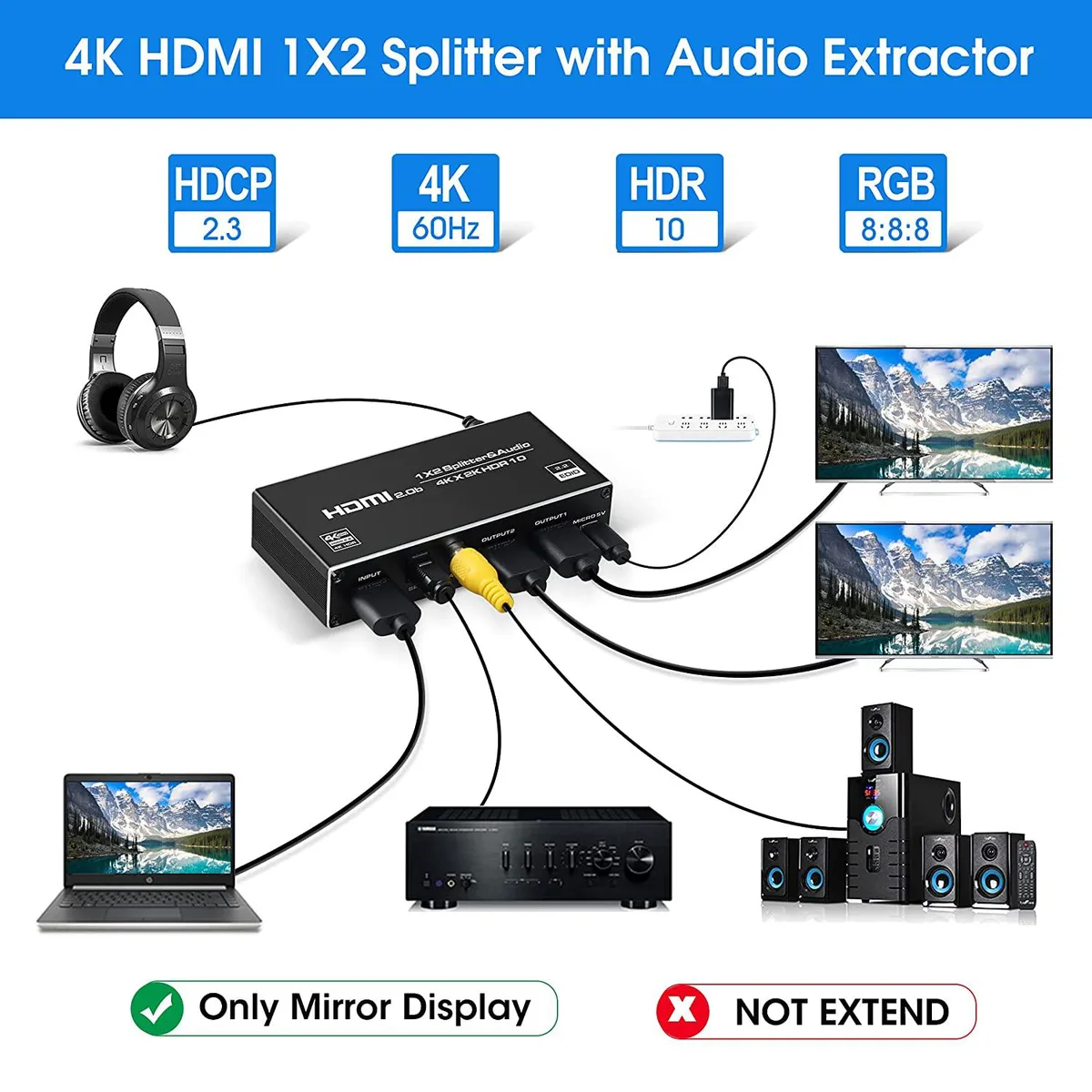

One source to two displays

The LUOM OZF6A takes a single HDMI input and duplicates it across two HDMI outputs at up to 3840 x 2160 resolution and 60 Hz refresh rate. It handles 1080p at 120 Hz and supports 3D, 24-bit to 36-bit deep colour and HDR10. Audio is extracted simultaneously to SPDIF optical, coaxial and 3.5 mm stereo ports with selectable TV, 2.0 CH and 5.1 CH modes.

Check your cables and sources

Verify that your source device and both displays use HDMI connectors and that the cables are rated for the required bandwidth. The splitter needs a USB power connection from the included adapter. Maximum reliable cable length is 15 metres at 1080p or below and 8 metres at 4K using AWG26 standard cable. It only mirrors content and cannot extend desktops or switch between sources.

Powered splitter for dual-screen setups

The unit draws power from the supplied USB adapter so signal integrity is maintained over longer runs. It provides three analogue and digital audio outputs for connection to soundbars, AV receivers or headphones without needing a separate extractor. HDCP 2.2 compliance ensures compatibility with protected 4K streaming content from devices such as PS5, Roku or TV boxes.

Highlights

  • Splits one HDMI source to two identical displays
  • Extracts audio to optical, coaxial and 3.5 mm outputs
  • Supports 4K at 60 Hz with HDR and 18 Gbps bandwidth
  • Three audio modes selectable: TV stereo, 2.0 CH or 5.1 CH
  • Carries 1080p signals up to 15 m and 4K up to 8 m

Specifications

BrandLUOM
SeriesOZF6A
ModelOZF6A
Part NumberOZF6A
TypeHDMI Splitters
Changer TypeHDMI
Ports2
AudioYes
ColorBlack
SpecificationsHDMI resolutin: 4Kx2K/3D/1080@120Hz/1080@60Hz/720p/480p
Support video color format: 24bit/deep color 30bit, 36bit
Support audio format: dts-hd/dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Input/Output TMDS signal: 5-1.5 olts p-p(TTL)
Input cable distane: 10m AWG26 HDMI standard cable
Output cable distance: 10m AWG26 HDMI standard cable
Dimension(LxWxH): 110x62x28MM
Weight: 110g

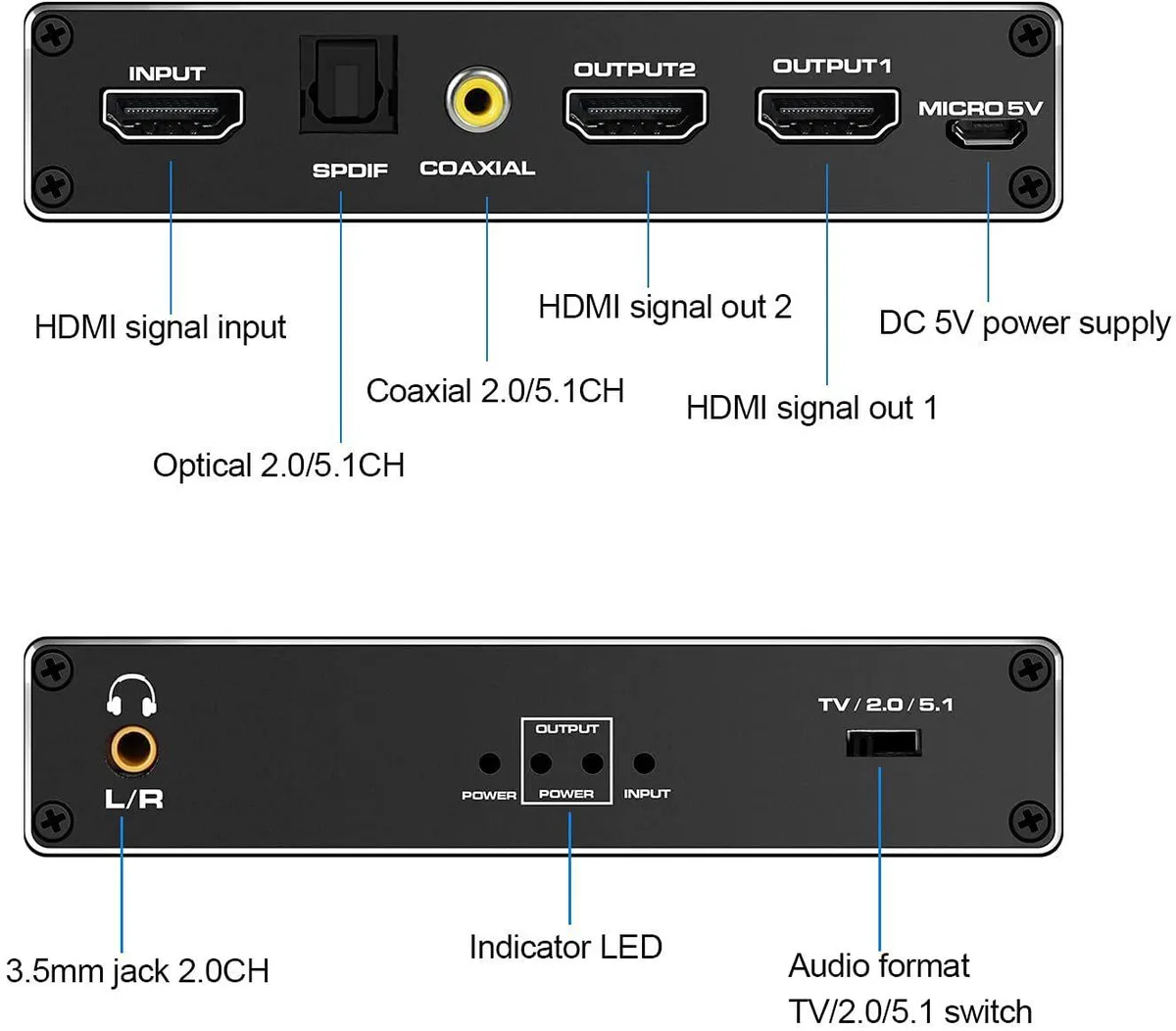

Input Connector1 HDMI input
Output Connector2 HDMI + Audio (SPDIF+3.5mm) Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesOne HDMI input converted to two HDMI+ Audio(SPDIF+R/L+Coaxial )Output to achieve the synchronization of audio signal separation.
There are TV /2.0CH/5.1CH three kinds of audio mode options
Support 4K x 2K@60Hz, RGB 8:8:8/RGB 4:4:4,Support 3D
Support blue-ray 24/50/60fs/hd-dvd/XVYCC
Digital audio format, as DTS-HD/dolby-truehd/LPCM7.1/DTS/dolby-ac-3 (Not Support Always Dolby Digital plus)
Support HDMI2.0b,HDCP2.2,Support HDR10,18.5Gbps
Support signal retiming
No loss of quality
Installs in minutes
Need DC5V power supply
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 x 1x2 HDMI Splitter Audio Extractor
1 x User manual
1 x USB power adapter

Questions about this item

What cables and power supply come with the LUOM OZF6A splitter?

The box contains the 1×2 HDMI splitter, a USB power adapter and a user manual. HDMI cables are not included and must be purchased separately.

Which audio output should I choose between SPDIF, coaxial and 3.5 mm?

Use SPDIF or coaxial for digital surround formats such as DTS-HD, Dolby TrueHD or LPCM 7.1; use the 3.5 mm jack for stereo analogue connections to headphones or powered speakers.

Will 4K 60 Hz HDR content pass through to both displays without degradation?

Yes. The splitter supports 3840×2160 at 60 Hz with RGB 4:4:4, HDR10 and HDCP 2.2, and maintains the signal up to 8 m (26 ft) using AWG26 HDMI cables.
