Black rectangular HDMI splitter box with multiple ports

LUOM

LUOM OZF6-1 HDMI Splitter 1x2 Audio Extractor 4K@60Hz

SKU CH-T2W7-TZ24V

Splits one HDMI source to two displays at 4K 60 Hz and extracts stereo audio via 3.5 mm jack

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports2
  • AudioYes
  • ColorBlack
  • SpecificationsProduct Type:HDMI 2.0b Splitter 1x2 with Audio Extractor Int
  • Mirrors one source to two displays simultaneously
  • Extracts stereo audio via 3.5 mm output for external speakers
  • Auto down-scaling lets one screen show 4K@60 Hz while the other shows 1080P@60 Hz
  • HDMI 2.0b and HDCP 2.2 carry HDR10 and 18 Gbps bandwidth
  • Powered by USB-C so no separate mains adapter is needed

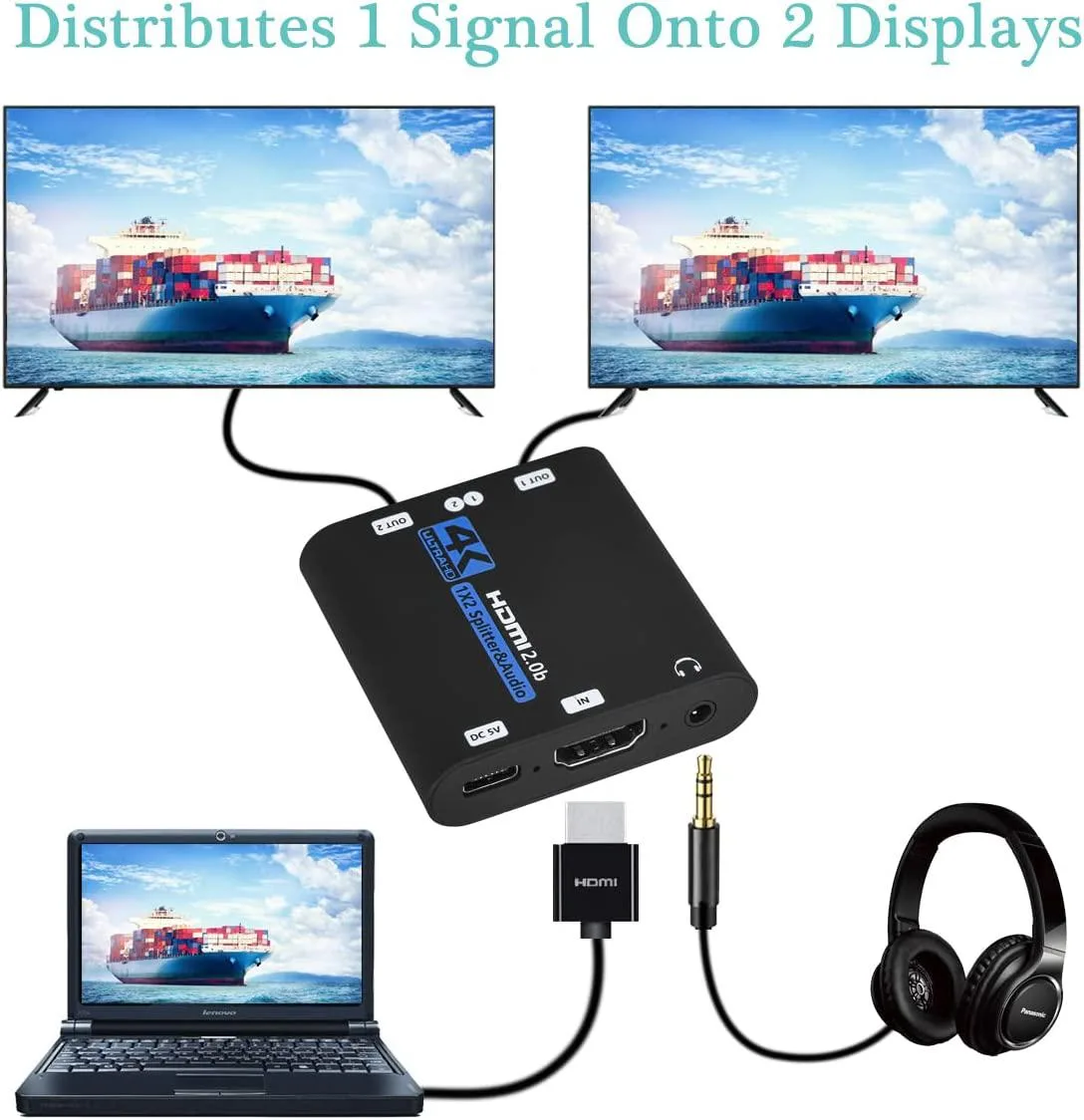

1x2 HDMI Splitter with Audio Extraction

The LUOM OZF6-1 duplicates a single HDMI source to two displays simultaneously. It supports 4K at 60 Hz and includes a 3.5 mm stereo output for separate audio routing. The device is suited for conference rooms, digital signage, or dual-screen monitoring setups. Mirror mode is supported; extended desktop mode is not.

Passive Cooling and Low Power Draw

The unit operates without fans, drawing power from an included USB-C cable connected to any 5 V USB port. No external power adapter is required, keeping the installation silent and cable count low. Typical power consumption remains minimal during normal 4K signal distribution.

Compact Inline Form Factor

Measuring 52.2 x 58.4 x 15 mm, the splitter fits behind displays or inside equipment racks without blocking adjacent ports. HDCP 2.2 compliance and automatic downscaling allow mixed 4K and 1080p sinks without manual configuration. High-quality HDMI cables are recommended for reliable 18 Gbps throughput.

Highlights

  • Mirrors one source to two displays simultaneously
  • Extracts stereo audio via 3.5 mm output for external speakers
  • Auto down-scaling lets one screen show 4K@60 Hz while the other shows 1080P@60 Hz
  • HDMI 2.0b and HDCP 2.2 carry HDR10 and 18 Gbps bandwidth
  • Powered by USB-C so no separate mains adapter is needed

Specifications

BrandLUOM
SeriesOZF6-1
ModelOZF6-1
Part NumberOZF6-1
TypeHDMI Splitters
Changer TypeHDMI
Ports2
AudioYes
ColorBlack
SpecificationsProduct Type:HDMI 2.0b Splitter 1x2 with Audio Extractor
Interface Type: 1 HDMI in, 2 HDMI out, 1 Audio R/L out
Power Supply: DC 5V
Dimension(LxWxH): 52.2x58.4x15mm
Support HDMI2. 0b, HDCP2.2, Support HDR10, 18.5Gbps, 4KHDR
Support 4K x 2K@60Hz, RGB8:8:8, Support 3D
Support blue-ray 24/50/60fs/hd-dvd/XVYCC
Input/Output TMDS signal: 5-1.5 olts p-p(TTL)
HDMI Resolution: 4k/2k/3D/1080p/1080i/720p/480p
Support video color format: 24bit/30bit/36bit deep color
Support DVI/DP monitor
Digital audio format: DST-HD/Dolby-true-HD/LPCM7.1/DTS/Dolby-AC3/DSD(Not Support AlwaysDolby Digital plus)
I
Input Connector1 HDMI input
Output Connector2 HDMI + 3.5mm Audio Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps

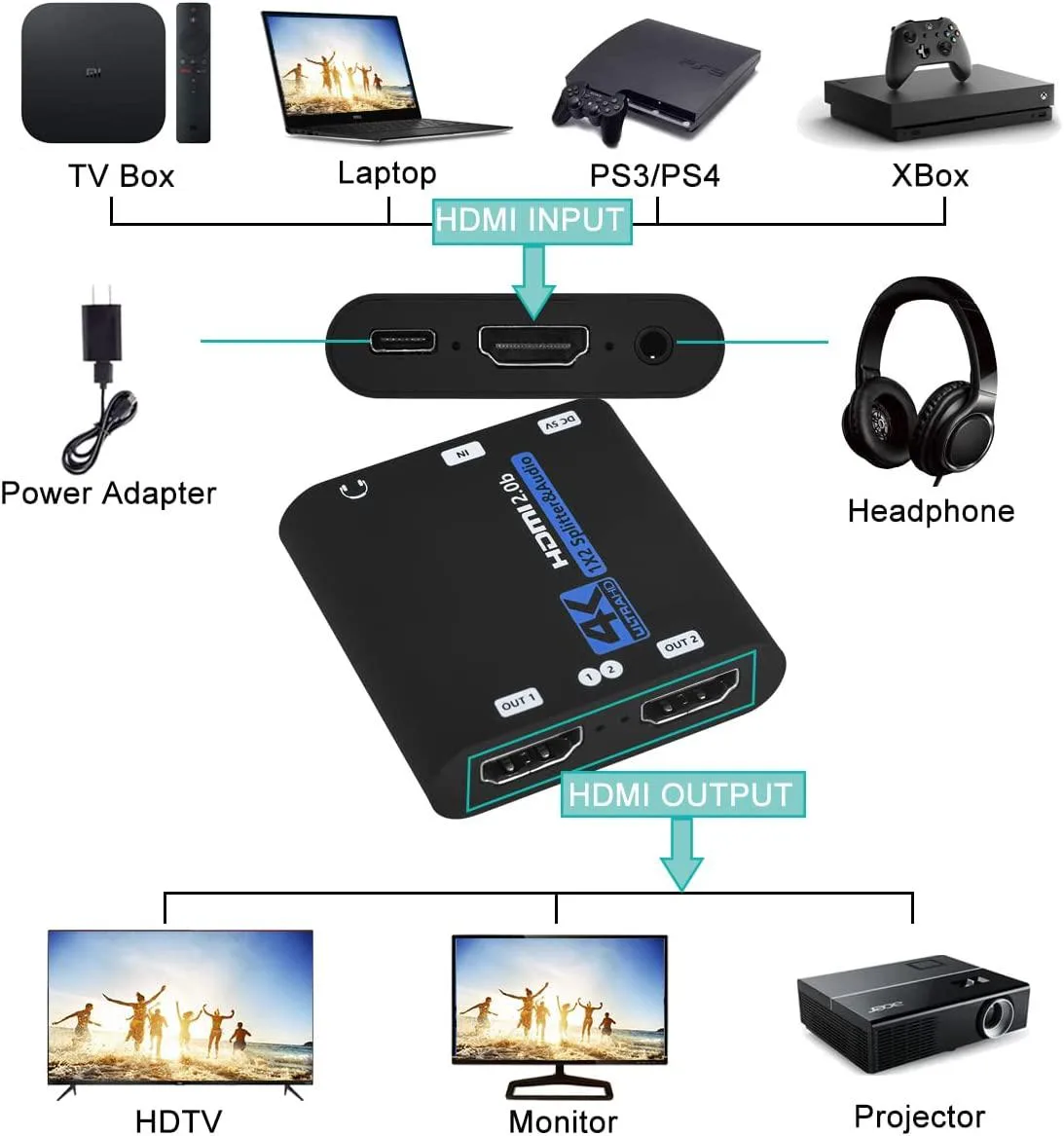

FeaturesHDMI Splitter 1x2 with Audio Extrator: The converter allows distributes 1 HDMI source to 2 HDMI displays simultaneously, and adds extra one L+R audio out port.
High Resolution: Support 4K x 2K@60Hz (3860 x 2160p), backwards to 480p/ 720p/ 1080i/ 1080P and 3D. Support 24bit/30bit/36bit deep color.
Supported Audio: DTS-HD/ Dolby-true-HD/ LPCM7.1/ DTS/ Dolby-AC3/ DSD.(Not Support Always Dolby Digital plus). Support blue-ray 24/50/60fs/hd-dvd/XVYCC.
Compatibility: HDCP support 2.2, compatible with HDMI 2.0b. Input support: Computer, Laptop, PS3, PS4, Xbox, Blu-ray DVD Player, STB etc. Ou
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 x HDMI Splitter 1 in 2 out with audio extractor, 1 x Charger, 1 x USB Cable, 1 x User Manual.

Questions about this item

How do I power the LUOM OZF6-1 splitter, and what step is often missed?

Connect the included USB-C cable to a 5V USB port or charger; the unit will not pass 4K@60Hz signals without external power.

Which parts of the LUOM OZF6-1 might need replacement after extended use?

The USB-C power cable and any HDMI cables can wear from repeated plugging; the splitter itself has no user-serviceable components.

What resolution limit appears first when both displays run continuously on the LUOM OZF6-1?

The 18Gbps bandwidth caps the combined output at 4K@60Hz per port; sustained 4K@60Hz on both screens stays within this limit.
