Small black HDMI splitter box with ports and 3.5 mm audio jack

LUOM

LUOM OZF6-1 4K HDMI 1x2 Splitter with 3.5mm Audio Out

SKU CH-M32M-VQYBG

Distributes one HDMI source to two displays at 4K 60 Hz with 3.5 mm audio extraction

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports2
  • AudioYes
  • ColorBlack
  • SpecificationsProduct Type:HDMI 2.0b Splitter 1x2 with Audio Extractor Int
  • Sends one 4K 60 Hz signal to two displays
  • Separates stereo audio via 3.5 mm jack for external speakers
  • Auto down-scales when displays have different maximum resolutions
  • HDMI 2.0b and HDCP 2.2 keep protected content flowing
  • Compact 52.2 × 58.4 × 15 mm box fits tight spaces

LUOM OZF6-1 1x2 HDMI Splitter

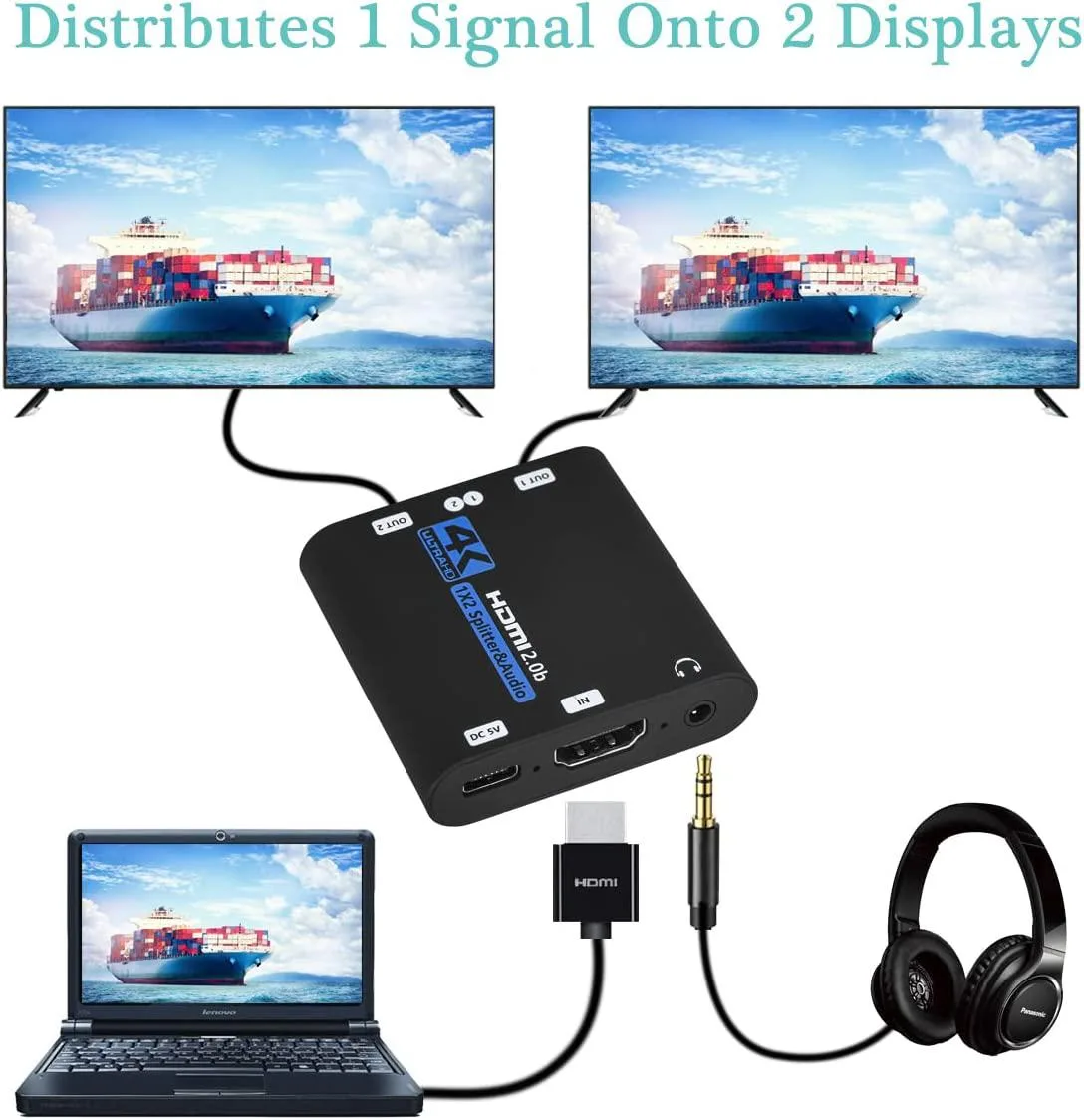

The LUOM OZF6-1 is a powered HDMI 2.0b splitter that takes a single HDMI source and mirrors it to two HDMI displays at the same time. It also provides a 3.5mm stereo audio output for separate sound routing. The unit is built for installers and AV integrators who need reliable signal distribution in conference rooms, classrooms or digital-signage setups.

4K@60Hz bandwidth and auto down-scaling

The splitter handles 18Gbps bandwidth and supports resolutions up to 3840 x 2160 at 60Hz with HDR10 and deep colour up to 36-bit. When one display is limited to 1080p the built-in auto down-scaler lets the other screen keep its 4K@60Hz feed instead of forcing both to the lower resolution. HDCP 2.2 compliance ensures protected content from Blu-ray players, game consoles and streaming boxes passes through without interruption.

Compact DC 5V design with Type-C power

Measuring 52.2 x 58.4 x 15mm the aluminium enclosure fits discreetly behind a display or inside a rack. Power is supplied via a Type-C port using the included USB cable so a standard 5V USB charger or powered hub is sufficient — no bulky wall wart is required. The package includes the splitter, USB power cable and a user manual; certified HDMI cables should be sourced separately for best results at 4K@60Hz.

Highlights

  • Sends one 4K 60 Hz signal to two displays
  • Separates stereo audio via 3.5 mm jack for external speakers
  • Auto down-scales when displays have different maximum resolutions
  • HDMI 2.0b and HDCP 2.2 keep protected content flowing
  • Compact 52.2 × 58.4 × 15 mm box fits tight spaces

Specifications

BrandLUOM
SeriesOZF6-1
ModelOZF6-1
Part NumberOZF6-1
TypeHDMI Splitters
Changer TypeHDMI
Ports2
AudioYes
ColorBlack
SpecificationsProduct Type:HDMI 2.0b Splitter 1x2 with Audio Extractor
Interface Type: 1 HDMI in, 2 HDMI out, 1 Audio R/L out
Power Supply: DC 5V
Dimension(LxWxH): 52.2x58.4x15mm
Support HDMI2. 0b, HDCP2.2, Support HDR10, 18.5Gbps, 4KHDR
Support 4K x 2K@60Hz, RGB8:8:8, Support 3D
Support blue-ray 24/50/60fs/hd-dvd/XVYCC
Input/Output TMDS signal: 5-1.5 olts p-p(TTL)
HDMI Resolution: 4k/2k/3D/1080p/1080i/720p/480p
Support video color format: 24bit/30bit/36bit deep color
Support DVI/DP monitor
Digital audio format: DST-HD/Dolby-true-HD/LPCM7.1/DTS/Dolby-AC3/DSD(Not Support AlwaysDolby Digital plus)
I
Input Connector1 HDMI input
Output Connector2 HDMI + 3.5mm Audio Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps

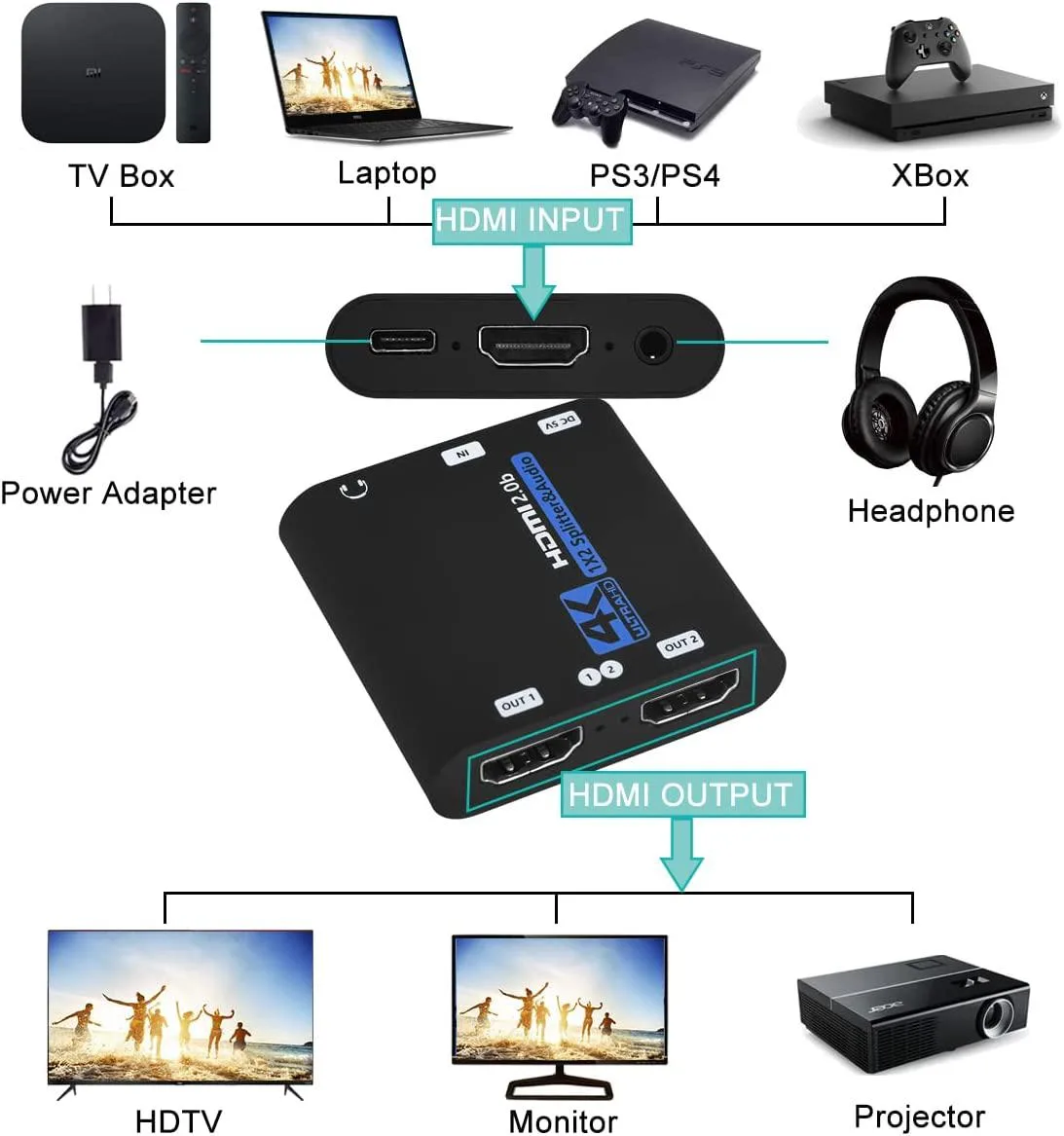

FeaturesHDMI Splitter 1x2 with Audio Extrator: The converter allows distributes 1 HDMI source to 2 HDMI displays simultaneously, and adds extra one L+R audio out port.
High Resolution: Support 4K x 2K@60Hz (3860 x 2160p), backwards to 480p/ 720p/ 1080i/ 1080P and 3D. Support 24bit/30bit/36bit deep color.
Supported Audio: DTS-HD/ Dolby-true-HD/ LPCM7.1/ DTS/ Dolby-AC3/ DSD.(Not Support Always Dolby Digital plus). Support blue-ray 24/50/60fs/hd-dvd/XVYCC.
Compatibility: HDCP support 2.2, compatible with HDMI 2.0b. Input support: Computer, Laptop, PS3, PS4, Xbox, Blu-ray DVD Player, STB etc. Ou
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 x HDMI Splitter 1 in 2 out with audio extractor, 1 x Charger, 1 x USB Cable, 1 x User Manual.

Questions about this item

Will the splitter work with my older 1080p monitor alongside a new 4K display?

Yes, the auto down-scaler lets one output run at 4K@60Hz while the other stays at 1080p@60Hz without forcing both to the lower resolution.

How can I confirm the 4K@60Hz signal is passing through correctly after I connect everything?

Check the display's on-screen info for 3840 x 2160 at 60Hz, verify HDR10 content plays without flicker, and listen for audio on both HDMI and the 3.5mm jack.

Does the box include the power adapter or only the USB cable?

The package contains the splitter, a USB-C power cable, a charger, and a user manual; no separate power adapter is needed.
