Small black HDMI splitter box with multiple ports

LUOM

LUOM OZF6-1 4K@60Hz 1x2 HDMI Splitter Audio Extractor

SKU CH-NV72-CR6B8

Splits one HDMI source to two displays at 4K 60Hz while extracting stereo audio via 3.5mm jack

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports2
  • AudioYes
  • ColorBlack
  • SpecificationsProduct Type:HDMI 2.0b Splitter 1x2 with Audio Extractor Int
  • Splits one source to two displays simultaneously
  • Auto down-scaling keeps 4K@60Hz on one screen and 1080p@60Hz on the other
  • Extracts stereo audio via 3.5 mm output
  • Supports 18 Gbps bandwidth with HDR10 and deep colour up to 36 bit
  • Handles 7.1-channel LPCM and Dolby TrueHD formats

Splitter for dual displays

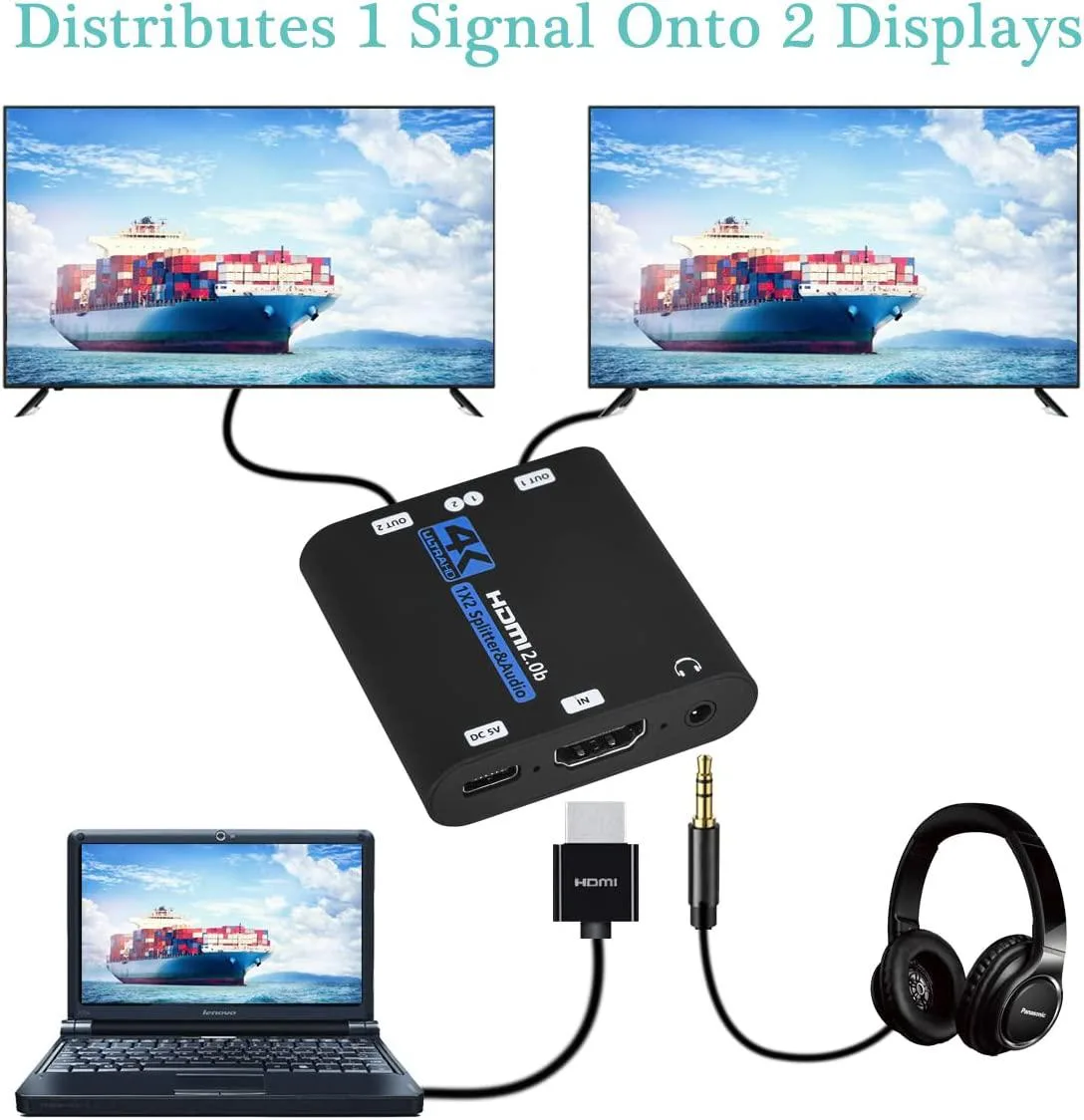

The LUOM OZF6-1 takes one HDMI source and sends identical video to two screens at up to 4K@60Hz. It also provides a 3.5mm stereo output for separate audio routing. The unit is designed for mirroring only and does not support extended desktop modes.

Sustained signal handling

The splitter maintains 18Gbps bandwidth with HDMI 2.0b and HDCP 2.2 compliance during continuous operation. An auto down-scaler lets one display run at 4K@60Hz while the other runs at 1080p@60Hz without forcing both to the lower resolution. Deep colour up to 36-bit and HDR10 pass through without signal degradation.

Setup checks

Verify your source device has an HDMI output and that both target displays accept HDMI input. The box requires a USB-C power connection using the supplied cable and a 5V charger you provide. Only mirror mode is available, so confirm your workflow does not need extended desktop functionality.

Highlights

  • Splits one source to two displays simultaneously
  • Auto down-scaling keeps 4K@60Hz on one screen and 1080p@60Hz on the other
  • Extracts stereo audio via 3.5 mm output
  • Supports 18 Gbps bandwidth with HDR10 and deep colour up to 36 bit
  • Handles 7.1-channel LPCM and Dolby TrueHD formats

Specifications

BrandLUOM
SeriesOZF6-1
ModelOZF6-1
Part NumberOZF6-1
TypeHDMI Splitters
Changer TypeHDMI
Ports2
AudioYes
ColorBlack
SpecificationsProduct Type:HDMI 2.0b Splitter 1x2 with Audio Extractor

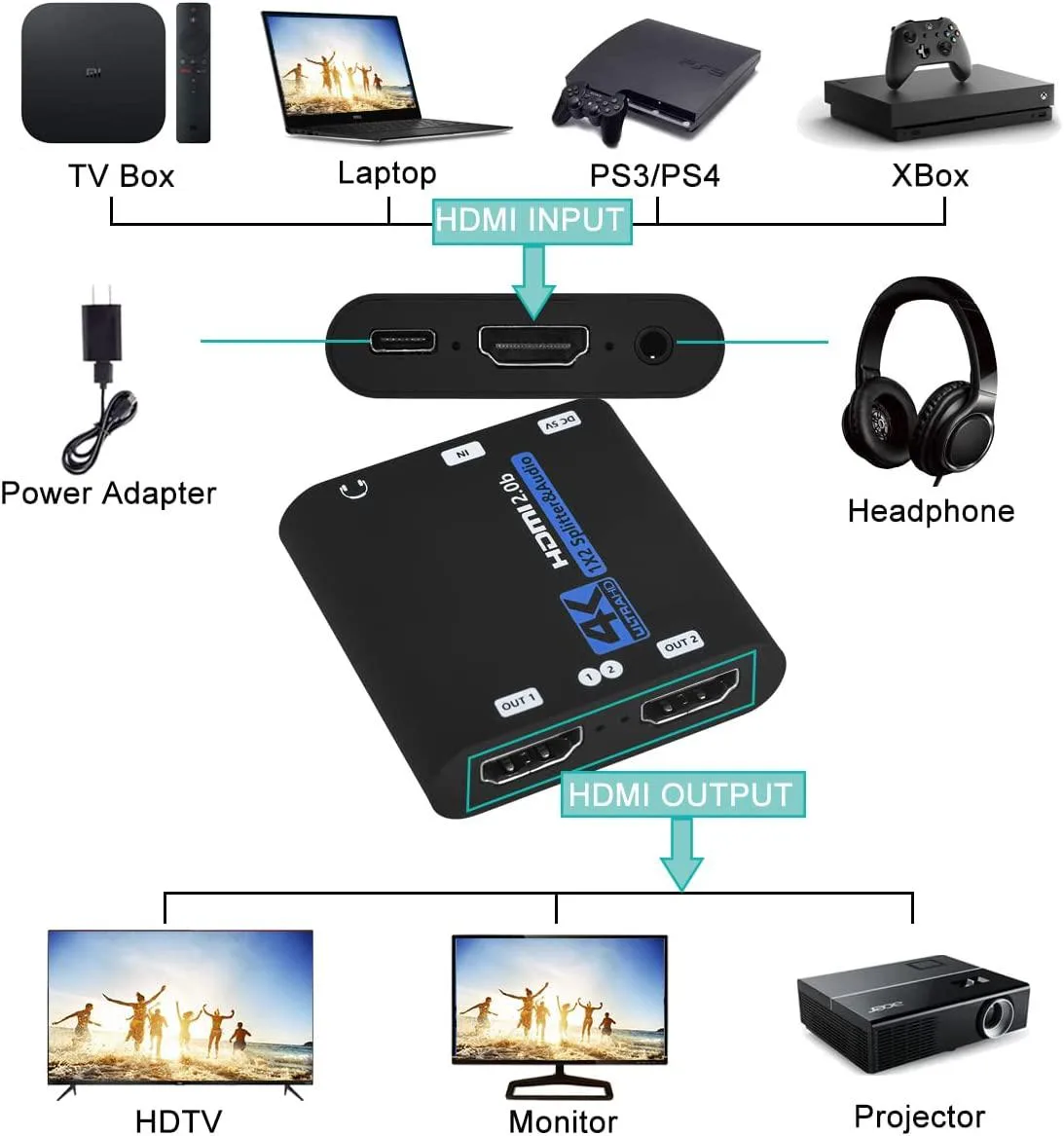

Interface Type: 1 HDMI in, 2 HDMI out, 1 Audio R/L out
Power Supply: DC 5V
Dimension(LxWxH): 52.2x58.4x15mm
Support HDMI2. 0b, HDCP2.2, Support HDR10, 18.5Gbps, 4KHDR
Support 4K x 2K@60Hz, RGB8:8:8, Support 3D
Support blue-ray 24/50/60fs/hd-dvd/XVYCC
Input/Output TMDS signal: 5-1.5 olts p-p(TTL)
HDMI Resolution: 4k/2k/3D/1080p/1080i/720p/480p
Support video color format: 24bit/30bit/36bit deep color
Support DVI/DP monitor
Digital audio format: DST-HD/Dolby-true-HD/LPCM7.1/DTS/Dolby-AC3/DSD(Not Support AlwaysDolby Digital plus)
I
Input Connector1 HDMI input
Output Connector2 HDMI + 3.5mm Audio Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesHDMI Splitter 1x2 with Audio Extrator: The converter allows distributes 1 HDMI source to 2 HDMI displays simultaneously, and adds extra one L+R audio out port.
High Resolution: Support 4K x 2K@60Hz (3860 x 2160p), backwards to 480p/ 720p/ 1080i/ 1080P and 3D. Support 24bit/30bit/36bit deep color.
Supported Audio: DTS-HD/ Dolby-true-HD/ LPCM7.1/ DTS/ Dolby-AC3/ DSD.(Not Support Always Dolby Digital plus). Support blue-ray 24/50/60fs/hd-dvd/XVYCC.
Compatibility: HDCP support 2.2, compatible with HDMI 2.0b. Input support: Computer, Laptop, PS3, PS4, Xbox, Blu-ray DVD Player, STB etc. Ou
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 x HDMI Splitter 1 in 2 out with audio extractor, 1 x Charger, 1 x USB Cable, 1 x User Manual.

Questions about this item

Does the 18 Gbps bandwidth splitter run hot or draw much power when used all day?

The unit is powered by a 5 V DC supply delivered through the included USB-C cable, so it draws very little current and stays cool during continuous operation.

What cables and power source do I need to have on hand before connecting the OZF6-1?

You will need one HDMI cable for the source, two HDMI cables for the displays, and a USB power adapter or port to feed the supplied USB-C power cable.

Will the 4K@60 Hz splitter work correctly if one of my monitors only supports 1080p?

Yes, the built-in auto down-scaler lets one output show 4K@60 Hz while the other shows 1080p@60 Hz without forcing both to the lower resolution.
