Small black box with one HDMI input, two HDMI outputs and a 3.5 mm audio jack

LUOM

LUOM OZF6-1 1x2 HDMI Splitter 4K 60Hz Audio audio

SKU CH-8NEA-3QYTW

Distributes one HDMI source to two displays at 4K 60Hz with 3.5mm audio extraction and auto downscaling

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports2
  • AudioYes
  • ColorBlack
  • SpecificationsProduct Type:HDMI 2.0b Splitter 1x2 with Audio Extractor Int
  • Mirrors two displays from one HDMI source
  • 4K 60Hz video with 18.5Gbps bandwidth
  • Extracts stereo audio via 3.5mm jack
  • Auto down-scales when displays differ in resolution
  • Compact 52.2x58.4x15mm unit powered by USB-C

1×2 HDMI Splitter with Audio Extraction

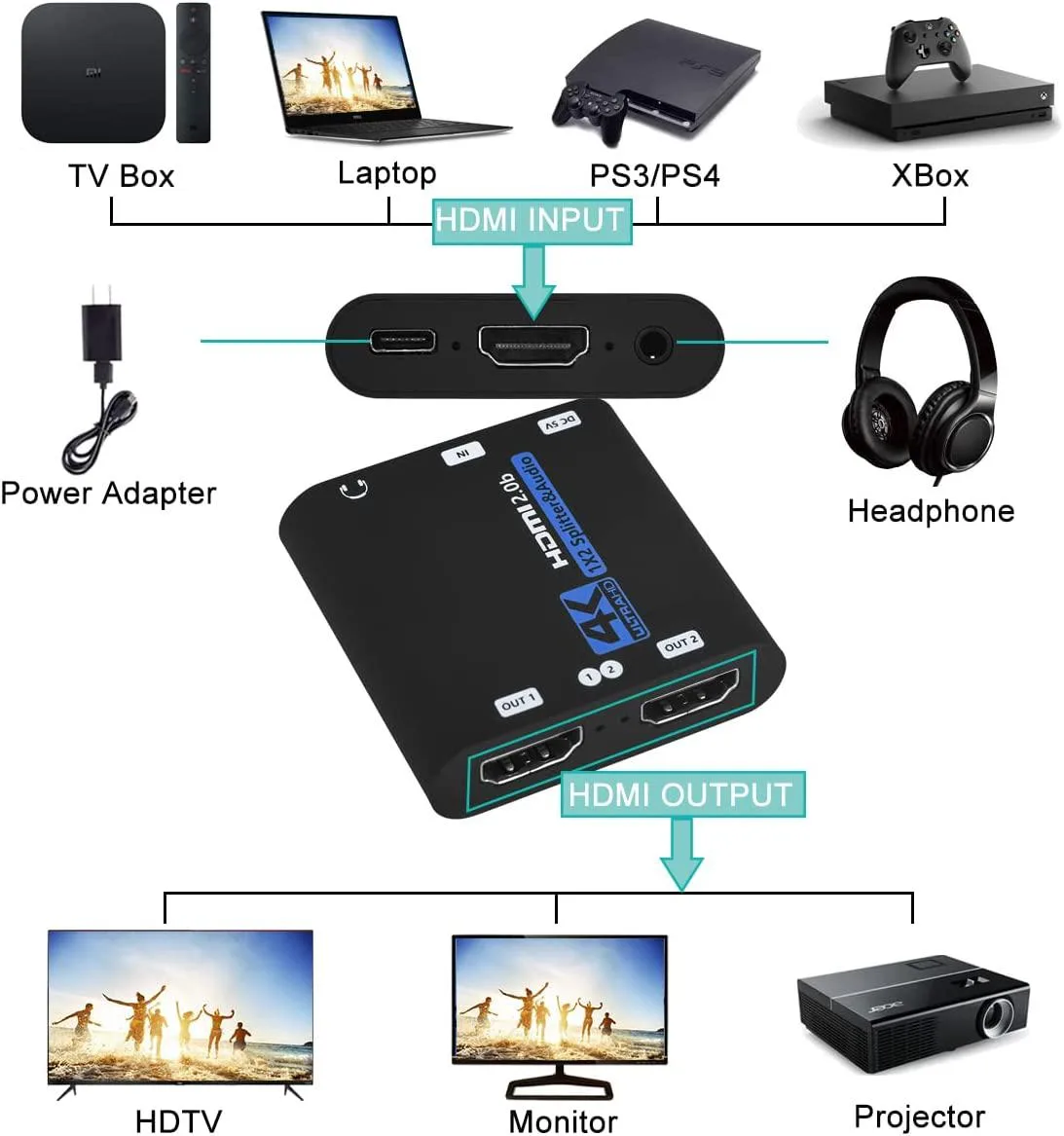

The LUOM OZF6-1 takes a single HDMI source and duplicates it across two displays at up to 3840×2160 resolution and 60 Hz refresh rate. It also provides a 3.5 mm stereo analogue output for separate audio routing. The unit requires a 5 V DC supply delivered through the included USB-C cable.

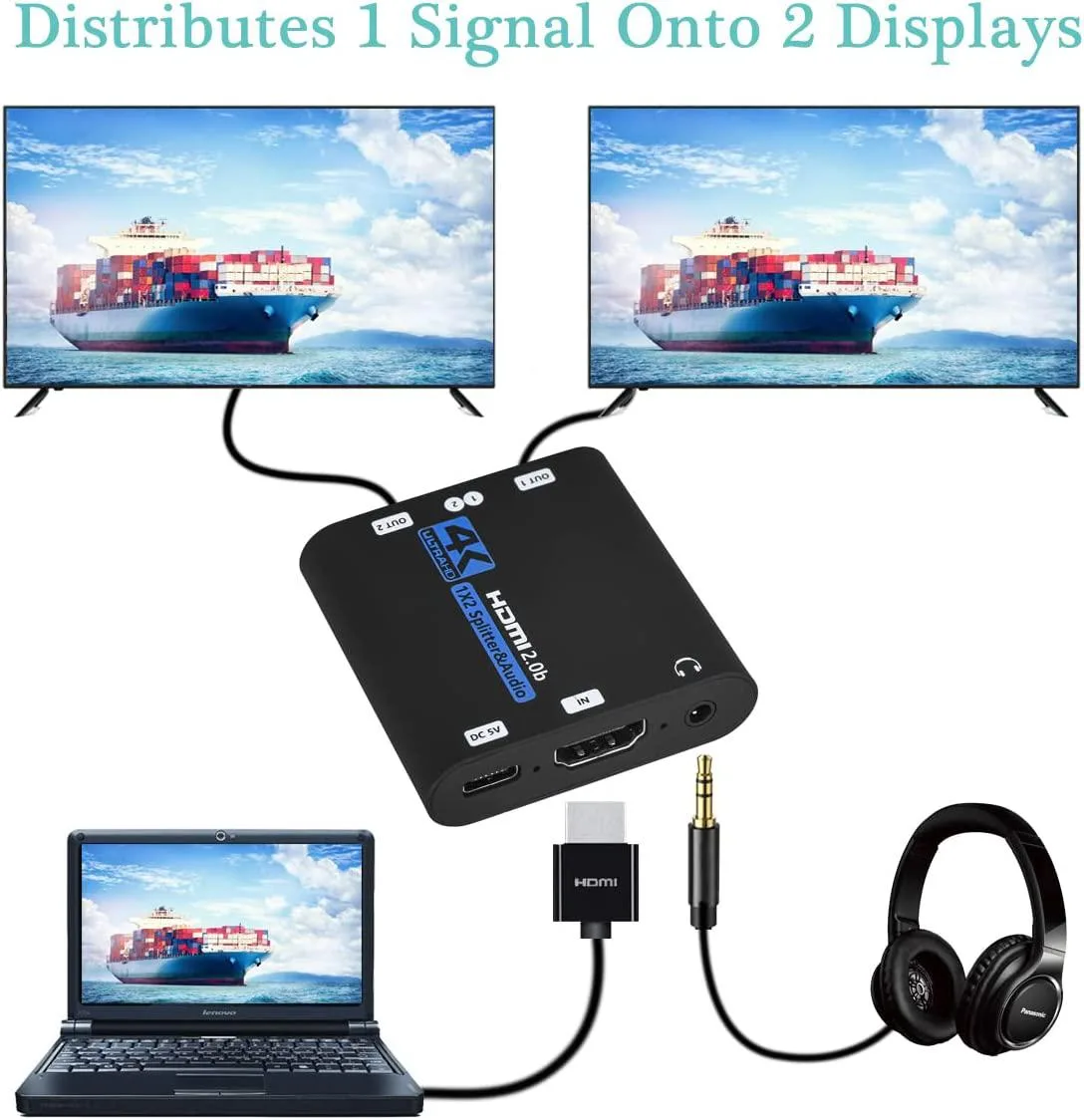

Mirror‑only duplication for dual screens

This splitter suits installations that need identical content on two monitors, projectors or TVs such as digital signage, conference rooms or classroom presentations. It does not support extended desktop mode, so users who need independent workspaces across two screens should consider a graphics card with multiple outputs or a dedicated MST hub.

HDMI 2.0b with 18 Gbps bandwidth

The splitter complies with HDMI 2.0b and HDCP 2.2, delivering 18 Gbps bandwidth for 4K 60 Hz HDR10 signals. It also features an automatic down‑scaler that lets one output run at 4K 60 Hz while the other runs at 1080p 60 Hz without forcing both to the lower resolution.

Highlights

  • Mirrors two displays from one HDMI source
  • 4K 60Hz video with 18.5Gbps bandwidth
  • Extracts stereo audio via 3.5mm jack
  • Auto down-scales when displays differ in resolution
  • Compact 52.2x58.4x15mm unit powered by USB-C

Specifications

BrandLUOM
SeriesOZF6-1
ModelOZF6-1
Part NumberOZF6-1
TypeHDMI Splitters
Changer TypeHDMI
Ports2
AudioYes
ColorBlack
SpecificationsProduct Type:HDMI 2.0b Splitter 1x2 with Audio Extractor
Interface Type: 1 HDMI in, 2 HDMI out, 1 Audio R/L out
Power Supply: DC 5V
Dimension(LxWxH): 52.2x58.4x15mm
Support HDMI2. 0b, HDCP2.2, Support HDR10, 18.5Gbps, 4KHDR
Support 4K x 2K@60Hz, RGB8:8:8, Support 3D
Support blue-ray 24/50/60fs/hd-dvd/XVYCC
Input/Output TMDS signal: 5-1.5 olts p-p(TTL)
HDMI Resolution: 4k/2k/3D/1080p/1080i/720p/480p
Support video color format: 24bit/30bit/36bit deep color
Support DVI/DP monitor
Digital audio format: DST-HD/Dolby-true-HD/LPCM7.1/DTS/Dolby-AC3/DSD(Not Support AlwaysDolby Digital plus)
I
Input Connector1 HDMI input
Output Connector2 HDMI + 3.5mm Audio Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesHDMI Splitter 1x2 with Audio Extrator: The converter allows distributes 1 HDMI source to 2 HDMI displays simultaneously, and adds extra one L+R audio out port.
High Resolution: Support 4K x 2K@60Hz (3860 x 2160p), backwards to 480p/ 720p/ 1080i/ 1080P and 3D. Support 24bit/30bit/36bit deep color.
Supported Audio: DTS-HD/ Dolby-true-HD/ LPCM7.1/ DTS/ Dolby-AC3/ DSD.(Not Support Always Dolby Digital plus). Support blue-ray 24/50/60fs/hd-dvd/XVYCC.
Compatibility: HDCP support 2.2, compatible with HDMI 2.0b. Input support: Computer, Laptop, PS3, PS4, Xbox, Blu-ray DVD Player, STB etc. Ou
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 x HDMI Splitter 1 in 2 out with audio extractor, 1 x Charger, 1 x USB Cable, 1 x User Manual.

Questions about this item

Does the HDMI 2.0b interface limit the splitter to 18Gbps bandwidth at 4K 60Hz?

Yes, the HDMI 2.0b interface caps practical throughput at 18Gbps, which carries 4K at 60Hz with HDR10 and deep colour up to 36-bit.

What physical space and mounting does the 52.2x58.4x15mm unit need?

The aluminium box measures 52.2 by 58.4 by 15 millimetres and weighs 3.2 ounces; it sits on a desk or Velcro-mounts with no rack ears required.

How is the splitter powered and which step do users often miss?

Connect the supplied USB-C cable to any 5V USB port or charger, then plug HDMI sources; the step often missed is powering the unit before the video sources.
