Black rectangular HDMI splitter with one input and eight output ports

LUOM

LUOM OZF5-1 4K 60Hz HDMI 2.0b 1×8 video splitter

SKU CH-K5V8-KC0FQ

Splits one HDMI source to eight displays at 4K 60 Hz with HDR 10 and 18 Gbps bandwidth

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports8
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI Version: HDMI 2.0b, HDCP 2.2 HDMI Resolution: 24/50/60f
  • Distributes one HDMI source to eight 4K displays
  • Supports 4K resolution at 60 Hz refresh rate
  • Handles 18 Gbps bandwidth for uncompressed video
  • Passes Dolby TrueHD and DTS-HD Master Audio
  • Includes downscaler for mixed 4K and 1080p outputs

Signal distribution

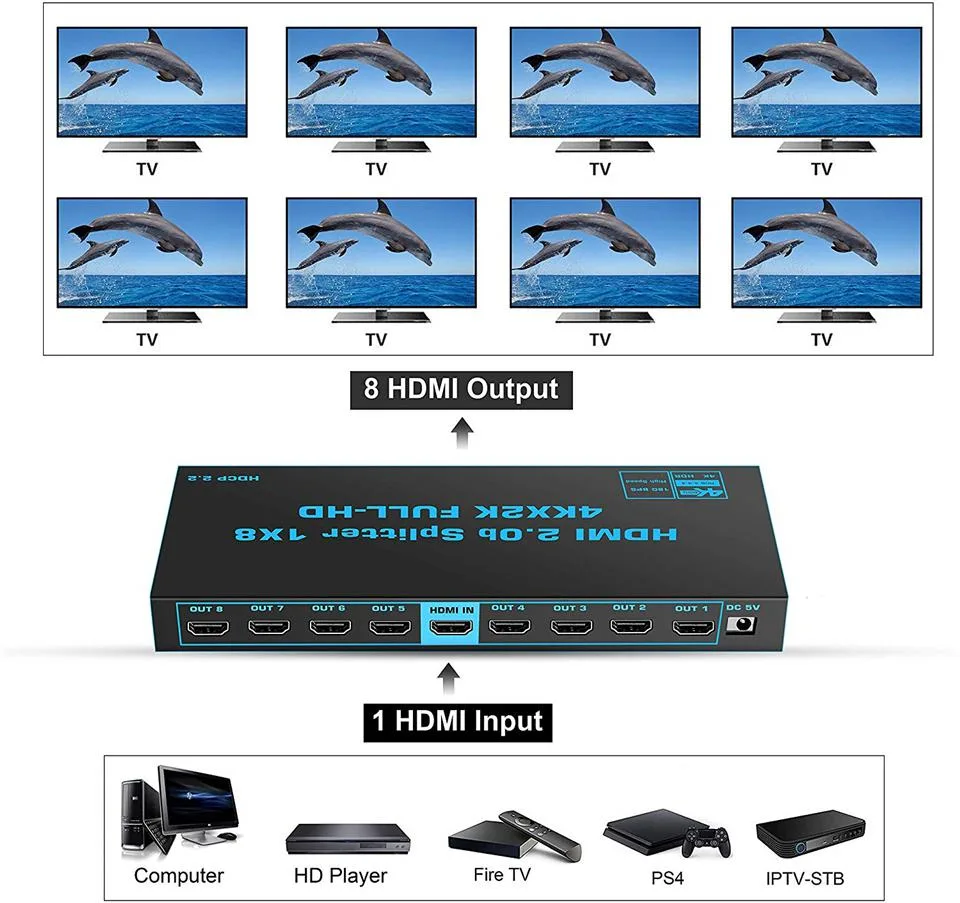

The LUOM OZF5-1 splits one HDMI source across eight displays at up to 3840 x 2160 resolution and 60 Hz refresh. It handles 24, 30, 36 and 48-bit deep colour plus HDR10, and passes DTS-HD, Dolby TrueHD, LPCM 7.1 and other high-resolution audio formats. The unit is built for installers, digital-signage operators and multi-room AV systems that need identical pictures on every screen. It does not extend a desktop, so users wanting independent monitors should look elsewhere.

Passive operation

The splitter draws power from the included AC adapter and regenerates the TMDS signal at 18 Gbps bandwidth with HDCP 2.2 compliance. No active cooling is present, so the aluminium enclosure runs silent in normal indoor use. Signal levels stay within 0.5 to 1.5 V p-p on the data lines and 5 V on the DDC channel, keeping power draw low enough for continuous operation without a fan.

Build integration

One HDMI input and eight HDMI outputs fit in a 5.59 x 3.15 x 1.26 inch black chassis weighing 3.2 ounces, so it tucks behind a rack or display without extra brackets. The box includes the splitter, the AC adapter and a manual; cables are not supplied. EDID copy and scaler functions let a 4K 60 Hz source feed mixed 4K and 1080p sinks automatically, reducing the need for external converters.

Highlights

  • Distributes one HDMI source to eight 4K displays
  • Supports 4K resolution at 60 Hz refresh rate
  • Handles 18 Gbps bandwidth for uncompressed video
  • Passes Dolby TrueHD and DTS-HD Master Audio
  • Includes downscaler for mixed 4K and 1080p outputs

Specifications

BrandLUOM
SeriesOZF5-1
ModelOZF5-1
Part NumberOZF5-1
TypeHDMI Splitters
Changer TypeHDMI
Ports8
AudioYes
ColorBlack
SpecificationsHDMI Version: HDMI 2.0b, HDCP 2.2
HDMI Resolution: 24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p/2160p/4K@60Hz
Supports Video Color Format: 24bit/deep color 30bit, 36bit, 48bit
Audio Format: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR)
Max Bandwidth: 600MHz
Max Baud Rate: 18.5Gbps
Input/Output TMDS Signal: 0.5~1.5Volts p-p(TTL)
Input/Output DDC Signal: 5Volts p-p (TTL)
Input Cable Distance: 17ft AWG28 HDMI standard cable
Output Cable Distance: 17ft AWG28 HDMI standard cable
Max Working Current: 1200mA
Power Adapter Format Input: AC100V-240V (50/60Hz) ; Output: DC 5V/2A
Op

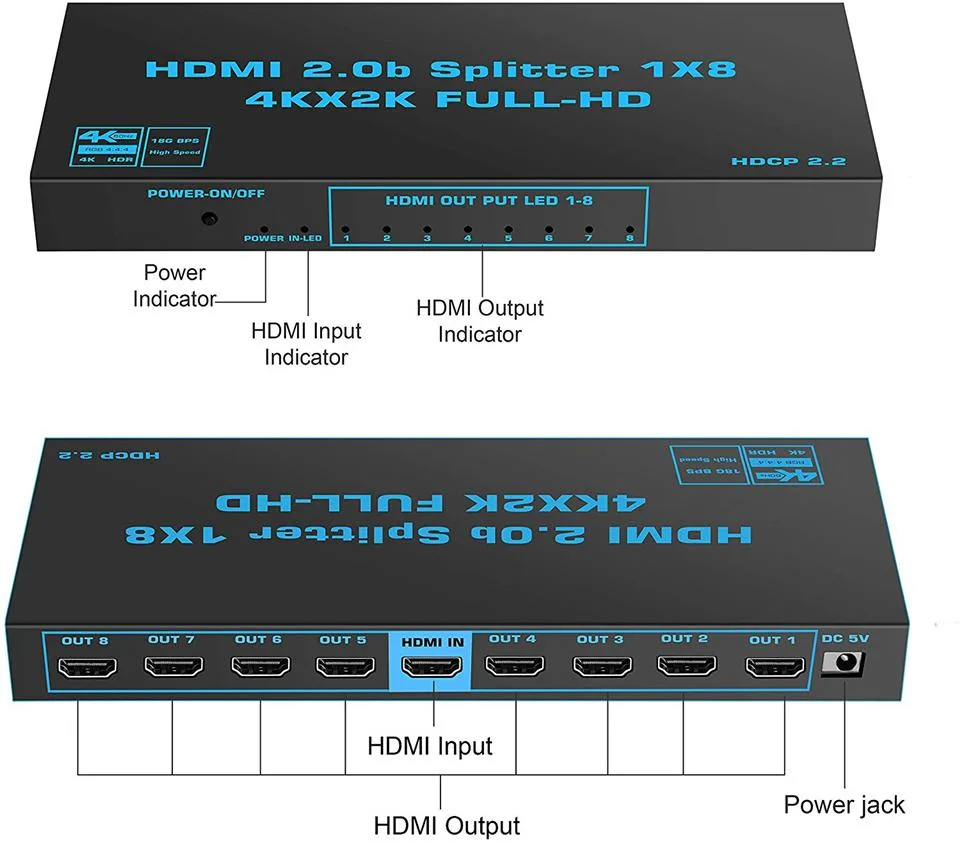

Input Connector1 HDMI input
Output Connector8 HDMI Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesULTRA HD 1 in 8 HDMI Splitter : Perfect for Duplicating 1 HDMI Input Signal to 8 Monitors or TV 4K Display Screens, HDMI Splitter 1 in 8 out, This Device Will Not Extend Monitor for PC or Laptops
NOTE: This HDMI splitter will NOT Extend Monitors to create dual screen mode; Works best with up to 30 Feet high quality HDMI Cables. We recommend using this splitter with HDMI cables that are 30 feet or shorter and of excellent quality.
The OZF5-1 HDMI splitter 1 in 8 out will work with all HDMI versions 1.3 and 1.4, 2.0: Supports 3D and LPCM, Dolby-AC3, DTS7.1, DSD/Dolby /DTS-HD master aud
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1x 1in 8out HDMI splitter, 1x AC adapter, 1 Manual

Questions about this item

How do I connect the included AC adapter so the splitter powers on correctly?

Plug the AC adapter into mains power first, then connect its barrel jack to the splitter before attaching any HDMI cables; the unit needs external power to drive all eight outputs.

Will the AC adapter need to be replaced after a few years of daily use?

The external power supply is the only wear item; if the splitter loses signal on all ports, swap the adapter for a 5 V unit with the same barrel polarity.

What cable length starts to degrade the 4K 60 Hz signal on the output side?

At the rated 18 Gbps bandwidth, passive HDMI cables longer than about 5 metres often cause drop-outs at 4K 60 Hz; use active or fibre cables for longer runs.
