Small black metal box with one HDMI input and eight HDMI outputs on the front

LUOM

LUOM OZF5-1 1x8 HDMI video splitter 4K 60Hz

SKU CH-EY7W-AD378

Splits one HDMI source to eight displays at 4K 60Hz with HDR10 and 18Gbps bandwidth

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports8
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI Version: HDMI 2.0b, HDCP 2.2 HDMI Resolution: 24/50/60f
  • Split one source to eight 4K displays at 60 Hz
  • HDMI 2.0b and HDCP 2.2 protect premium 4K content
  • 18 Gbps bandwidth carries 4:4:4 colour without compression
  • Supports HDR10 and Dolby Vision for richer contrast
  • Handles 7.1-channel lossless audio including DTS-HD and Dolby TrueHD

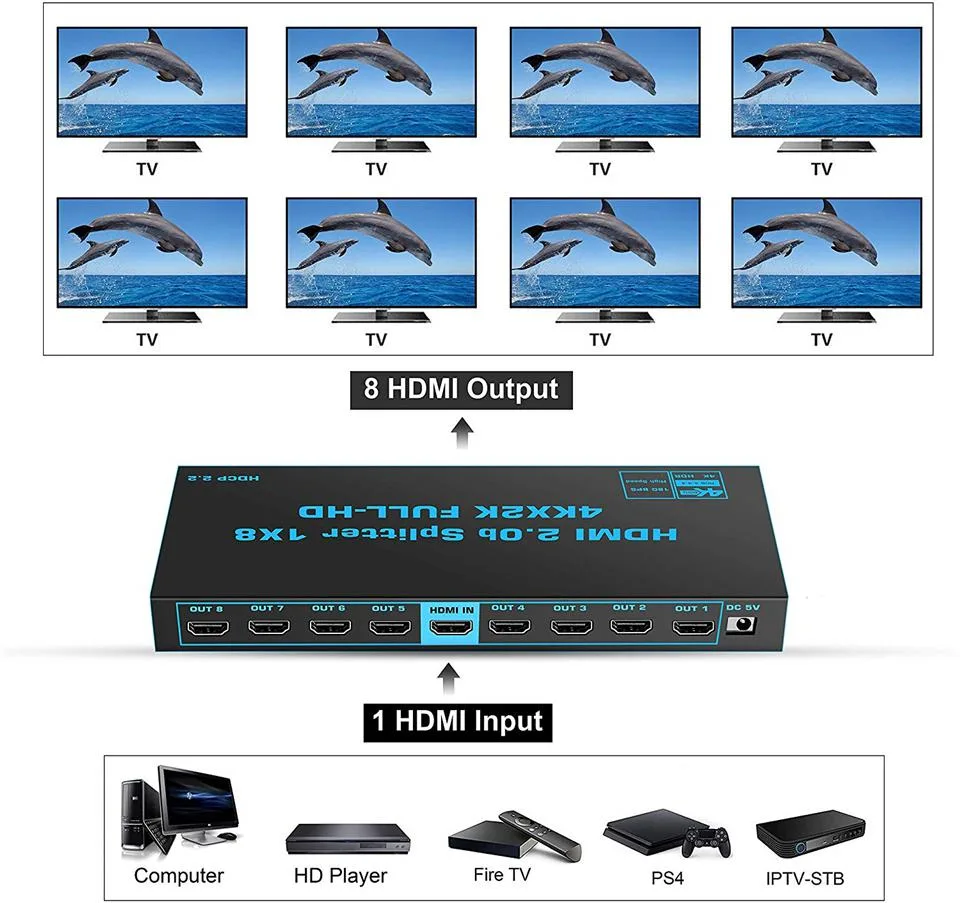

One source to eight displays

The LUOM OZF5-1 takes a single HDMI 2.0b input and duplicates it across eight HDMI outputs at up to 3840 x 2160 at 60 Hz. It supports HDR10 and Dolby Vision with 4:4:4 chroma sampling and HDCP 2.2 compliance. The unit is designed for distribution, not for extending a desktop across multiple screens.

Powered splitter with signal regeneration

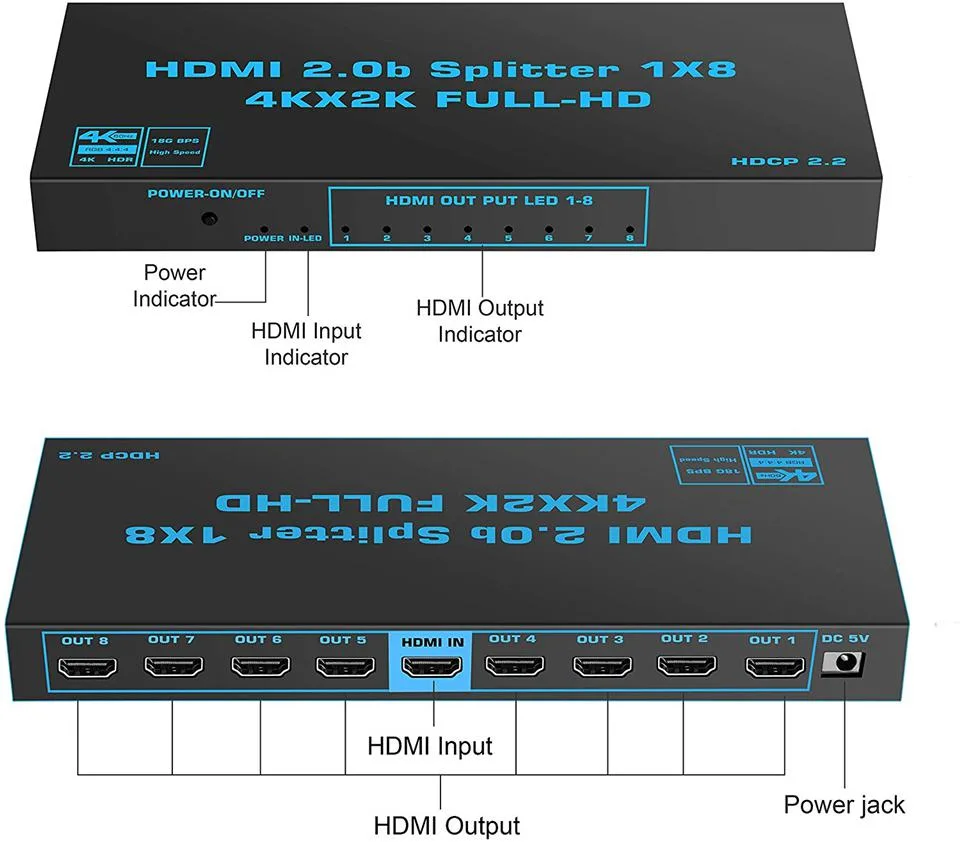

A supplied AC adapter powers the device, allowing it to re-clock and boost the TMDS signal after long cable runs. The metal enclosure measures 5.59 x 3.15 x 1.26 inches and weighs 3.2 ounces. Eight output ports sit on one face for straightforward rack or shelf mounting in AV installations.

Check source resolution and cable lengths

The splitter copies EDID from one display, so all connected screens must accept the same resolution and refresh rate. Verify that your source can output 4K at 60 Hz over HDMI 2.0b and that total cable runs stay within the 18 Gbps bandwidth limit. Audio formats up to LPCM 7.1 and DTS-HD pass through without decoding.

Highlights

  • Split one source to eight 4K displays at 60 Hz
  • HDMI 2.0b and HDCP 2.2 protect premium 4K content
  • 18 Gbps bandwidth carries 4:4:4 colour without compression
  • Supports HDR10 and Dolby Vision for richer contrast
  • Handles 7.1-channel lossless audio including DTS-HD and Dolby TrueHD

Specifications

BrandLUOM
SeriesOZF5-1
ModelOZF5-1
Part NumberOZF5-1
TypeHDMI Splitters
Changer TypeHDMI
Ports8
AudioYes
ColorBlack
SpecificationsHDMI Version: HDMI 2.0b, HDCP 2.2
HDMI Resolution: 24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p/2160p/4K@60Hz
Supports Video Color Format: 24bit/deep color 30bit, 36bit, 48bit
Audio Format: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR)
Max Bandwidth: 600MHz
Max Baud Rate: 18.5Gbps
Input/Output TMDS Signal: 0.5~1.5Volts p-p(TTL)
Input/Output DDC Signal: 5Volts p-p (TTL)
Input Cable Distance: 17ft AWG28 HDMI standard cable
Output Cable Distance: 17ft AWG28 HDMI standard cable
Max Working Current: 1200mA
Power Adapter Format Input: AC100V-240V (50/60Hz) ; Output: DC 5V/2A
Op
Input Connector1 HDMI input
Output Connector8 HDMI Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesULTRA HD 1 in 8 HDMI Splitter : Perfect for Duplicating 1 HDMI Input Signal to 8 Monitors or TV 4K Display Screens, HDMI Splitter 1 in 8 out, This Device Will Not Extend Monitor for PC or Laptops
NOTE: This HDMI splitter will NOT Extend Monitors to create dual screen mode; Works best with up to 30 Feet high quality HDMI Cables. We recommend using this splitter with HDMI cables that are 30 feet or shorter and of excellent quality.
The OZF5-1 HDMI splitter 1 in 8 out will work with all HDMI versions 1.3 and 1.4, 2.0: Supports 3D and LPCM, Dolby-AC3, DTS7.1, DSD/Dolby /DTS-HD master aud
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1x 1in 8out HDMI splitter, 1x AC adapter, 1 Manual

Questions about this item

What bandwidth does the HDMI 2.0b interface cap at in practice?

The splitter operates at up to 18.5 Gbps, supporting 4K@60Hz 4:4:4 and HDR10 across all eight outputs.

What physical space and power does the unit need to fit and mount?

It measures 5.59 x 3.15 x 1.26 inches, weighs 3.2 ounces, and requires the included AC adapter for power.

How is it installed and what step do people get wrong?

Connect the source to the single HDMI input, attach up to eight displays to the outputs, plug in the AC adapter, then power on the source last so EDID copies correctly.
