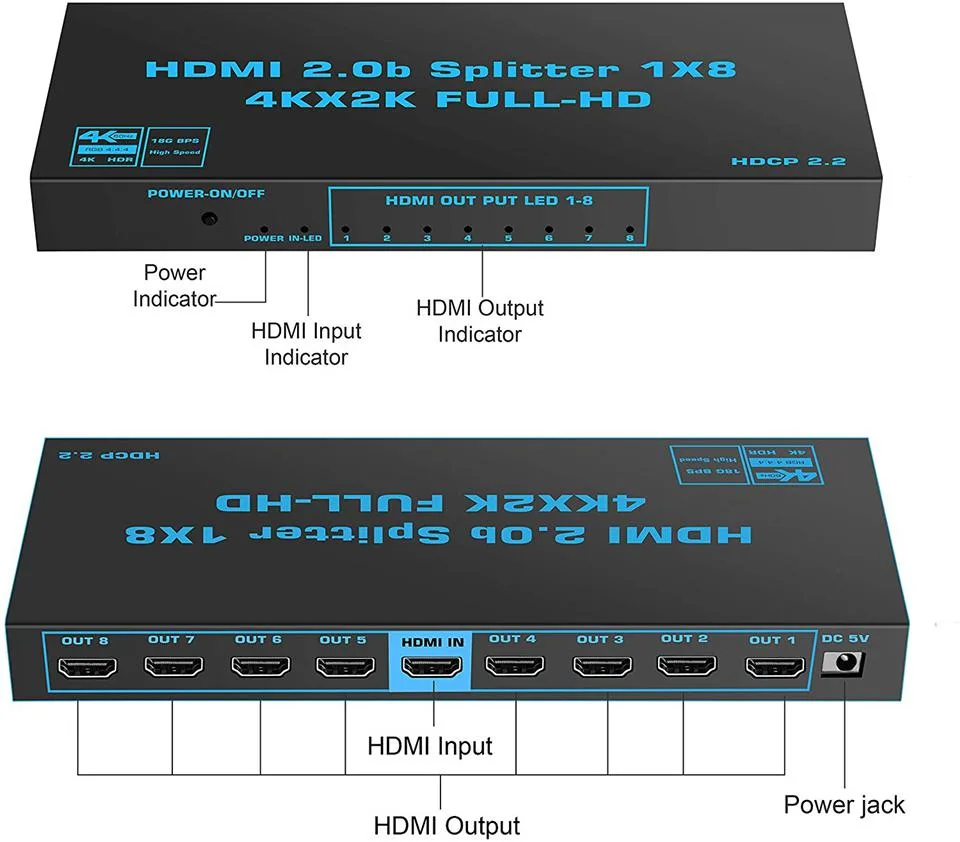

Black rectangular HDMI splitter with eight output ports

LUOM

LUOM OZF5-1 1x8 HDMI Splitter 4K 60Hz 18Gbps HDR

SKU CH-P9N5-XDQ4J

Splits one HDMI source to eight 4K 60Hz displays with HDR and 18Gbps bandwidth

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports8
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI Version: HDMI 2.0b, HDCP 2.2 HDMI Resolution: 24/50/60f
  • Duplicates one HDMI source to eight 4K displays
  • Supports 4K at 60 Hz with 18 Gbps bandwidth
  • Handles HDR10 and deep colour up to 48 bit
  • Passes lossless audio including Dolby TrueHD and DTS‑HD
  • Regenerates signal at cable end for stable long runs

1x8 HDMI Splitter for Multi-Display Duplication

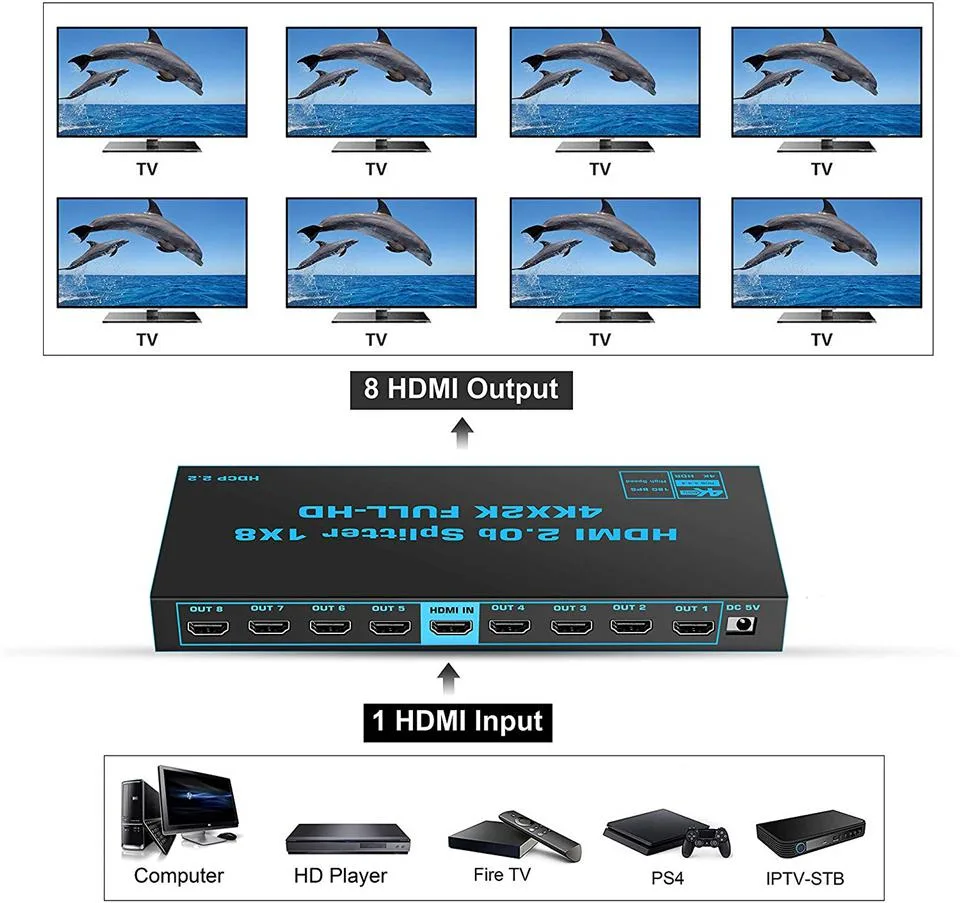

The LUOM OZF5-1 duplicates a single HDMI source across eight displays at up to 3840x2160 resolution and 60Hz refresh. It supports HDMI 2.0b with HDCP 2.2 compliance and 18Gbps bandwidth. Deep colour formats up to 48bit and audio formats including LPCM 7.1 are passed through. The unit is designed for signal distribution, not desktop extension.

Sustained Operation with Active Signal Regeneration

The splitter regenerates the TMDS signal at the end of long cable runs, maintaining integrity across all eight outputs during continuous use. An external AC adapter provides stable power for consistent 18.5Gbps throughput without signal degradation. EDID copying and downscaling allow mixed 4K and 1080p displays to operate simultaneously. HDR10 metadata is preserved throughout extended sessions.

Verify Source Output and Cable Lengths Before

Confirm your source device outputs HDMI 2.0b with HDCP 2.2 to enable 4K 60Hz and HDR10 across all ports. The splitter does not extend desktop workspaces from PCs or laptops. Ensure HDMI cables are rated for 18Gbps bandwidth at the required distances. Eight output cables and display endpoints must be available for full utilisation.

Highlights

  • Duplicates one HDMI source to eight 4K displays
  • Supports 4K at 60 Hz with 18 Gbps bandwidth
  • Handles HDR10 and deep colour up to 48 bit
  • Passes lossless audio including Dolby TrueHD and DTS‑HD
  • Regenerates signal at cable end for stable long runs

Specifications

BrandLUOM
SeriesOZF5-1
ModelOZF5-1
Part NumberOZF5-1
TypeHDMI Splitters
Changer TypeHDMI
Ports8
AudioYes
ColorBlack
SpecificationsHDMI Version: HDMI 2.0b, HDCP 2.2
HDMI Resolution: 24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p/2160p/4K@60Hz
Supports Video Color Format: 24bit/deep color 30bit, 36bit, 48bit
Audio Format: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR)
Max Bandwidth: 600MHz
Max Baud Rate: 18.5Gbps
Input/Output TMDS Signal: 0.5~1.5Volts p-p(TTL)
Input/Output DDC Signal: 5Volts p-p (TTL)
Input Cable Distance: 17ft AWG28 HDMI standard cable
Output Cable Distance: 17ft AWG28 HDMI standard cable
Max Working Current: 1200mA
Power Adapter Format Input: AC100V-240V (50/60Hz) ; Output: DC 5V/2A
Op
Input Connector1 HDMI input
Output Connector8 HDMI Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesULTRA HD 1 in 8 HDMI Splitter : Perfect for Duplicating 1 HDMI Input Signal to 8 Monitors or TV 4K Display Screens, HDMI Splitter 1 in 8 out, This Device Will Not Extend Monitor for PC or Laptops
NOTE: This HDMI splitter will NOT Extend Monitors to create dual screen mode; Works best with up to 30 Feet high quality HDMI Cables. We recommend using this splitter with HDMI cables that are 30 feet or shorter and of excellent quality.
The OZF5-1 HDMI splitter 1 in 8 out will work with all HDMI versions 1.3 and 1.4, 2.0: Supports 3D and LPCM, Dolby-AC3, DTS7.1, DSD/Dolby /DTS-HD master aud
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1x 1in 8out HDMI splitter, 1x AC adapter, 1 Manual

Questions about this item

Does the LUOM OZF5-1 1x8 HDMI Splitter run warm or draw much power when splitting a 4K 60Hz signal to eight displays all day?

The splitter includes an AC adapter and regenerates the HDMI signal at up to 18.5 Gbps bandwidth, so it stays cool and stable during continuous 4K 60Hz operation across all eight outputs.

What cables and power source do I need to have on hand before the LUOM OZF5-1 1x8 HDMI Splitter will work?

You need one HDMI cable for the source input, up to eight HDMI cables for the displays, and a wall outlet for the included AC adapter — everything else is in the box.

Will the LUOM OZF5-1 1x8 HDMI Splitter downscale 4K 60Hz to 1080p automatically for older screens while keeping 4K on newer ones?

Yes, the built-in scaler supports one output at 4K 60Hz and another at 1080p simultaneously, with EDID copy so each display gets its native resolution.
