Black rectangular HDMI splitter with eight output ports

LUOM

LUOM OZF5-1 1×8 HDMI video splitter 4K@60Hz 18Gbps black

SKU CH-GN5Z-2Q9G9

Distributes one HDMI source to eight displays at 4K 60 Hz with HDR and 7.1 audio support

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports8
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI Version: HDMI 2.0b, HDCP 2.2 HDMI Resolution: 24/50/60f
  • Splits one HDMI source to eight displays
  • 4K@60Hz video with 18Gbps bandwidth
  • HDR10 and deep colour up to 48-bit
  • DTS-HD and Dolby TrueHD 7.1 audio pass-through
  • HDCP 2.2 and EDID copy for broad compatibility

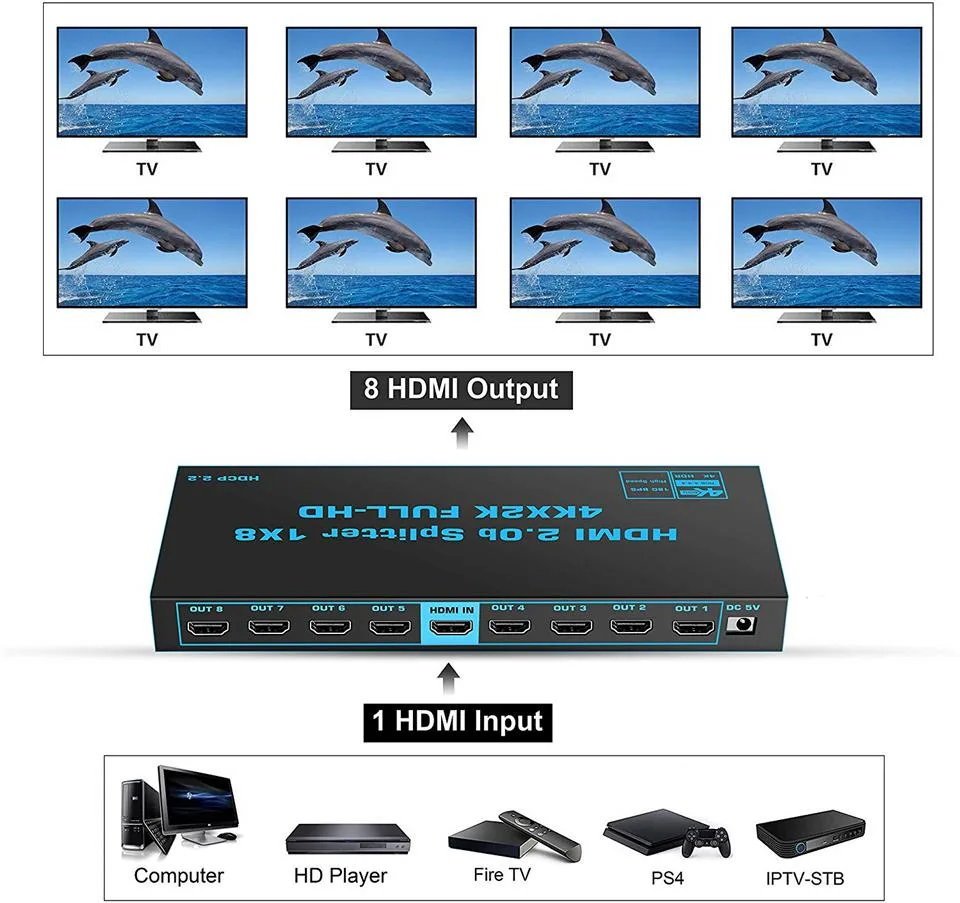

1×8 HDMI splitter for multi-display duplication

The LUOM OZF5-1 takes one HDMI 2.0b source and duplicates it across eight outputs at up to 4K@60 Hz. It supports HDCP 2.2 and deep-colour formats up to 48-bit, plus audio formats including DTS-HD, Dolby TrueHD and LPCM 7.1. The unit does not extend a desktop; it only mirrors the same signal to every connected display. It is suited for installers, retailers or home users who need identical content on multiple screens.

18 Gbps bandwidth with scaler flexibility

An 18 Gbps pipeline handles 3840×2160 at 60 Hz, 1080p and lower resolutions at up to 60 fps. A built-in scaler lets one output show 4K@60 Hz while another receives 1080p, so mixed-resolution displays work without forcing the lowest common denominator. Bandwidth headroom ends at 18 Gbps; higher refresh rates at 4K or uncompressed 8K signals are beyond this device. Long cable runs benefit from signal regeneration at the output stage.

Compact metal chassis with external power

The splitter measures 5.59×3.15×1.26 inches and weighs 3.2 ounces, fitting easily behind a rack or display. It requires the included AC adapter, so a free mains socket is needed near the install point. One HDMI input and eight HDMI outputs use standard Type-A connectors; no software or drivers are required. EDID copy and HDR10 pass-through simplify setup with varied sink devices.

Highlights

  • Splits one HDMI source to eight displays
  • 4K@60Hz video with 18Gbps bandwidth
  • HDR10 and deep colour up to 48-bit
  • DTS-HD and Dolby TrueHD 7.1 audio pass-through
  • HDCP 2.2 and EDID copy for broad compatibility

Specifications

BrandLUOM
SeriesOZF5-1
ModelOZF5-1
Part NumberOZF5-1
TypeHDMI Splitters
Changer TypeHDMI
Ports8
AudioYes
ColorBlack
SpecificationsHDMI Version: HDMI 2.0b, HDCP 2.2
HDMI Resolution: 24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p/2160p/4K@60Hz
Supports Video Color Format: 24bit/deep color 30bit, 36bit, 48bit
Audio Format: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR)
Max Bandwidth: 600MHz
Max Baud Rate: 18.5Gbps
Input/Output TMDS Signal: 0.5~1.5Volts p-p(TTL)
Input/Output DDC Signal: 5Volts p-p (TTL)
Input Cable Distance: 17ft AWG28 HDMI standard cable
Output Cable Distance: 17ft AWG28 HDMI standard cable
Max Working Current: 1200mA
Power Adapter Format Input: AC100V-240V (50/60Hz) ; Output: DC 5V/2A
Op

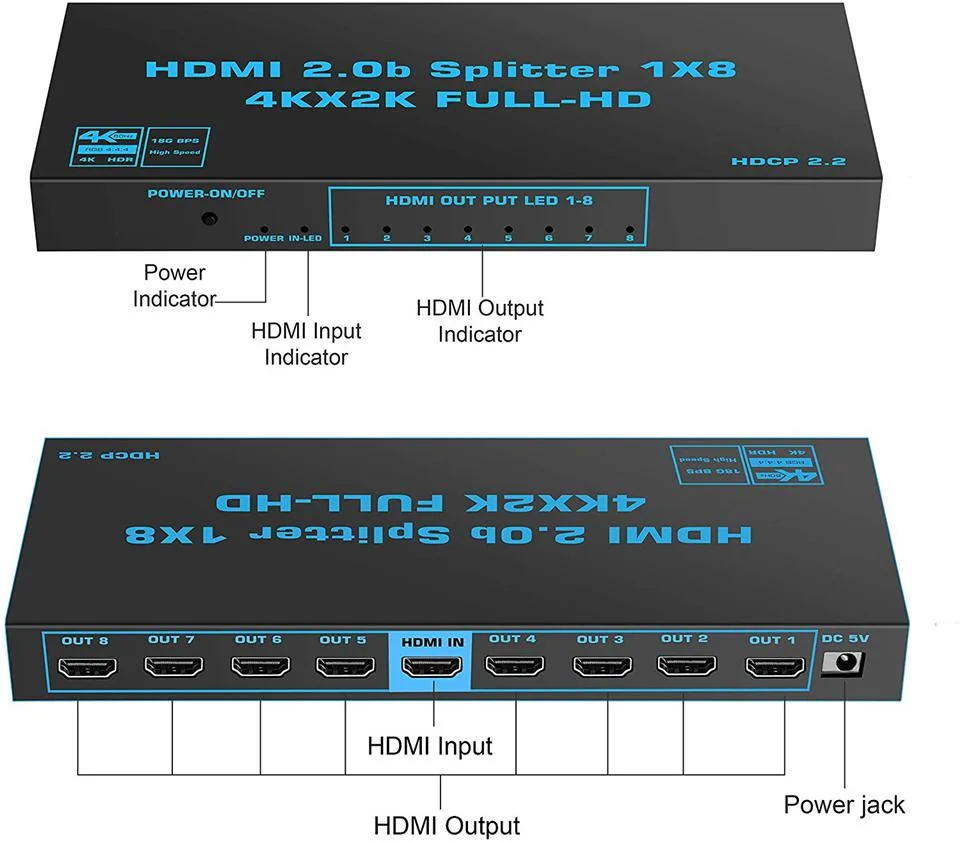

Input Connector1 HDMI input
Output Connector8 HDMI Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesULTRA HD 1 in 8 HDMI Splitter : Perfect for Duplicating 1 HDMI Input Signal to 8 Monitors or TV 4K Display Screens, HDMI Splitter 1 in 8 out, This Device Will Not Extend Monitor for PC or Laptops
NOTE: This HDMI splitter will NOT Extend Monitors to create dual screen mode; Works best with up to 30 Feet high quality HDMI Cables. We recommend using this splitter with HDMI cables that are 30 feet or shorter and of excellent quality.
The OZF5-1 HDMI splitter 1 in 8 out will work with all HDMI versions 1.3 and 1.4, 2.0: Supports 3D and LPCM, Dolby-AC3, DTS7.1, DSD/Dolby /DTS-HD master aud
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1x 1in 8out HDMI splitter, 1x AC adapter, 1 Manual

Questions about this item

Will the LUOM OZF5-1 work with my older 1080p displays alongside a new 4K screen?

Yes, the splitter supports scaler function so one output can show 4K@60Hz while another shows 1080p, and it handles 480i, 576i, 720p and 1080i signals.

How can I verify the splitter is passing HDR and 4K@60Hz correctly after connecting everything?

Check that your source device reports 3840x2160@60Hz with HDR10 and that all eight displays show an identical image without flicker or colour shift.

What cables and power supply come in the box, and do I need to buy HDMI leads separately?

The package includes the 1×8 splitter, an AC adapter and a manual; you must supply eight HDMI cables for the outputs and one for the input.
