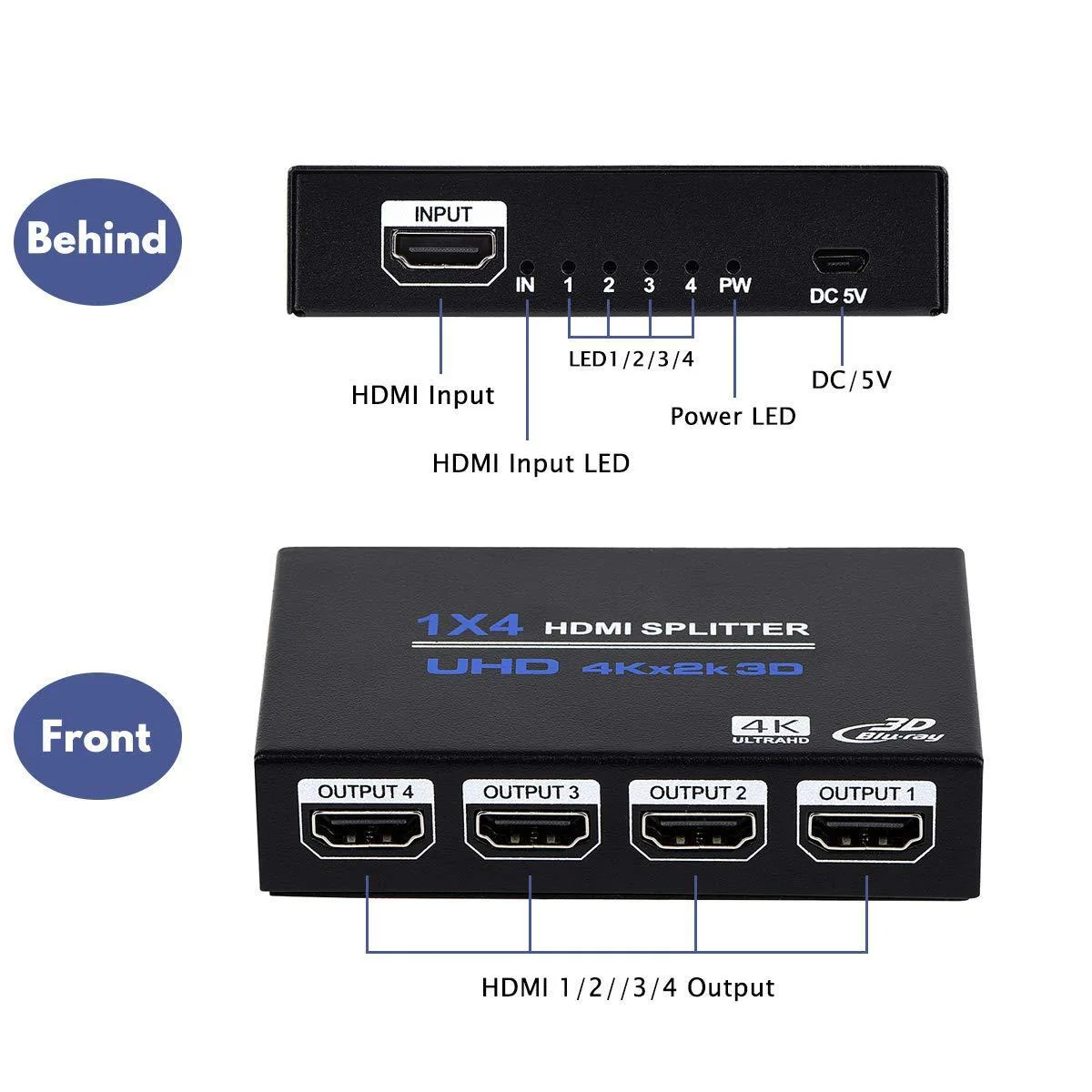

Black rectangular box with one HDMI input and four HDMI outputs

LUOM

LUOM OZF4 1x4 HDMI Splitter 4K 30Hz Audio

SKU CH-QKW9-MP942

Distributes one HDMI source to four displays at 4K 30Hz with multi-format audio pass-through

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports4
  • AudioYes
  • ColorBlack
  • SpecificationsQuadruple HDMI monitor splitter One HDMI input to Four HDMI
  • Splits one HDMI source to four identical displays simultaneously
  • Supports 4K resolution at 30 Hz for sharp mirrored video
  • Carries high-bitrate audio formats including DTS-HD and Dolby TrueHD
  • Handles 8, 10 and 12-bit deep colour for richer gradients
  • Includes 5 V DC power supply for stable operation

1x4 HDMI Splitter for 4K Mirroring

The LUOM OZF4 takes a single HDMI source and duplicates it across four displays at up to 3840 x 2160 resolution and 30Hz refresh. It supports 8, 10 and 12 bit deep colour along with audio formats such as DTS-HD and Dolby-trueHD. The unit is aimed at installers and home users who need identical content on multiple screens without extending the desktop.

Plug-and-play installation with powered supply

No drivers are required; connect the source, attach up to four displays and plug in the included 5V DC adapter. The splitter handles TMDS clock rates up to 340MHz and a maximum data rate of 3.4Gbps. A common issue is exceeding the cable length limits: input and output runs are rated for 15 metres at lower resolutions but only 8 metres when running 4K signals.

Check source output and cable quality before

Verify that your source device can output 4K at 30Hz and that it complies with HDCP requirements. Use AWG26 standard HDMI cables and keep runs within the 8-metre 4K limit to avoid signal drop-out. This splitter mirrors only; it cannot show different images on each screen, so it is unsuitable for multi-monitor desktop extension setups.

Highlights

  • Splits one HDMI source to four identical displays simultaneously
  • Supports 4K resolution at 30 Hz for sharp mirrored video
  • Carries high-bitrate audio formats including DTS-HD and Dolby TrueHD
  • Handles 8, 10 and 12-bit deep colour for richer gradients
  • Includes 5 V DC power supply for stable operation

Specifications

BrandLUOM
SeriesOZF4
ModelOZF4
Part NumberOZF4
TypeHDMI Splitters
Changer TypeHDMI
Ports4
AudioYes
ColorBlack
SpecificationsQuadruple HDMI monitor splitter
One HDMI input to Four HDMI outputs

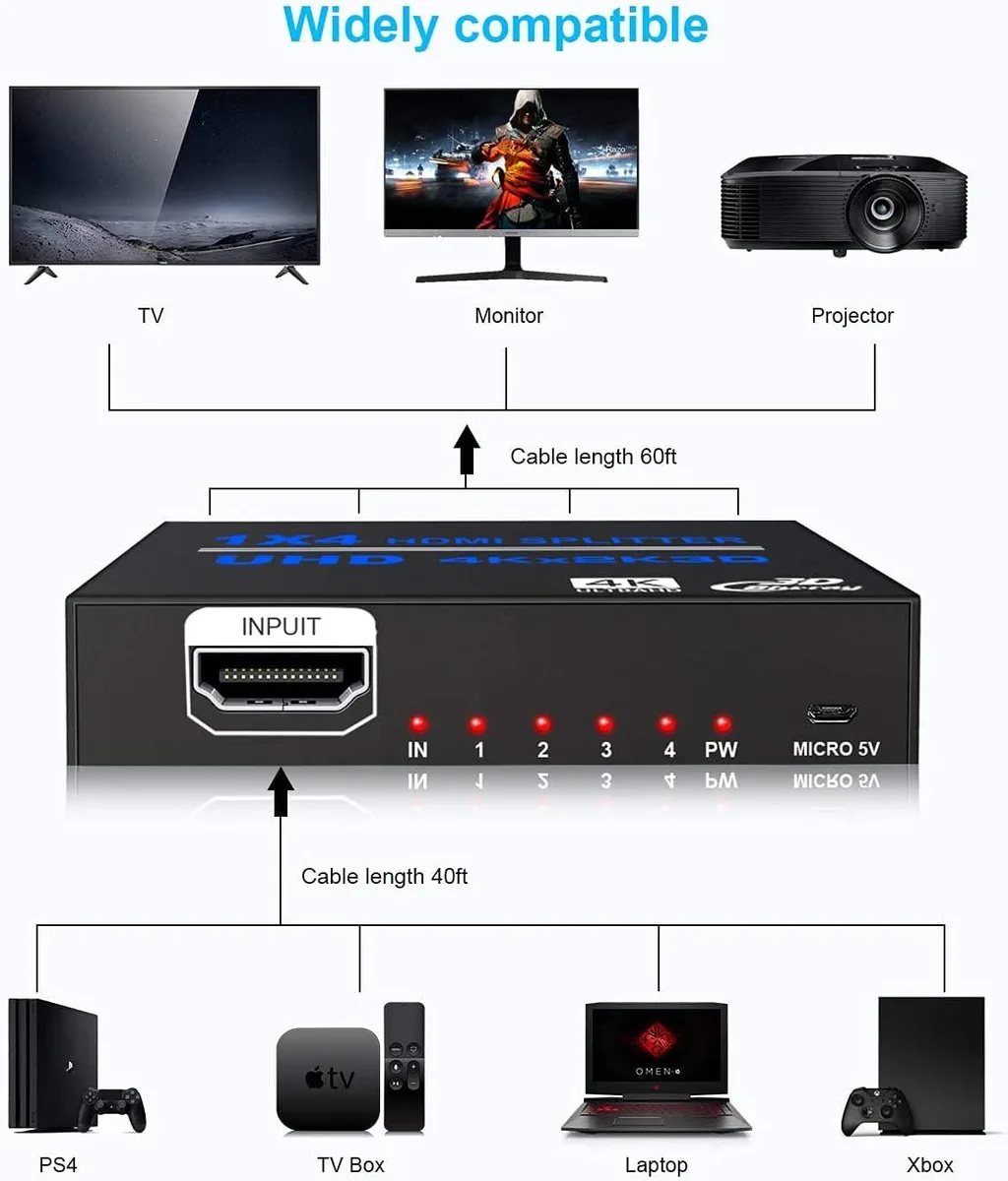

HDMI input: Computer, Chromecast, XBox, PS3, PS4, PS5, Fire Stick, Blu-Ray DVD Player, Satellite Receiver, Roku, PC etc.
HDMI output: Monitors, Projectors, HD TVs, VR etc.
HDMI audio output: HDMI Speaker, Soundbar etc.
HDCP 1.4b, HDCP 1.4, deep color 8/ 10/ 12bit..
Supports Ultra HD 4Kx2K@30HZ/ 1080P/ 1080i, 720p/ 720i, 480p/ 480i.
Audio format: DTS-HD/ Dobly-true HD/ DTS/ Dobly-AC3, DSD.
Input Connector1 HDMI input
Output Connector4 HDMI Output
Maximum Resolutions3840 x 2160
Features- Supported Audio: DTS-HD, Dolby-trueHD, DTS, Dolby-AC3, DSD etc.
- Support highest rate of 3.4Gbps and TMDS clock can be up to 340Mhz
- Support 8/10/12 bit deep color
- Support AWG26 HDMI standard cable: input up to 15 meters, output up to 15 meters, (when the resolution is 4K, input up to 8 meters, output up to 8 meters.)
- Support one single HDMI source, accessing to multiple HDMI sknks, the source can be DVD player, A/V receiver, set top box and etc.
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 x HDMI Splitter 1 in 4 out, 1x 5V DC Power Supply, 1 x User manual.

Questions about this item

How can I verify the LUOM OZF4 is passing a 4K 30Hz signal correctly after connecting my source and four displays?

Check that all four screens show an identical 3840 x 2160 image at 30 Hz and that your AV receiver or soundbar reports DTS-HD, Dolby-trueHD, DTS, Dolby-AC3 or DSD audio.

What comes in the box with the LUOM OZF4 and which cables must I purchase separately?

The package includes the 1x4 HDMI splitter, a 5 V DC power supply and a user manual; you need to buy HDMI cables for the input and each of the four outputs.

Which LUOM OZF4 version should I choose for a 15 metre cable run at 4K resolution?

The single OZF4 model supports input and output cable lengths up to 8 metres at 4K, so for a 15 metre run you would need an active cable or fibre extender instead.
