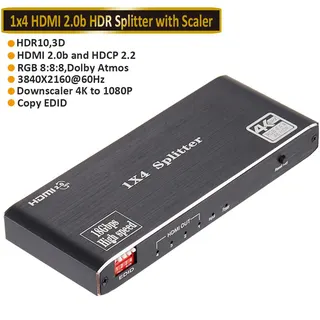

Black rectangular HDMI splitter with four output ports

LUOM

LUOM OZF3 1x4 HDMI Splitter 4K60 HDR10 HDCP2.2

SKU CH-XBQQ-Q609K

Splits one HDMI source to four displays at 4K 60 Hz with HDR10 and HDCP 2.2

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports4
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI 2.0band HDCP 2.2,4K@60Hz 4 port HDMI splitter 1x4 with
  • One source drives four displays simultaneously
  • 4K60 HDR10 with HDCP 2.2 support
  • 2 Gbps bandwidth for long cable runs
  • EDID management keeps every screen in sync
  • Compact 5.59 x 3.15 x 1.26 inch design

1×4 HDMI 2.0b Splitter with HDR10

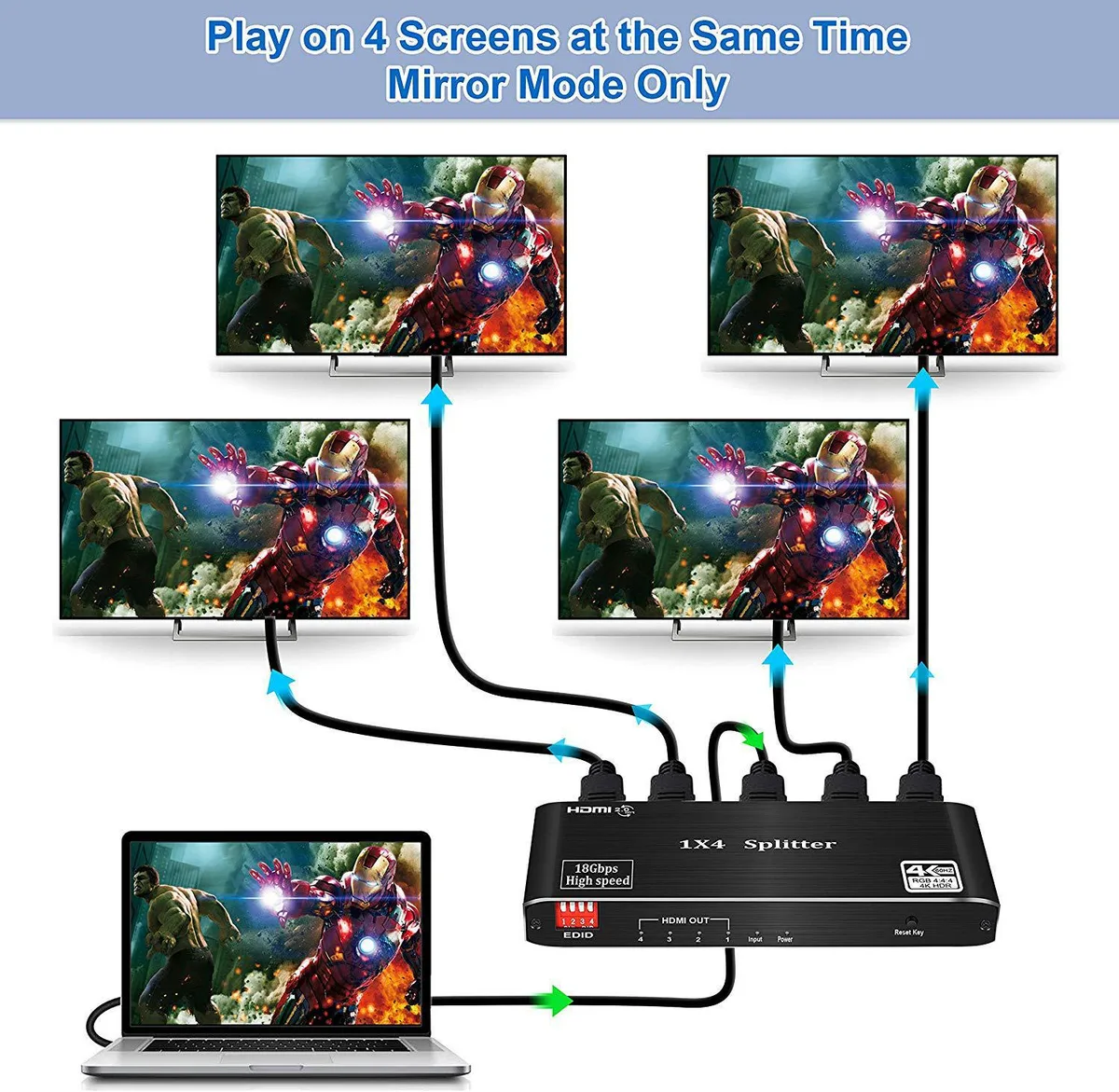

The LUOM OZF3 takes one HDMI source and duplicates it to four displays simultaneously. Each connected screen receives identical audio and video without extended-desktop support. The unit handles resolutions up to 3840 × 2160 at 60 Hz and passes HDR10 metadata. HDCP 2.2 compliance keeps protected content flowing to every output.

Passive thermal design and 18.2 Gbps bandwidth

No fans or active cooling are present; the metal enclosure dissipates heat from the signal-processing circuitry during normal operation. Power draw is limited to the included 5 V adapter, so the splitter adds negligible load to a typical bench or rack setup. The 18.2 Gbps throughput carries 4K60 4:4:4 RGB, 12-bit deep colour and high-bit-rate audio without compression.

Signal regeneration for cable runs up to 15 m at 4K

On-board equalisation restores signal integrity, allowing 8 m input and 15 m output runs at 4K60 using AWG26 cables. At 1080p the reach extends to 15 m input and 25 m output. EDID management via 512-byte RAM ensures stable handshakes across all four ports during prolonged sessions, preventing drop-outs that can appear after shorter bursts.

Highlights

  • One source drives four displays simultaneously
  • 4K60 HDR10 with HDCP 2.2 support
  • 2 Gbps bandwidth for long cable runs
  • EDID management keeps every screen in sync
  • Compact 5.59 x 3.15 x 1.26 inch design

Specifications

BrandLUOM
SeriesOZF3
ModelOZF3
Part NumberOZF3
TypeHDMI Splitters
Changer TypeHDMI
Ports4
AudioYes
ColorBlack
SpecificationsHDMI 2.0band HDCP 2.2,4K@60Hz 4 port HDMI splitter 1x4 with RGB 4:4:,3D, HDR10 and EDID mode.
Wide Frequency Range: 25MHz-600MHz.
Supports high resolutions up to 4K×2K @60Hz including 480i, 480p, 576i, 576p,720p,1080i,1080p,2160p.
Supports jitter Clean capability for more cascadable stages.
Supports 12-bit Deep Full HD, Full 3D and 4Kx2K@ 60Hz video.
Supports standard Audio,DSD Audio and HD(HBR)Audio.
Supports HDCP 1.4 to HDCP2.2 conversion.
Supports HDCP 2.2 to HDCP1.4 conversion.

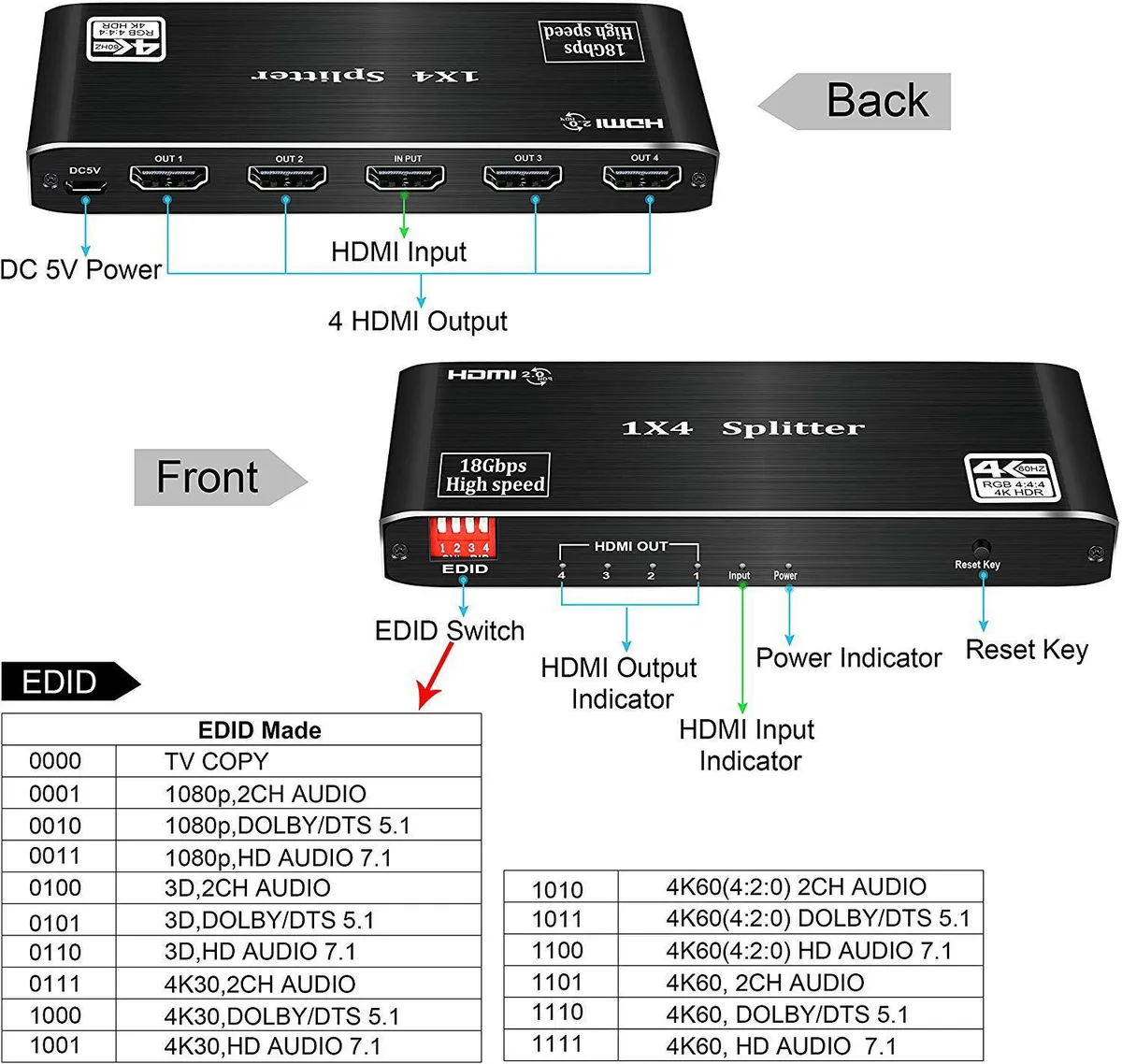

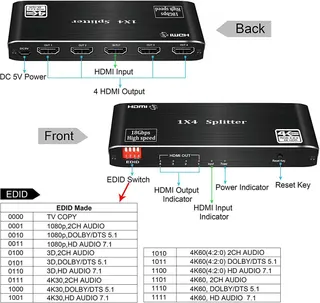

Supports on-chip 512 byte E-DDC EDID RAM for input port.
Supports hot plug-play.
Support 18.5 Gbps rate
Input Connector1 HDMI
Output Connector4 HDMI
Maximum Resolutions3840 x 2160
Bandwidth18.2Gbps
FeaturesHDMI Splitter 1 in 4 out : 1x4 HDMI Splitter distributes audio and video signal from one single Hdmi source to 4 different HDMI displays simultaneously without lag or signal loss.(NOTE:Extended desktop NOT supported,each screen show the same images)
4K Crystal Clear Picture :4 way Hdmi Splitter supports full HD 1080P and 3D resolutions, it can reach up to 4K@60Hz, worked perfectly with computer, laptop, PS3 game, Blu-ray DVD, tablet pc, projectors, full HD TVs, etc. Please make sure the resolution of all output devices is the same to ensure normal operation.Continuously upgrading tec
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package ContentsHDMI Splitter x1
User Instruction x1
Power Adapter x1

Questions about this item

How do I connect the LUOM OZF3 splitter and which step is often missed?

Connect one HDMI source to the single input and up to four displays to the outputs, then plug in the included power adapter; the step users skip is powering the unit before expecting a signal.

What part of the LUOM OZF3 will need attention or replacement over time?

The external power adapter is the only component that typically wears out; the splitter itself has no moving parts or user-serviceable items.

What cable-length limit appears first when running 4K60 through the LUOM OZF3?

At 4K60 the input cable must stay within 26 ft (8 m) and each output within 50 ft (15 m) using AWG26 HDMI cable; longer runs will lose signal first.
