Black rectangular HDMI splitter with five ports

LUOM

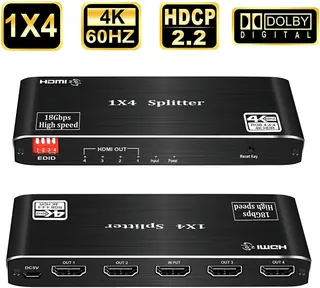

LUOM OZF3 1x4 HDMI 2.0b Splitter 4K@60Hz HDCP 2.2

SKU CH-DNYM-C91C2

Distributes one HDMI source to four displays simultaneously at up to 4K@60Hz with HDCP 2.2 support

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports4
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI 2.0band HDCP 2.2,4K@60Hz 4 port HDMI splitter 1x4 with

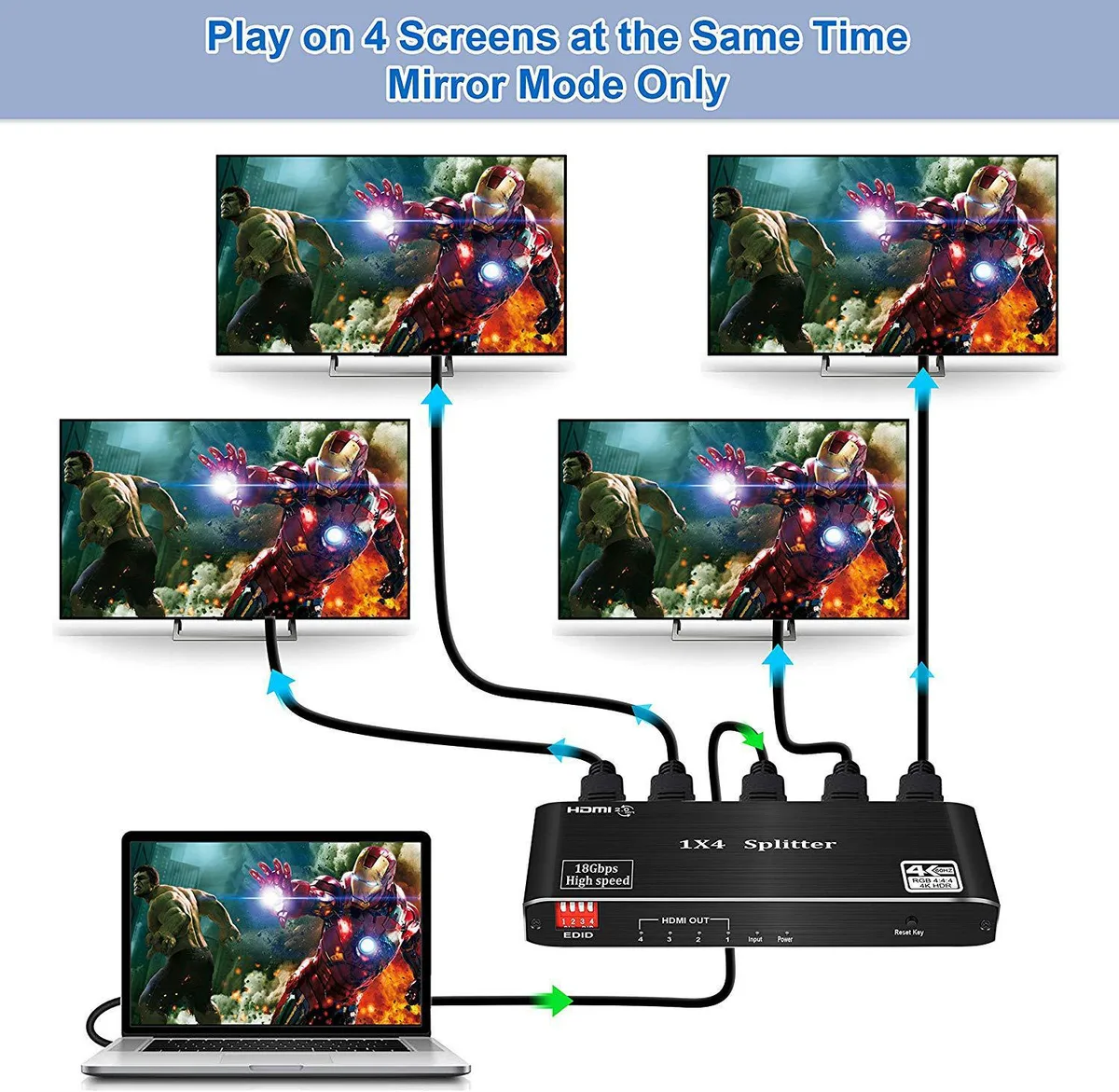

  • Distributes one HDMI source to four identical displays simultaneously
  • Delivers 4K resolution at 60 Hz with 18.2 Gbps bandwidth
  • Supports HDCP 2.2 for protected 4K content playback
  • Handles 12-bit deep colour, 3D and HDR10 video formats
  • Regenerates signal for cable runs up to 25 metres at 1080p

Signal Distribution

The LUOM OZF3 is a 1x4 HDMI 2.0b splitter that duplicates one HDMI source across four displays simultaneously. It supports video resolutions up to 3840 x 2160 at 60 Hz with 18.2 Gbps bandwidth. Audio formats include standard, DSD and HD (HBR) audio. The unit is HDCP 2.2 and 1.4 compliant for protected content playback. It does not support extended desktop modes; every screen shows the same image.

Resolution Match Requirement

All four connected displays must share the same native resolution for stable operation. The splitter handles 480i, 480p, 576i, 576p, 720p, 1080i, 1080p and 2160p signals. It also passes 12-bit Deep Colour, Full 3D and HDR10 metadata. EDID data is stored in 512 byte on-chip RAM for the input port. Mixed-resolution setups will not function correctly.

Cable Length Limits

Signal integrity over distance depends on resolution. At 1080p the input cable can reach 26 ft and each output up to 50 ft using AWG26 cable. At 4K the input limit drops to 26 ft and outputs to 50 ft. The 600 MHz frequency range and 18.2 Gbps bandwidth maintain quality within these ranges. Longer runs or higher resolutions require active cables or fibre extenders not included here.

Highlights

  • Distributes one HDMI source to four identical displays simultaneously
  • Delivers 4K resolution at 60 Hz with 18.2 Gbps bandwidth
  • Supports HDCP 2.2 for protected 4K content playback
  • Handles 12-bit deep colour, 3D and HDR10 video formats
  • Regenerates signal for cable runs up to 25 metres at 1080p

Specifications

BrandLUOM
SeriesOZF3
ModelOZF3
Part NumberOZF3
TypeHDMI Splitters
Changer TypeHDMI
Ports4
AudioYes
ColorBlack
SpecificationsHDMI 2.0band HDCP 2.2,4K@60Hz 4 port HDMI splitter 1x4 with RGB 4:4:,3D, HDR10 and EDID mode.
Wide Frequency Range: 25MHz-600MHz.
Supports high resolutions up to 4K×2K @60Hz including 480i, 480p, 576i, 576p,720p,1080i,1080p,2160p.
Supports jitter Clean capability for more cascadable stages.
Supports 12-bit Deep Full HD, Full 3D and 4Kx2K@ 60Hz video.
Supports standard Audio,DSD Audio and HD(HBR)Audio.
Supports HDCP 1.4 to HDCP2.2 conversion.
Supports HDCP 2.2 to HDCP1.4 conversion.

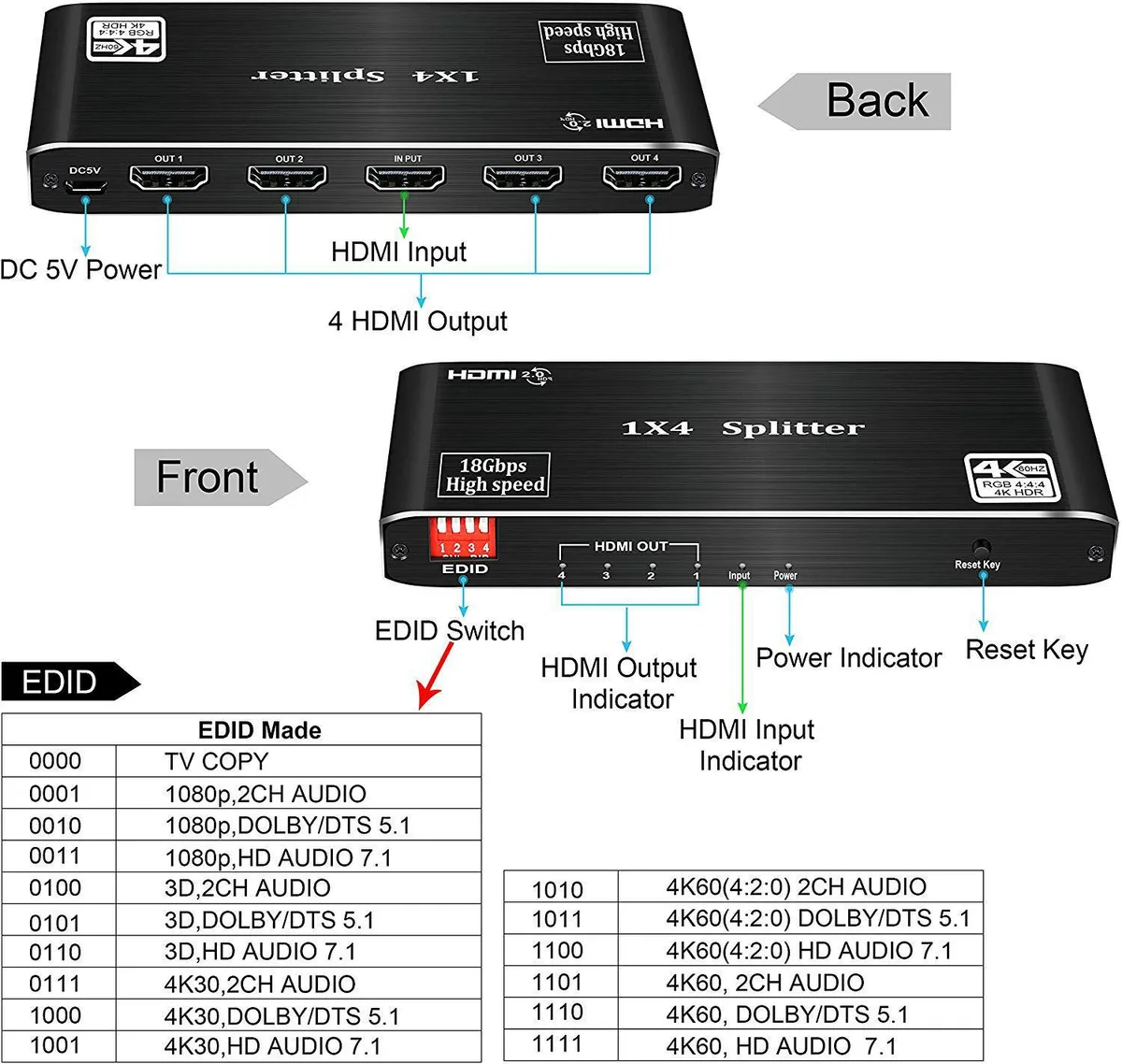

Supports on-chip 512 byte E-DDC EDID RAM for input port.
Supports hot plug-play.
Support 18.5 Gbps rate
Input Connector1 HDMI
Output Connector4 HDMI
Maximum Resolutions3840 x 2160
Bandwidth18.2Gbps
FeaturesHDMI Splitter 1 in 4 out : 1x4 HDMI Splitter distributes audio and video signal from one single Hdmi source to 4 different HDMI displays simultaneously without lag or signal loss.(NOTE:Extended desktop NOT supported,each screen show the same images)
4K Crystal Clear Picture :4 way Hdmi Splitter supports full HD 1080P and 3D resolutions, it can reach up to 4K@60Hz, worked perfectly with computer, laptop, PS3 game, Blu-ray DVD, tablet pc, projectors, full HD TVs, etc. Please make sure the resolution of all output devices is the same to ensure normal operation.Continuously upgrading tec
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package ContentsHDMI Splitter x1
User Instruction x1
Power Adapter x1

Questions about this item

How does the 4K@60Hz rating work when the splitter feeds four screens at once?

The unit duplicates the single 3840×2160@60Hz source to all four outputs simultaneously; every display shows the identical image at that resolution and refresh rate.

What does the HDMI 2.0b / HDCP 2.2 combination allow or restrict in practice?

The 18.2 Gbps bandwidth carries 4K@60Hz 4:4:4 video with HDR10 and 12-bit deep colour, while HDCP 2.2 lets protected 4K streams pass — older HDCP 1.4 sources also work.

What space and power are needed to mount the 5.59×3.15×1.26 in enclosure?

The aluminium case fits in a 5.6×3.2 in footprint and draws power from the included 5 V adapter; no rack ears or special brackets are required.
