Black rectangular HDMI splitter with one input and four output ports

LUOM

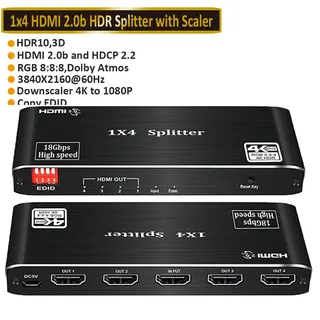

LUOM OZF3 1x4 HDMI 2.0b Splitter 4K@60Hz 18.2Gbps

SKU CH-YGPE-ZD4C1

One HDMI source is duplicated to four identical 4K@60Hz displays with 18.2 Gbps bandwidth and HDR10 support

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports4
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI 2.0band HDCP 2.2,4K@60Hz 4 port HDMI splitter 1x4 with
  • Distributes one HDMI source to four identical displays simultaneously
  • Supports 4K resolution at 60 Hz with 18.2 Gbps bandwidth
  • Handles 12-bit deep colour, full 3D and HDR10 video formats
  • HDCP 1.4 and 2.2 compliance protects premium content playback
  • Powered design regenerates signal for cable runs up to 25 metres at 1080p

What it does

The LUOM OZF3 is a 1x4 HDMI 2.0b splitter that takes one HDMI source and mirrors it to four identical displays at up to 4K@60Hz with 18.2Gbps bandwidth. It supports HDCP 1.4 and 2.2, HDR10, 12-bit deep colour, 3D and standard or high-bit-rate audio formats. A built-in 512-byte EDID RAM helps maintain handshake stability across all outputs. The unit is powered and includes a power adapter in the box.

Who it suits and who it does not

Installers needing the same 4K@60Hz image on four screens — such as digital-signage walls, classroom projectors or multi-monitor gaming mirrors — will find this fits. It does not support extended-desktop modes, so users who want independent content on each display should look elsewhere. Buyers needing more than four outputs or higher refresh rates at 4K will also need a different solution.

Sustained-load behaviour

The splitter regenerates the HDMI signal, allowing 1080p input runs up to 50ft and output runs up to 82ft with AWG26 cable, while 4K signals reach 26ft input and 50ft output. Rated for a 25MHz–600MHz frequency range, it maintains the 18.2Gbps link continuously without the signal drop-off that can appear on passive long-cable runs. The metal enclosure aids heat dissipation during always-on operation.

Highlights

  • Distributes one HDMI source to four identical displays simultaneously
  • Supports 4K resolution at 60 Hz with 18.2 Gbps bandwidth
  • Handles 12-bit deep colour, full 3D and HDR10 video formats
  • HDCP 1.4 and 2.2 compliance protects premium content playback
  • Powered design regenerates signal for cable runs up to 25 metres at 1080p

Specifications

BrandLUOM
SeriesOZF3
ModelOZF3
Part NumberOZF3
TypeHDMI Splitters
Changer TypeHDMI
Ports4
AudioYes
ColorBlack
SpecificationsHDMI 2.0band HDCP 2.2,4K@60Hz 4 port HDMI splitter 1x4 with RGB 4:4:,3D, HDR10 and EDID mode.
Wide Frequency Range: 25MHz-600MHz.
Supports high resolutions up to 4K×2K @60Hz including 480i, 480p, 576i, 576p,720p,1080i,1080p,2160p.
Supports jitter Clean capability for more cascadable stages.
Supports 12-bit Deep Full HD, Full 3D and 4Kx2K@ 60Hz video.
Supports standard Audio,DSD Audio and HD(HBR)Audio.
Supports HDCP 1.4 to HDCP2.2 conversion.
Supports HDCP 2.2 to HDCP1.4 conversion.

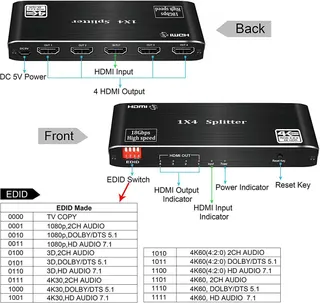

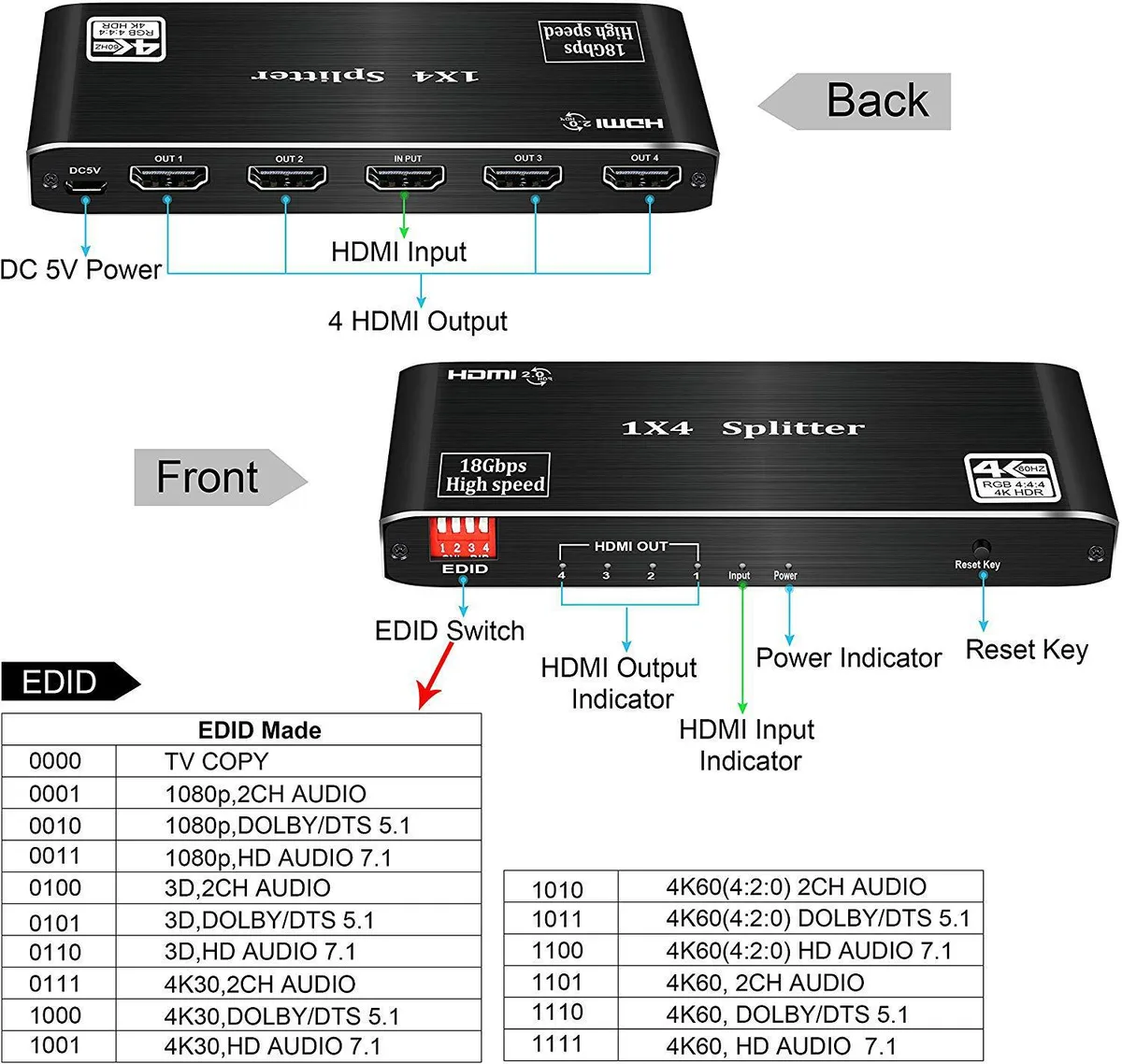

Supports on-chip 512 byte E-DDC EDID RAM for input port.
Supports hot plug-play.
Support 18.5 Gbps rate
Input Connector1 HDMI
Output Connector4 HDMI
Maximum Resolutions3840 x 2160
Bandwidth18.2Gbps

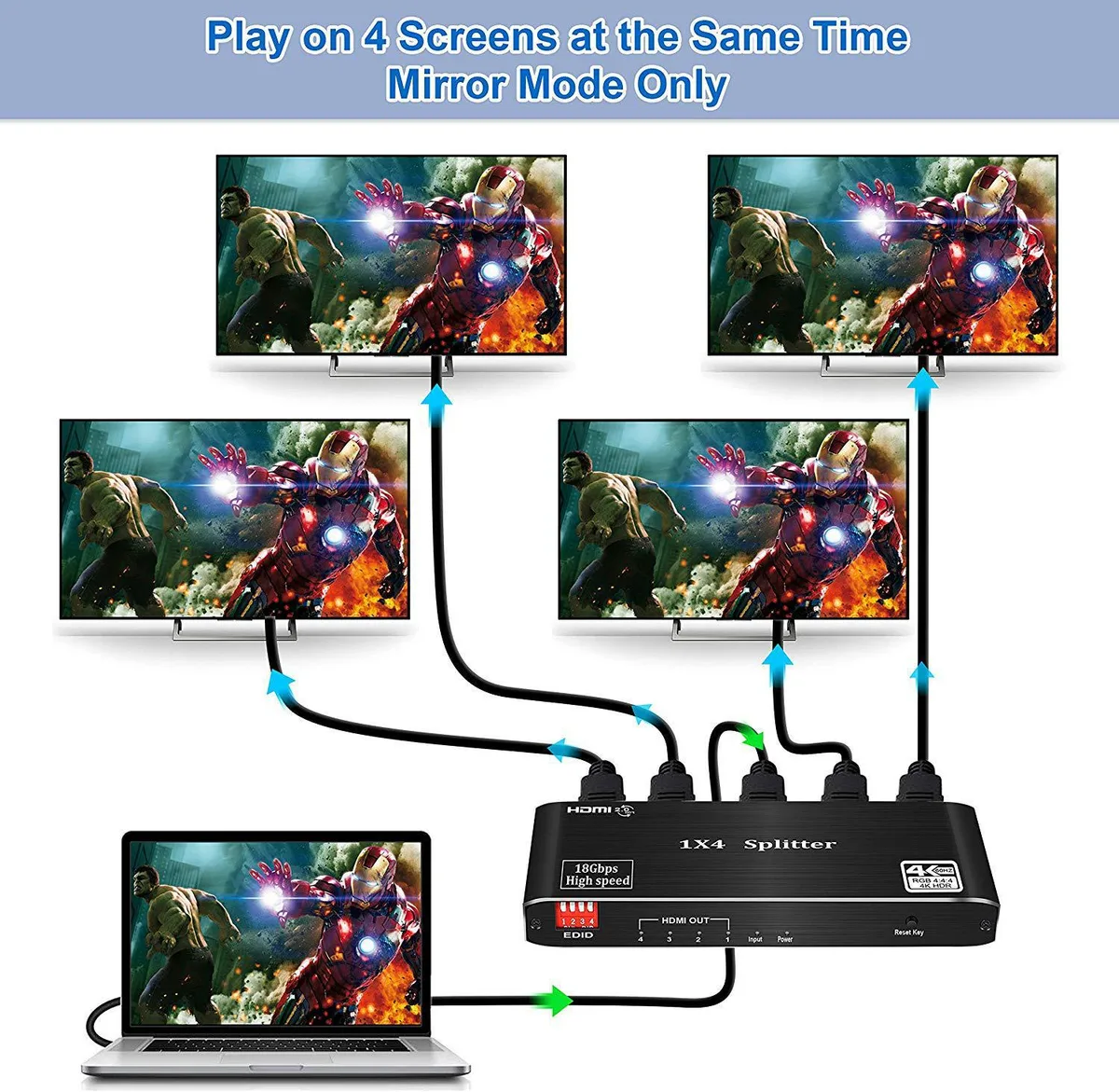

FeaturesHDMI Splitter 1 in 4 out : 1x4 HDMI Splitter distributes audio and video signal from one single Hdmi source to 4 different HDMI displays simultaneously without lag or signal loss.(NOTE:Extended desktop NOT supported,each screen show the same images)
4K Crystal Clear Picture :4 way Hdmi Splitter supports full HD 1080P and 3D resolutions, it can reach up to 4K@60Hz, worked perfectly with computer, laptop, PS3 game, Blu-ray DVD, tablet pc, projectors, full HD TVs, etc. Please make sure the resolution of all output devices is the same to ensure normal operation.Continuously upgrading tec
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package ContentsHDMI Splitter x1
User Instruction x1
Power Adapter x1

Questions about this item

Does the splitter need its own power supply to run?

Yes, a power adapter is included and the unit must be plugged in to operate.

Will the LUOM OZF3 downscale 4K@60Hz to 1080p for an older display?

No, all four outputs mirror the same resolution so every connected screen must support the source signal.

How can I confirm the splitter is passing a 4K@60Hz signal correctly?

Check that each display reports 3840×2160 at 60 Hz and that audio plays on all four outputs simultaneously.
