Black rectangular HDMI splitter with four output ports

LUOM

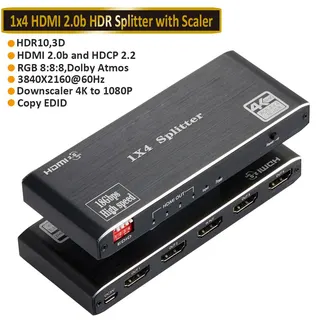

LUOM OZF3 1x4 HDMI 2.0 Splitter 4K@60Hz 18.2Gbps

SKU CH-BV63-65XZ0

Distributes one HDMI source to four displays simultaneously at 4K@60Hz with 18.2Gbps bandwidth and HDCP 2.2 support

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports4
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI 2.0band HDCP 2.2,4K@60Hz 4 port HDMI splitter 1x4 with
  • One source feeds four displays simultaneously with identical audio and video
  • 4K at 60 Hz resolution supported with 18.2 Gbps bandwidth
  • HDCP 2.2 and 1.4 compliance protects premium content across all outputs
  • EDID management via 512 byte RAM ensures stable handshake with every connected screen
  • Signal regeneration extends 1080p runs to 50 ft input and 82 ft output

Splitter 1x4 HDMI 2.0b

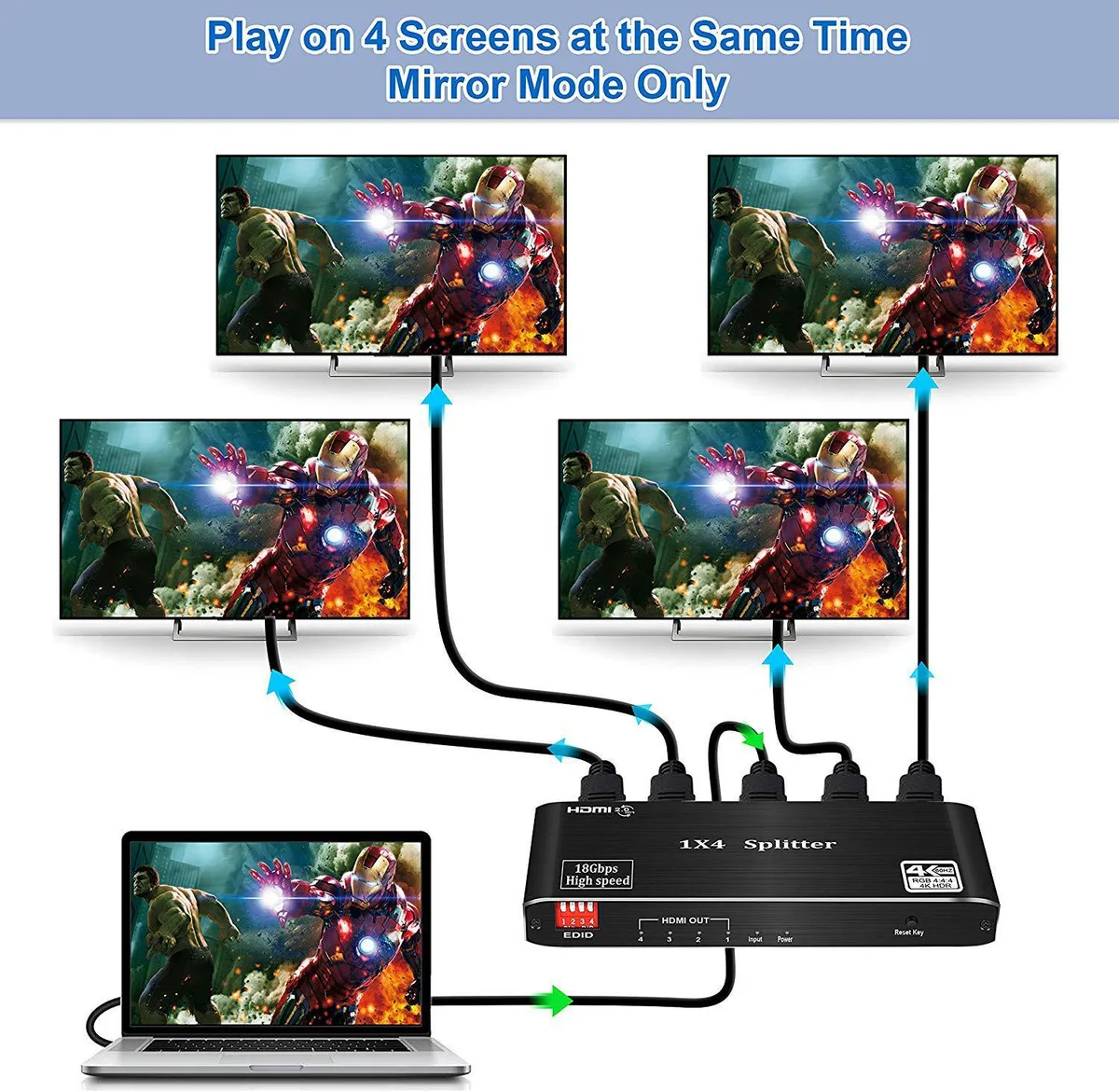

The LUOM OZF3 is a 1x4 HDMI 2.0b splitter that takes a single HDMI source and duplicates the signal to four identical outputs. It supports video resolutions up to 3840 x 2160 at 60 Hz and handles 18.2 Gbps bandwidth. The unit also passes standard audio, DSD audio and HD HBR audio formats. It is built for users who need the same image on multiple screens simultaneously.

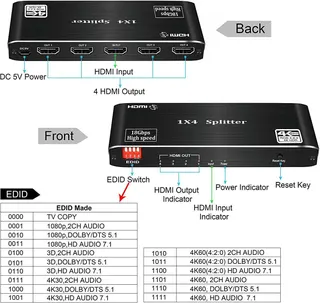

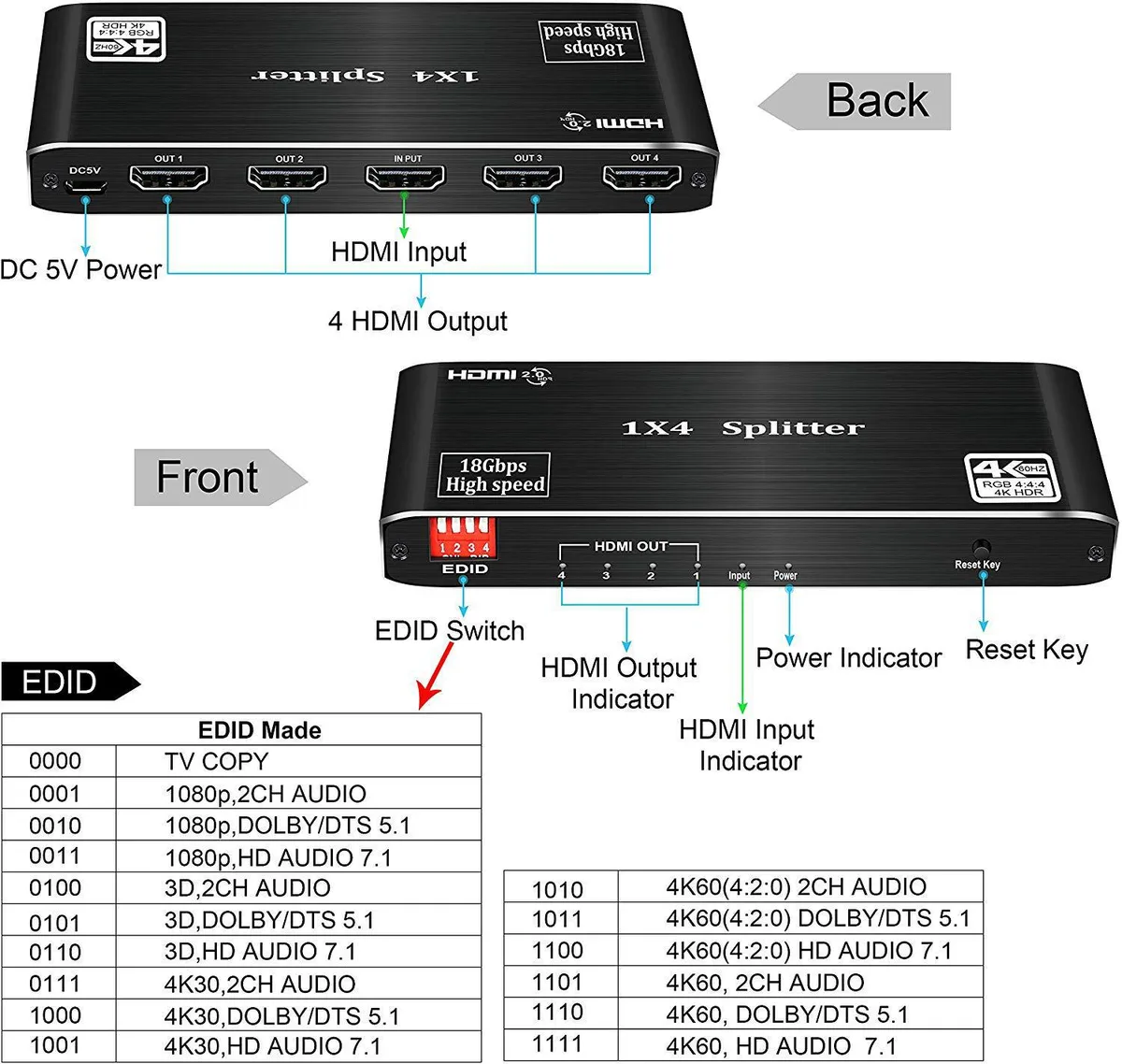

Build integration: power and cabling

The splitter requires the included power adapter to operate and provides one HDMI input plus four HDMI outputs. It can sit at the end of a long HDMI cable to regenerate the signal before distribution. With AWG26 cable the input reaches 26 ft at 4K and 50 ft at 1080p, while each output reaches 50 ft at 4K and 82 ft at 1080p. All connected displays must share the same resolution for correct operation.

Sustained signal stability

On-chip 512 byte E-DDC EDID RAM manages handshake data continuously, keeping the link stable during extended sessions. HDCP 1.4 and HDCP 2.2 compliance ensures protected content plays without interruption across all four outputs. The 25 MHz to 600 MHz frequency range supports deep colour 12-bit, full 3D and HDR10 without signal degradation over time.

Highlights

  • One source feeds four displays simultaneously with identical audio and video
  • 4K at 60 Hz resolution supported with 18.2 Gbps bandwidth
  • HDCP 2.2 and 1.4 compliance protects premium content across all outputs
  • EDID management via 512 byte RAM ensures stable handshake with every connected screen
  • Signal regeneration extends 1080p runs to 50 ft input and 82 ft output

Specifications

BrandLUOM
SeriesOZF3
ModelOZF3
Part NumberOZF3
TypeHDMI Splitters
Changer TypeHDMI
Ports4
AudioYes
ColorBlack
SpecificationsHDMI 2.0band HDCP 2.2,4K@60Hz 4 port HDMI splitter 1x4 with RGB 4:4:,3D, HDR10 and EDID mode.
Wide Frequency Range: 25MHz-600MHz.
Supports high resolutions up to 4K×2K @60Hz including 480i, 480p, 576i, 576p,720p,1080i,1080p,2160p.
Supports jitter Clean capability for more cascadable stages.
Supports 12-bit Deep Full HD, Full 3D and 4Kx2K@ 60Hz video.
Supports standard Audio,DSD Audio and HD(HBR)Audio.
Supports HDCP 1.4 to HDCP2.2 conversion.
Supports HDCP 2.2 to HDCP1.4 conversion.
Supports on-chip 512 byte E-DDC EDID RAM for input port.
Supports hot plug-play.
Support 18.5 Gbps rate
Input Connector1 HDMI
Output Connector4 HDMI
Maximum Resolutions3840 x 2160
Bandwidth18.2Gbps
FeaturesHDMI Splitter 1 in 4 out : 1x4 HDMI Splitter distributes audio and video signal from one single Hdmi source to 4 different HDMI displays simultaneously without lag or signal loss.(NOTE:Extended desktop NOT supported,each screen show the same images)
4K Crystal Clear Picture :4 way Hdmi Splitter supports full HD 1080P and 3D resolutions, it can reach up to 4K@60Hz, worked perfectly with computer, laptop, PS3 game, Blu-ray DVD, tablet pc, projectors, full HD TVs, etc. Please make sure the resolution of all output devices is the same to ensure normal operation.Continuously upgrading tec
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package ContentsHDMI Splitter x1
User Instruction x1
Power Adapter x1

Questions about this item

How far can I run a 4K 60 Hz signal on the input and output cables?

With AWG26 HDMI cable the input run can reach 26 ft and each output run up to 50 ft at 4K 60 Hz.

Does the unit get hot or need active cooling when all four outputs run continuously?

The splitter is passively cooled and draws power from the included adapter; no fan is fitted so it runs silently under sustained load.

What cables and power source are required to connect a single source to four displays?

You need five HDMI cables — one for the source and one per display — plus the supplied power adapter for the splitter itself.
